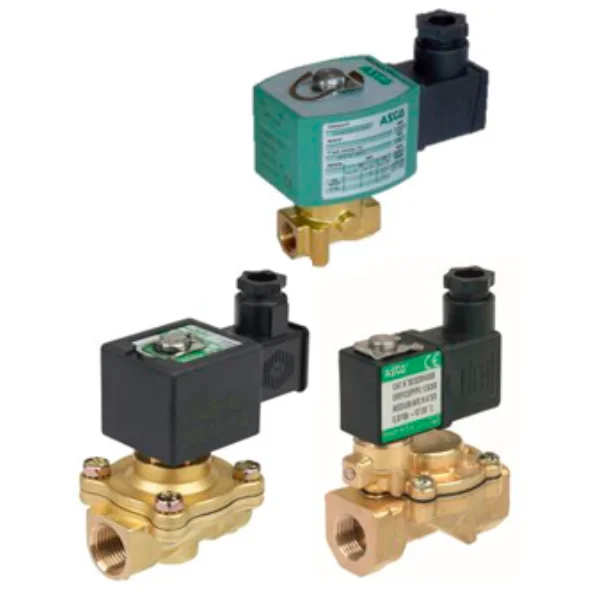

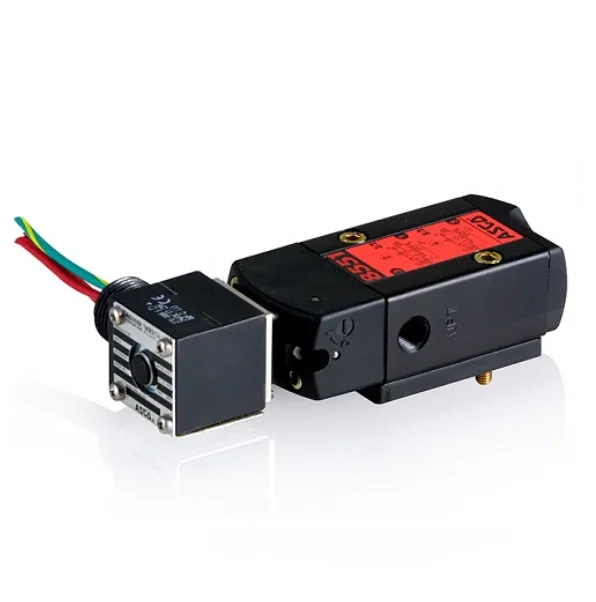

Hot sell 4 Way: Solenoid Valve 4/2 - ASCO Series 344 solenoid valve 24v
ASCO's 2-Way solenoid valves have one inlet and one outlet, and are used to permit and shut off fluid flow. The two types of operations are Normally Closed (NC) and Normally Open (NO). Two types of constructions apply to 2-way solenoid valves, which are direct acting and internally piloted. With Direct acting constructions, the solenoid is energised, the core directly opens the orifice of a Normally Closed valve or closes the orifice in a Normally Open Valve. The valve will operate at pressures from 0 bar to its rated maximum. Internally piloted constructions use line pressure to assist operation. When the coil is de-energised (on a Normally Closed Valve), the pilot orifice is closed and line pressure is applied to the top of the piston or diaphragm through the bleed orifice, closing the valve. ASCO 3-Way Solenoid Valves have three pipe connections and two orifices. When one orifice is open, the other is closed and vice versa. They are commonly used to alternately apply pressure to an exhaust pressure from a valve actuator or a single acting cylinder. These valves can be normally closed, normally open or universal. ASCO 4-Way Solenoid Valves have four or five pipe connections, commonly called ports. One pressure inlet, two cylinder ports providing pressure to the double acting cylinder or actuator and one or two outlets to exhaust pressure from the cylinders. They have three types of construction, single solenoid, dual solenoid or single air operator. Please see below our wide selection of ASCO General service valves.
Specifications
Pressure Range
5-100 psi (35-700 kPa), (0.35-7 bar)
Certifications
PED, CUTR, ATEX
Inlet Pressure Rating
210 psi (1.5 MPa, 15 bar) maximum
Operating Temperature
Standard Temperature
Connection
SOLENOID
Application
Gas& Oil industry
Special features
* Piston-operated poppet design provides high flow * Pilot operated * Single or dual solenoid constructions * Dual solenoid can be shifted with a momentary signal even if electrical power is lost * Also available in Low Power, Intrinsically Safe, Voltage Ranging and Long Life constructions
Detailed Images
Packing & Delivery
We can delivery the cargo to transport company within 7 days upon receiving of the cargos from the plant
Our Service
1.Swift delivery For common parts, we can deliver the goods within 3 days
2.Original products All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.
3.Quality Assurance
4.Technical Support Including inspection,repair and maintenance, we can give all kinds of technical support.
5.Quickly responce Our staffs will keep 24h online and answer your question very quickly.
