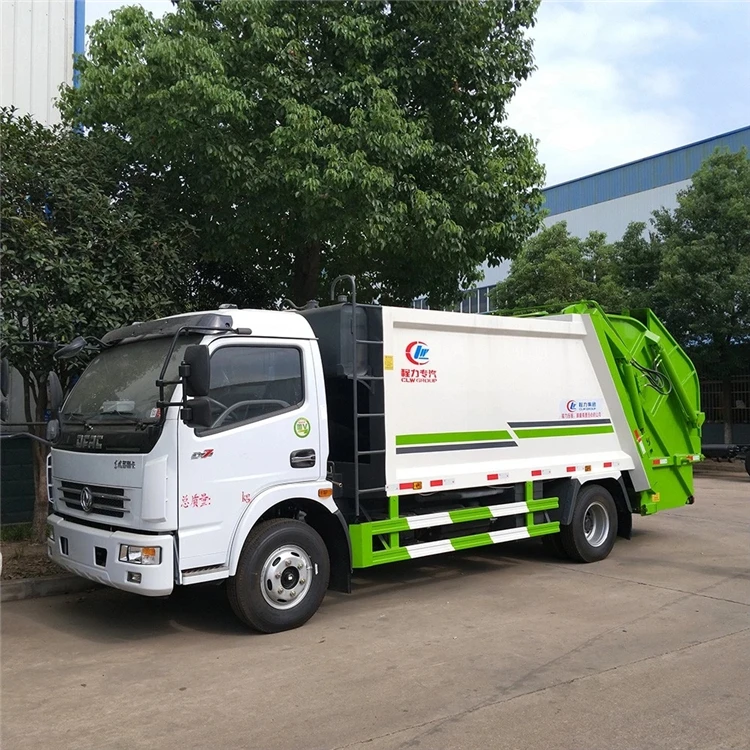

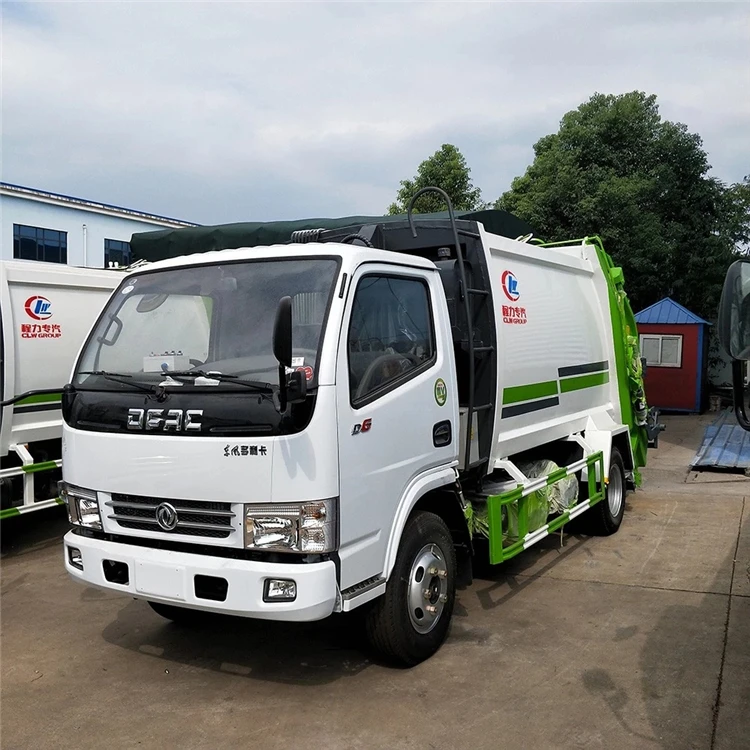

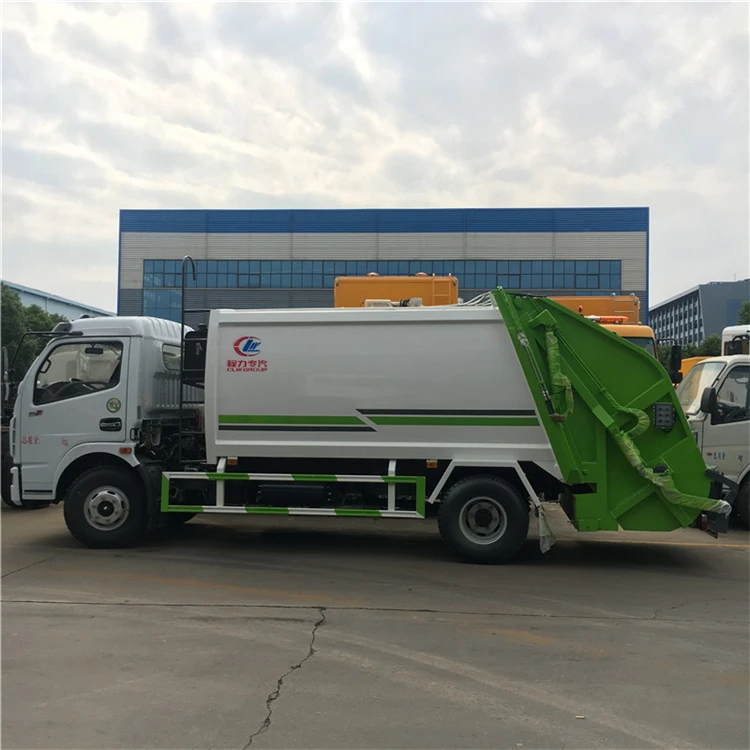

CLW Dongfeng 4x2 120hp 3 тонны уплотнитель мусора отходов транспортная тележка
- Category: Municipal & Environmental Machinery >>>
- Supplier: Chengli Special Automobile Co. Ltd.
Share on (62366249163):
Product Overview
Description

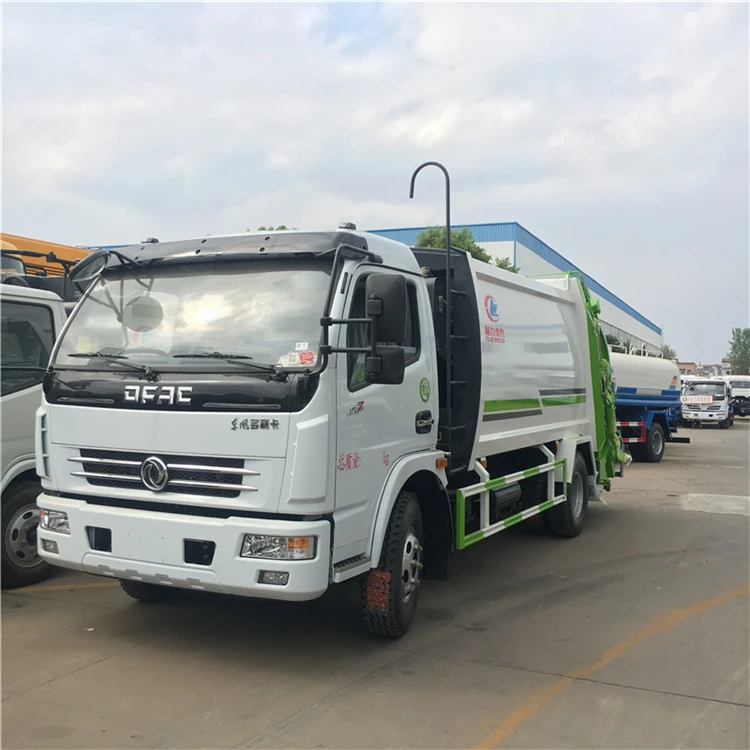

CLW Dongfeng 4x2 130hp 3 ton compactor garbage waste transport truck small
Product Description
6-8 m3 capacity Compactor garbage truck
(1) Dongfeng 4x2 chassis,single row flat cab, left or right hand drive with AC;Euro III emission
(2) 2 Axle, hub reduction, heavy duty
(3) Chaochai 4 cylinder 120HP diesel engine,
(4) 5 transmission gear box;Power steering, automatically air-cut brake, 7.50-16 tire
(5) Certification: ISO9001 CCC,BV
Get the latest quotation,pls contact Ms.Marilyn, WhatsApp and WeChat online: 0086-15907145633
Techinical Sheet of DONGFENG DUOLIKA Compression Garbage Truck For Sale
| Vehicle Name | Compressed Garbage Truck | Chassis model | YLH5050BKE2VA | |
| Weight (kg) | Curb Weight (kg) | 3000 | Overall Size(mm) | 6450x2050x2500 |
| GVW (kg) | 8000 | Wheelbase (mm) | 3800 | |
| Engine | Model | YN38CRE1 | Type | Diesel |
| housePower/Displacemen | 130hp / 3.76L | Manufacturer | YUNNEI | |
| Performance Parameters | Max Speed(km/h) | 85 | Tire size | 8.25R16 |
| Cab | DFAC | No. Of tire | 6 | |
| Passengers | 3 | Leaf Spring No | 8/9+7 | |
| Special Function | Capacity of garbage compartment(m3) | 5 | Fill Hopper capacity(m3) | 0.9 |
| Cycle time of garbage loading(S) | 20-25 | Garbage discharge time(S) | 18-22 | |
| Lifting time of hopper(S) | 6-9 | Max broken compress force(T) | 12 | |
| Max discharge force(T) | 8 | Ground clearance(mm) | 740 | |
| Sewage tank(L) | 140 | Discharge model | Horizontal Ejection | |
| Control system | Electrically Hydraulic Manual hydraulic | Control panel | Chinese English Your language | |
| Standard Configuration | All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual…… | |||
| Upper Body Specification | 1. Compression box volume 6000 L; made by carbon steel plate; side plate is 4mm thickness, base plate is 5mm thickness; 2. The hydraulic control operation system can be controlled by electric and manual, one operation system button installed in the cab, the other operation system button installed at the back of the box; 3. Truck equipped with one key loading operation cycle. 4. The compression ratio can achieve above1:2.5, living garbage after compression can reach more than 600~800Kg/m3; 5. The time of the load operation is less than 30 seconds, unloading operation time is less than 40 seconds; 6. Equipped with imported PLC integrated control. Vehicle electrical, hydraulic system of pipe fittings is imported components. | |||
| Upper Body Option | 1. Back alarm and Camera can be equipped. 2. Italy mulit-valve can be choose. 3. 240L (single bin or double bin) or standard 360L ,660 L, 1100 L bins with bin lifter can be choose. 4. Also can also choose ground hopper and other kinds of loading mechanism. | |||

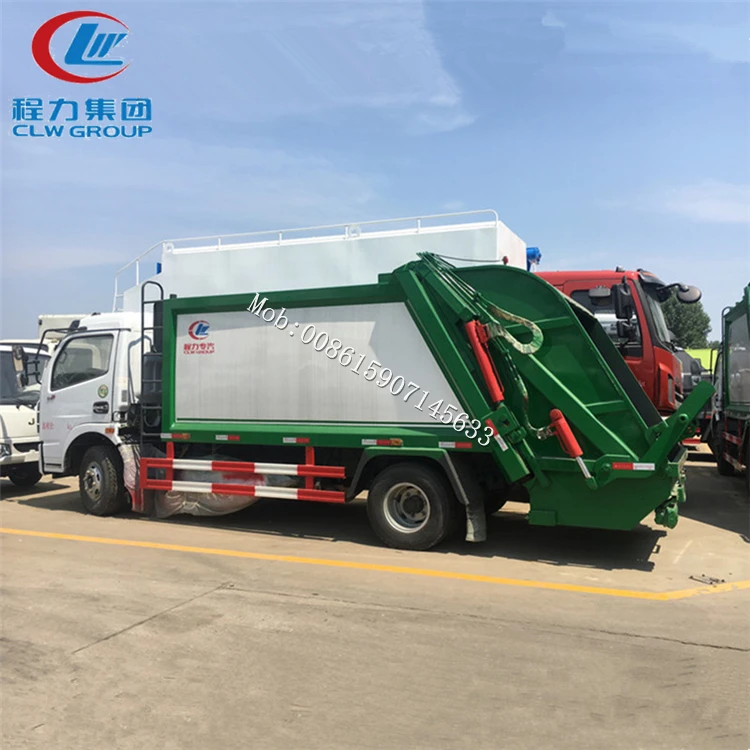

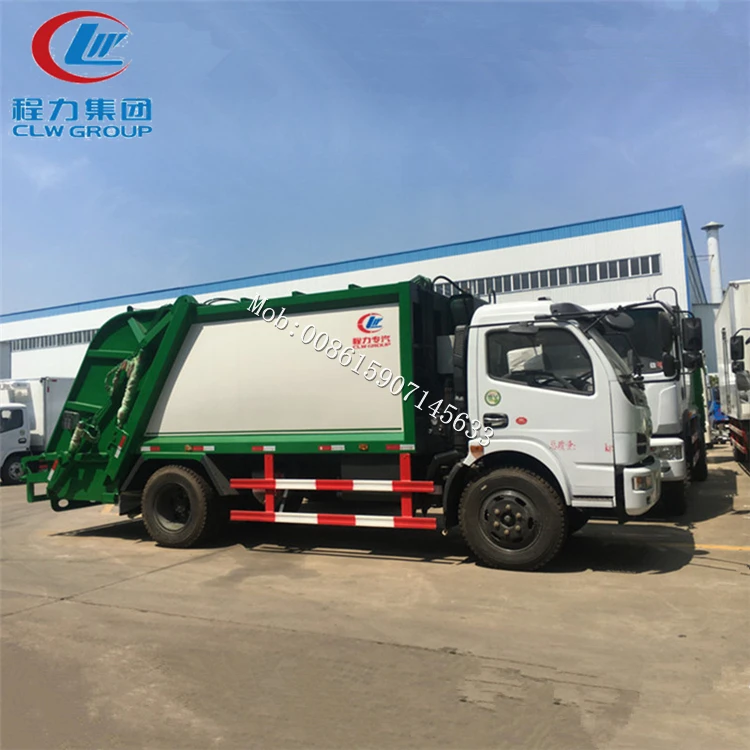

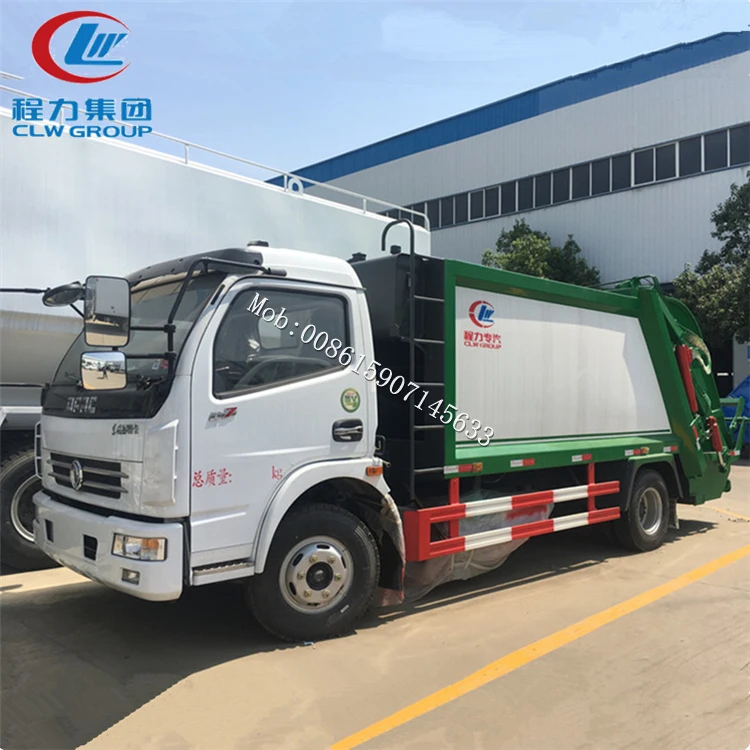

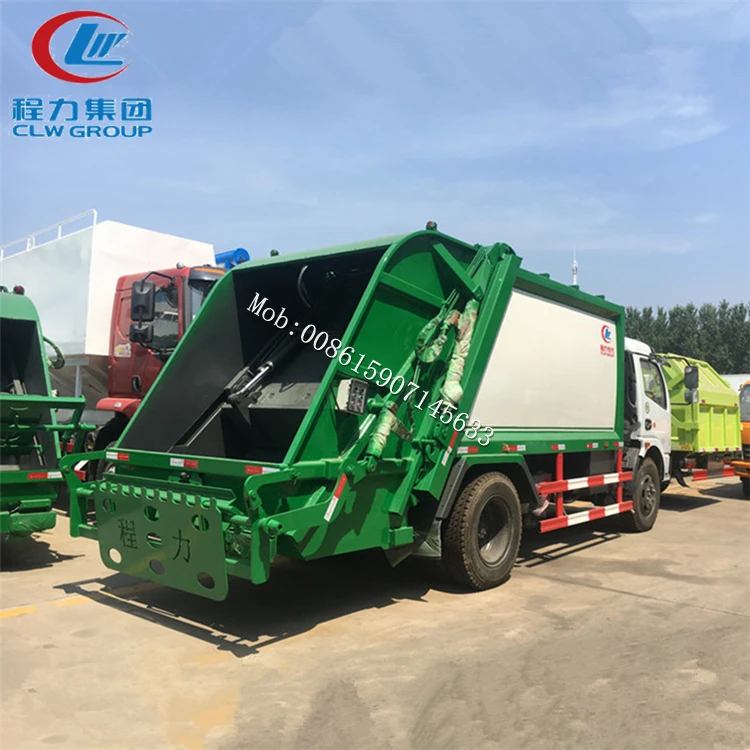

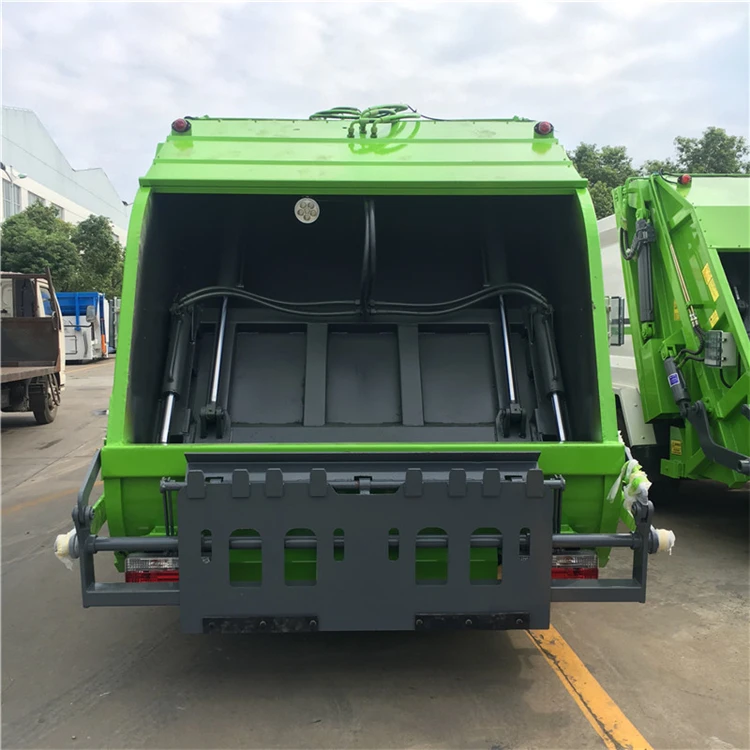

Pictures for DONGFENG DUOLIKA Compression Garbage Truck For Sale

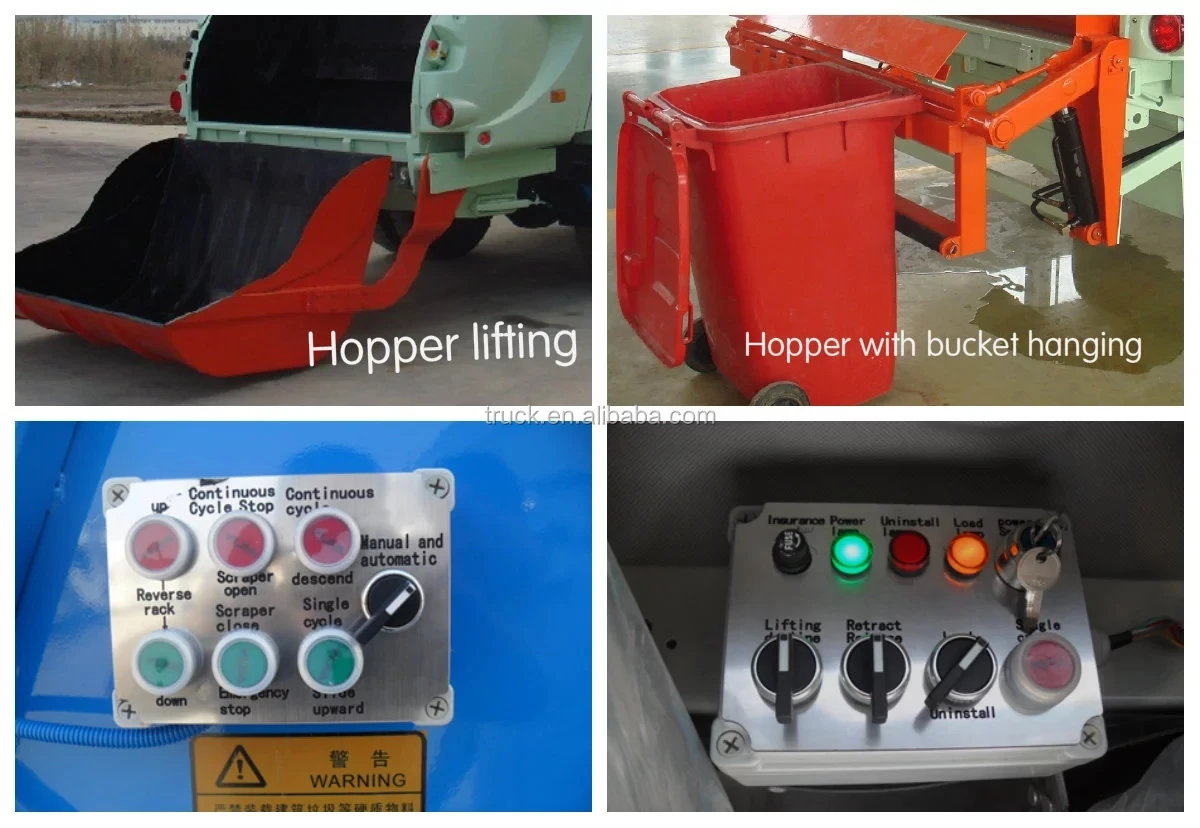

Load operation is less than 30 seconds, unloading operation time is less than 20 seconds;

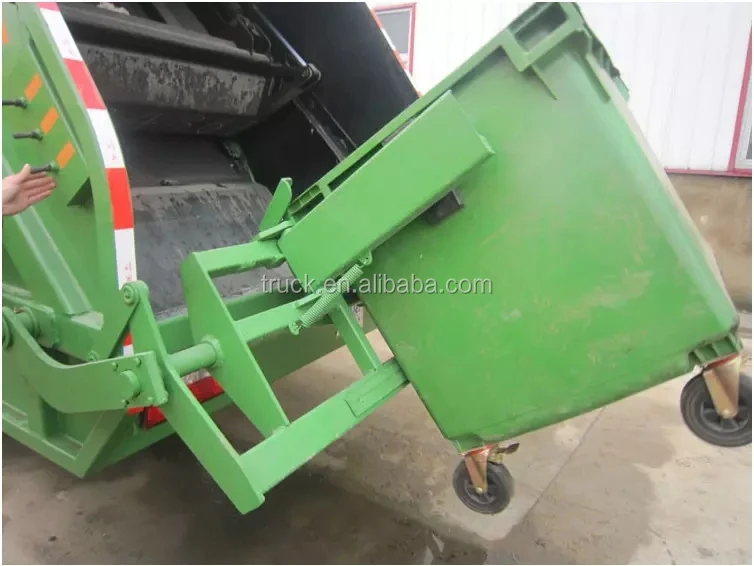

Can choose 240L(single bin,double bins)or 360L,660L,1100L standard bin lifting and turnover mechanism,can also choose ground hopper and other kinds of loading mechanism.
Automatic control-- The hydraulic control operation system can be controlled by electric and manual, one operation system button installed in the cab, the other operation system button installed at the back of the upper body.
Compactor garbage truck Series Key features
---- DONGFENG chassis, best performance(4*2,6*4 brand with JMC,Sinotruck ,Qingling 1SUZU, JAC, Foton and etc available)
---- Cummis diesel engine, super powerful, no overhaul within 100,000 km.
---- Compression body capacity from 3 to 20 Cublic Meter.
---- Easy operation and easy maintenance.
---- Various types of refuse container lifter are available.

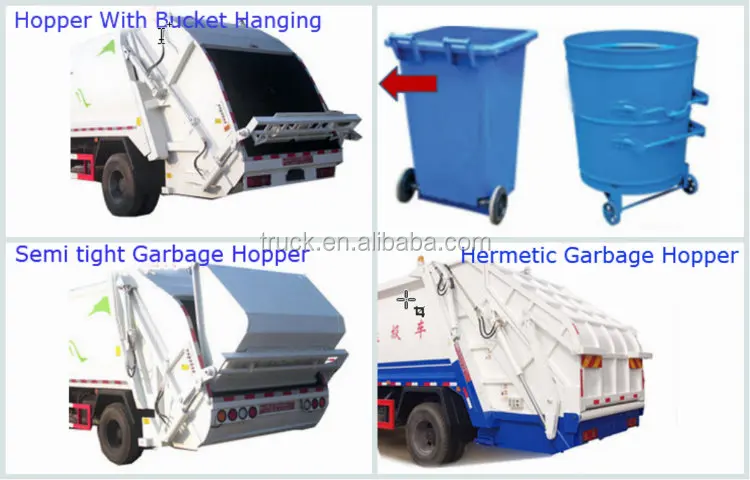

Three types for garbage compactor upper

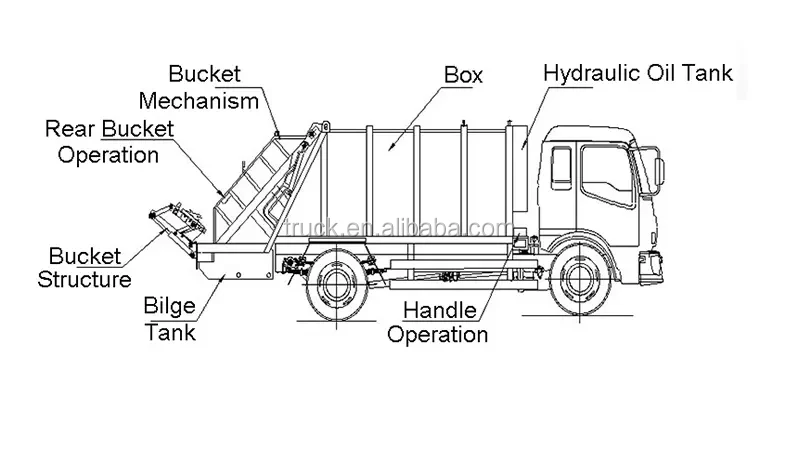

Technical drawing on compactor garbage truck
Related Products
Main Product

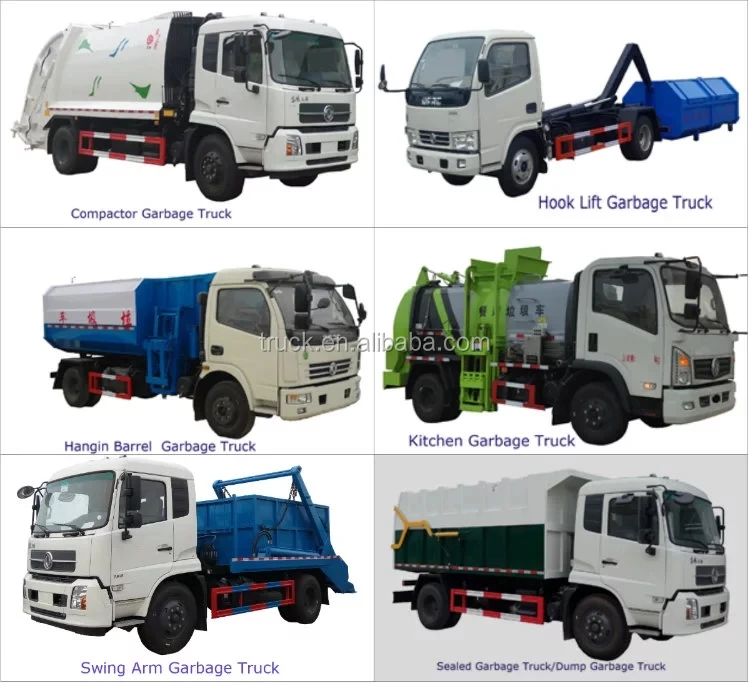

More special automobile we manufacture

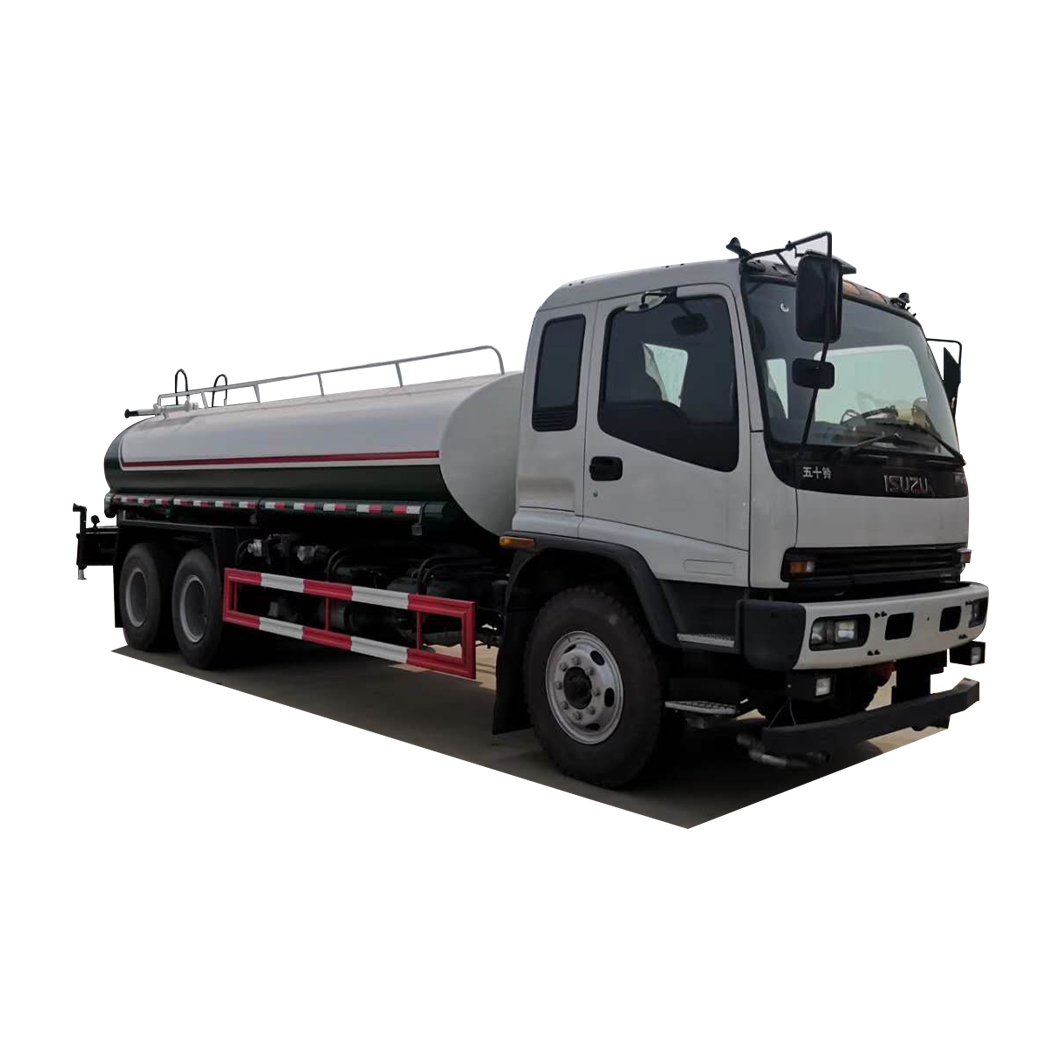

1. Water Tanker/Sprinkler Truck/Pesticide Spraying Truck/Dust Removable Truck
2. Garbage Truck/Garbage Compactor/ Sealed Garbage Truck/ Skip Loader/ Self-loader/ Butt-type Garbage Truck/ Hook Loader
3. Sewage Suction Truck/Fecal Suction Truck/ Sewer Cleaning Truck
4. Aerial Working Truck/ Crane Truck
5. Road Wrecker Truck
6. Road Sweeper Truck
7. Oil tanker/ Refuelling Truck
8. LPG Storage Tanker/LPG Tank Trailer/LPG skid plant station
9. Chemical Liquid Tanker
10. Bulk Cement Tanker
11. Milk Transport Truck
12. Concrete Mixer/ Concrete Pump Truck
13. Tractor Head Truck
14. Asphalt Distributor
15. Fire Fighting Truck
16.Van Truck/ Refrigerator Truck/ Explosion Proof Truck
17. Mobile Stage Truck/ LED Advertising Truck
18. Dump Truck/ Tipper
19. Feed Delivery Truck
20. Semi-trailer/ Flatbed Semi-trailer/ Container Semi-trailer/ Skeleton Semi-trailer/ Low flatbed Semi-trailer/Stake Semi-trailer
Company Information
ChengLi Special Automobile Co.,Ltd, which is appointed by the Development and Reform Committee of China ,is a famous manufacturer producing all kinds of special trucks for Municipal &environmental construction, virescence, petrol & medicals, container. Semi-trailer. Labels registered include CLW and SNJ. Our company has independable export potence, and has a mount of clients overseas. Our leading varieties include more than 100 types of trucks such as Water truck, Fecal suction truck, Garbage truck, Refuse compactor, Sewage suction truck, Fuel tank, High-altitude operation truck, Truck with crane, Dump truck, Instructional truck, Van truck, Semi-trailer, Fire engine, Spares, Refrigerator truck, Water wagon, Tractor, High-altitude water truck, Bulk cement truck, Chemical liquid truck, Concrete mixer truck, ect.
Our Client
Packaging & Shipping
Shipping way:Ro-ro ship,bulk ship,20GP,40GP/HQ/OT/FR both can accept.
FAQ
1.You are manufacturer or trading Company?
We are the manufacturer.we are the biggest special trucks factory in China Special truck Base.
2.How many trucks do you sell in one year?
Almost 20000-30000units.
3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.
4. What is the delivery time?
A lot of models are in stock,order products need 7-30days
5. Where is your factory located,can we visit your factory?
Our factory located in Suizhou city,Hubei Province,China,it's very closed to Wuhan airport.we sincerely welcome you to come!
6. What's the MOQ?How about the shipping way?
MOQ :1 unit.
7. How long is your warranty?
1 year.
Shipping way:Ro-ro ship,bulk ship,20GP,40GP/HQ/OT/FR both can accept.
Marilyn Mo, Sales Manager
E-mail: cltruckmarilyn(@)yahoo.com
cltruck09(@)gmail.com
marilynmo(@)hbclqc.com
Tel: 0086-15907145633
Wechat: 0086-15907145633
Whatsapp: 0086-15907145633
Office Fax: 0086-027-87868746
Skype: marilyn-plane Q Q: 89931892
We Recommend

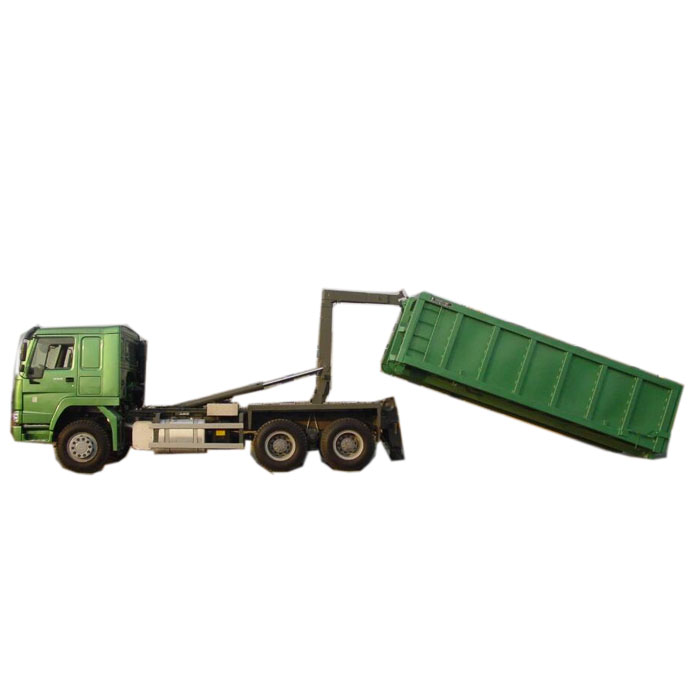

High Quality Hook Bin Lifter Truck Popular in southeast Asia
