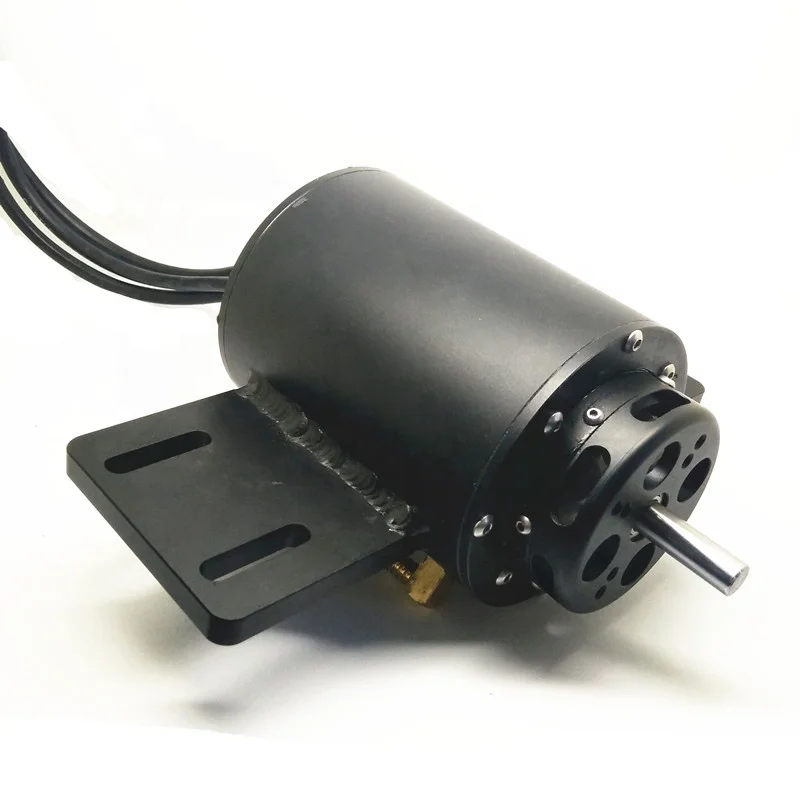

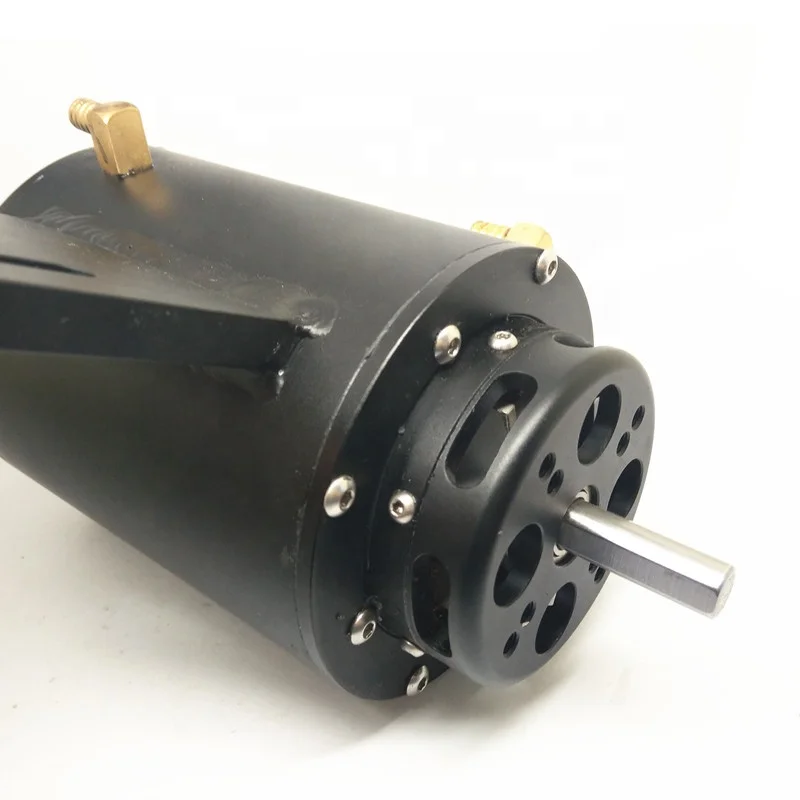

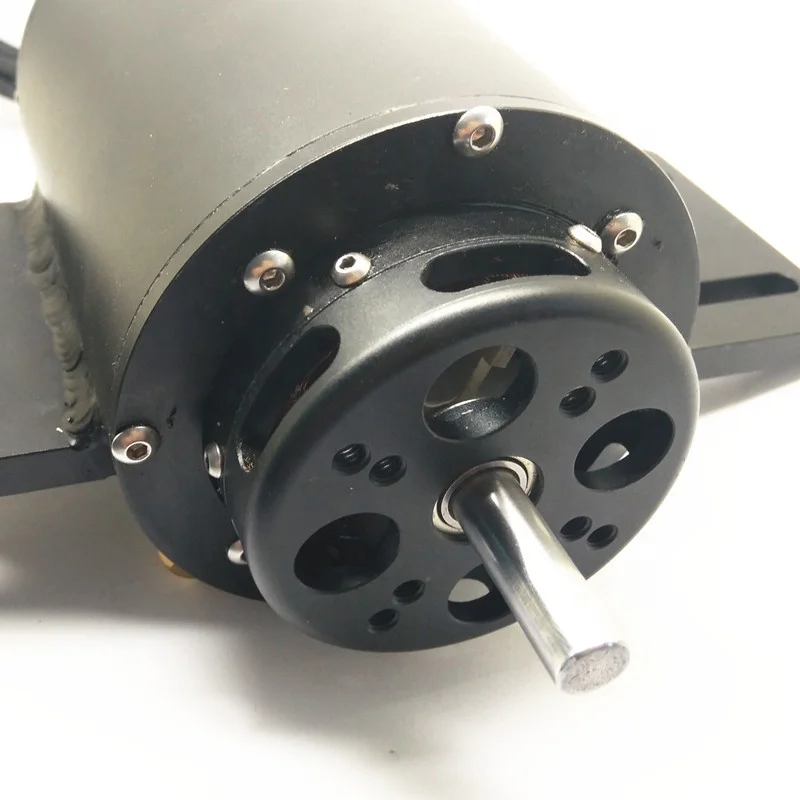

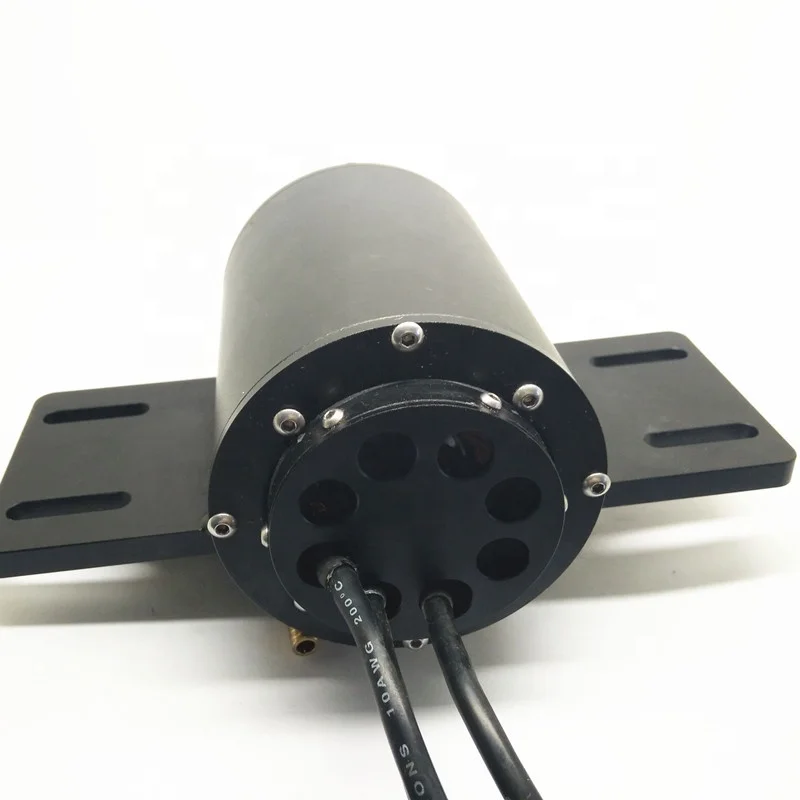

30000rpm high rpm CNC Spindle brushless motor
- Category: >>>
- Supplier: Hangzhou Reacher Technology Co. Ltd.
Share on (62366271029):
Product Overview
Description
30000rpm high rpm CNC Spindle brushless motor
Note: All our products are designed for RC Area, if you are not in this area and don't have the knowledge of brushless dc motor, please Do Not Directly pay before inquiry from us. All of our brushless dc motor need to work together with speed controller, speed controller need to buy by separately.
Product Description

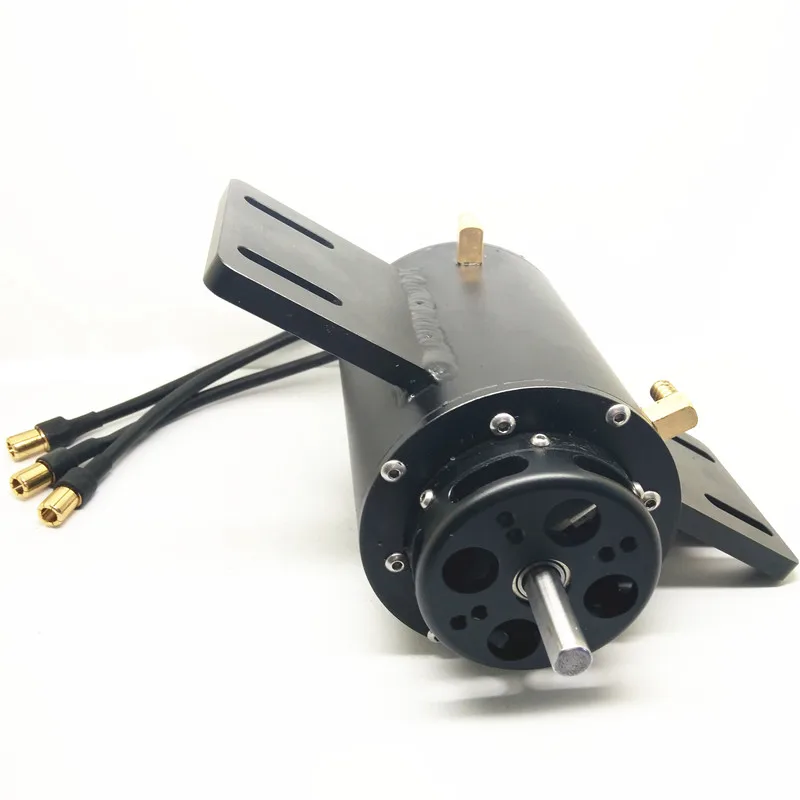

The Reacher Tech 54118 Brushless DC Motor is designed for surfboard, Jet Board,electric foil,surfboard hydrofoil, small boat and so on.
Smaller Size,Space Saving. Lighter Weight, Quick Response. Low Price, High Performance-Price Ratio.
Feature
1.Light, High strength 7075 alloy motor shell with blaster and black anodize,can prevent from Oxidation and corrosion.
2.High quality Imported Japan Brand ball bearing with high energy efficiency and very low noise and vibration.
3.The rotor have good dynamic balance,the vibration of the motor is very low .
4.High performance magnet: 45SH Grade, temperature resistance up to 150 Centigrade .
5.High power density ,High torque, and high efficiency,High RPM .
6.Coated both on the stator and rotor, the motor can be applied in splash water or wet condition.
Product Parameters
| RT Motor | 54118-520KV |
| Motor type | Inner rotor |
| Construction | 12N/4P |
| Winding Turns | 3T-Y |
| Working Voltage | 22-55V |
| Max RPM | 30000 |
| RPM/V | 520 |
| No Load Current | 3.5A |
| @10V | |
| Rated Torque | 1.5N*M |
| Rated Current (A) | 80 |
| Max Efficiency | >90% |
| Dimension(mm) | D76*L118 |
| Shaft Dimension | D8*25mm |
| M4*30+40 | |
| Sensored or Sensorless | Sensorless |
| Max Power(10S) | 7.5KW |
| Max Torque(N*M) | 2.5N*M |
| Max Current (A) | 160 |
| Net Weight (kg) | 1.6 |
| Cooling device | water |
| Ingress protection | IP47 |
OEM/ODM Order question
We can custom made whatever brushless dc motor and servo you want. Before you give us inquirey, please supply below requirements to us, the more details you can offer, the better suggestion we can give.
For the motors please let us know your requirements:
1. Please choose inrunner motor or outrunner motor you need.
2. Do you have motor diameter and length limited?
3. What working voltage you will use for this motor?
4. What's your expected rated power?
5. What's your expected RPM?
6. You battery pack can bear how high peak current?
7. You estimated yearly sales qtys?
8. Do you need the speed controller together or if you have your own speed controller, please let us know the specifications.
9. Other requirements if you need, for example, wire length, connector types and so on.
Contact Us directly via Trade Manager or send us email both ok, we will reply ASAP in 24 hours.
Below our custom made motors for other clients for your information.

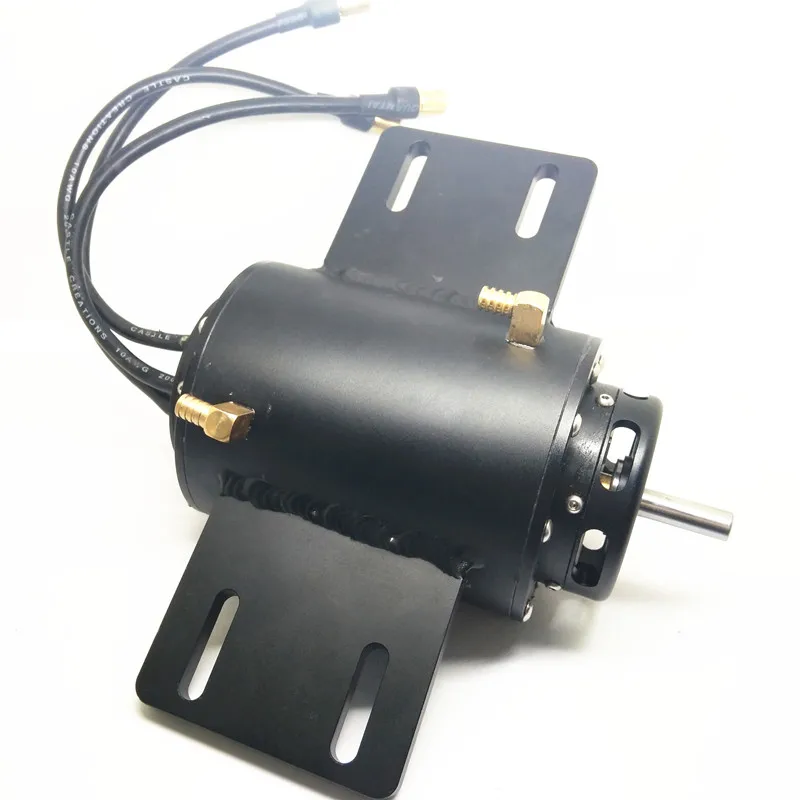

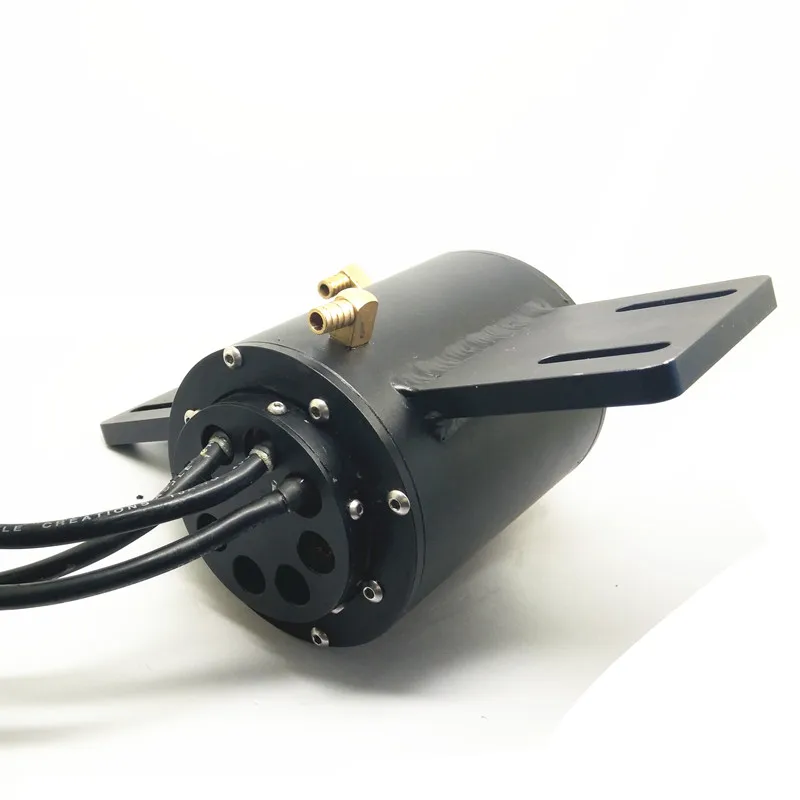

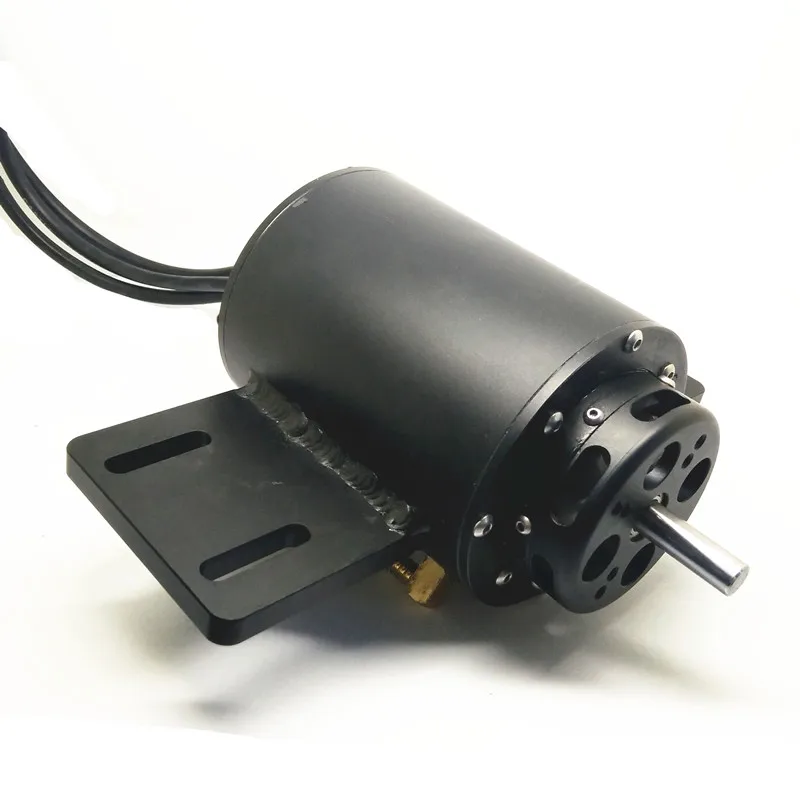

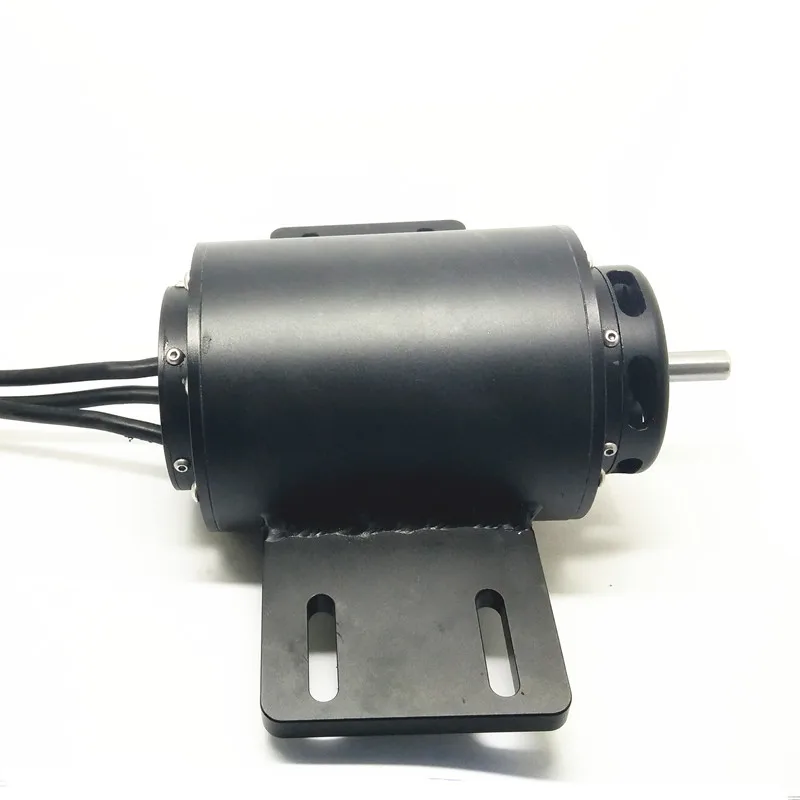

Product Pictures
Product Packing
Our Certificate
Our Factory
About US
Reacher Tech has devoted more than 10 years to the designing, developing and manufacturing the high-tech electronic brushless power systems for RC modelers and Industry Application.
We possess our own intellectual property and powerful R&D, which makes us design and produce products to satisfy customers’ needs (OEM customization service). All of our products can be meet CE and ROHS certification and some had passed Certificates. We’re looking forward to cooperating with global distributors of RC power systems (RC Brushless Motor, Industry brushless motor, Aero ESC, Car ESC, Marine ESC, RC Servos, Industry Servos, etc)
Reacher Tech consists of 3 departments as following at present:
--Brushless Motor and RC Servo Department. Including R&D and manufacture.
--Brushless ESC ( Electronic Speed Controller) Department.Including R&D and manufacture.
--Buyers Office (Searching relative products for clients, like RC Charger, Battery Pack, RC Plane, RC Car, UAV, Drone, Turbojet Plane, etc.
Whatever clients who want us to do the search and do the drop shipping, we are pleasure to do this service for you)
For the purpose of following the latest development of science & technology closely, we are dedicating to enhancing the product details and making continuous improvements in pursuit of the product perfection. Meanwhile, the products with high quality and stability together with professional services will be offered to the customers all the time.
Shipping Advice
Shipping Methods Optional
1.For normal products, we suggest to ship via EMS/UPS/DHL/FEDEX/TNT Express, we will
choose the economic one for you depends on the different discount.
2.For product like motor, servo with magnet inside, China inland express refused to ship magnet
product except to do the extra magnetic inspection. So we always ship via Hongkong DHL, to
save time and cost.
3.For the special product with battery or the pure battery products, as it’s very serious for battery
shipping. We choose the battery special shipping line, every day shipping charge is floating.
4.For big jet plane sample, as the length+(width+height)*2>3m, all the China inland EMS refused
to ship, the only shipping way is via Singapore Post.
5.For Bulk qtys order, we will choose shipping via Air or by sea depends on the final volume and
weight.
