cheap 10.1 inch industrial HMI touch panel pc linux system embedded computer
- Category: >>>
- Supplier: Shenzhen Pontron Technology Ltd.
Share on (62366321419):
Product Overview
Description
cheap 10.1 inch industrial HMI touch panel pc linux system embedded computer
Product Description
Main Feature:
« 10.1’’ industrial touch panel pc running Linux system.
« ARM mother board with Cortex A8 1.0Ghz
« Memory: 512M Bytes DDR3 SDRAM+ 256MB flash
« Aluminum case and Fanless design
« 10.1’’ resistive Touch screen
Introduction:
« IPPC-C1010T is an industrial touch panel PC with 10.1″ high brightness LCD, With resistive touch screen, the latest low-power ARM motherboard, 512M bytes DDR3 SDRAM+Storage device 256M flash. It has extensional storage Mirco SD, Max up to 32G. It comes with 3*RS232, 2*RS485, 2*USB ports(+1* USB slave), 1*LAN, 3G optional ,9V~24V power input ,Smart fanless-design.
« It has Installation methods: Embedded, panel type, wall-mounted, VESA standard etc. and The product structure is very compact and robust with better vibration and resistance.
« IPPC-C1010T is a cost-effective industrial grade touch panel PC, can be widely used in the communication, control terminal of the electric power, manufacturing, finance, traffic monitoring etc.
Specifications:
Front panel uses high-strength Al-alloy with stand blasting oxidation and anti-scratch treatment.
CPU | |
Display | 10.1″high-brightness LCD screen , 250cd/m2 brightness |
Resolution | 1024 × 600 |
Memory | DDRIII 512MB |
Flash | 256 flash |
Network interface | 1x 100Mbps Ethernet controller |

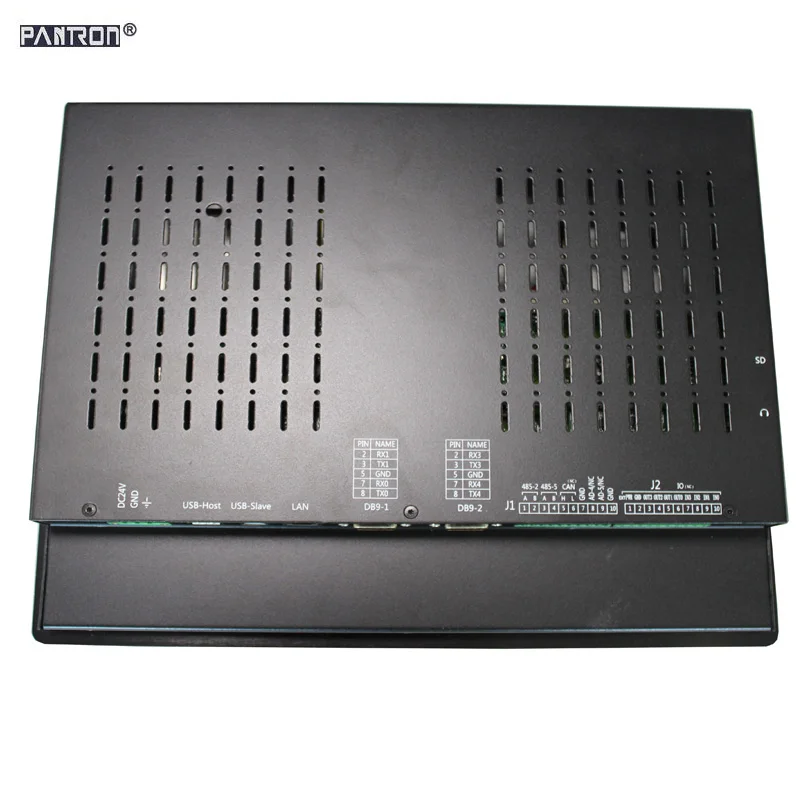

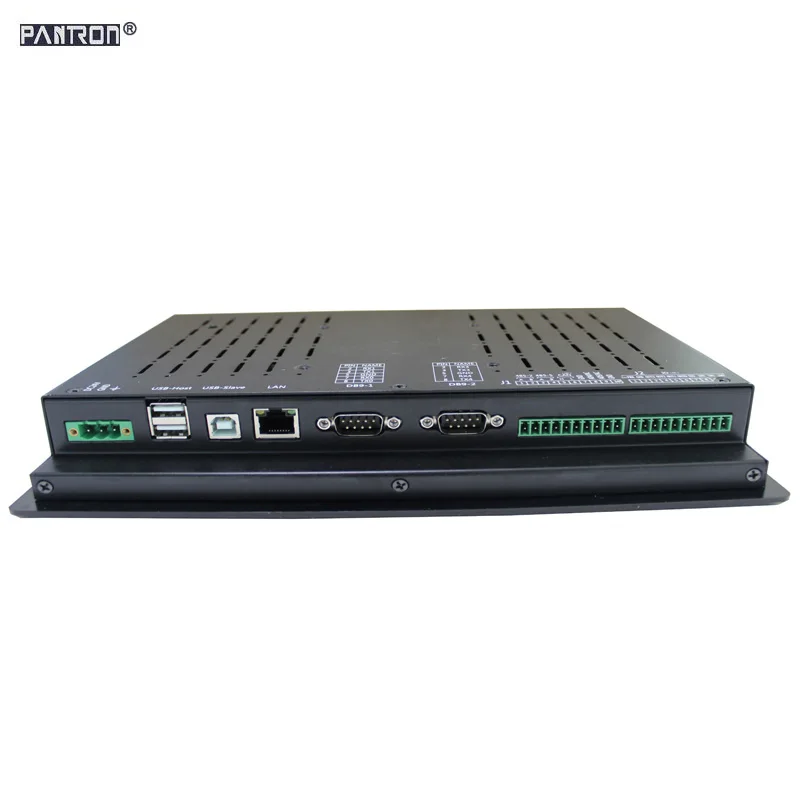

I/O
| 3*RS232 COM |
2*RS485 com | |
2*USB2.0 host +(1* USB slave ) | |
1*LAN | |
9V~24V Power input | |
Touch screen | Resistive touch screen(optional) |
Power Supply | Supports 9-24VDC. kindly advice 24VDC or 12VDC. |
Power consumption | 3.84W |
3G | WCDMA (optional ) |
Watch dog | The time can be adjust |
buzzer | Built-in , provides function control sound; |
Operating system | Linux system |
Fanless | Fanless design |
Dimension | 275.85mm(L)×188.85mm(W)×41.90mm(H) |
Installation | Embedded ,Panel type, wall- mount, Table, bracket etc |
Net Weight | 1.8Kg |
Gross Weight | Abt 3.5Kg |
Operating temp | -10℃~60℃ |
Humidity | -20℃~70℃ |
Ordering information:
IPPC - C1010T | 10.1″Industrial Panel PC,w/CPU: Cortex A8 1.0Ghz, W/RAM:512MB, w/256M flash,Support 12V / 24Vpower input, W/10.1’’ resistive touch screen, Support Linux system. |

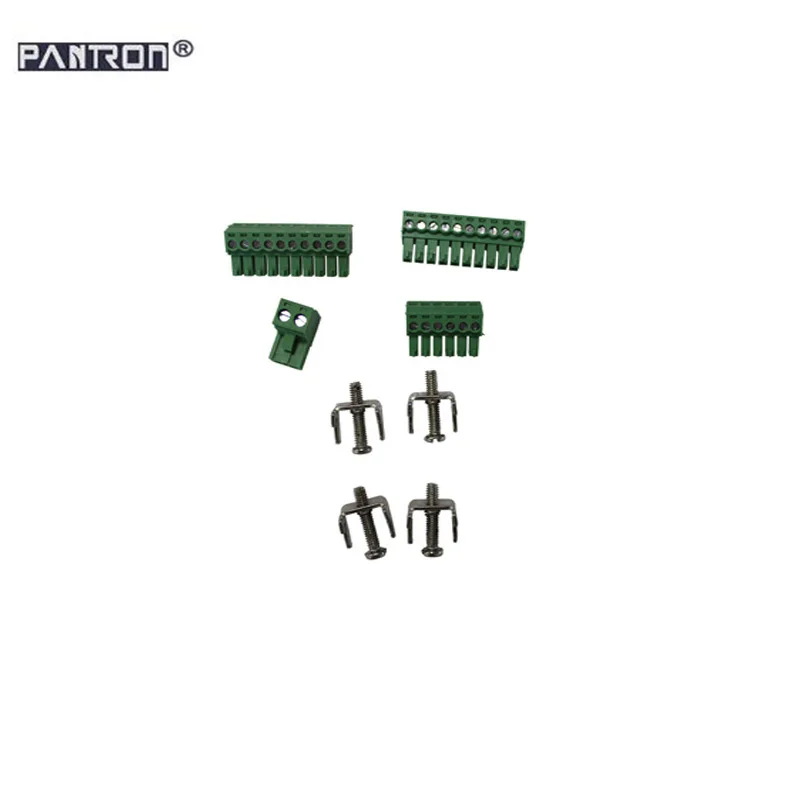

Packing list :
1* Box
1*embedded installation (4*clips)
1*Power connector
1*J1 connector
