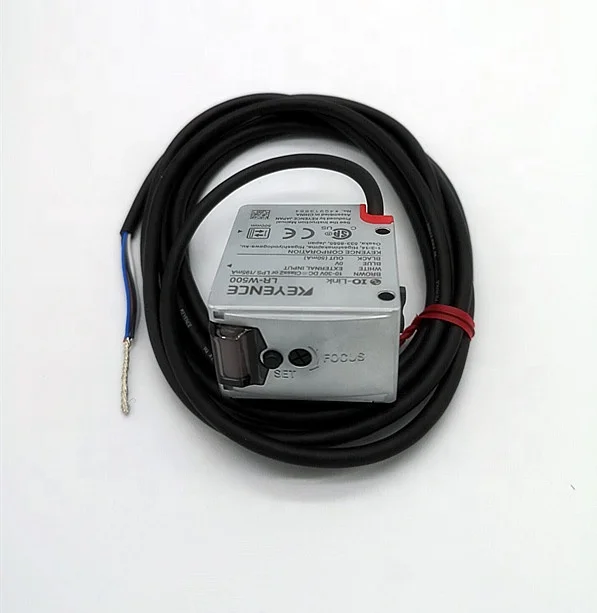

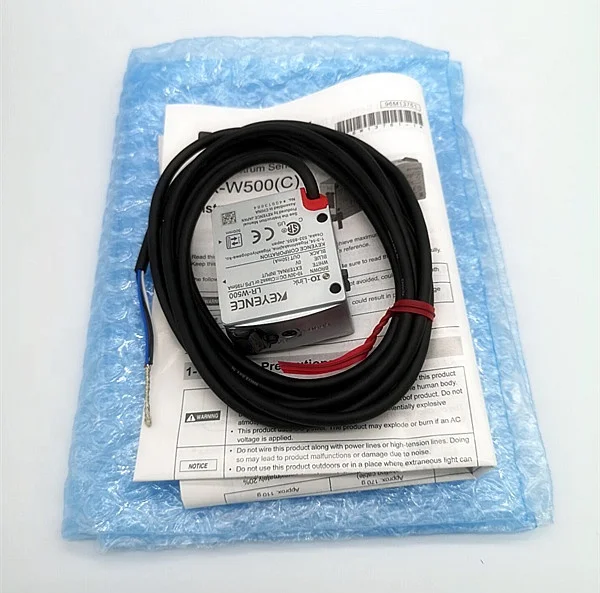

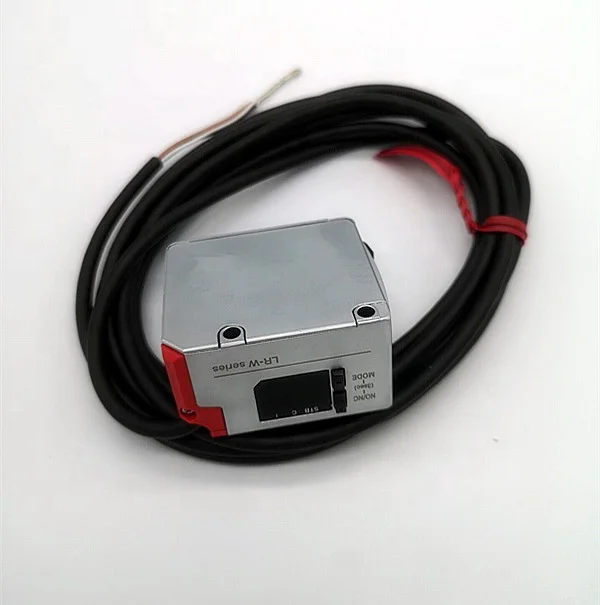

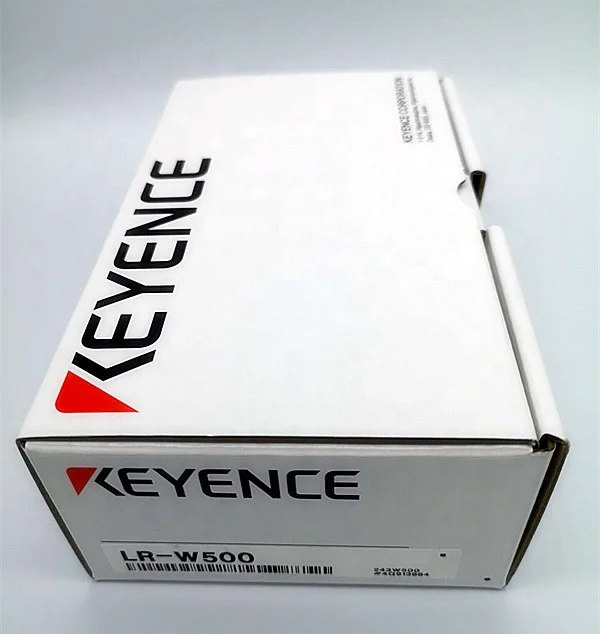

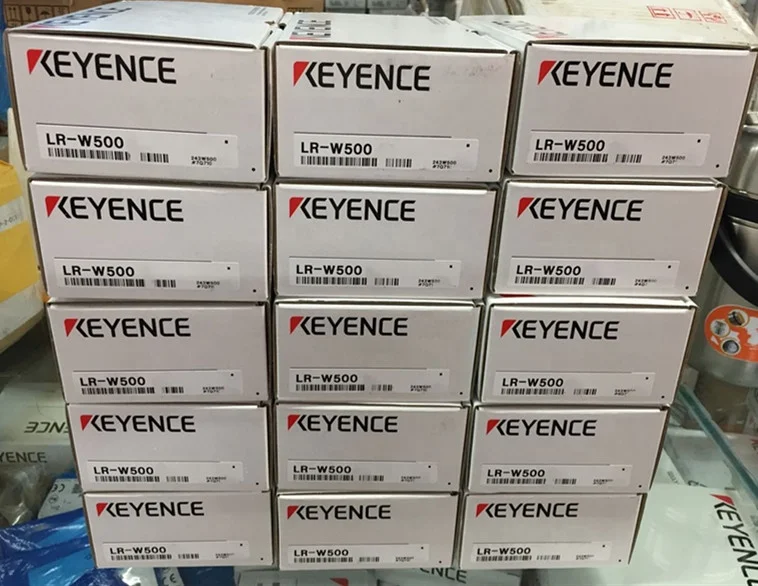

New original Self Contained Full Spectrum Sensor KEYENCE LR W500

Model

LR-W500

Type

2 m cable type

Detecting distance

30 to 500 mm

Min. spot diameter

Adjustable spot
Approx. ø3.5 mm at 100 mm
Approx. ø9 mm at 250 mm
Approx. ø18 mm at 500 mm

Response time

200 µs/1 ms/10 ms/100 ms/500 ms selectable *1

Light source

White LED

Mutual interference reduction function

Up to 2 units when alternate frequencies set

Timer

OFF/ON delay/OFF delay/One-shot

Power supply

Power voltage

10 to 30 VDC, including 10% ripple (P-P), Class 2 or LPS

Current consumption

65 mA or less (without load) at 24 VDC;
120 mA or less (without load) at 12 VDC *2

I/O

Control output

NPN open collector/PNP open collector selectable
30 VDC or less, 50 mA or less, remaining voltage: 2 V or less
N.O./N.C. selectable
*3

External input

Tuning /Transmission OFF selectable
Short circuit current: 1 mA or less for NPN/2 mA or less for PNP
For the applied voltage, see the wiring diagrams in the instruction manual.
For the input times, see the time charts in the instruction manual.
*3

Protection circuit

Protection against reverse power connection, power supply surge, output overcurrent, output surge, and reverse output connection

Environmental resistance

Enclosure rating

IP65/IP67 (IEC60529)

Ambient light

Incandescent lamp: 10,000 lux or less, Sunlight: 20,000 lux or less

Ambient temperature

-20 to +50 °C (No freezing)

Relative humidity

35 to 85 % RH (No condensation)

Vibration resistance

10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions

Shock resistance

1,000 m/s2, 6 times in each of the X, Y, and Z directions

Material

Case: Zinc die cast (Nickel chrome plating),
Indicator cover: PPSU, Buttons: PES
Lens cover and display: PMMA (scratch-resistant coating),
Cable bushing: PBT, Cable: PVC, Spot adjustment dial: Iron (triiron tetraoxide coated)

Weight

Approx. 170 g (including cable)

*1 When alternate frequencies are set, the response time increases by approximately 20%.
*2 195 mA or less (at 10 V, with load)
*3 IO-Link: Specification v.1.1/COM2 (38.4 kbps) is supported. The setup file can be downloaded from KEYENCE website
(//www.keyence.com).
If you are using the product in an environment in which you cannot download files over the Internet, contact your nearest KEYENCE
office.
