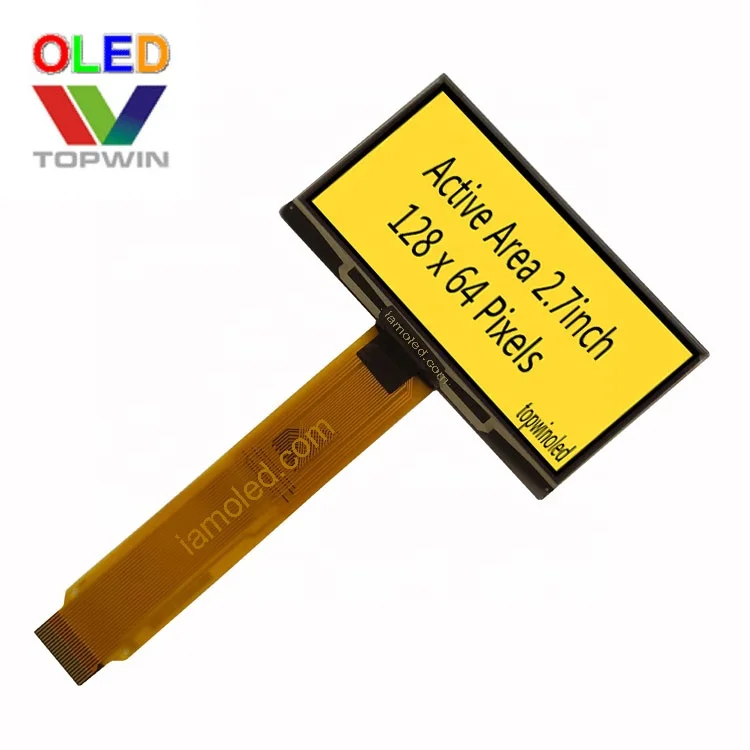

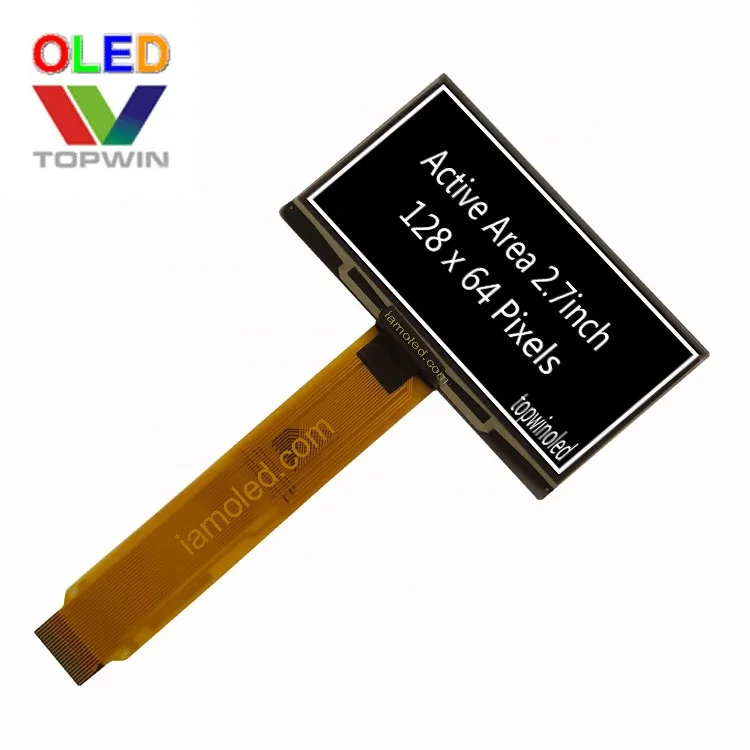

2.7' 2.7inch 2.7 inch 128x64 resolution white colour P35801 oled display with spd0301 driving IC 22pin connector P35802
- Category: >>>
- Supplier: Shenzhen Topwin Xingye Technology Limited
Share on (62366575629):
Product Overview
Description
Product description
Product Information
Display Type: | oled display |
Display Mode: | Passive Matrix |
Model Number: | QG-2864ASWIG01 |
Diagonal Screen size: | 2.7 inch |
Interface: | Parallel, 3/4-wire SPI |
Drive Duty: | 1/64 Duty |
Number of Pixels: | 128 x 64 |
Panel Size: | 64.61 x 37.00 x 2.02 (mm) including “Anti-Glare polarizer” |
Driver IC: | SPD0301 |
Active Area: | 61.41 x 30.69 (mm) |
Pixel Pitch: | 0.48 x 0.48 (mm) |
Pixel Size: | 0.45 x 0.45 (mm) |
Weight: | 12.7 (g) ± 10% |
Operating Temperature: | -40~85° |
More products
Company profile
Team exposition
Practical application
Packing shipping
FAQ
1. Q: What’s the shipping terms?
A: All quotations not including shipping costs and customs duties of the importing country,FOBSZ/FOBHK/FOBGZ.
2. Q: What is the delivery method?
A: UPS/DHL/TNT/SF/FedEx. Customer provides courier company and account number.
3. Q: What is the payment method?
A: T/T in advance.
4. Q: How long is the delivery time?
A: 2 working days for samples.
5. Q: Is there a MOQ?
A: No.
6. Q: Is it possible to customize?
A: Accept customization.
7. Q: Is there technical support?
A: We will sent full specification,drawing and user guide. Our professional engineers will provide services at anytime.
A: All quotations not including shipping costs and customs duties of the importing country,FOBSZ/FOBHK/FOBGZ.
2. Q: What is the delivery method?
A: UPS/DHL/TNT/SF/FedEx. Customer provides courier company and account number.
3. Q: What is the payment method?
A: T/T in advance.
4. Q: How long is the delivery time?
A: 2 working days for samples.
5. Q: Is there a MOQ?
A: No.
6. Q: Is it possible to customize?
A: Accept customization.
7. Q: Is there technical support?
A: We will sent full specification,drawing and user guide. Our professional engineers will provide services at anytime.
