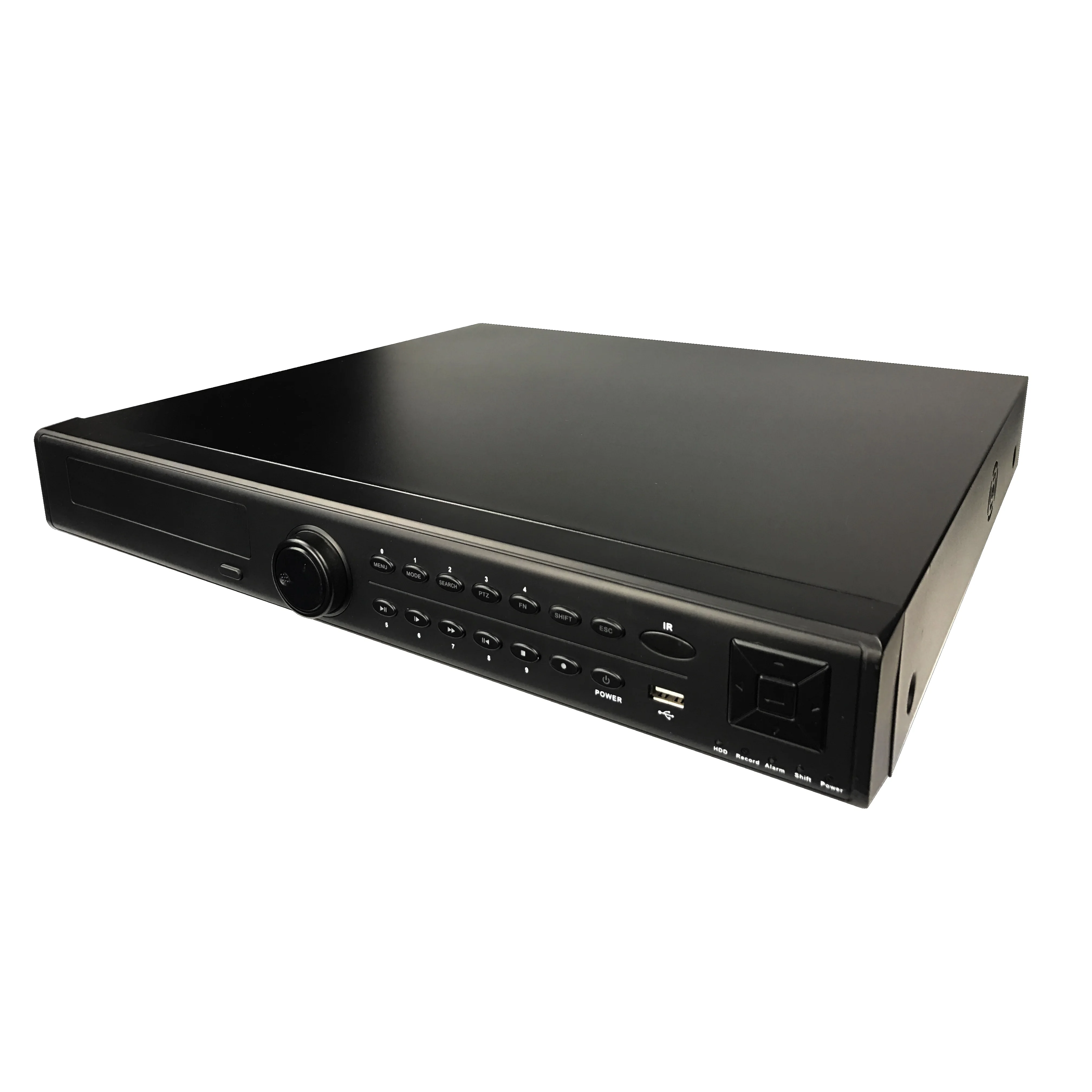

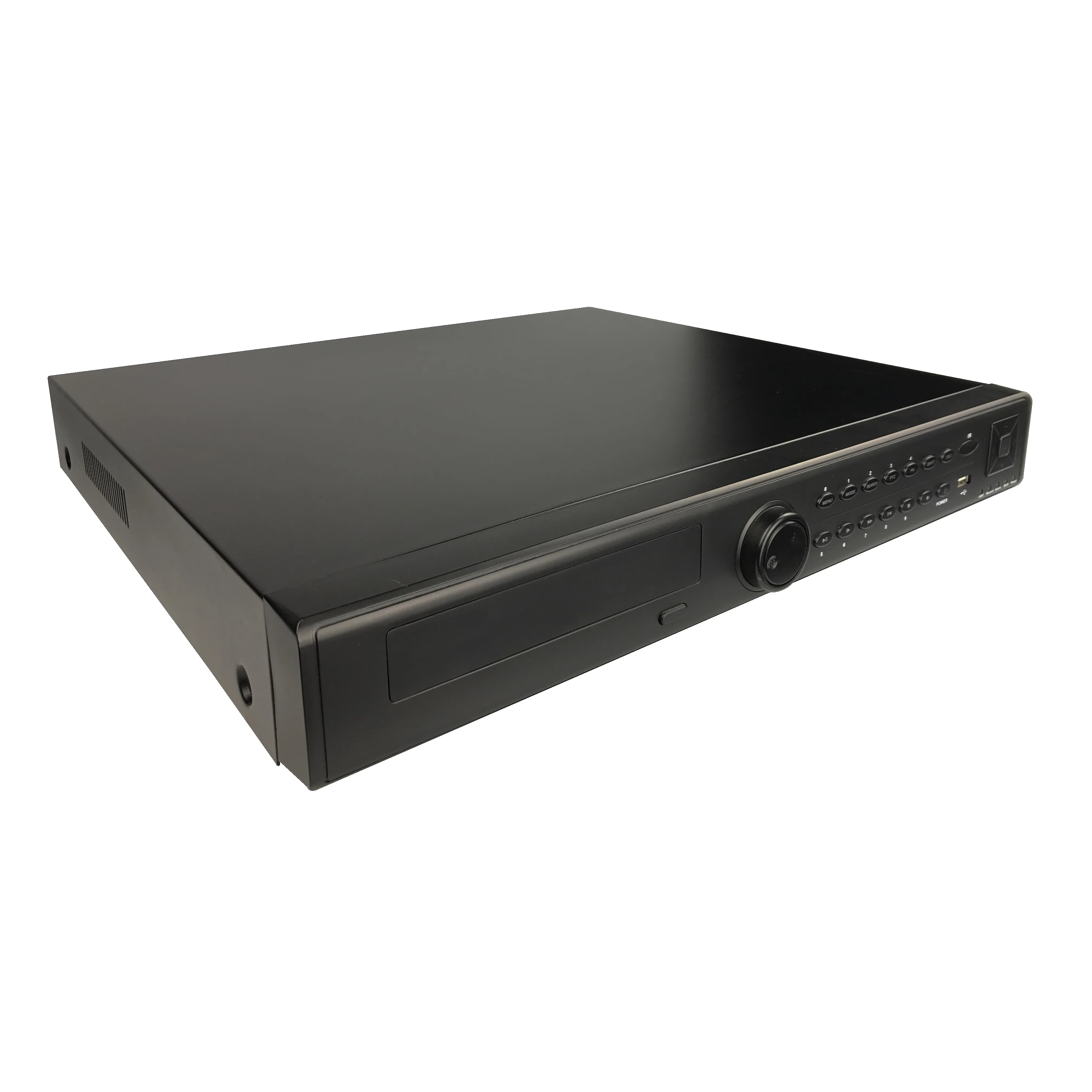

16 channel camera auto china dvr 5mp del firmware

Share on (62366633536):


Price:$199.00 - $209.00

Quantity:


Product Overview

Description



Product Description


\tSupport 16ch 8M unreal-time encoding;
\tSupport AHD, TVI,CVI, CVBS, IP video input;
\tSupport VGA maximum 1080P output, HDMI up to 4K output;
\t1.5U Case, 4 SATA(Up to 8TB);
\t1*10/100/1000Mbps auto-sensing Ethernet port, RJ45 port;
\tAutomatic networking support, a key to add equipment;
\tSupport the Onvif protocol;
\tSupport GB28181 (Optional);
\tCloud services, P2P, alarm information push to phone;
\tSupport remote access, support ARSP;
\tSupport DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL,
3G, WIFI, IP search, Alarm center, etc ;
\tMobile phone remote monitoring (iOS, Android);
\tMulti browser access (IE, Chrome, Firefox, Safari);
\tSupport for more than twenty languages;
\tPerfect protection circuit,unique triple watchdog function
\tSupport WEB, CMS, VMS, MYEYE Platform;
\tSupport coaxial control





Model
ADVR8016F-GL
System
processor
Hi3531D
Video
Codec
H.265+/H.265/H.264
Encode
16ch 5M@13fps(6 in 1)/16ch 8M@8fps(AHD),default 5M
Decode
16ch 5M@13fps(6 in 1)/8ch 8M@8fps(AHD),default 5M
Preview
16ch 5M@20fps(6 in 1)/16ch 8M@15fps(AHD),default 5M
Multi-mode
Analog:16ch 5M/16ch 8M
Digital to analog conversion:support
Hybird:4ch 4K (analog)+4ch 4K(network)
IP: 32ch 1080P/16ch 3M/8ch5M
Audio
Compression
G.711a
Intercom
Support
Management
Record mode
Manual>Alarm>Motion detection>Timing
Inquire mode
Inquire by Time/Calendar/Event/Channel
Storage mode
HDD Storage, Network Storage
Backup
Network, USB, SATA
Interface
Video input
16*BNC(Support Coaxitron)
HDMI output
1*HDMI (MAX:4K)
VGA output
1*VGA (MAX:1080P)
Audio I/O
16/1
Alarm I/O
16/4
Ethernet port
1*10/100Mbps Ethernet port, RJ45 port
PTZ control
1*RS485, Support for multiple PTZ protocol
USB Port
2*USB2.0 ports
HDD
4*SATA interface (Up to 8TB)
General
Temperature
0 ℃ - + 55 ℃
Humidity
10% -90% RH
Power supply
12V/4A
Consumption
<10W(Without HDD)
Weight
Around 4KG
Dimension
440mm(L)* 400.5mm(W)* 60mm(H)
