Thickness 4mm Heavy Duty Galvanised ("U" Shape) Post Fence Foot Anchors
Product Details
- Galvanised Steel Post Support - Height: 120mm - 4.7" - Post side height: 60 x 116 mm - Holes: side - 2 x 3 Holes - size 11 mm bottom - 2 or 3 Holes - size 11 mm - Thickness: 4 mm - Recommended fixings: M10
- 5 Width Post Sizes to choose from: 71 mm - 2.8" 81 mm - 3.2" 91 mm - 3.6" 101 mm - 4.0" 121 mm - 4.8"
- Material: S235 + silver galvanization - Application: It facilitates fixing of the wooden elements with concrete, assures appropriate separation between wood and substrate. - HOT-GALVANIZED ZINC: Coat applied by immersing the object in melted zinc heated up to the temperature of about 450ºC. Obtained thickness of coating amounts to 80-90 ?m, no less than 60 ?m. Such a thick layer protection is recommended for products exposed to long-lasting influence of moisture, particularly for products to be used in a garden. Such coating may be covered with decorative paints suitable for galvanized (zinc-coated) surfaces. - Made by professionals for professionals - Premium quality, modern design, good handling & competitive price
- Please see our related items in "Post Supports" category:
Post support is a kind of post anchor which give the post necessary protection against the attack of termites and moisture. It provides a quick and affordable method of fastening timber post to the concrete surface. Additionally, the zinc plating makes means it is corrosion resistant so that it can be used for a very long time and makes your cost effective.
Advantages
Comply with building code requirements.
Long term of providing protection.
Enhance the stability of the post.
Perfect for timber post.
Anti-rust.
No need of digging and concreting.
Can be used in humid environments.
According to the shape of our post supports, we classify our products into four types: type H, type L, type U, type T.
Type H
No contact with the ground to keep the post free of rotting and corrosion. Wooden post can be easy and firmly fixed by bolts. It is perfect for carports, fences, play sets, pergolas, arbors and balconies, etc.
Height (a): 300–600 mm
Length (b): 60–300 mm
Width (c): 50–120 mm
Thickness: 6 mm
Custom sizes and shapes are availabl
Type L
No contact with the ground to prevent the wooden post from the damage of moisture environment. Meanwhile, it helps to resistant the attack form termites. It is perfect to be used where the post is placed against a wall or step, which means it can only be fixed from one side.
Height (a): 100–140 mm
Length (b): 60–150 mm
Width (c): 50–90 mm
Base length (d): 60–90 mm
Thickness: 3–6 mm
Surface: galvanized or color coated.
Custom sizes and shapes are available.

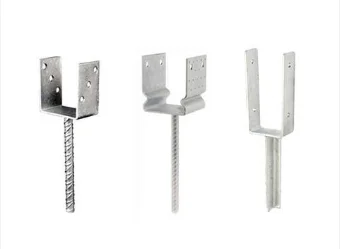

Type U
Support the base of concrete footing and and fence post. It features its specially designed U shape, by which the post can be protected from corrosion and rust. We can classify our U-shaped post anchor to three type according to pin and plate as follow:
Type U-A
With no pins and plates. It works through the method of protecting the fence post by avoiding the direct contact to the ground, which may cause rot and rust to the post.
Height: 100–160 mm.
Length: 60–150 mm.
Width: 50–130 mm.
Thickness: 3–6 mm.
Surface: galvanized or color coated.
Custom sized and shapes are available.
Type U-B
With pins but without plates. Compared to type U-A, this kind of post anchor not only protects the post from corrosion, but also fixed it in the desired place firmly.
Height: 100–300 mm.
Length: 50–150 mm.
Width: 50–130 mm.
Thickness: 3–6 mm.
Pin diameter: 4–10 mm.
Surface: galvanized or color coated.
Custom sizes and shapes are available.

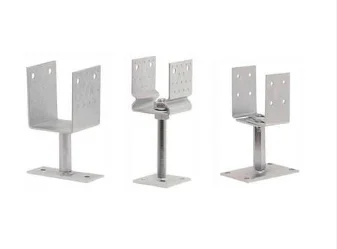

Type U-C
With pins and plate, by which it can keeps the concrete footing and fence post totally off the ground. So it can make sure the woods free of damage of termites. Additionally, the holes on plates means thar it is easy and firmly to fix the post anchor on the cement flooring. So it is widely used in concrete structure.
Type U-C-2: The height of the pin can be adjusted.
Type U-C-3: The length of the U-shape can be adjusted.
Height: 100–300 mm.
Length: 50–150 mm.
Width: 50–130 mm.
Thickness: 3–6 mm.
Pin diameter: 4–10 mm.
Plate side-length: 40–160mm depends on your requirements.
Surface: galvanized or color coated.
Custom sizes and shapes are available.
Type T
This kind of post anchor often be used where have a strict requirement for “hiding” the post anchor to keep the construction beauty. The post must be slotted at the bottom and fasten with the post anchor by bolts.
We mainly supply three kinds of T type post anchors as follow:
Type T-1: with a inverted T-shaped head and a spin to screw into the ground
Type T-2: with a plate to fix the post firmly off the ground.
Type T-3: features its T-T shape to prevent the contact between the post and the ground.
1. Ex-works: We can offer ex-works price if you have your own shiping agent.
2. Express door to door: We can get very competative price as we have contract with DHL, UPS, FedEx, TNT, etc.
3. FOB price: For big order, FCL, LCL, we can offer you FOB Tianjin, or FOB Shanghai or FOB Shenzhen price.(Can be according to customer requirements to choose an offshore port. )
4. CIF price: We also can offer you CIF price upon your appointed forwarder.
5. Others: For other shipping terms, we can discuss and find the best solution for order shipping.
Company Information
Surealong specialize in metal fabrication:
include stamping ,deep drawing, laser cutting ,welding , bending ,plating,and assembly,the material include
Steel,copper,Aluminium,stainless steel etc.,More than 130 skilled workers and over 10 senior engineers will
work with you,and more important is we can provide professional technical services.
Professional Experience:
Committed in stamping and assembly production for years,we have obtained abundant experience on this field which can satisfy most of client's requirements. In compliance with drawing or samples from customer,to provide full service from tooling design to mass production, there are around 20 skilled engineer for tooling design and process technics
Flexible and Prompt:
we have the flexibility in tooling development and production organization upon the request of diversified and prompt delivery.
Major Customer Current:
cooperated with ABB,Panasonic,STANLEY and SARTORIUS smoothly.
Q:For your timber connector, what's material will be used?
A: Our commonly used materials are DX51D-Z275 galvanized sheet for this product (We also accept custom material service and purchase materials according to customer's requirement.)
Q:What's the thickness of your product? A: In general,our Nail plates are likely to be in thickness of 1 mm . IN view of we are factories, we provide customized service to our customers such as 2 mm, 2.5 mm and 3 mm We can do the production according to the customers' reasonable requirements.
Q: How many years has your factory been in the field of wooden building fittings? How about the machines and equipment? A: We have been in this field for 15 years, and we have 5 engineers, 10 technicians, and 120 employees; We have a variety of stamping machine equipment, punch tons of a variety of types, can meet the needs of customers;This year we have expanded the new plant and the building. The building has been put into use and the construction area has reached 5000 square meters, We warmly welcome you to visit our factory and establish a cooperative relationship with you.
Q: Can you make the complete set of wooden construction fittings?
A: Of course, we can produce a full set of wooden construction metal fittings, If I have the chance, I'd like to invite you to visit our production workshop and samples.
