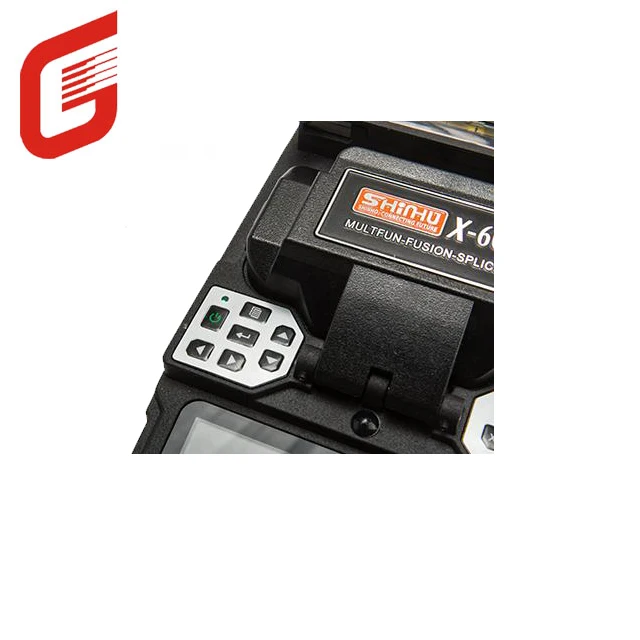

X 600 4 Motors Handheld Fusion Splicer for FTTx/FTTH projects
- Category: >>>
- Supplier: Chongqing Greensun Smart Card Co. Ltd.
Share on (62366734228):
Product Overview
Description

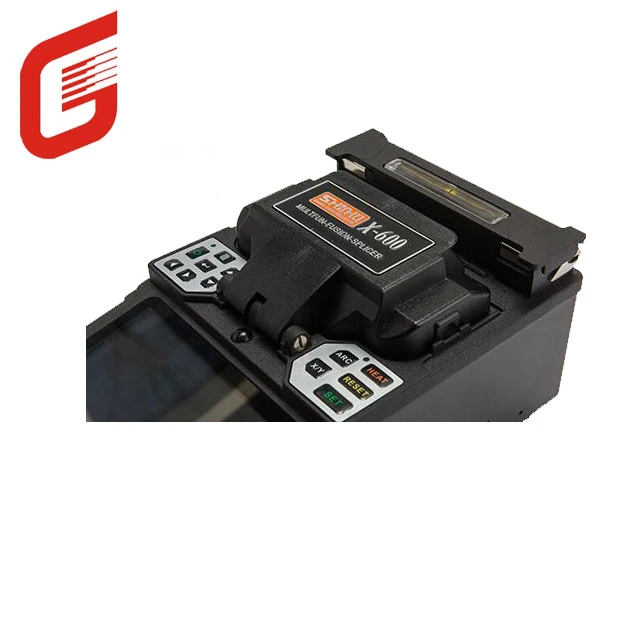

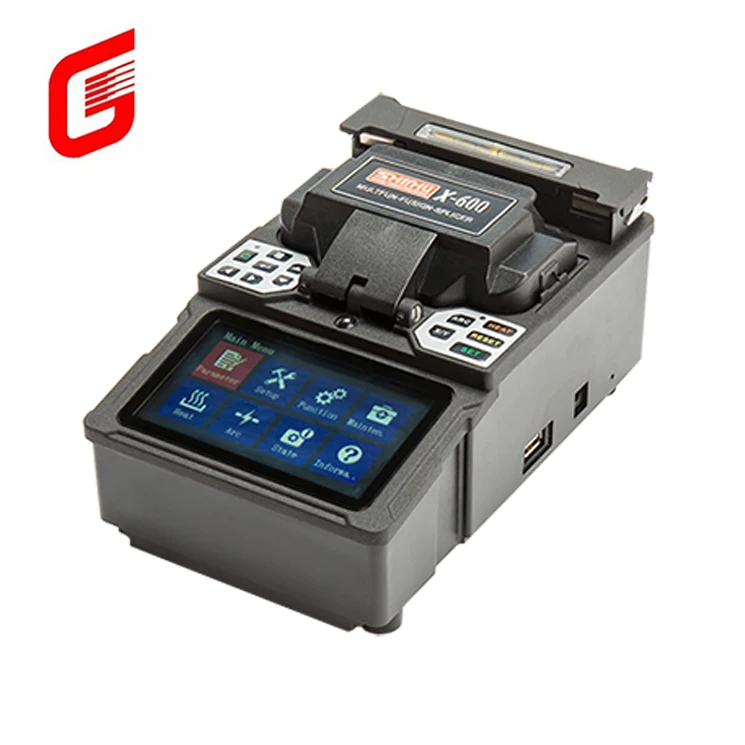

Handheld FTTH Fiber Fusion Splicer X 600

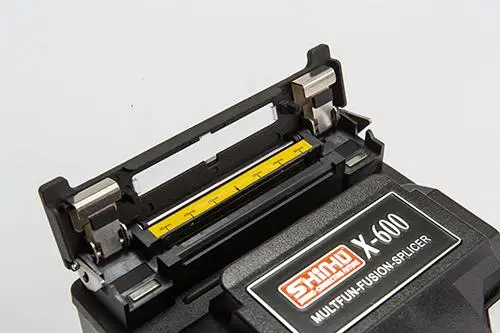

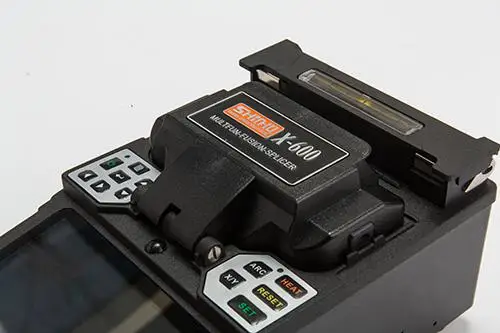

X-600 Fiber fusion splicer is a 4-motor fusion splicer with active V-groove design, it could adjust the fiber position more flexible and accurate, and it has very stable performance even in harsh environment. It is specially designed for FTTx/FTTH projects, it could also be used in heights conveniently.

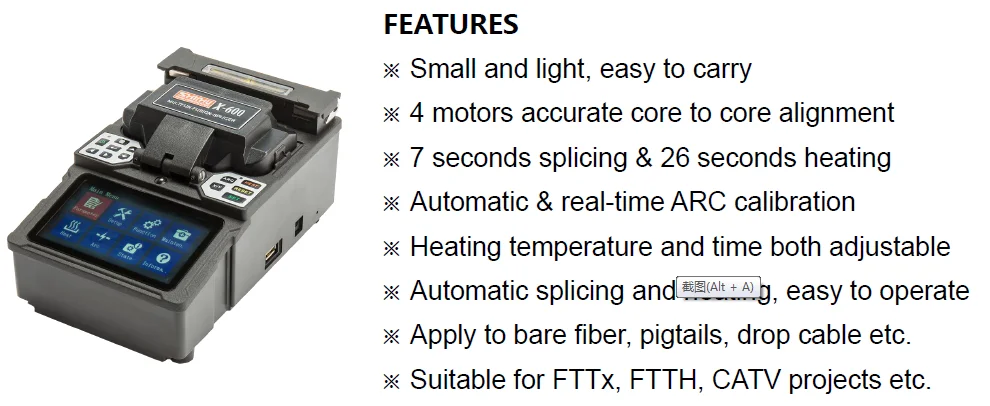

Features
* 1s boot up, 7s splicing, 20s heating
* Specially designed for FTTH projects

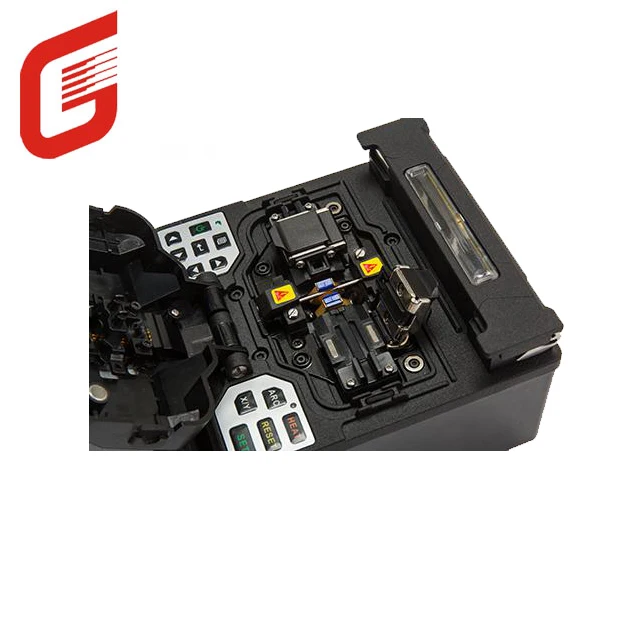

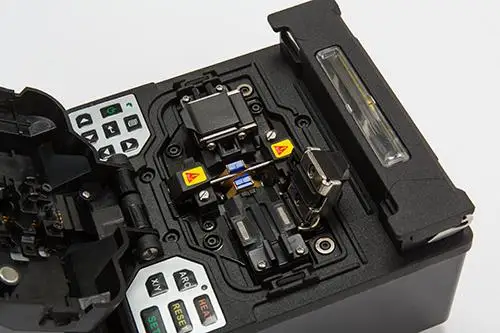

* 4 motors active V-groove design
* Small size and light weight, easy to carry
* Specially designed for FTTH projects
* 4 motors active V-groove design
* Small size and light weight, easy to carry
Specifications | ||
Applicable fiber | SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655)，EDFA, others(including G.657) | |
Diameter of cladding | 80 -150μm | |
Diameter of coating | 160-900μm | |
Typical splice loss | SM: 0.03dB, MM: 0.02dB, DS: 0.05dB, NZDS: 0.05dB | |
Return loss | ＞ 60dB | |
Fibe cleaved length | 5-16mm ( coating diameter ＜ 250um), 16mm (coating diameter:250-1000um) | |
Splicing program | 40 groups | |
Operate mode | Automatic/Manual | |
Auto-heating | Available | |
Typical splicing time | 7 seconds | |

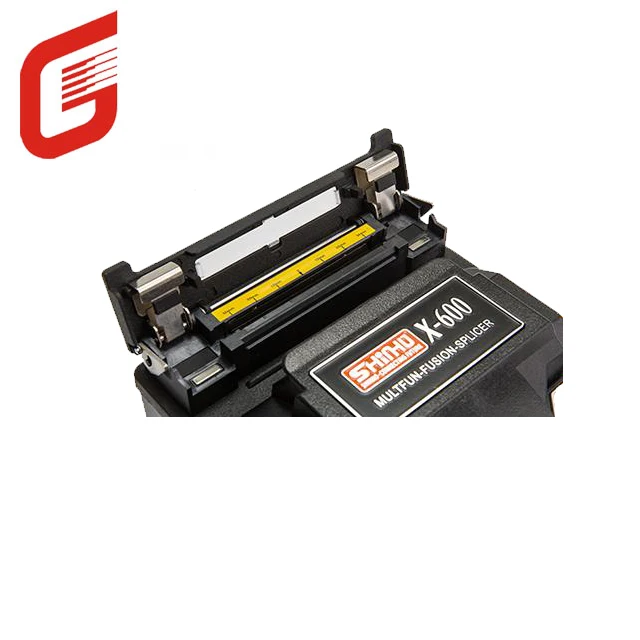

Typical heating time | 20 seconds for 60mm and 40mm shrinkable sleeves | |
Fiber magnification | 250X (X or Y view), 125X (X and Y view) | |
Display screen | 2 CMOS cameras, 4.3 inch color LCD monitor | |
Records storage | 5000 groups data and 100 group images | |
Loss evaluation | Available | |
Tension test | ＞2.2N | |

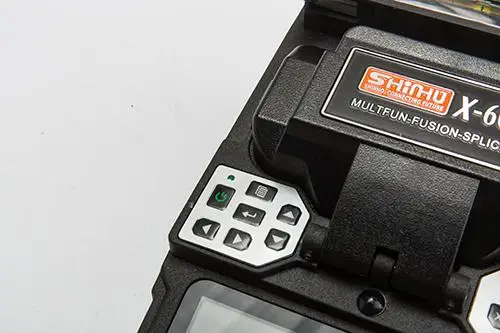

Interface | GUI menu interface, easy for operation | |
Battery | 5200mAh Li-battery, typical 250 cycles splicing and heating, pluggable inner Li-battery | |
Power supply | Adapter, input: AC 220±30V(50/60HZ), output:DC 12±2V | |
Electrodes life | More than 5000 ARC discharges, can be replaced conveniently | |
Ternimal | USB2.0 port, for uploading splicer results and upgrading software | |
Operating conditions | Altitude: 0-5000m, Humidity: 0-95%, Operating Temperature: -25℃~+50℃, Storage Temperature: -40℃~+80℃,Wind speed: Max 15m/s | |
Dimension | 200mm(L) * 123mm(W) * 95mm(H) | |
Weight | 1.60kg (including battery) | |
