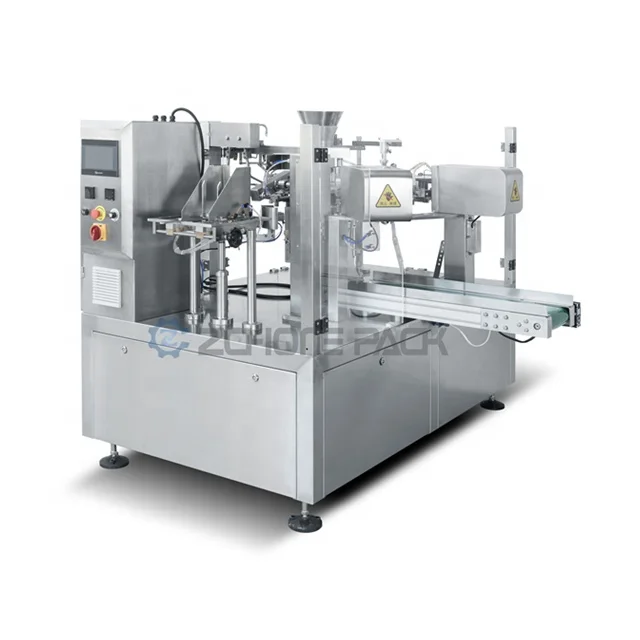

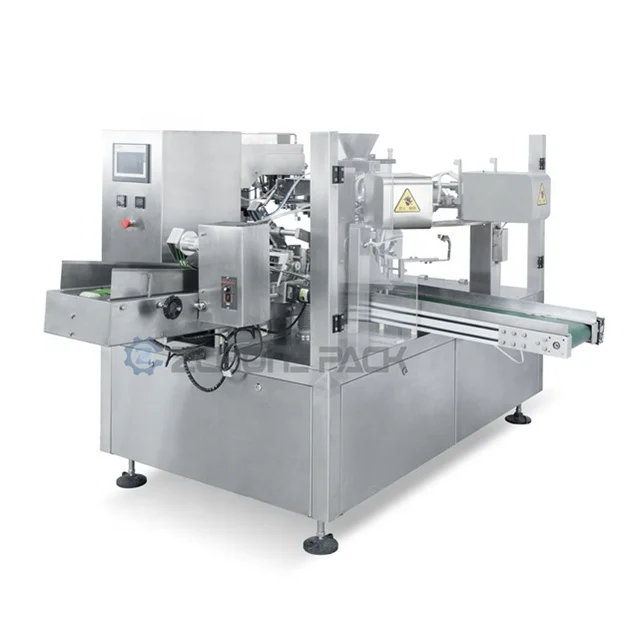

Multi Function Best Price Full Automatic doypack pouch rotary Snacks beans Potato Chips Packaging Packing Machine
- Category: >>>
- Supplier: Foshan Zhengchang Machinery Equipment Co. Ltd.
Share on (62366810871):
Product Overview
Description
Product Specification
ITEM | ZC-X8200 | ZC-X8250 | ZC-X8300 | ||
BAG SPEED | max 60 bags/min (Depanding on the quality of the packing film,packaging materials,packaging weight ect.) | ||||
BAG SIZE | L100-300mm W70-200mm | L100-350mm W130-250mm | L150-450mm W200-300mm | ||
BAG TYPE | Pre-made bags,Stand-up bag,Four-side bas,Three-side bag,Special-shaped bag | ||||
WEIGHING RANGE | 10G-1KG | 10G-2KG | 10G-3KG | ||
MEASUREMENT ACCURACY | ≤±0.5~1%， （Depanding on the measurement equipment and materials） | ||||
MAXIMUM BAG WIDTH | 200mm | 250mm | 300mm | ||
GAS CONSUMPTION | 0.8pa 0.3m³/min | ||||
TOTAL POWDER/VOLTAGE | 1.5KW 380V 50/60HZ | 1.8KW 380V 50/60HZ | 2KW 380V 50/60HZ | ||
AIR COMPRESS | Not less than 1 CBM | ||||
DIMENSION | L1900*W1400*H1450 | L2000*W1500*H1550 | |||
MACHINE WEIGHT | 1300KG | 1500KG | |||
Features:
1.Automatic Diagnosis and Alarm System
2.SUS 304
3.IP65 & Dustproof
4.No Manual Work Required
5.Stable Production
6.Speed Adjustment
7.Wide Range of Packing
8.Touch Screen with PLC
3.IP65 & Dustproof
4.No Manual Work Required
5.Stable Production
6.Speed Adjustment
7.Wide Range of Packing
8.Touch Screen with PLC
* Powder Packing Solution —— Servo Screw Auger Filler Is Specialized for Power Filling Such as Nutrients Power, Seasoning Powder, Flour, Medicinal Powder, Etc.
* Liquid Packing Solution —— Piston Pump Filller Is Specialized for Liquid Filling Such as Water, Juice, Laundry Detergent, Ketchup, Etc.

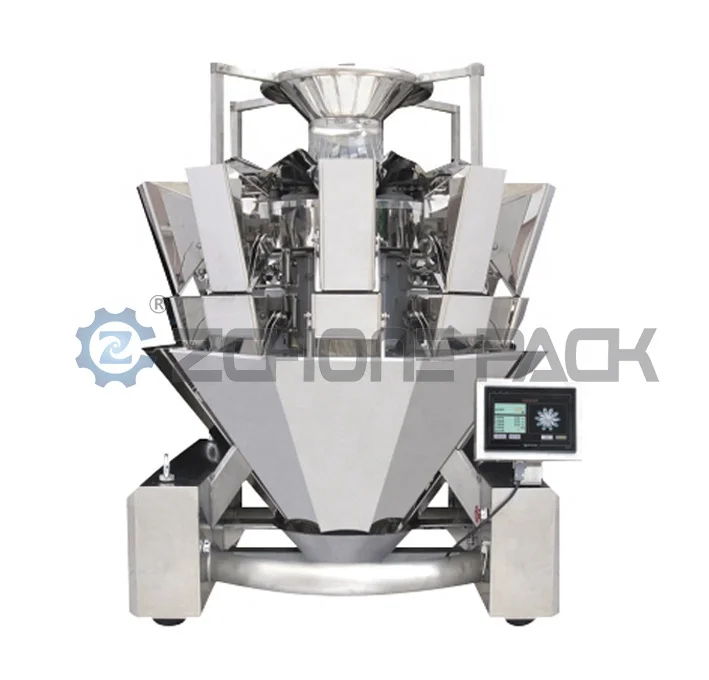

* Solid Packing Solution —— Combination Multi-head Weigher Is Specialized for Solid Filling Such as Candy, Nuts, Pasta, Dried, Fruit, Vegetable, Etc.
* Granule Pack Solution —— Volumetric Cup Fillier Is Specialized for Granule Filling Such as Chemial, Beans, Salt, Seasoning, Etc.
* Liquid Packing Solution —— Piston Pump Filller Is Specialized for Liquid Filling Such as Water, Juice, Laundry Detergent, Ketchup, Etc.
* Solid Packing Solution —— Combination Multi-head Weigher Is Specialized for Solid Filling Such as Candy, Nuts, Pasta, Dried, Fruit, Vegetable, Etc.
* Granule Pack Solution —— Volumetric Cup Fillier Is Specialized for Granule Filling Such as Chemial, Beans, Salt, Seasoning, Etc.
Hot Sale
Customer Evaluation
Our Service
1. A step-by-step free English manual and operation video to easily know how to operate the machine.
2. Our senior engineers are skillful and fluent in English.They have rich oversea experiences and are vailable to oversea services
Below with some pictures our engineers trained customers how to install and operate the machines.
2. Our senior engineers are skillful and fluent in English.They have rich oversea experiences and are vailable to oversea services
Below with some pictures our engineers trained customers how to install and operate the machines.
Company Profile
Foshan Zchone Pack Machinery Co., Ltd was founded in 2013, the company is located in Foshan Sanshui district Yundonghai Yunju Industrial park, it is a professional engaged in automatic packaging machinery design, production, sales and after-sales services as one of High-tech enterprises, mainly committed to the automatic packaging line research and development and manufacturing, mainly producing full automatic Pre-made pouch machine, full automatic Pre-made pouch vacuum machine, Horizontal type Pre-made pouch machine and other related equipment.
We have a number of peer brand enterprises in the service of many years of excellent technical backbone,s at the same time with a number of well-known universities and research and development institutions to maintain long-term cooperation. With the leading design concepts, strict manufacturing process, modern management and service models, we provide you with all-round packaging solutions and automatic equipment with excellent quality and reasonable price.
We have a number of peer brand enterprises in the service of many years of excellent technical backbone,s at the same time with a number of well-known universities and research and development institutions to maintain long-term cooperation. With the leading design concepts, strict manufacturing process, modern management and service models, we provide you with all-round packaging solutions and automatic equipment with excellent quality and reasonable price.
