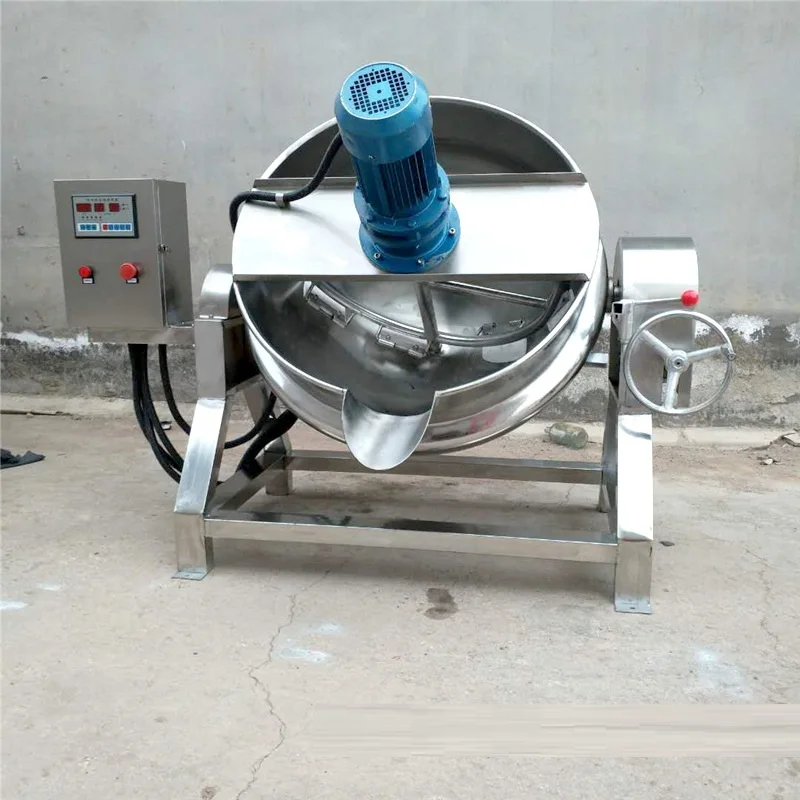

Ucan 100L cooking pot for rice
- Category: >>>
- Supplier: Shanghai Youcan Beverage Machinery Co. Ltd.
Share on (62366827395):
Product Overview
Description
food and beverage industry big cooking pot gas heating cooking pot
Product Description
steam jacketed kettle | |
Product name | Jacket kettle ,jacketed kettle, double layer kettle, cooking pot ,layered pot, two high steamer Industry cooking pot
|
Heating Source | Steam heating, Electric heating , natural gas heating
|
Scope of application: | Food industrial,: (rice ,soup , meat, sugar, sauce, chili sauce ,tomato paste,beverage )cooking ,pasteurizing and mixing
Cosmetics industrial(lotion, bath liquid, cream paste, toothpaste, face cream , oil mixtures) pharmaceutical products( Herbal liquid cooking)
other fields. (any liquid need to be heated and mixing or no mixing)
|
capacity ( volume) | 50L jacket kettle, 100L(Kgs)jacket kettle , 200L(Kgs)jacket kettle , 300L(Kgs)jacket kettle , 400L(Kgs)jacket kettle , 500L(Kgs)jacket kettle , 600L(Kgs)jacket kettle , 1000L(Kgs)jacket kettle , |
Material | Sanitary stainless steel, ss304, ss316l, All parts, which contact products, are applied with stainless steel |
Main Advantage |
gas heating cooking pot food industry cooking pot
industrial gas cooking pot big cooking pot 200litres with mixer Jacket kettle integratesmulti-functions: such cooling, heating , pasteurizing , mixing , dispersing, emulsifying, homogenizing , in short time and very easy to operate Generally, the machine is in simple structure, small size, light weight, low noise and running reliable. |
HS code | 84798200.90 |

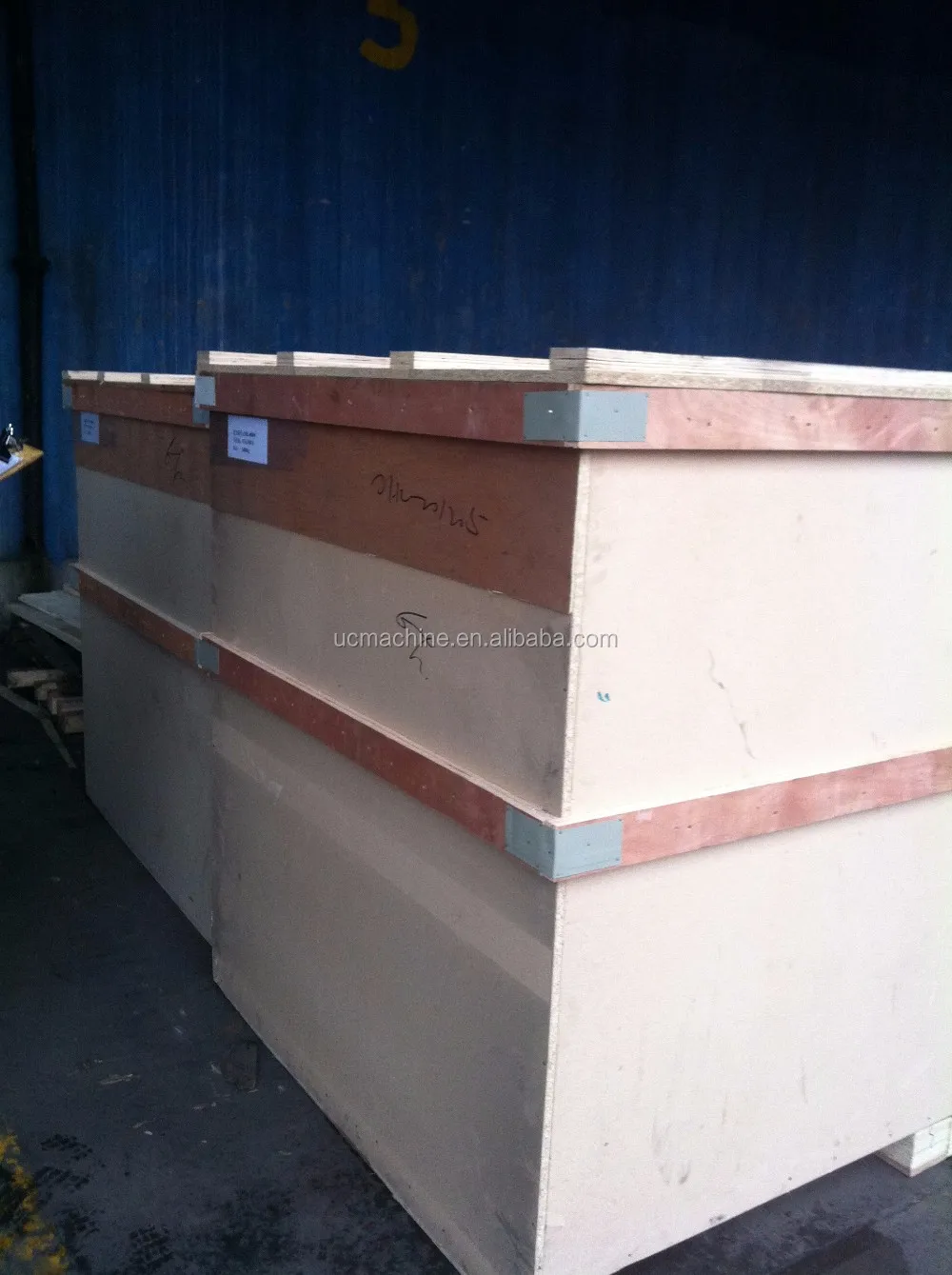

Package | Plywood box, standard for exporting and protect jacket kettle safely deliverying |
| |
big cooking pot steam cooking pot
steam heating double jacketed jacketed kettle steam jacketed 500l steam jacketed kettle
Type Jacket Kettle | Ucan50 | Ucan100 | Ucan200 | Ucan300 | Ucan400 | Ucan500 | Ucan600 | Ucan1000 |
Volume (L) Kgs | 50 | 100 | 200 | 300 | 400 | 500 | 600 | 1000 |
Working pressure (Mpa) | 0.09 |
| ||||||
0.30 |
| |||||||
Evaporation (Kg/h) | 30 | 40 | 65 | 75 | 100 | 150 | 200 | 1000 |
Heating area (m²) | 0.40 | 0.60 | 1.00 | 1.44 | 1.65 | 1.90 | 2.30 | 4.5 |
Steam Energy consumption (Kg/h) | 33 | 44 | 72 | 110 | 136 | 165 | 190 | 300 |
ID×Deep (cm) | 60*45 | 70*52 | 80*55 | 90*63 | 100*68 | 110*75 | 120*78 | 140*82 |
Stirring speed (r/min) | 36, 48, 62 , 200, according to customer requirement |
| ||||||
Mixer type | Scrapper mixer or agitator no wall scrapper |
| ||||||
Moto power (Kw) | 0.37 | 0.37 | 0.55 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 |
Structure | Fixed/Inclinable/Stir |
| ||||||
Warm Tips: volume, working pressure, motor power, electricity structure can be customized according to customer's production capacity and specific requirements. | ||||||||
Our Factory manufacture all kinds of industrial
jacket kettle /50Litre to 1000Litre jacket kettle
large stainless steel jacket kettle with mixer or no mixer ,
tiling jacket kettle,
vertical stand jacket kettle
water jacket kettle
electric heating jacket kettle,
steam jacket kettle, gas heating jacket kettke
industry cooking pot,
Marks | The processing capacity is depending on different liquid, please feel free to contact our engineer by tel: +86 138 183 63408 |
About US/Supplier Types | 1 .Trade Assurance,With Trade Assurance, you'll enjoy: •100% product quality protection •100% on-time shipment protection •100% payment protection for your covered amount 2. Gold Supplier 3. Assessed Supplier 4 . Onsite Checked 5 . A&VChecked 6. we accept Transactions via Alibaba.com 7. Payment protection 8 . On-time shipment 9. Wholesale Low MOQS 9. Popular Buying Requests for "jacket kettle" and "cooking pot" |
Products big photos show: | |
Packaging & Shipping
Package details | we have general packing, standard export carton box for jacket ketttle |
Our Services
Our Service |
|
Production time | If electricity is 380V,delivery time is in one week after confirming payment If electricity is 220V/440V, motor need to be customized, delivery time is in 15 to 18 days after payment |
Warm tips | More products details , our Advantage,package ways, lowest price etc pls check next details and contact us ( E: sales at ucmachine.com Phone:86- 138 183 63408,it's our honor to service for you always |
FAQ
steam jacketed kettle with agitator
- Motor Specification
Standard and explosion proof motors (Siemens ,ABB etc) are available as standard, high quality motor made in China. - Normal medium used in the kettle jacket as following:
The normal media are: steam, thermal oil, hot water and chill water.
Company Information
Check below for more information on placing an order :
1. Inquiry-Professional quotation. |
2. Confirm the price, lead time, artwork, payment term etc. |
3.our sales send the Proforma Invoice with our seal. |
4. Customer make the payment for deposit and send us Bank receipt. |
5. Initial Production Stage-Inform the clients that we have got the payment, And will confirm with you again for the electricity, the pump inlet/outlet connection. After your approval, we inform that we will arrange the production & inform the estimated time. |
6. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again. |
7. End Production-Mass production products photos will send to you for approval. You can also arrange the third party Inspection . |
8. Clients make payment for balance and Ship the goods , Inform the tracking number and check the status for clients. |
9. Order can be say “complete” when you receive the goods and satisfy with them . |
10. Feedback to our about Quality , Service, Market Feedback & Suggestion. And we can do better . |
