125V 15A Electrical Power Wall Outlet with Fast USB Charging Ports Socket

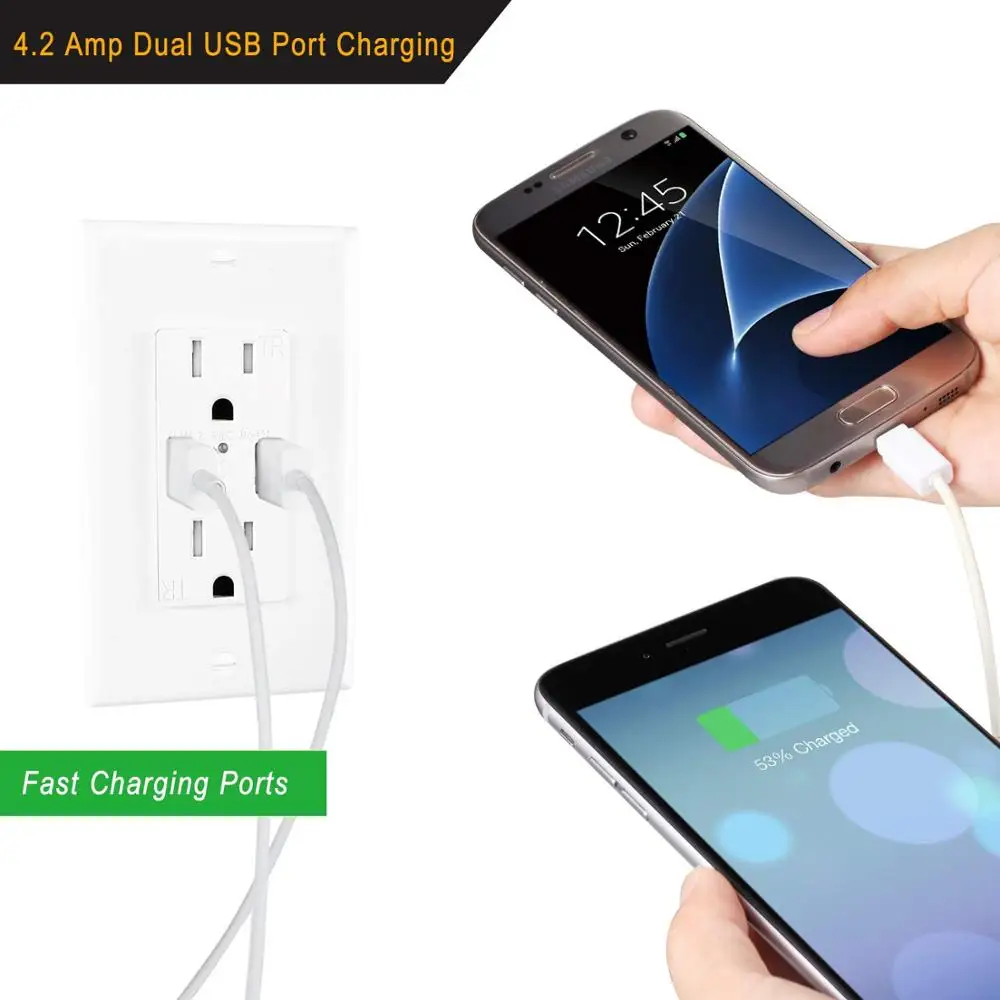

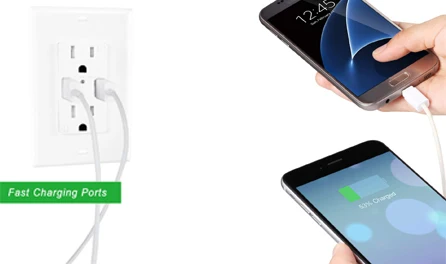

The USB Charger/Tamper-Resistant Duplex Receptacle offers two high-powered USB Ports with 4.2A of charging power and 15A/110-240V Tamper-Resistant Receptacles. It has the capability to charge two USB powered electronic devices utilizing its two USB Ports, leaving the two Tamper-Resistant Receptacles free for other uses. The USB charger/Tamper-Resistant Duplex Receptacle is designed to charge tablets, smart and mobile phones, gaming devices, e-readers, digital cameras and a host of other electronic devices.
Product Advantage:
--Keygma® Duplex Receptacle
--15 Amp, 110-240 Volt, NEMA 5-15R, 2P, 3W,
--Meet UL498 (cETLus approved)

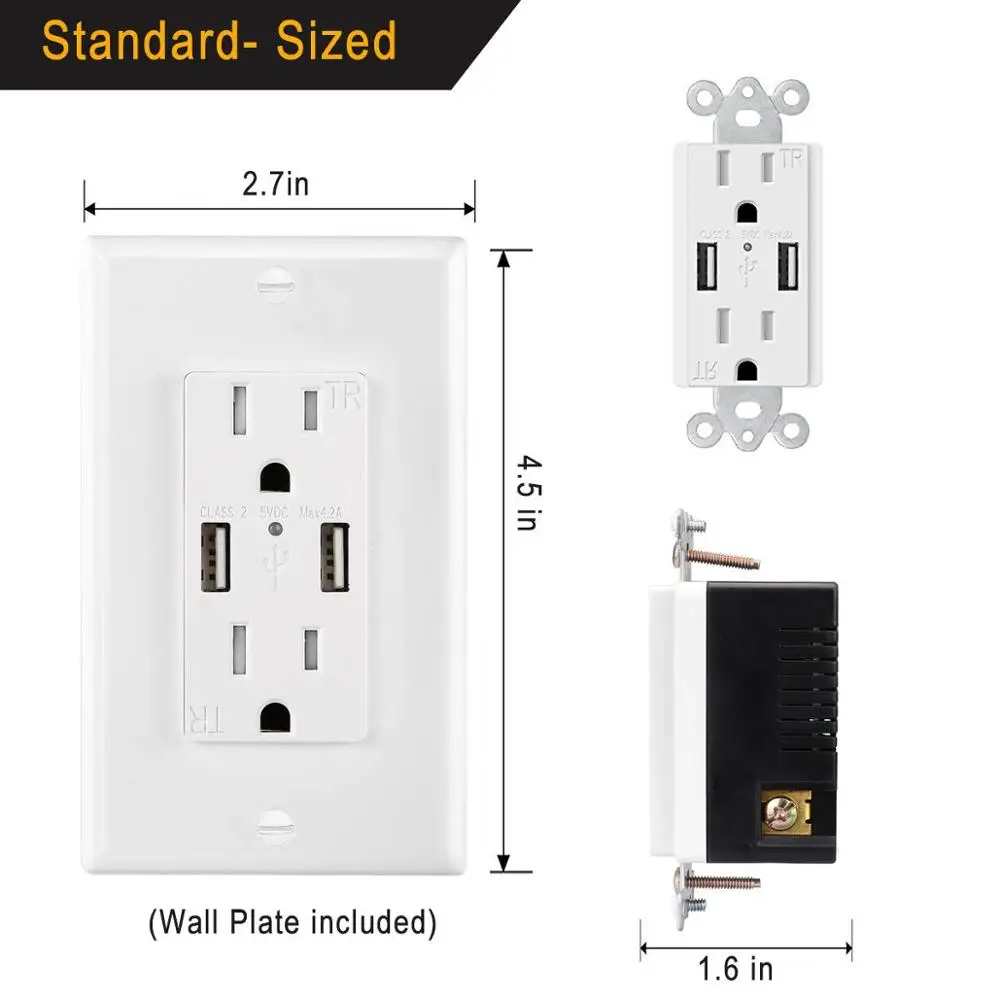

--Takes up to 20% less space vs. other USB Outlets
--Operating Temperature from -35℃ to 66℃
--100% One by One Test
--Aging with Load for more than 5 hours
--Warranty:2 years
--15 Amp, 110-240 Volt, NEMA 5-15R, 2P, 3W,
--Meet UL498 (cETLus approved)
--Takes up to 20% less space vs. other USB Outlets
--Operating Temperature from -35℃ to 66℃
--100% One by One Test
--Aging with Load for more than 5 hours
--Warranty:2 years
Amperage | 15 Amp | Voltage | 110-240 Volt |
Pole | 2 | Wire | 3 |
Grounding | General Grounded | Dielectric Voltage | Withstands 2000V per UL498 |
USB Ports | 2 | Current Interrupting | 2KA |
Flammability | Rated V-2 per UL498 | Operating Temperature | -35°C to +66°C |
Face Material | 100% pure PC | Terminal Screws | Plated Steel |
Terminal Clamp | Brass | Line Contacts | Brass |
Grounding Screws | Plated steel | Mounting Strap Material | Galvanized Steel |
NEMA | WD-1 & WD-6 | Applicable Standards | UL 498 |
Details Images
It can support110V to 240V which can be used widely all South America and North America as well as other American standard areas.

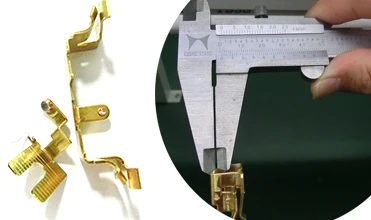

INNER COPPER SHEET.
0.8mm phosphor copper to keep the terminal low temperature and good conductivity.
Real materials ensure your safety.
Real materials ensure your safety.
TAMPER RESISTANT
a, Complies with NEC ® requirement, all 15A and 20A receptacles installed in dwelling units should be with tamper-resistant
b, Receptacles with Shutter mechanism block access to the contacts unless the plug is fully inserted
b, Receptacles with Shutter mechanism block access to the contacts unless the plug is fully inserted
Residential and Commercial Applications:
Kitchens, Bedrooms, Home Offices, Airport Lounges, Salons and Spas, Hotels, Meeting Rooms, Office Cubicles, College Dormitories,Cafes, Coffee Houses, Restaurants
Kitchens, Bedrooms, Home Offices, Airport Lounges, Salons and Spas, Hotels, Meeting Rooms, Office Cubicles, College Dormitories,Cafes, Coffee Houses, Restaurants
Recommend Products

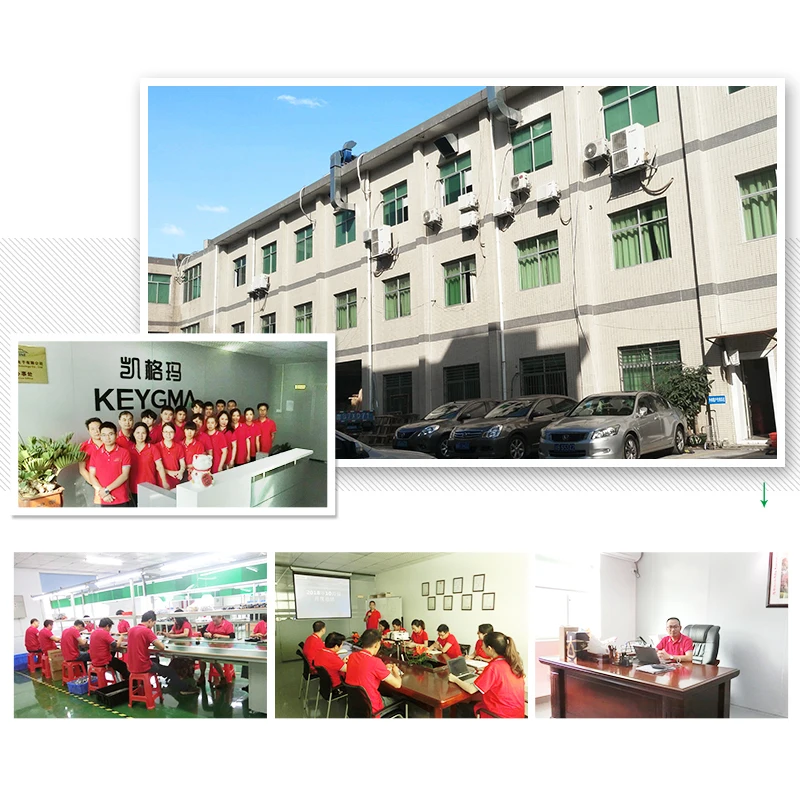

About Us
