With the sixth generation Intel Core i7/i5/i3 processor and four separate PoE (Power over Ethernet) ports
- Category: >>>
- Supplier: Guangzhou Xiyang Electronics Co. Ltd.
Share on (62366860959):
Product Overview
Description

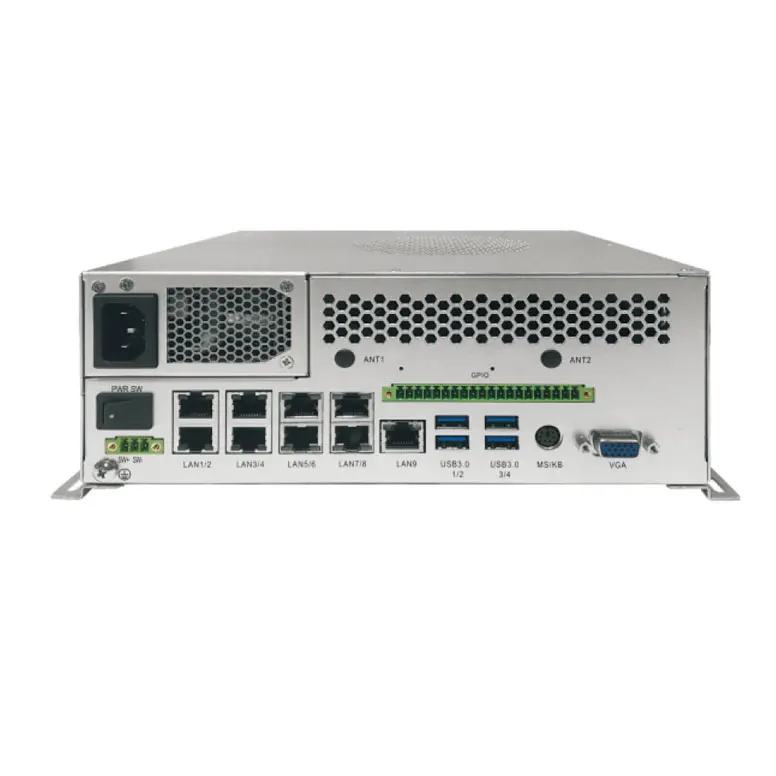

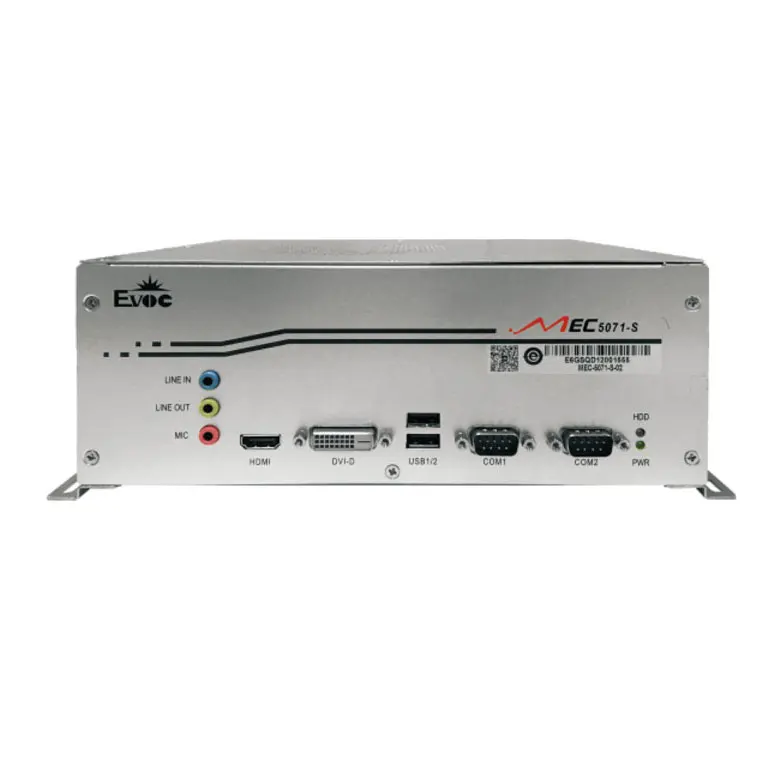

INTEL sixth generation of core high-performance industrial control computer IPC MEC-5071-S Industrial computer
 |  |
 |  |
INTEL sixth generation of core high-performance industrial control computer IPC MEC-5071-S Industrial computer
MEC-5071-S is a compact vision system with high performance. It is equipped with the sixth generation Intel Core i7/i5/i3 processor and four independent PoE ports. The data transmission rate is as high as 4.0 Gb/s.
By configuring the application, users can make it an ideal solution for machine vision applications with high computing power, precise time operation and small space occupation. With the latest Intle H110 chipset, the sixth generation Intel Core i7/i5/i3 high performance processor, 9 gigabit network cards on board, 16 isolation DI/DO, compact size, is the perfect vision system for automation and machine vision applications.
The product has small volume, flexible integration, complete functions, strong environmental adaptability, and is mainly positioned as a low-end customer group. It can be widely used in the garment industry, mechanical testing equipment, pharmaceutical/food/beverage, packaging, intelligent logistics and other embedded fields.
Product characteristics:
Transformers multi-form rich communication interface without fans, high reliability, wide temperature design, energy saving, environmental protection, humanized design
Product Specifications:
System | Processor | Support Intel LGA 1151 6th 7th Gen Core i7, i5, i3, Pentium, Celeron CPU |
Chipset | Intel H110 | |
Memory | Support 2*204 pin DDR4 SO-DIMM, max to 32G | |
Display | VGA | 1 x VGA(maximum resolution:2048 x 1536) |
DVI | 1 x DVI-D (maximum resolution 1920 X 1200) | |
HDMI | 1 x HDMI (maximum resolution: 1920 X 1200) | |
I/O Interface | LAN | 9 x 10/100/1000Mbps RJ45 LAN ports; 4 of them support POE |
COM Port | 2 x COM port (RS-232/422/485 optional) | |
USB | 2 x USB2.0 ; 4 x USB3.0 | |
PS/2 | 1 x PS/2 | |
GPIO | 1 x 16 channel GPIO (isolated 8DI/8DO) | |
Audio | Line-in/Line-out/Mic-in | |
Power | 1 x power switch remote connector | |
Storage | HDD | 1x 2.5-inch HDD bay |
M-SATA | 1 x M-SATA interface | |
Expansion Bus | 2 x MiniPCIE expansion slot (one of them is only SATA+USB), 1 x SIM card slot | |
Operating Temperature | -20℃~55℃; (wide-temperature CF card/SSD) -5℃~45℃ (monitoring-level HDD) 5%~ 90% 40℃ (non-condensing) | |
Storage Temperature | -40℃~70℃; 5%~90% 40℃ (non-condensing) | |
Power Supply | Supports AC 220V input | |
Operation System | Win10/LINUX(2.6 kernel) | |
Dimensions(W x H x D) | 240mm × 90mm × 190mm | |
Ordering information:
Part Number | Model Number | Description |
0010-092901 | MEC-5071-S-01 | Intel i5-6500 3.2GHz/8G DDR4/128GB SSD/9*RJ45/2*COM/DVI/HDMI/16 channel GPIO |
0010-092911 | MEC-5071-S-02 | Intel i3-6100 3.7GHz/4G DDR4/Surveillance 500GB HDD/9*RJ45/2*COM/DVI/HDMI/ 16 channel GPIO/Support PoE |
TBD | MEC-5071-S-03 | Intel i7-6700 3.4GHz/8G DDR4/Surveillance 500GB HDD/9*RJ45/2*COM/DVI/HDMI/ 16 channel GPIO/Support PoE |
Product Description
Some details as below:

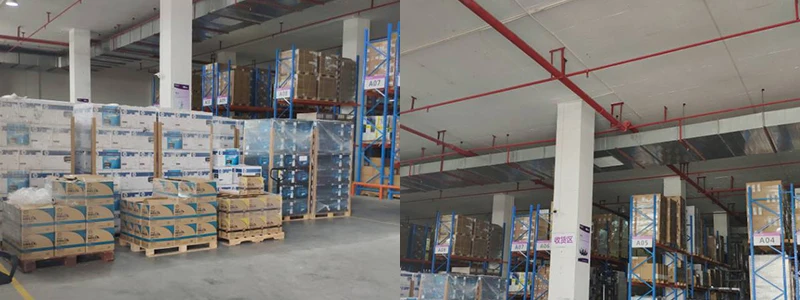

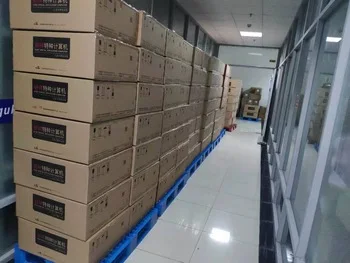

Packaging & Shipping
