OEM Metal dome factory Triangle Metal Dome long feet With for convenient PCBA assembling
- Category: Electronic Accessories & Supplies >>>
- Supplier: Shenzhen Guanghongda Technology Co. Ltd.
Share on (62366952046):
Product Overview
Description
Specification
item | value |
Place of Origin | Guangdong,China |
Brand Name | Guanghongda |
Model Number | GHD19002 |
Application | Telecommunication Equipment |
Keypad Button Material | stainless steel |
Metal dome Shape | Triangle Shape |
Dimple | 1 dimple |
Material | Stainless Steel |
Surface finishing | nickel,silver,gold plating |
Force | 200~600gf |
Metal dome trip | 0.12~0.6mm( custom as per requirement) |
Thickness | 0.05~0.15mm ( as per requirement) |
Life | 100K ~ 5KK times |
Click ratio | 50+/-10% ( normal) |
Size tolerance | +0.1mm |
Product Description
Working Principle :
The snap dome is located at the conductive part on the PCB (most of which is above the gold finger on the PCB). When pressed, the central dimple of the dome is concave and contacts the circuit on the PCB , Thus, the circuit is formed, and the current passes through, and the whole product can work successfully . With the help of the conductivity of the metal metal, it plays a role of high-quality switch between the operator and the product. The stable click ratio & longer life-time are used to provide the operator with high-quality tactile feel
Triangular metal domes are generally divided into four types according to their specific structures
1. Footless, NT Series
2. Short LEG (0.8 * 0.8mm), ST series
3. Middle LEG (0.8 * 1.5mm), MT series
4. Long LEG (0.8 * 3.0 mm), LT series

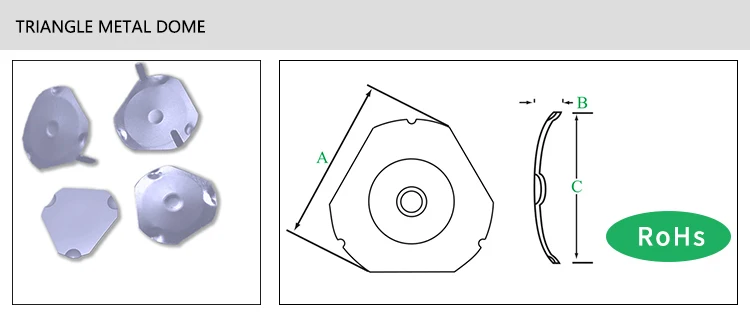

Triangle Metal Dome : Under the conditions of small designed space,requested good feels & must meet bigger pressing force ,Triangle shape will be the best option , also it’s divided into w/feet or w/o feet , and it’s decide by PCB thickness & assembly method .
2. Short LEG (0.8 * 0.8mm), ST series
3. Middle LEG (0.8 * 1.5mm), MT series
4. Long LEG (0.8 * 3.0 mm), LT series
Triangle Metal Dome : Under the conditions of small designed space,requested good feels & must meet bigger pressing force ,Triangle shape will be the best option , also it’s divided into w/feet or w/o feet , and it’s decide by PCB thickness & assembly method .

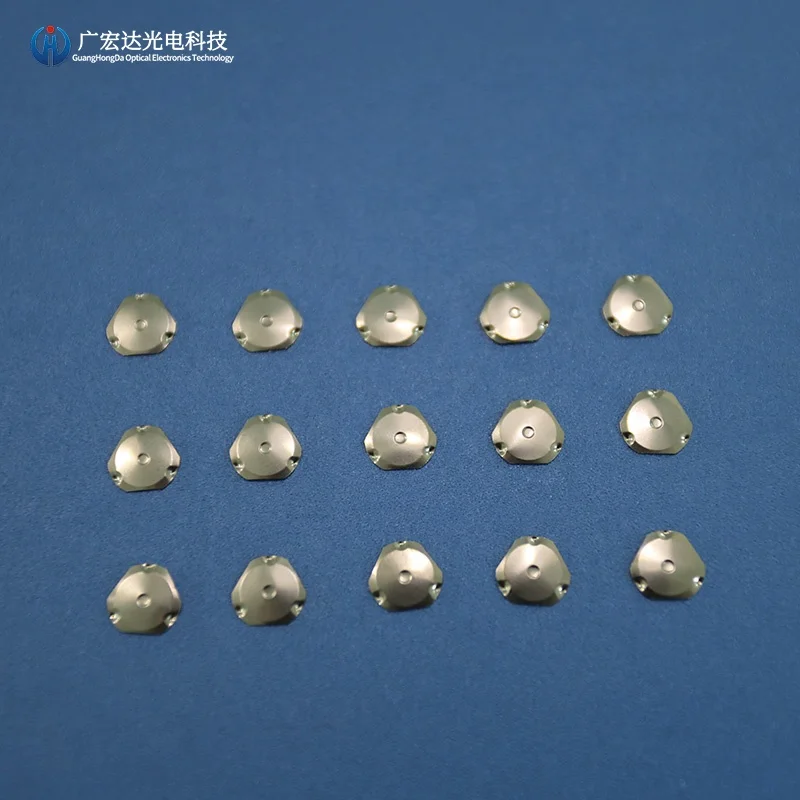

Triangle Metal Dome array

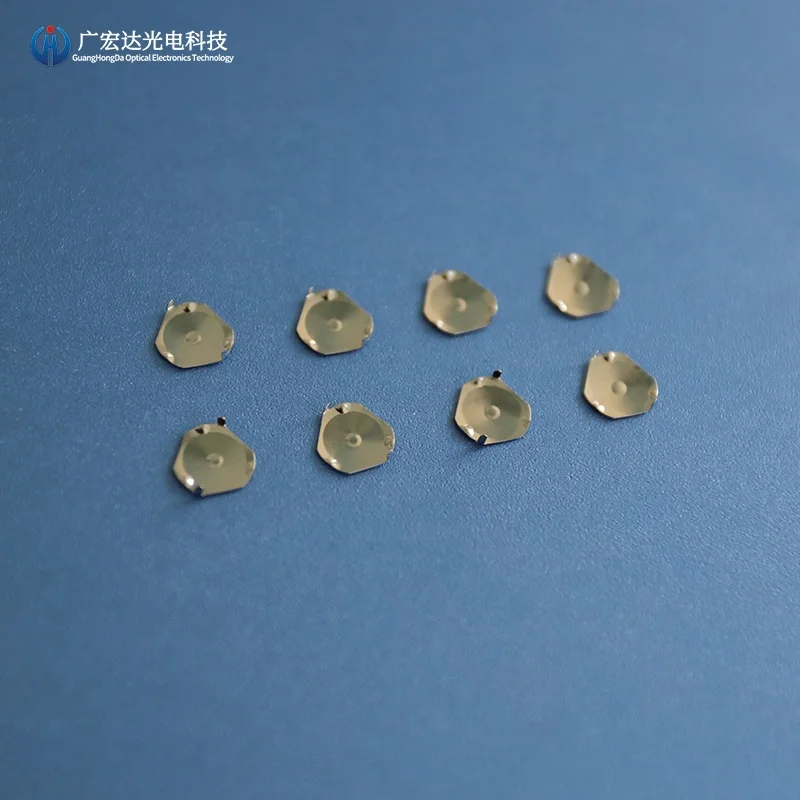

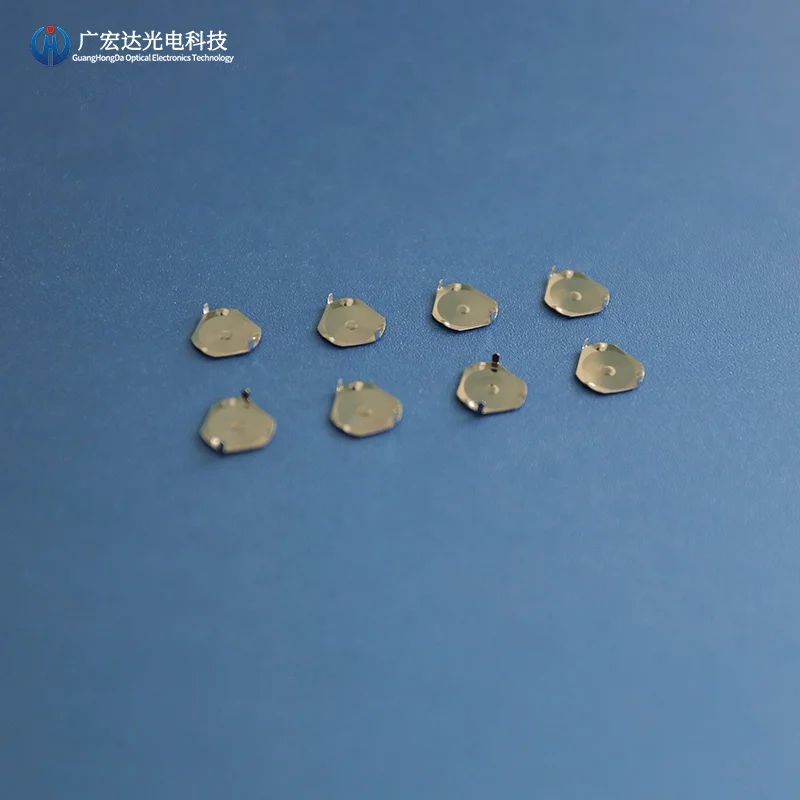

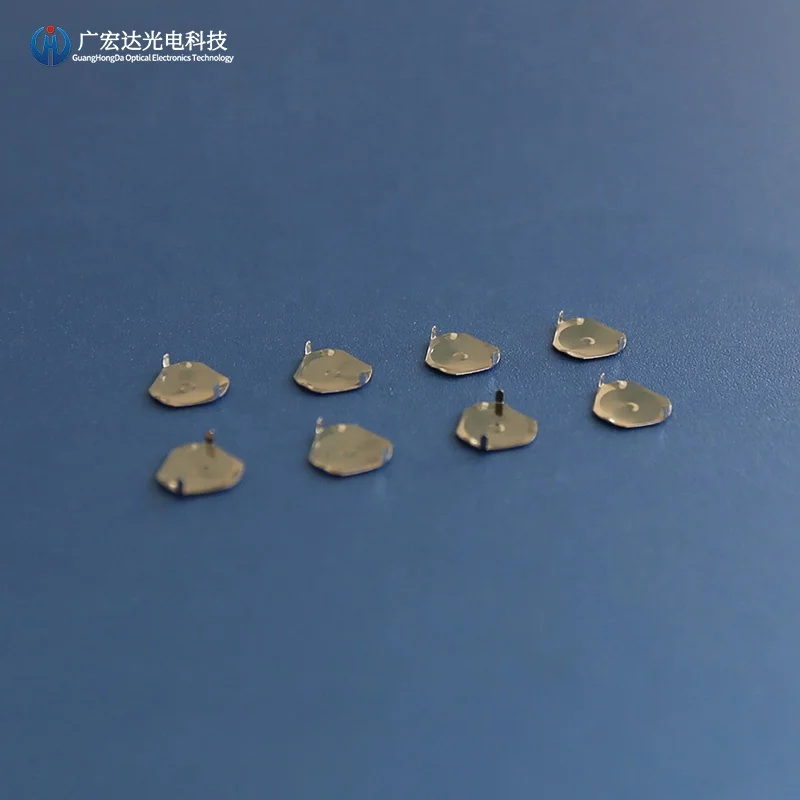

Into w/feet Triangle Metal Dome
Metal Dome is mainly used for various key products,such as mobile phones,headphones,MP3 / MP4,all kinds of keyboard,remote control,bank Product keys,medical equipment,industrial instruments and other fields, where there are keys to use products, can use metal dome
