Complete line of bottling water machine / set of bottle water machine

1. filling production: 1000-35000 bottles per hour.

2. bottle range 300-2000ml, 5-10L. 15-20L, will be different machine.

3. we supply complete line from a to z. pls contact with us.

Technician parametesr of bottle water machine :

Model	DCGF 8-8-3	DCGF 18-18-6	DCGF24-24-8	DCGF32-32-10	DCGF 40-40-12	DCGF 50-50-15
Rinsing nozzles	8	18	24	32	40	50
Filling nozzles	8	18	24	32	40	50
Capping nozzles	3	6	8	10	12	15
Output(@500ml)	1000BPH	3000BPH	5000BPH	8000BPH	12000BPH	15000BPH
Applicable bottle size	Diameter=50~108mm, H=170~340mm, 330~2250ml
Pressure of air source	0.7MPa	0.7MPa	0.7MPa	0.7MPa	0.7MPa	0.7MPa
Air Consumption	0.25M3/min	0.8	0.8	0.8	0.8	1
Pressure of spraying water	0.2-0.25MPa
Consumption of rinsing water	1T/H	1.2T/H	1.2T/H	2T/H	2.2T/H	2.5T/H
Pressure of filling	0.2-0.3MPa
Power consumption	2.5kw	3.5kw	4kw	5.5kw	6.5kw	8kw
Machine body	SS304
Machine size(LWH,mm)	210018002400	230022002400	300022002800	400026002800	470029002800	510048003000
Machine weight(kg)	2500	3000	4000	5000	6000	7500
PLC	Japan Mitsubishi

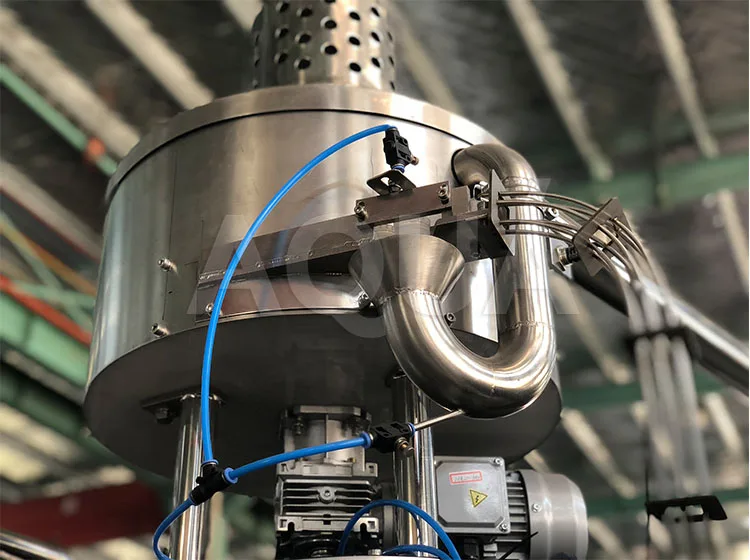

Take all of pratical pictures, not processing. what you see what you get, we do not cheat any customers even though the pictures.

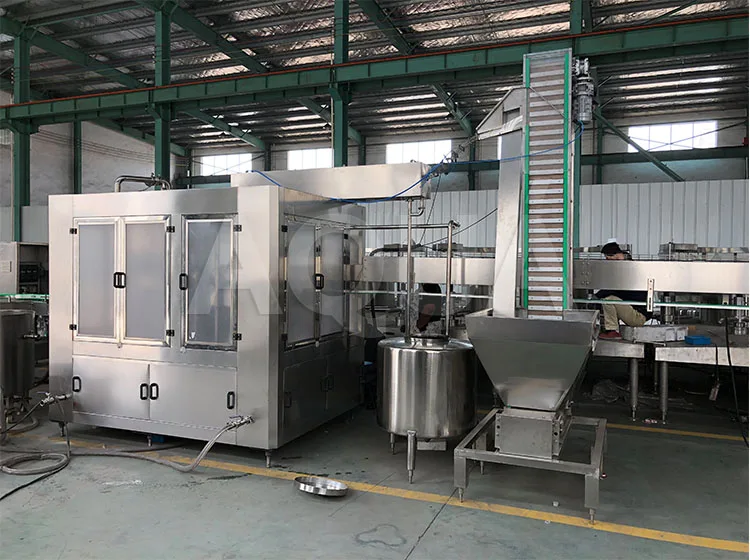

Complete line of bottling water machine / set of bottle water machine : Ro water treatment

F1A

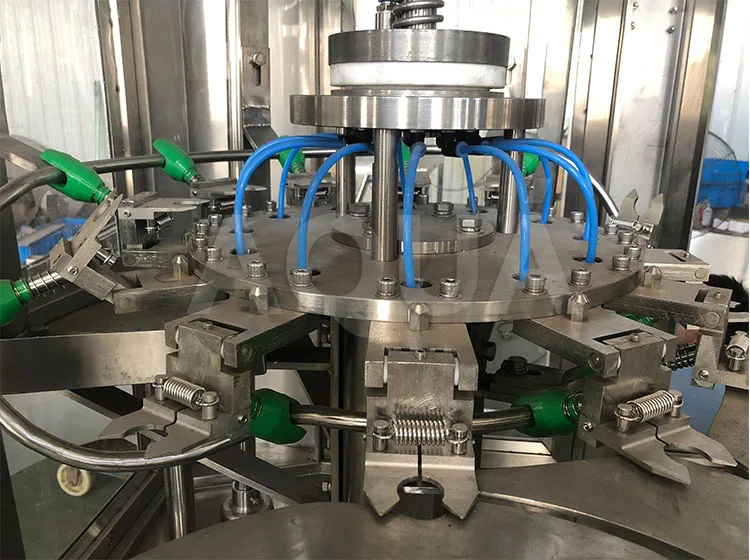

Rinser filler capper with cap unscrambler system . this kind of cap unscrambler depends on customer choice,

PS : now more and more supplier make this, because it looks nice, actually the old type bottle loader system will be better when productoin and life time.

depdends on customers.
