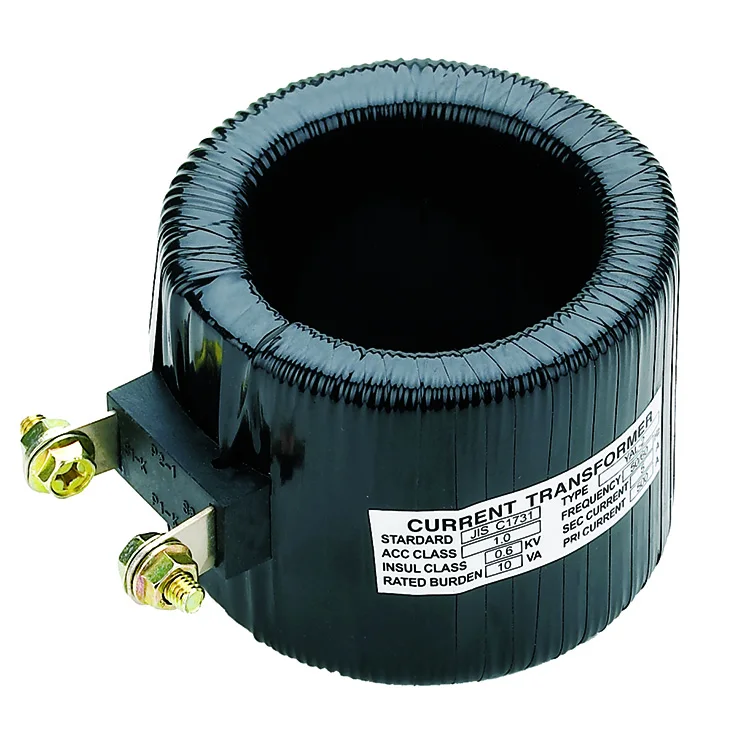

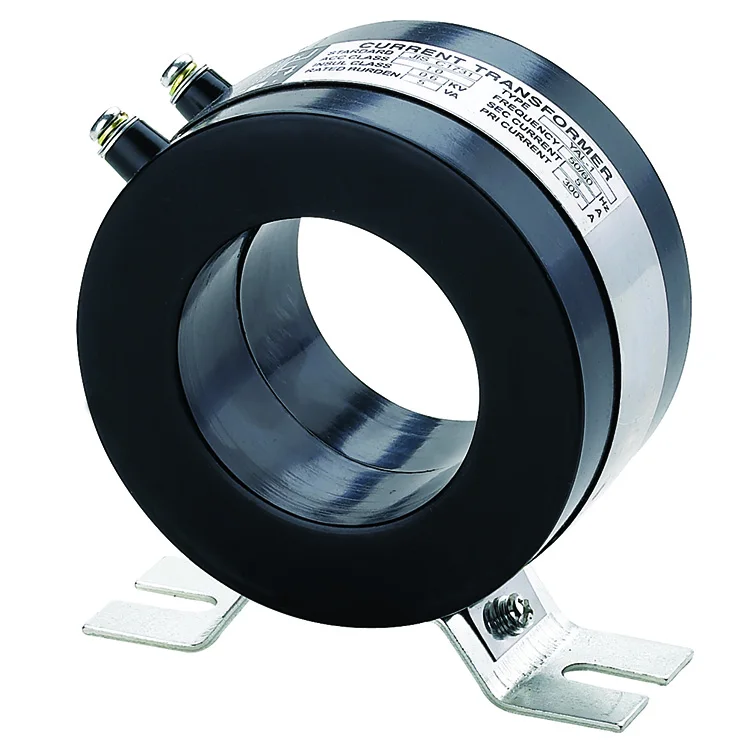

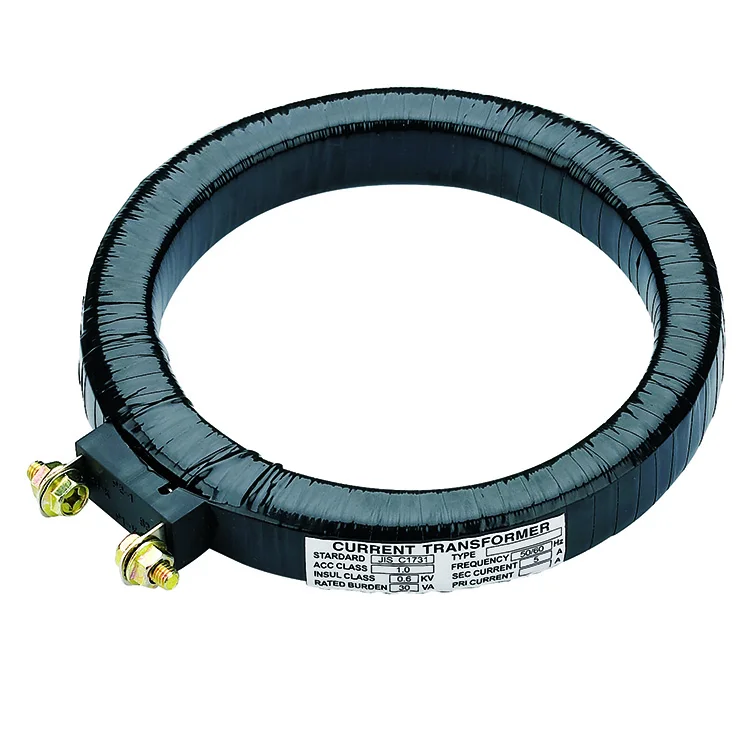

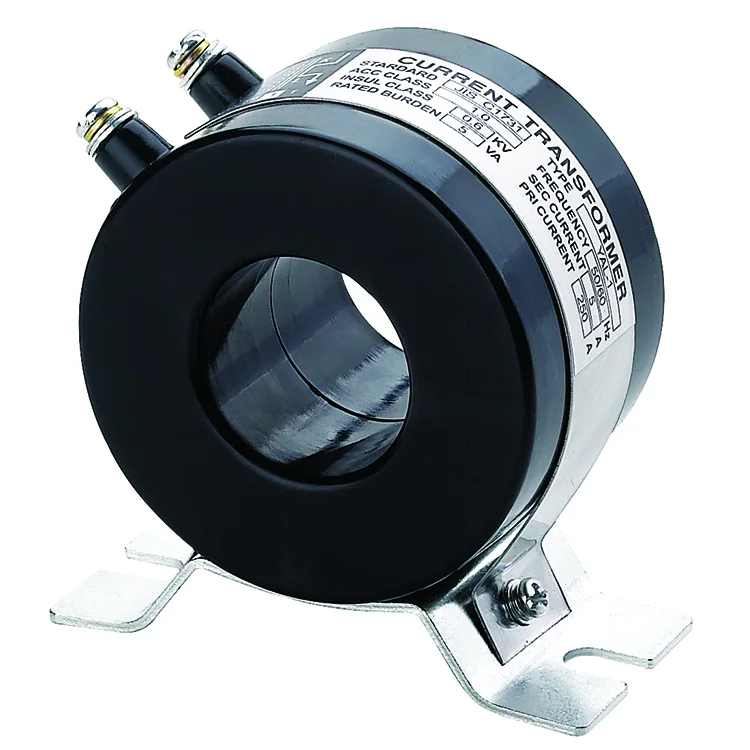

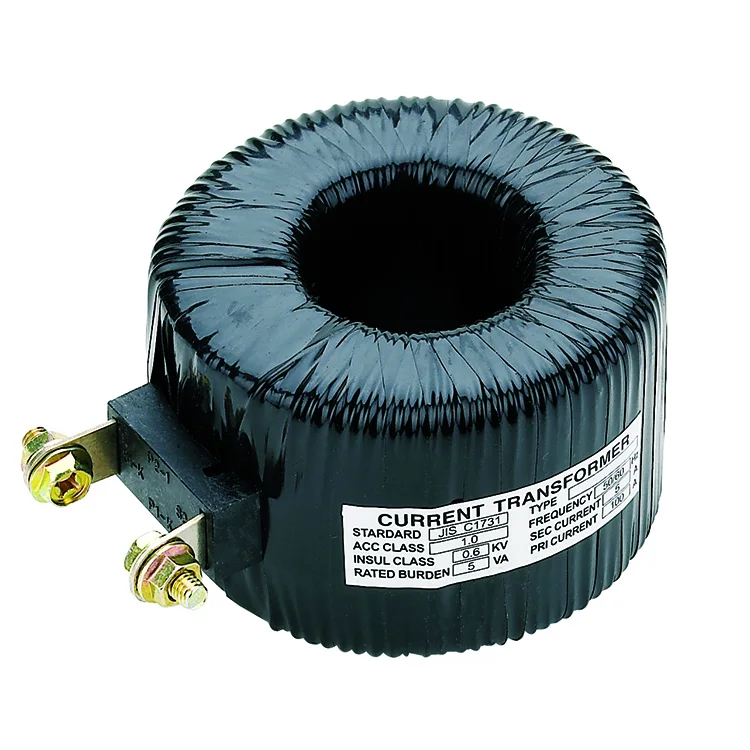

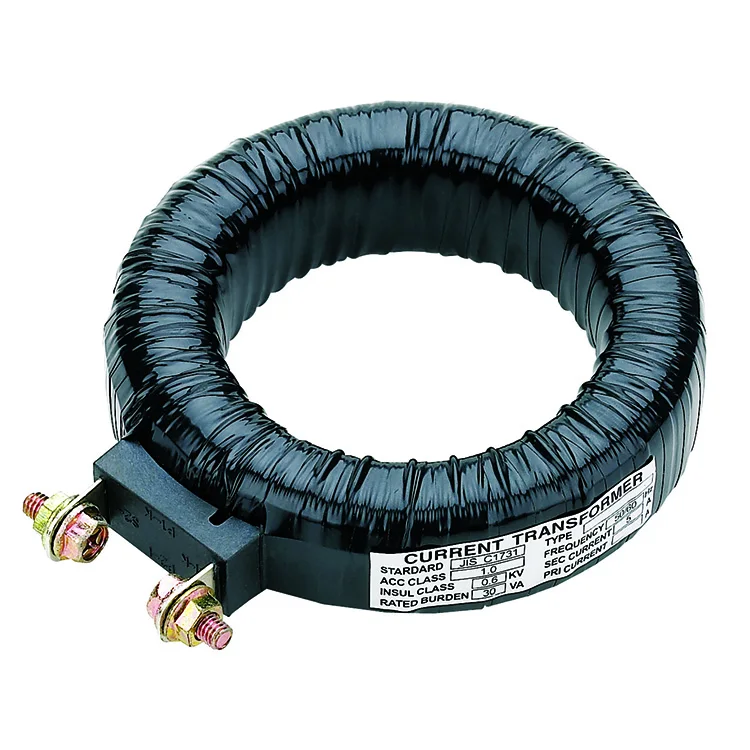

PR45 High Precision 0.55kg Round Type Rct Split Core Small Current Ring Transformer For Current Measuring
- Category: >>>
- Supplier: Wenzhou Everfar Electrical Co. Ltd.
Share on (62367062948):
Product Overview
Description
Other Products
CA/MES-CURRENT TRANSFORMERS
Fixing system: Busbar support mounting, metallic bracket panel mounting, by an accessory directly to cable by
MEASURING TRANSFORMERS
A range of (12 frames) compact design plastic case current transformer It's volume is much smaller than genera model, integral hinged plate terminal cover, DIN rail mounting all makes this series CT match the requiremens
Features
Three built in fixing methods: panel/din rail/busbar
Built in hinged terminal cover
Compact design
Primary current from 5A to 3000A
Specifications
| Rated frequency | 50/60Hz |
| Rated test voltage | 3Kv AC (1 min) |
| Rated short-time thermal current (Ith) | 60In |
| 60In Rated dynamic current (Idyn) | 2.5Ith |
| Rated voltage (Um) | 0.72Kv AC |
| Continuous overload (Id) | 1.2In |
| Operating temperature | .-10 degree to 50 degree |
| Housing self-extinguishing class | VO |
| Safety factor | FS 5 |
| Secondary current | 5A/1A |
Standard
IEC60044-1 GB1208-2006
| Model | Primary / Secondary | Busbar Hole Dimensions(mm) | Rated Burden (VA) | Accuracy Class | Rated Voltage |
| CA-62/B | 5/5A~150/5A | busbar | 1.5~2.5 | 0.5 /1.0 | 0.72KV(AC) |
| CA-45/14 | 5/5A~60/5A | Φ=14mm | 1~2.5 | 0.5/1.0 | 0.72KV(AC) |
| CA-62/20 | 30/5A~200/5A | Φ=20mm | 1.5~5 | 0.5 /1.0 | 0.72KV(AC) |
| CA-62/30 | 30/5A~200/5A | Φ=30mm | 1.5~5 | 0.5 /1.0 | 0.72KV(AC) |
| CA-62/40 | 60/5A~300/5A | Φ=40mm | 2.5~5 | 0.5 /1.0 | 0.72KV(AC) |
| CA-74/50 | 300/5A~600/5A | Φ=50mm | 2.5~5 | 0.5/1.0 | 0.72KV(AC) |
| CA-80/30 | 30/5A~200/5A | Φ=30mm | 2.5~5 | 0.5 /1.0 | 0.72KV(AC) |
| CA-80/40 | 100/5A~500/5A | Φ=40mm | 2.5~10 | 0.5/1.0 | 0.72KV(AC) |
| CA-86/60 | 250/5A~1000/5A | Φ=60mm | 3.75~15 | 0.5/1.0 | 0.72KV(AC) |
| CA-100/60 | 400/5A~1600/5A | Φ=60mm | 3.75~20 | 0.5/1.0 | 0.72KV(AC) |
| CA-104/80 | 600/5A~2000/5A | Φ=80mm | 10~20 | 0.5/1.0 | 0.72KV(AC) |
| CA-140/100 | 800/5A~3000/5A | Φ=100mm | 15~25 | 0.5/1.0 | 0.72KV(AC) |
To order Everfar, you may have the doubts:
1) Is Everfar a sourcing company or profesinal manufacturer?
Everfar Electrical Co, Ltd -Distinguished by OEM-manufacture,
Develop customer's design and sells instruments for measurement,
such as Current Transformer, Panel meter, Shunt, and Sourcing products.
We ONlY produce the EXCELLENT QUALITY items with COMPETITIVE PRICE.
We have been on the market since 2007 and we the joint venture by
JSELE, QIANWEL,ZIP
which are speicalized manufacturers of current transformer, Panel meter, Shunt at 2015.
2) Can Everfar design and make the mould for special requirements?
Yes, we have the ability to do oEM/OdM to meet clients' requirements.
In the past years, we make new moulds for our customer 10 moulds each year.
3) What is your main market, and who is your main customers?
Our main oversea market is European, Africa, Asian, we export to over 50 countries and
regions, such as the Italy,
German, Poland, UK, Russia, Soth Africa, India, Singapore, etc. It is continue adding..
Our main customers are very famouse brands in the instrument business. Send our
email. we will talk about this in detail.
4) How does your factory do regarding quality control?
We have many documents to control the quality from the raw material to the completed
products.
Our tester is the most mordern type with computer records.
5) What kind of certification do you have for oversea market?
Mainly, we have the CE for selling to oversea market, and have the iso90001 to control
le production.
6) Could I order samples before release a big order?
Yes, you can order in our Alibaba web directly, and special drawings
or design pls contact us immediately by email.
