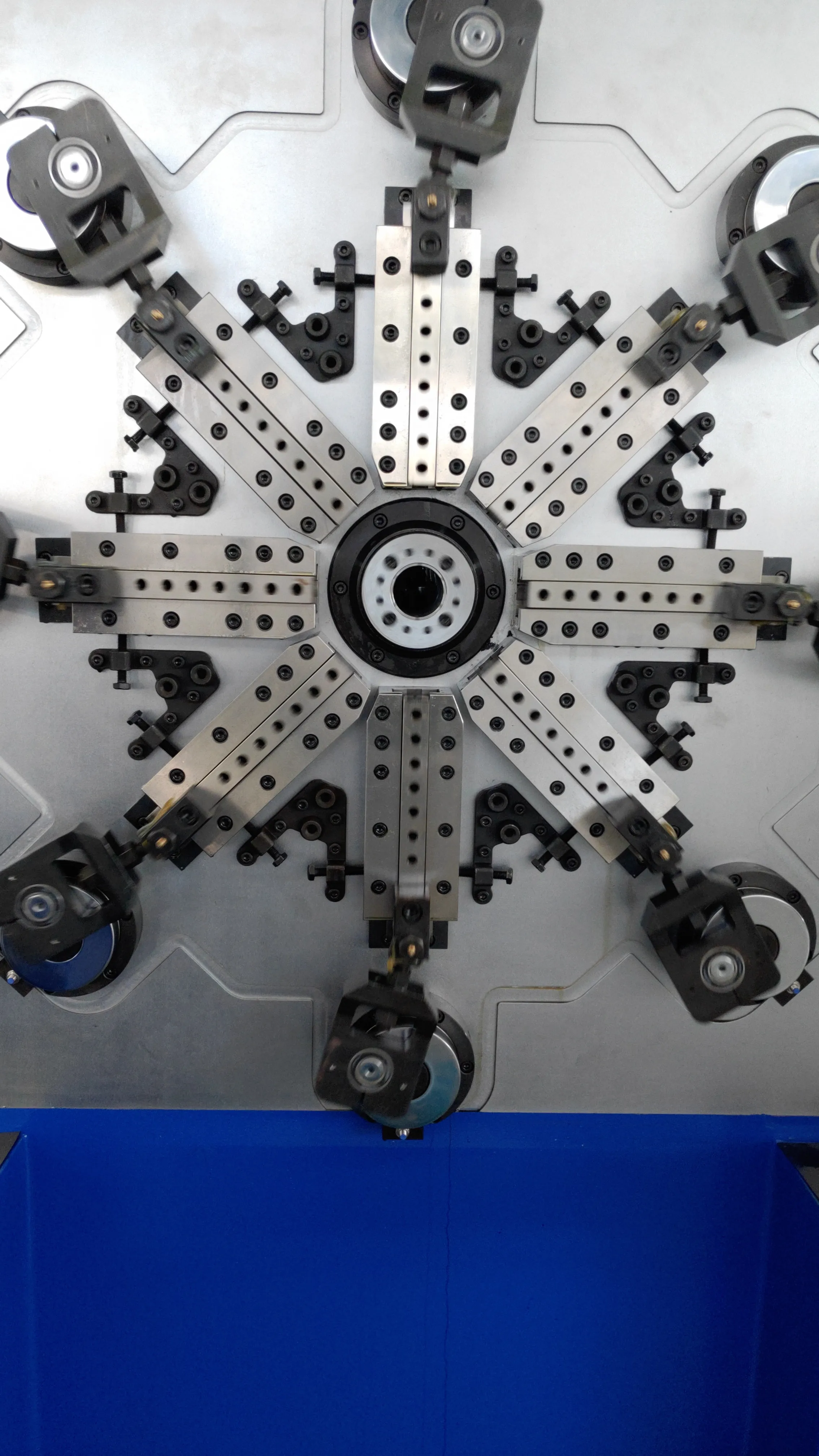

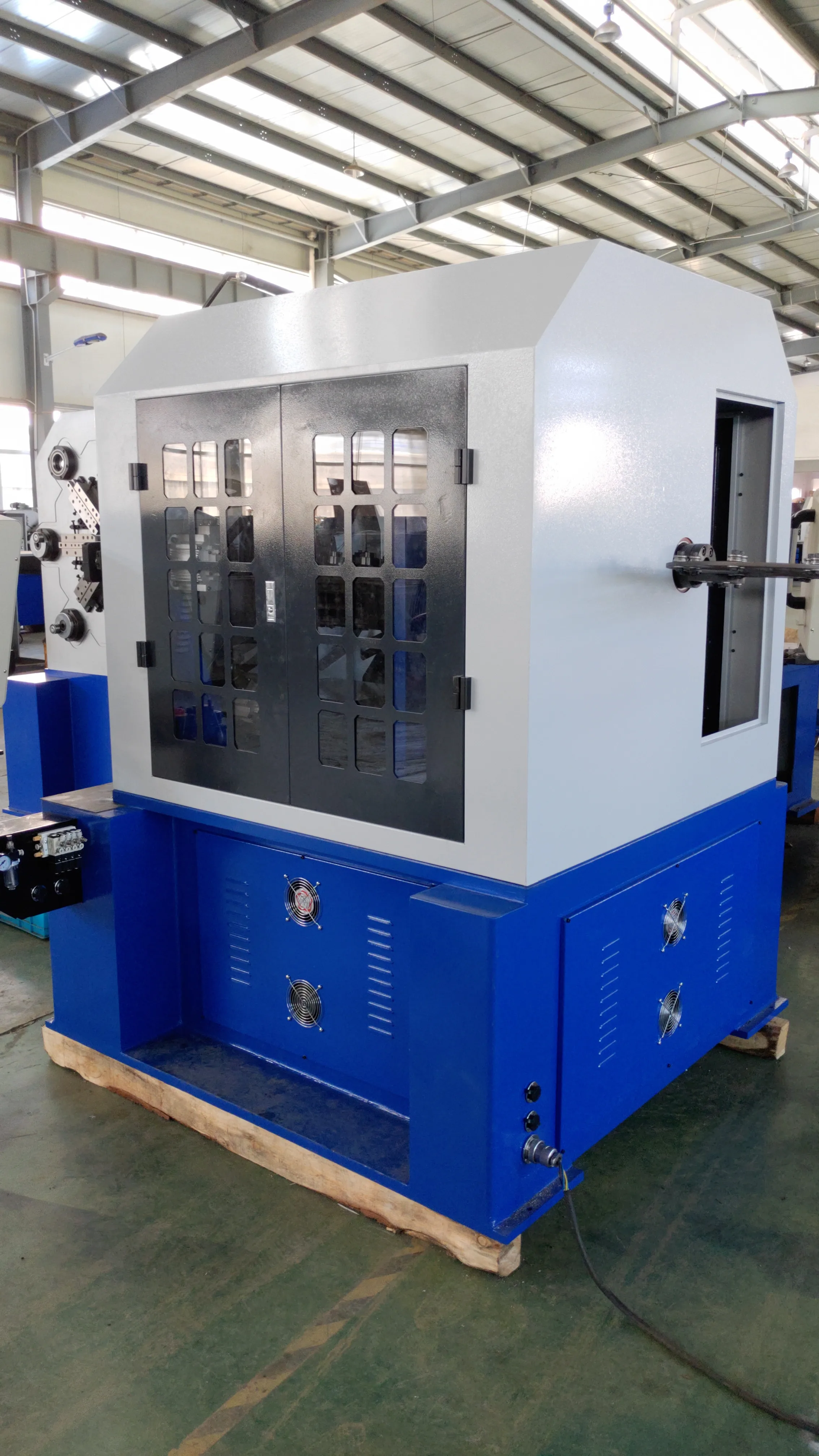

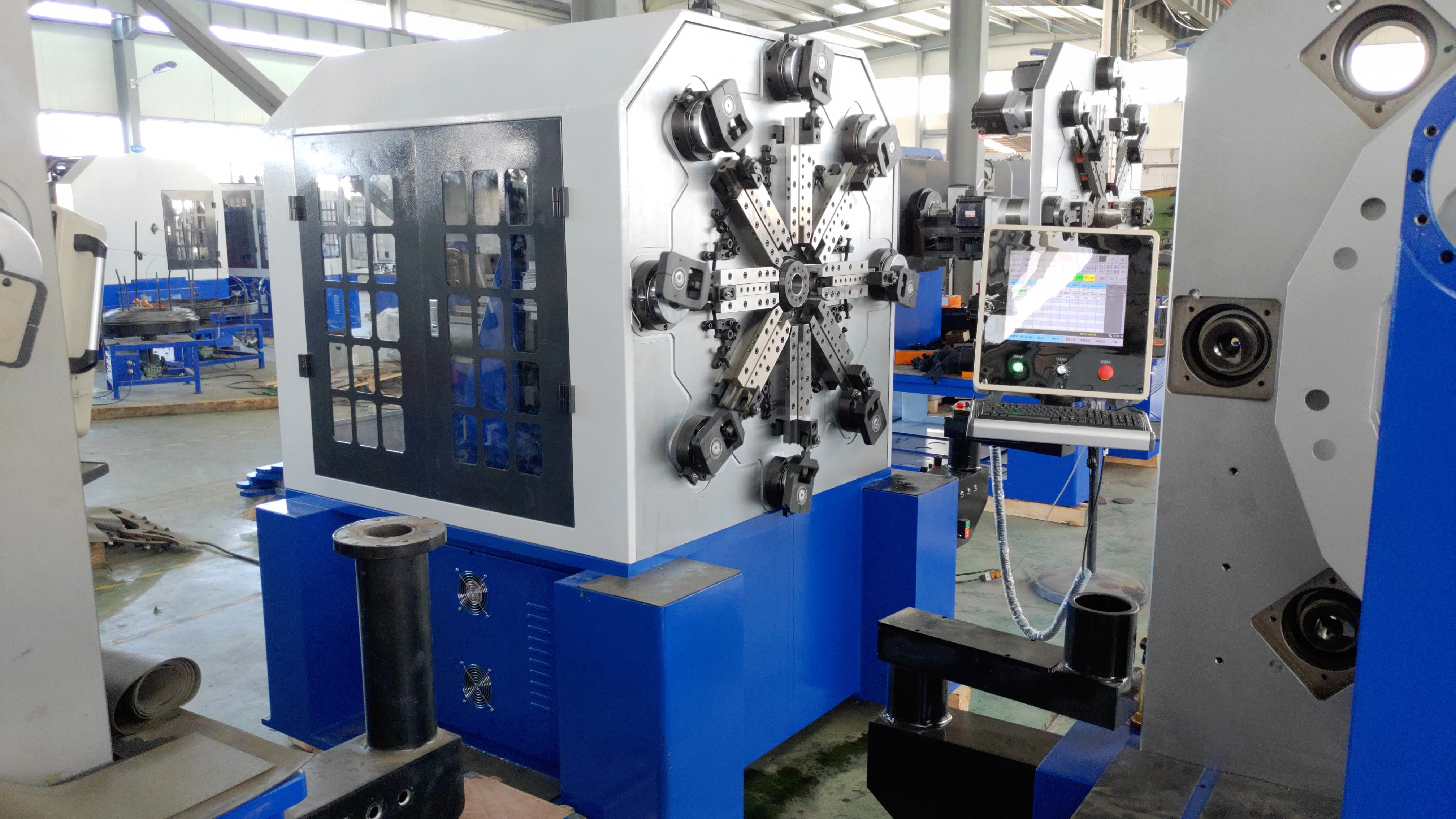

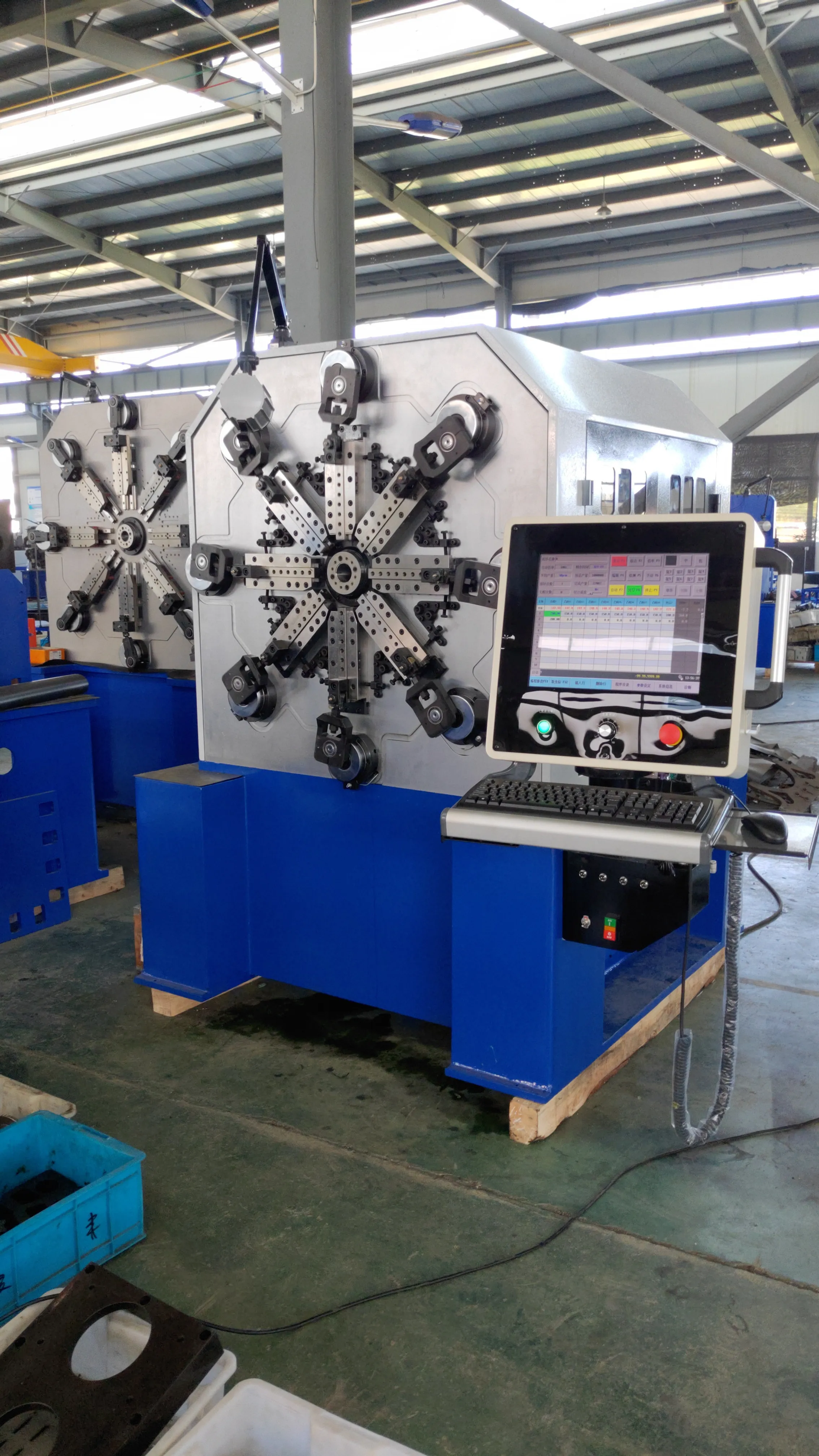

YF brand CNC 1240 S shape Zig Zag Spring Forming Machine
- Category: Spring Coiling Machine >>>
- Supplier: Zhejiang Yinfeng Automation Technology Co. Ltd.
Share on (62367077352):
Product Overview
Description
Product Description
CNC-1240 Camless Spring Machine
Model | CNC-1240 | |
Color | Grey/Blue (customized) | |
Diameter of the steel wire(mm) | Φ1.2~Φ3 | |
Total power (kw) | 18.5 | |
Number of axes | 12 | |
Number of the wire feed wheel | 3 pairs | |
Servo motor | Wire feeding | 5.5KW |
Rotary wire | 1.2KW | |
Rotary mandrel | 1.2KW | |
Curved shaft | 1.0KW | |
Knife rest of slide | 1.2KW*8 | |
Main Machine(L*W*H)(mm) | 1900*1460*1800 | |
Net Weight of Machine (kg) | 2000 | |
