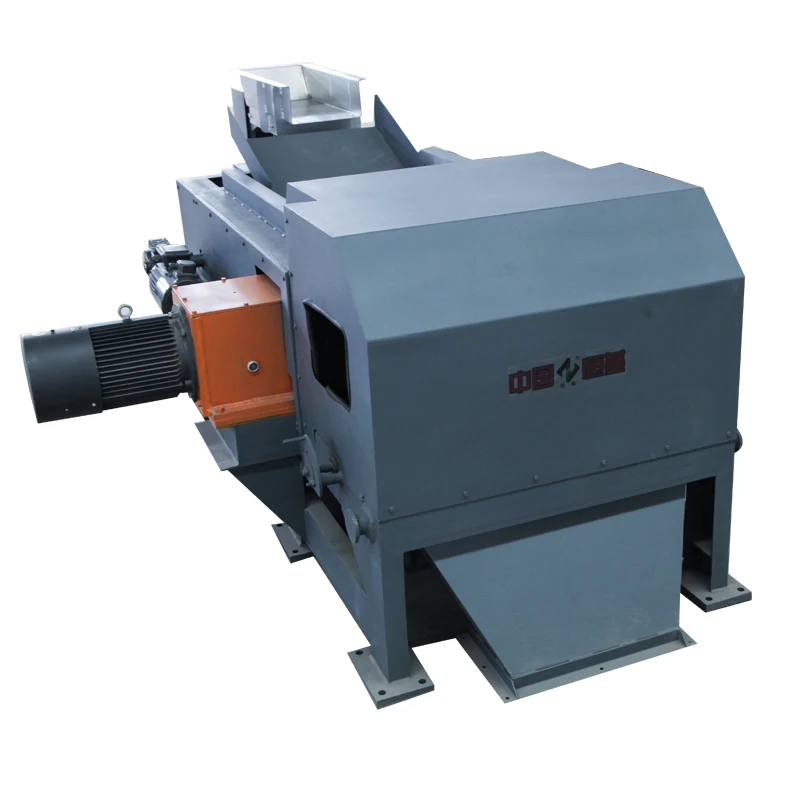

China Top eddy current separator with fast delivery

The physical basis of HECS vortex current metal separator is based on two important physical phenomena: an alternating magnetic field that varies with time is always accompanied by an alternating electric field, and a magnetic field is produced by a current-carrying conductor. Therefore, if the conductive body is exposed to the alternating magnetic field or the alternating magnetic field formed by the rotation of the fixed magnetic field, then the vortex current perpendicular to the alternating magnetic field flux will be produced in the conductive body. On the other hand, the mirror magnetic field caused by conductor vortex current, which is opposite to the induced magnetic field, produces repulsive force to the conductor, such as copper, aluminum and so on, which will leap forward along its conveying direction because of the repulsive force of magnetic field, and realize the separation from other non-metallic materials, and the main distinguishing criterion is the ratio value of material conductivity and density, and the material with high ratio value is easier to separate than the material with low ratio. Separate the conductor from the material.

The HECS vortex current metal separator is composed of the main body of the separator and the control cabinet, and the main part mainly consists of the assembly, the driving motor, the frame and the cover body. Sorting always becomes the core part of the equipment, which is composed of permanent magnet drum, material transportation system (including material conveyor belt, conveyor belt drive drum and deceleration motor).

APPLICATION INDUSTRY

HECS Eddy current Metal Separator is mainly used to recover copper, aluminum and other non-ferrous metals from domestic waste, industrial waste, electronic waste treatment, glass shredding, waste plastic doors and windows, boiler bottom ash, waste car chips and other non-ferrous metals. It can be widely used in waste treatment, waste electrical appliances recovery and other environmental protection fields, as well as non-ferrous metal processing industry material treatment and other industries. It mainly refers to the following aspects: electronic waste treatment (refrigerator dismantling line); separation of aluminum cans and iron metals; separation of non-iron metals from boiler bottom ash; separation of aluminum or copper blocks from scrap car chips; separation of non-iron metals from glass fragments; separation of non-iron metal impurities from some production lines (such as plastic recovery production lines); separation of non-iron metals from plastic door and window recovery; Separation of non-iron metals from wood;
