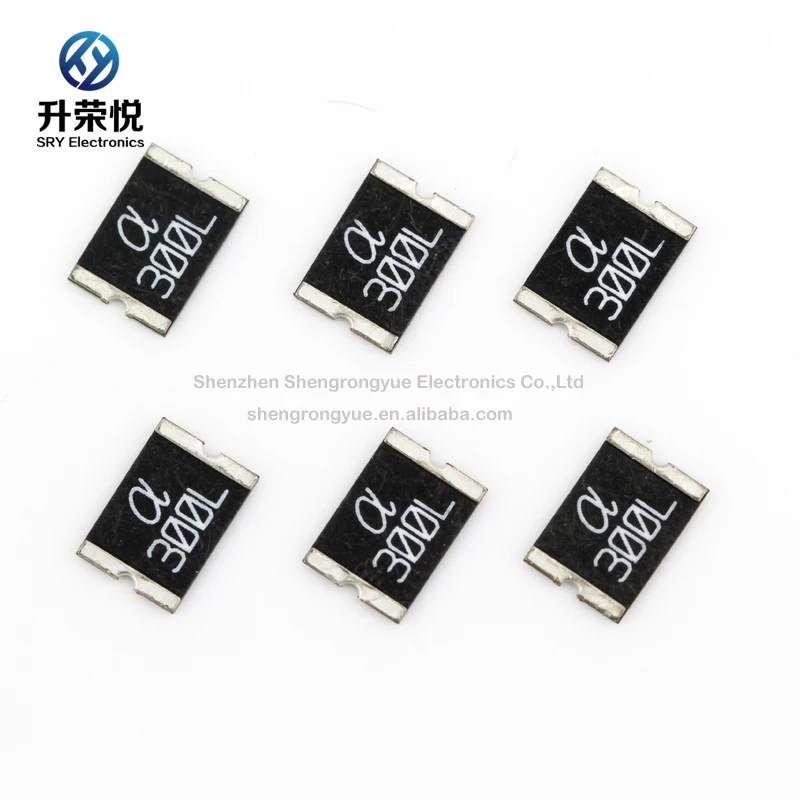

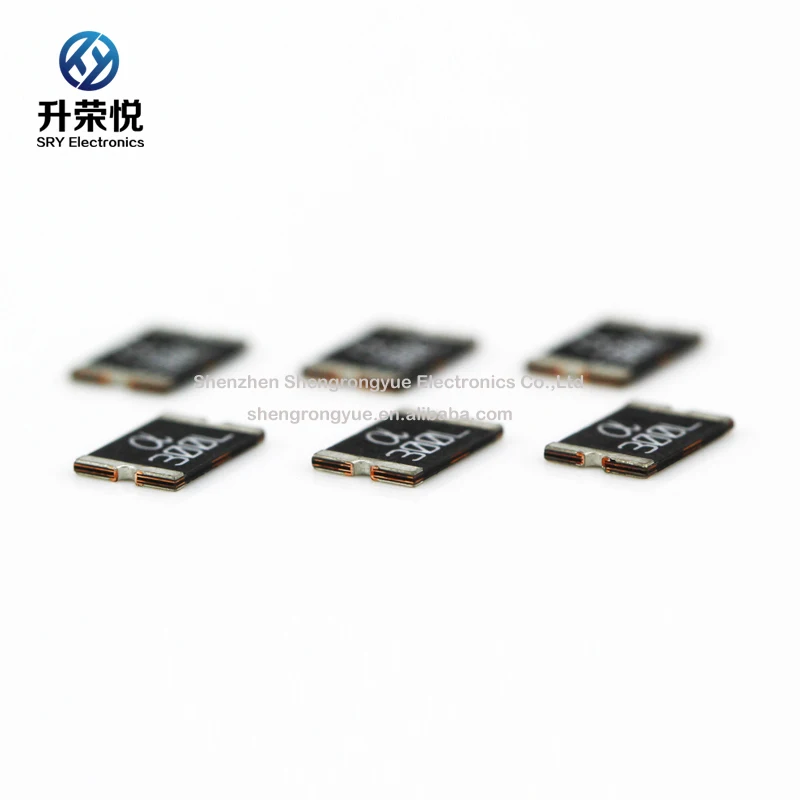

The ASMD2920 series provides surface mount resettable overcurrent protection with holding current from 0.3A to 3.0A. This series is suitable for applications with higher holding current and higher working voltage up to 60V.
Images

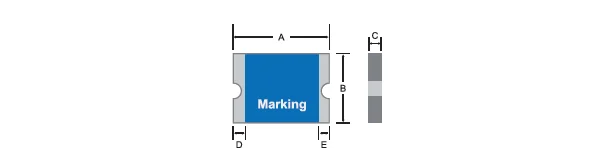

Demension
Space
Fuse PPTC, Surface Mount resettable fuses,ASMD2920 series, designed in Taiwan
Electrical properties
FUSE
Vmax
(Vdc)
Imax
(A)
Ihold
(A)
Itrip
(A)
Pd typ. (W)
Maximum Time To Trip
Resistance
Current (A)
Time (Sec.)
Rimin (Ω)
R1max (Ω)
ASMD2920-030
60
100
0.30
0.60
1.5
1.5
3.0
0.600
4.800
ASMD2920-050
60
100
0.50
1.00
1.5
2.5
4.0
0.180
1.400
ASMD2920-075
33
100
0.75
1.50
1.5
8.0
0.3
0.100
1.000
ASMD2920-100
33
100
1.00
2.00
1.5
8.0
0.5
0.065
0.410
ASMD2920-110
33
100
1.10
2.20
1.5
8.0
0.5
0.065
0.410
ASMD2920-125
33
100
1.25
2.50
1.5
8.0
2.0
0.050
0.250
ASMD2920-150
33
100
1.50
3.00
1.5
8.0
2.0
0.035
0.230
ASMD2920-185
33
100
1.85
3.70
1.5
8.0
2.5
0.030
0.150
ASMD2920-200/24
24
100
2.00
4.00
1.5
8.0
4.5
0.00
0.120
ASMD2920-250
16
100
2.50
5.00
1.5
8.0
1.60
0.020
0.085
ASMD2920-260
6
100
2.60
5.20
1.5
8.0
10.0
0.014
0.075
ASMD2920-300
6
100
3.00
6.00
1.5
8.0
20.0
0.012
0.048
ASMD2920-300/16
16
100
3.00
6.00
1.5
8.0
20.0
0.012
0.048
Vmax=Maximum voltage device can withstand without damage at rated current (Imax).
Imax=Maximum fault current device can withstand without damage at rated voltage (Imax).
Ihold=Hold Current: Maximum current device will sustain for 4 hours without tripping in 25oC still air.
Itrip=Trip Current: minimum current at which the device will trip in 25oC still air.
Pd=Power dissipated from device when in the tripped state at 25oC still air.
Ri=Minimum/Maximum resistance of device in initial (un-soldered) state.
R1max=Maximum resistance of device at 25oC measured one hour after tripping.
Caution=operation beyond specified ratings may result in damage and possible arcing and flame.
