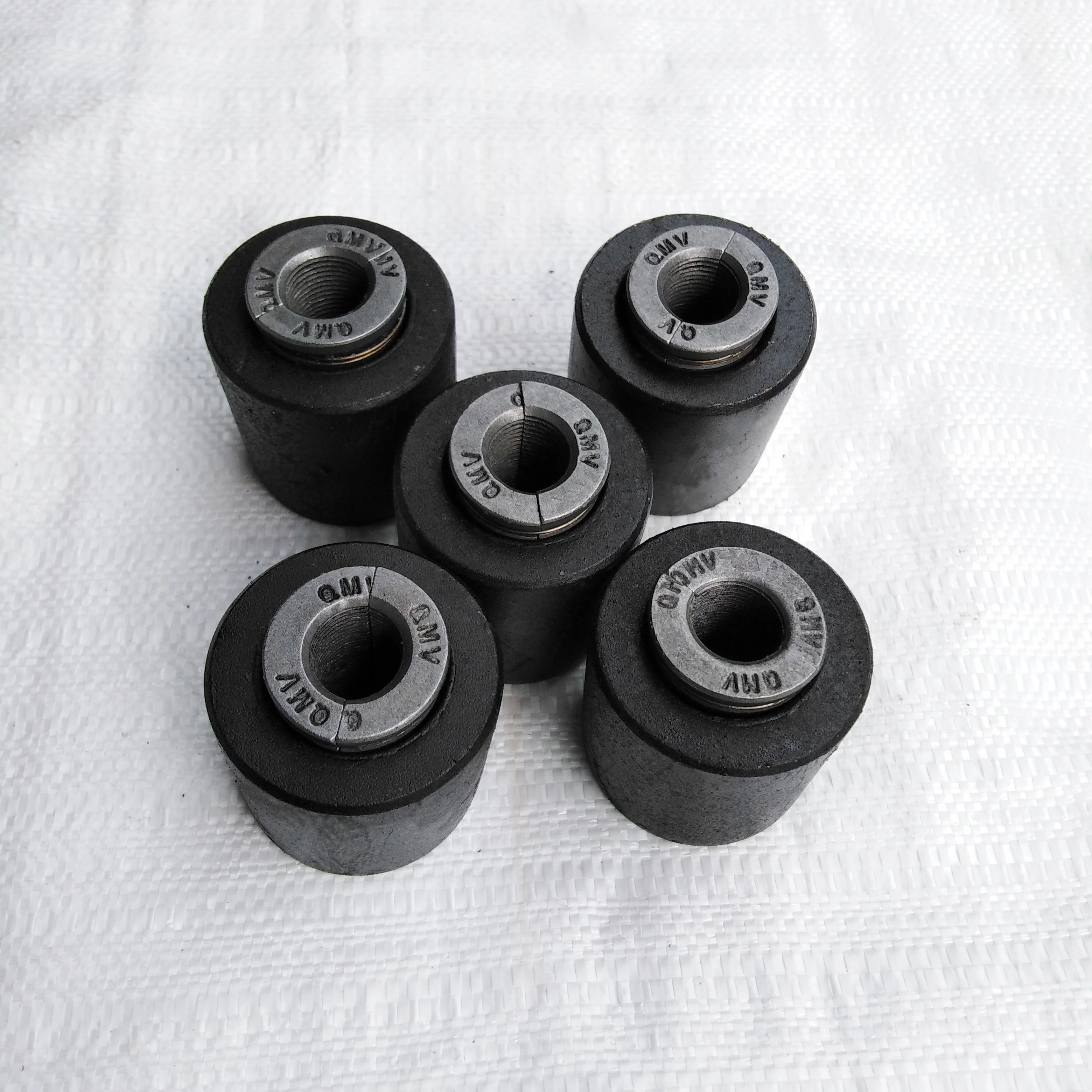

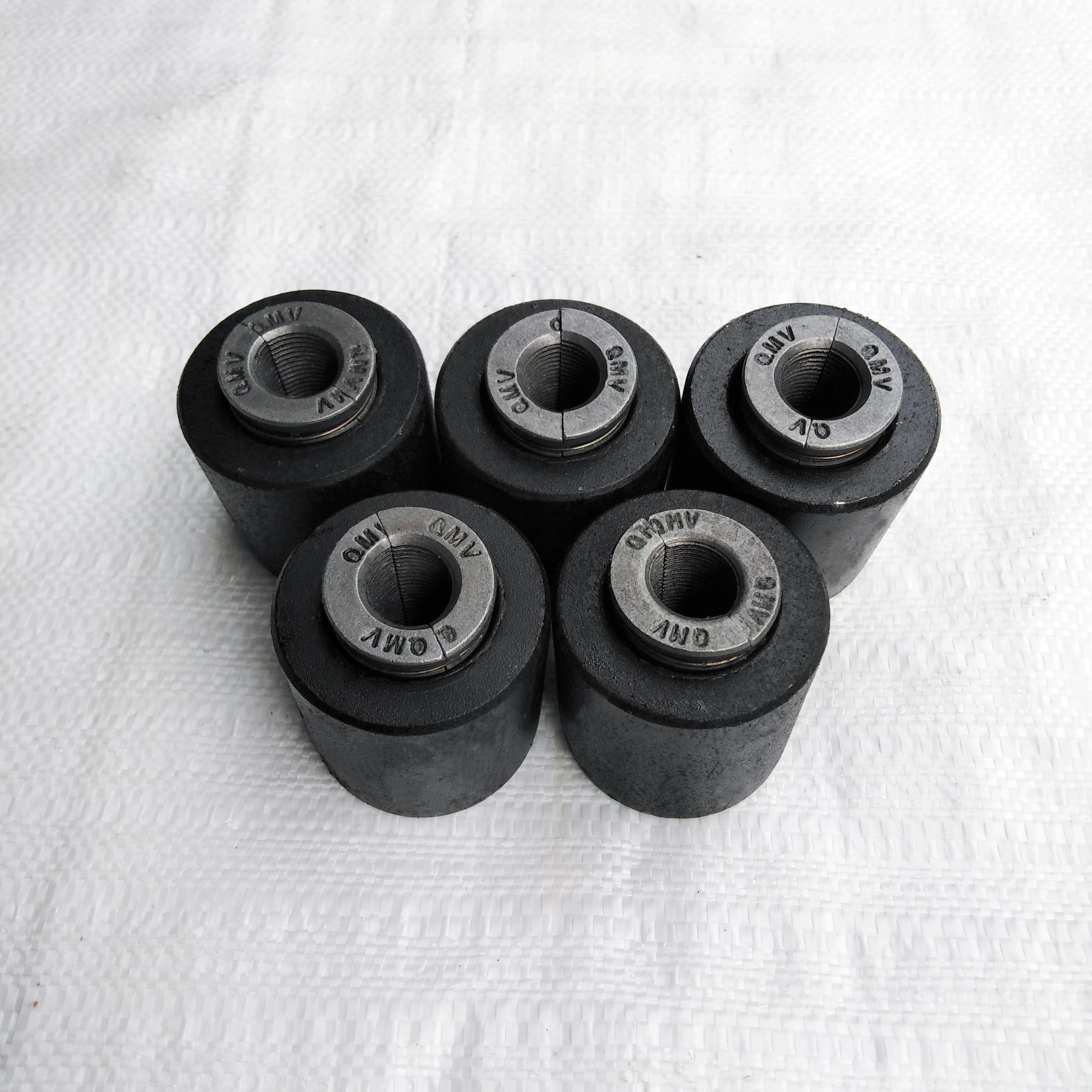

Ready to ship anchor barrel and wedge for prestress PC strand PC wire steel bars 4mm 5mm 6mm 7mm 9mm 10mm 11mm

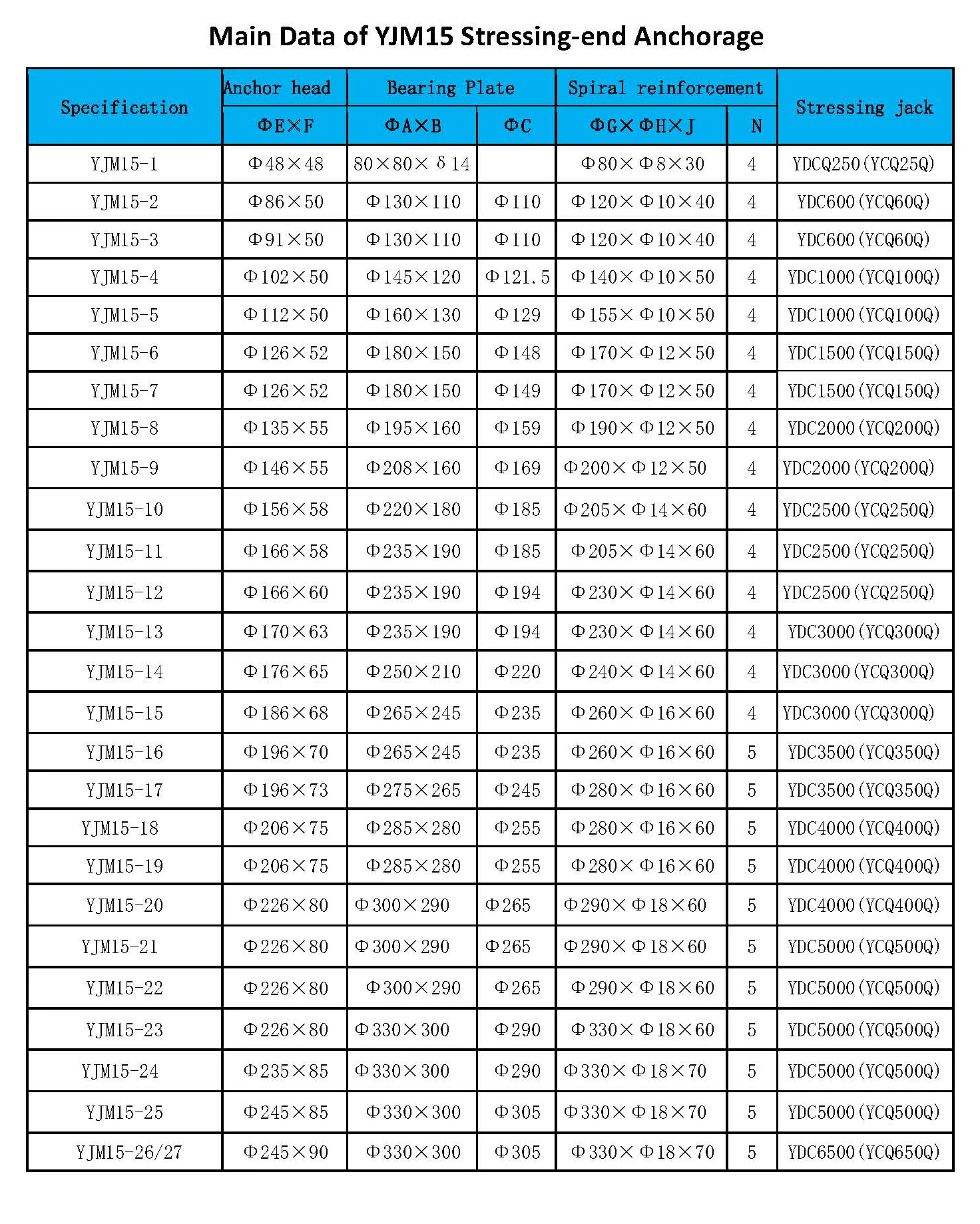

YJM anchorage system is consists of stressing-end anchorage, fixed-end anchorage and coupler.

Applicable for tendon with standard strength lower than 2000 MPA, with the diameter of Φ12.7, Φ12.9, Φ15.2, Φ15.7, Φ17.8, Φ21.6, Φ21.8, Φ28.6.And the high-strength steel wire buddle with standard strength of 1860Mpa and diameter of Φ5, Φ7.

The number of strand can be selected from 1~199 tendons and can be added per design requirements. With good stressing self-anchored function, easy operation, and high anchoring efficiency and reliable anchorage.

The anchorage structure size is reasonable, which can satisfy anchorage efficiency coefficient but also achieve the anchorage of strand of short diatance. Prestressing tendon layout is compact; anchor mouth friction loss is small.With the reliable anchoring performance,enough carrying capacity,and good applicability. In addition, meeting the requirements of grading tension and stressing prestressing reinforcing steel. The performance of YJM Anchorage systems meet the request of Anchorage grip and coupler for prestessing tendons(GB/T14370-2015)and Prestessing strand anchorage,grip and coupler for highway bridge(JT/T329-2010).

Wedge(Grips)

QMV Wedge is the key part of anchor system, which is made by Hot pressure working steel 20CrMnTi. Its form is divided into two-pieces and three-pieces. It can be used for round anchorage, flat anchorage, and also used for porous coupler.

 Anchor head(Anchor plate)

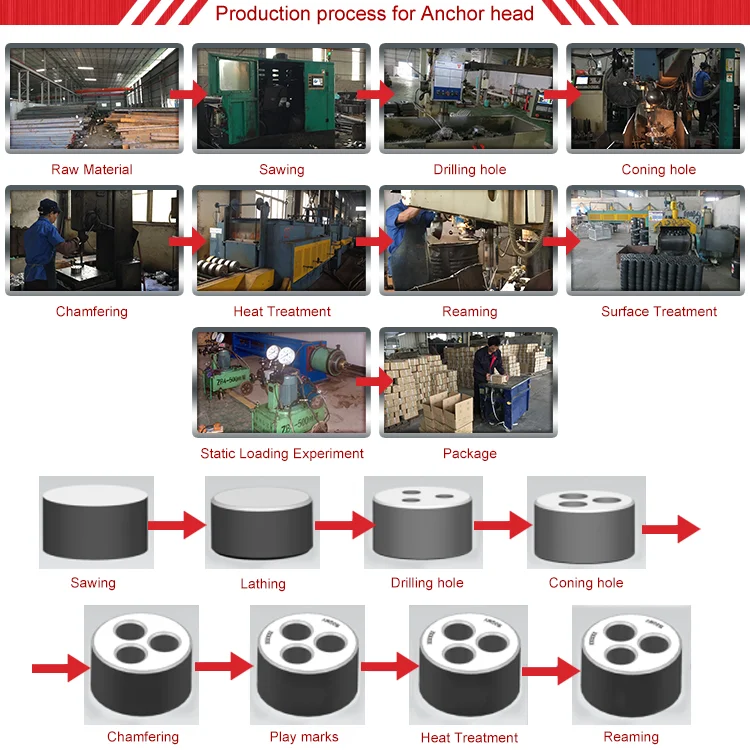

QMV Anchor head is the key part of bearing prestressing tension, the round anchor head and flat anchor head are made by 40Cr steel which is Alloy structure steel. Anchor head include round anchor head and flat anchor head

 Bearing Plate

QMV bearing plate is the key component, which transfer the load from anchor head to concrete under anchor. The method of transfer and distribution of stress affect the anti-cracking and load capacity of concrete. For prevent concrete from crazing, using the spiral reinforcement for strengthening tendons.

 Metal Bellows(Duct)

Metal bellows used for post tensioning prestress concrete structure or constructive pore-forming. It can be divided into round and flat by the section shape; divided into standard enhanced by radial stiffness; divided into metal and plastic tubes by materials, and the metal duct can be divided into galvanized and non-galvanized.

The production of QMV type prestressing tensioning anchorage is suitable for steel strand of 2000 mpa or below the strength level. The clamping piece is for two types. In the repeated tensioning process, the clamping pieces are not easy to be cracked. It has a good tensioning performance,high efficiency of anchoring and a stable anchorage performance.

QMV anchorage system products through strict inspection and testing to ensure the stable quality of qualified, the company established the physical and chemical laboratory, metallographic analysis room, mechanical and physical performance test (including static load, the tensile, etc.) of the three departments, ensure that measuring tool instrument can ensure qualified to make test results. Mainly through the following means of control to ensure that.

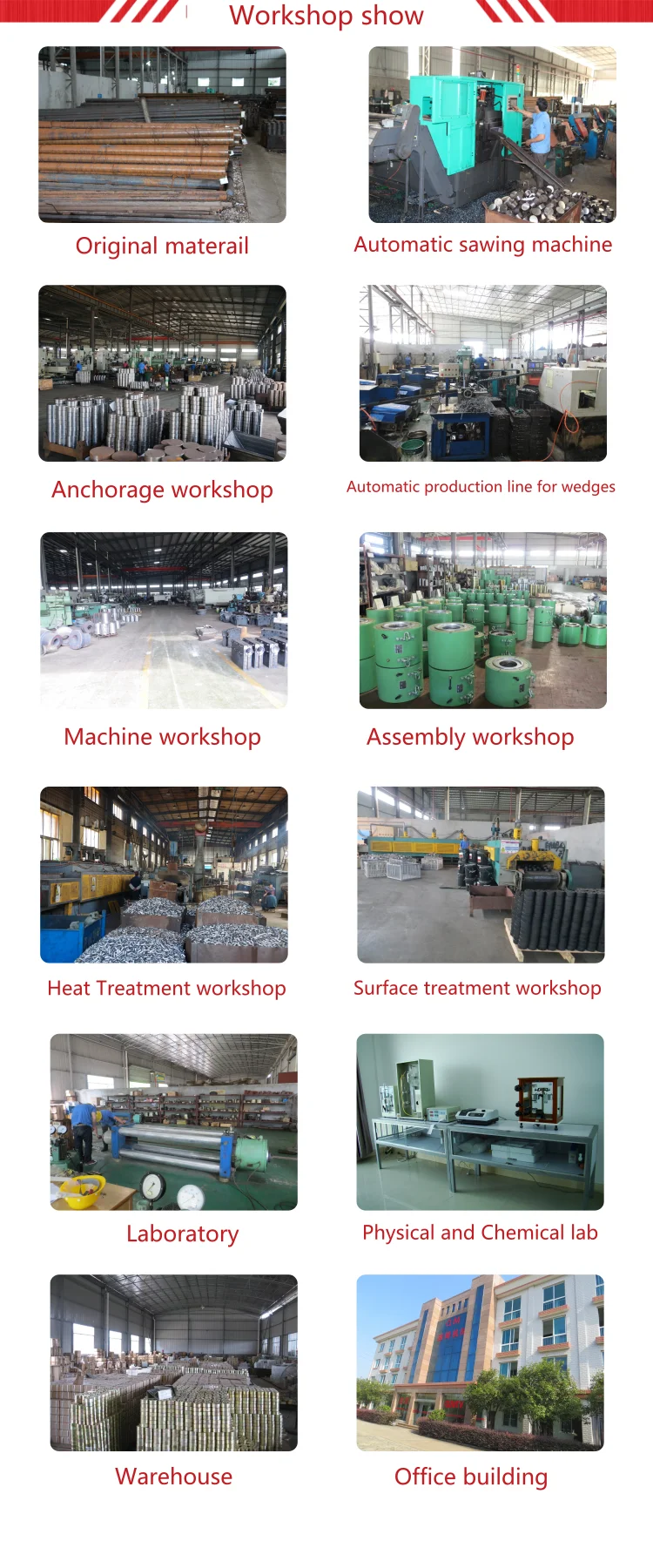

We have many workshop to producing post tensioning and prestressing anchorage and machines, such as Original material, Automatic sawing machine, Anchorage workshop, Automatic production line for wedges, Machine workshop, Assembly workshop, Heat treatment workshop, Surface treatment workshop, Laboratory, Physical and Chemical lab, Warehouse and Office buiding and so on.

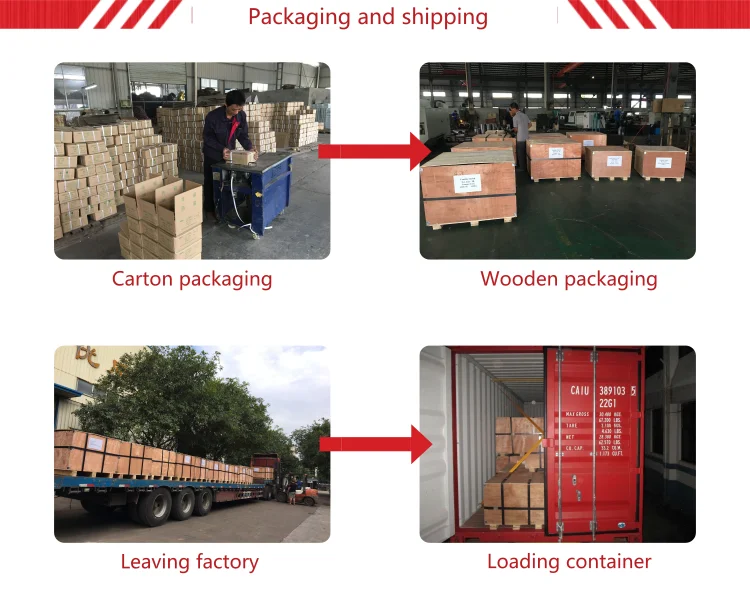

We have a very strict manage for packaging and shipping for prestressing anchorage,post-tensioning anchorage ,presressed wedges and post tension coupler.All products have to through Carton packaging,wooden packaging so that could leave factory.

Liuzhou QM Construction Machinery Co.,Ltd. established in 1988, covers an area of 33,000 square meters including a 5,000sqm manufacturing workshop. QMV concerned with the design, research, development and production of prestressing and posttensioning system products more than 20 years. The production capacity of anchorage for annual is 8 million holes, and prestressing machines are 20,000 sets.

Our products are extensively applied in many projects such as highways, railways, bridges, building constructions, hydroelectric projects, TV towers, large containers, rock anchors and ground anchors.

We have a great team to supply professional design, excellent servise, high quanlity products, fast delivery and on time after-sales, so that our products were sold to firms all over the word. And have more than 8 years experience for international trade. Welcome to cooperation with us to reach your high quanlity and best service request.

Our main products prestressing wedges,prestressing anchorage,post tensioning anchorage,hydraulic Jack and Hydraulic Pump.We build partnerships with customers in many countries every year,such as Thailand,Pakistan,Vietnam,Singapore,Malaysia,Srilanka,Philippines,Myanmar,Australian,

Chile,Brazil and so on.Welcome to become our long-term partners.

1.Product design and recommendations for pre-sales.
2.Strict quality control,short delivery time,good package on -purchase service.
3.Professional and timely after-sales service.

Q1: Are you a trading company or manufacturer ?

A: We are professional factory established in 1998.

Q2. How many kinds of products do you have?
A: We have Anchorage, Wedges(Grips),Coupler, Hydraulic Jack, Hydraulic Pump, Swaging machine ,Bulb machine ,Grout Mixer, Stay cable and so on.

Q3. Can you do customized products?
A: Yes, we can. We have professional designers and we produced a lot of customized products every year.

Q4. What's your MOQ?
1 set is accepted.

Q5. Can I get a sample to make sure the quality?
A: Yes, we could sent the sample for free to you.

Q6. How long will it take to execute my order?
A: Usually it is 15 days.
Q7. What about the payment?
A: We accept T/T ,L/C ,D/A,D/P and Credit card payment terms.
Q8. What are the shipping ways you can offer?
A: By sea, by air or by express according to customers's requirement
