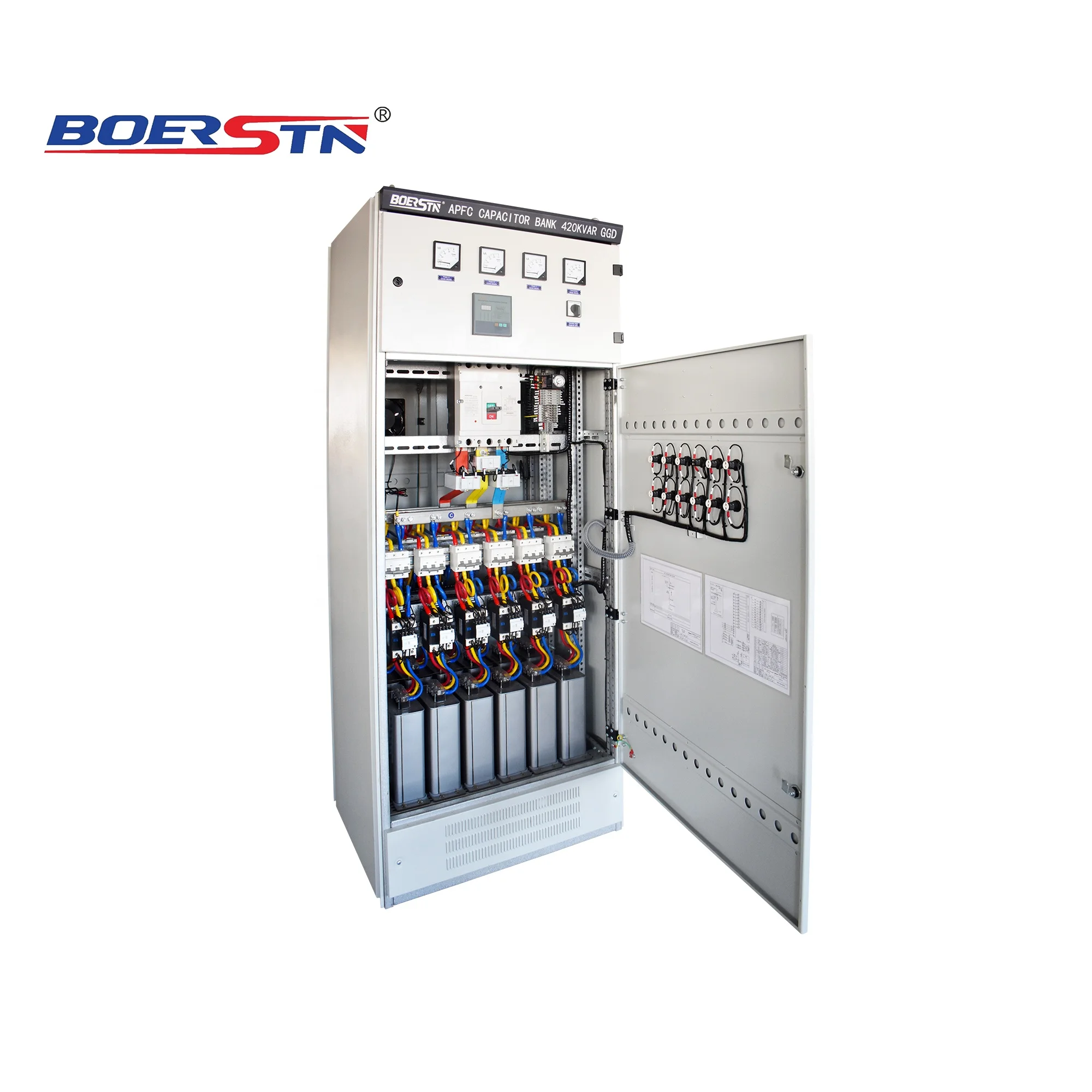

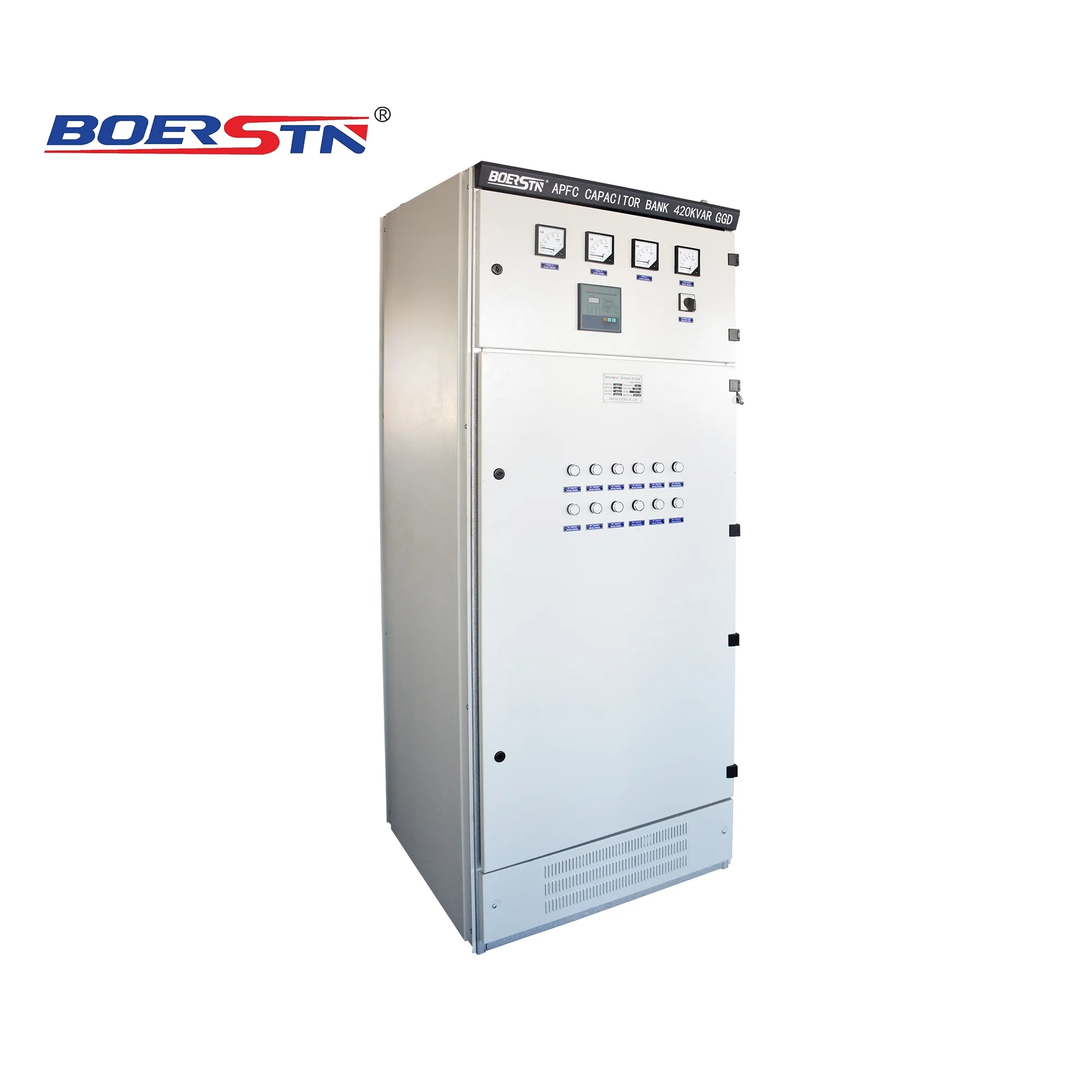

GGD series 3 phase auto Power Factor Improvement Plant Device (PFI) / Auto PFI Plant, complete with capacitor bank, magnetic contactors, HRC fuse PF correction relay, TPN MCCB, ON/Off switch indication lamps, secector switch etc
We custom-made this item according to user's and clients' requiremnts and his power system.

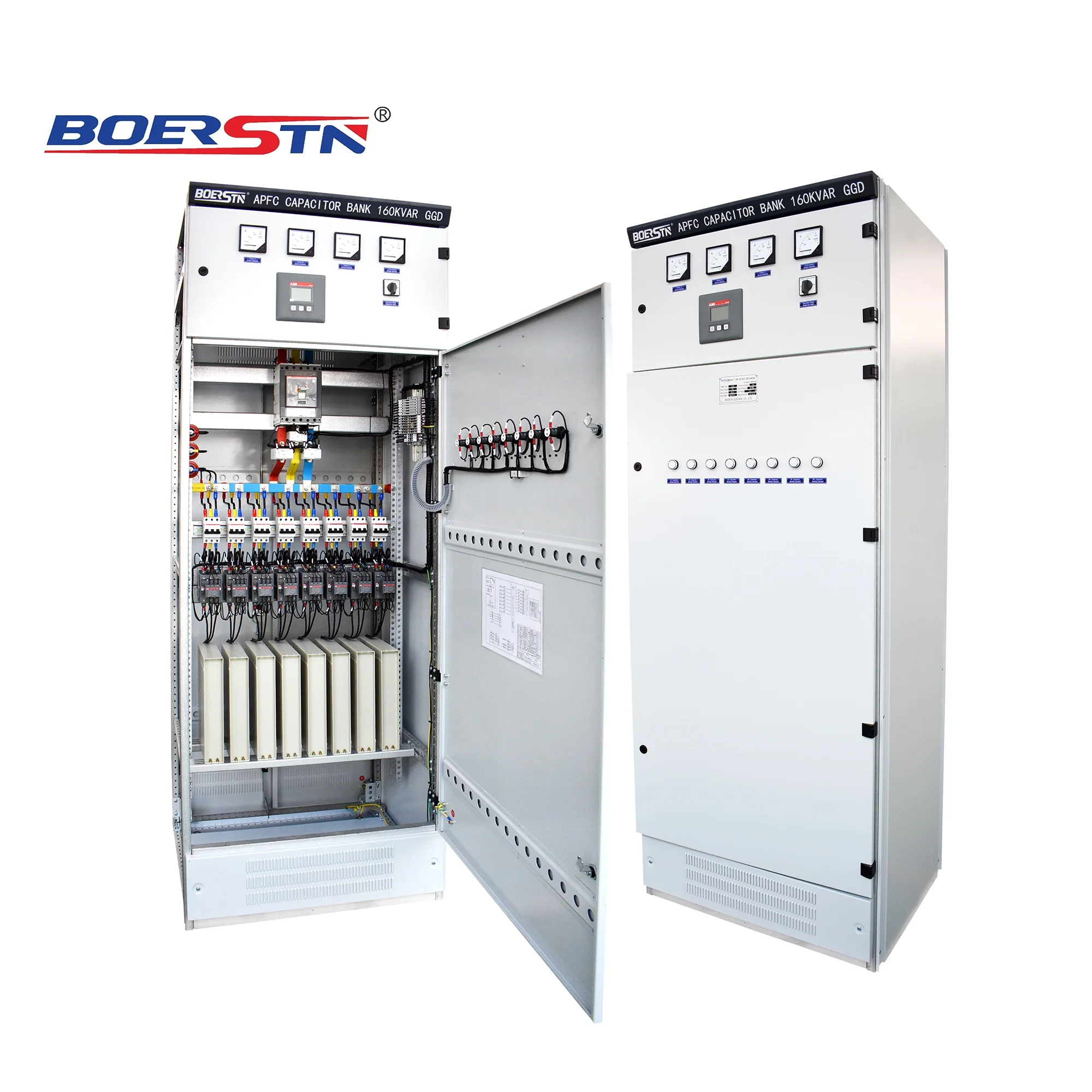

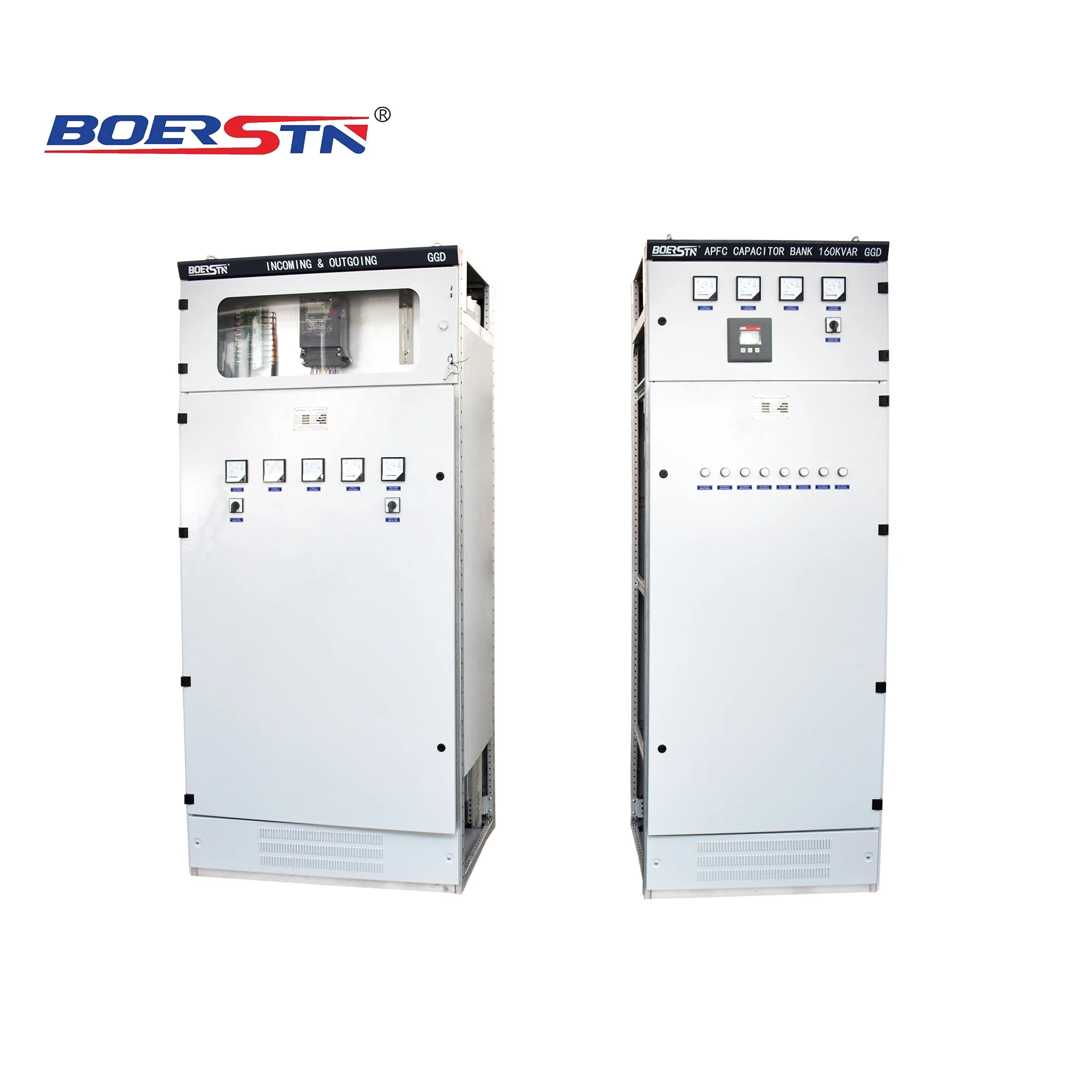

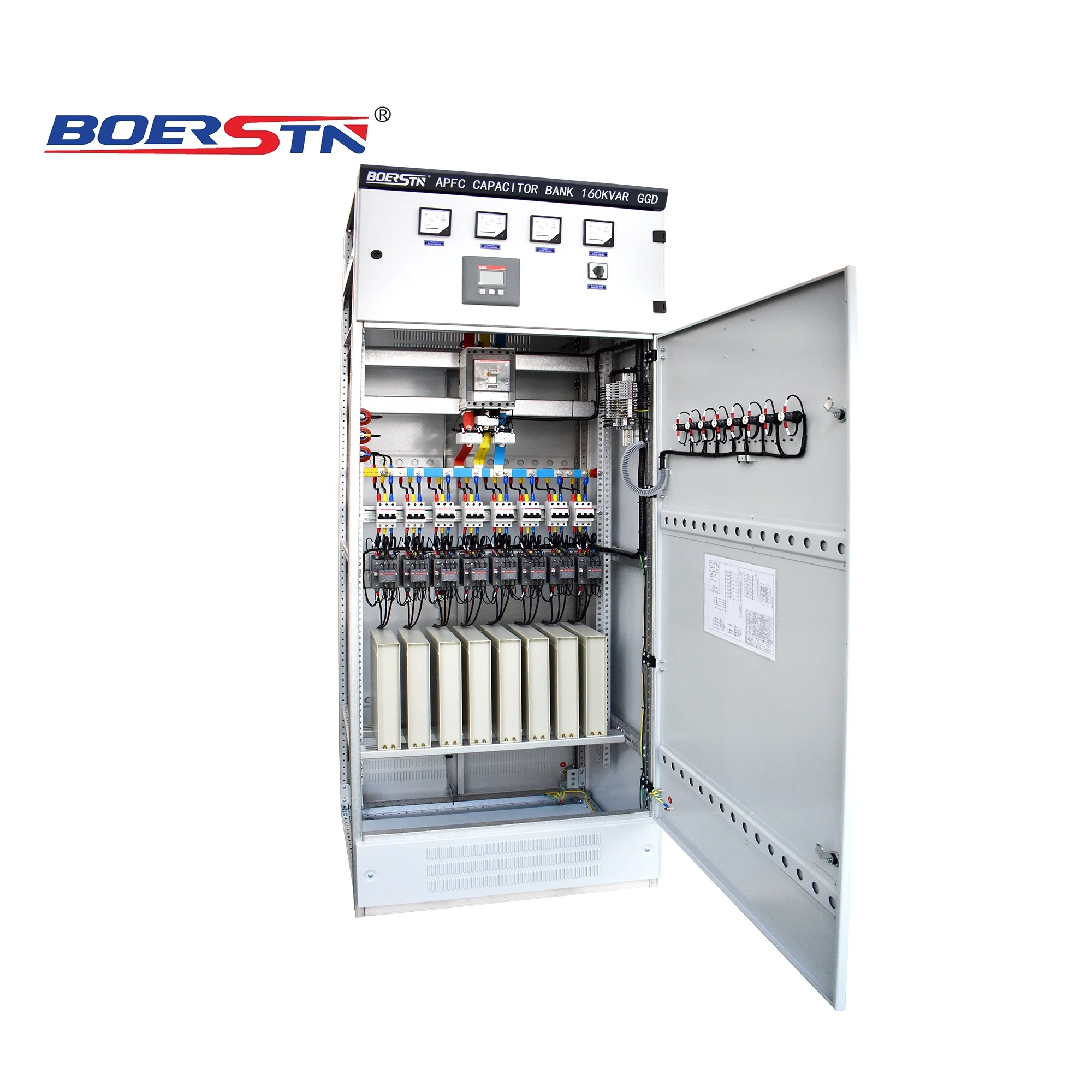

160Kvar 8 steps APFC capacitor banks
No.
Parts name
model & specification
unit
QTY
0
Dimension
800*600*2200
pc
1
1
MCCB
T5N 400 TMA R400 FF 3P
pc
1
2
AC magnetic contactor
UA50-30-00-RA
pc
8
3
MCB -Mini circuit breaker
SH203-C50
pc
8
4
capacitor unit 20Kvar
CLMD33/20KVAR
pc
8
5
auto power factor regulator
RVC-8
pc
1
6
CT-current transformer
BH-0.66 400/5A
pc
3
7
ampmeter
6L2-A
pc
3
8
voltmeter
6L2-V
pc
1
9
voltage selecting switch
LW12-16YH2/2
pc
1
10
capacitor selecting switch
LW5-16 TM707
pc
1
11
terminal blocks
URTK
pc
6
12
pilot lamp
TGAD56-22D/S
pc
8
13
copper busbar
TMY-3*(50*10)
Kg
13.35
14
neutral busbar
TMY-50*5
Kg
1.78
15
grounding bus bar
TMY-50*5
Kg
1.78
16
branch busbar
TMY-30*5
Kg
7.34
17
Aux.material
set
1
metal enclsoure (mm)
800*600*2200
GGD type LV switchgear is suitable for three-phase AC 50 /60HZ, max voltage 660V, rated current to 3150A system and three-phase four wire and three-phase five wire, it is widely used in
power plants, substations, industrial and mining enterprises, hotels, airports, docks and the building of broadcasting and communication center, transmission & distribution and the electric energy conversion, power distribution and power consumption in PC and motor control center MCC
Working Environment
1.Indoor altitude above sea level: Maximum installation altitude: 2000m
2..Ambient air temperature: -5℃~+40℃ and the average temperature should not
exceed +35℃ in 24h
3.Relative humidity should not exceed 50% at max temperature +40℃. Higher
relative humidity is allowed at lower temperature. Ex. 90% at +20℃. But in view of
the temperature change, it is possible that moderate dews will produce casually.
4.No fire, explosion danger, serious pollution, chemical corrosion and severe vibration
5.Installation gradient not exceed 5°
6.This product is suitable for the following temperature transportation storage: -25℃ ~+55℃ 24h, in a short period of time (no more than 24hours) not more than+70℃.
7.Any specific requirement, consult with manufacture
Characteristics
This series of products with high breaking capacity, good dynamic stability, advanced and reasonable structure, electrical program of practical, series, strong versatility, various schemes of unit combination, a cabinet contained many circuits, save the area , beautiful appearance, high level protection, safe and reliable, convenient maintenance etc.
It accords with the standards IEC439 NEMA ICS2-322 as well as the GB7251-87 “Low voltage complete switch device ” national standards and ZBK36001-89 "low voltage withdraw type complete switch device” professional standards"
