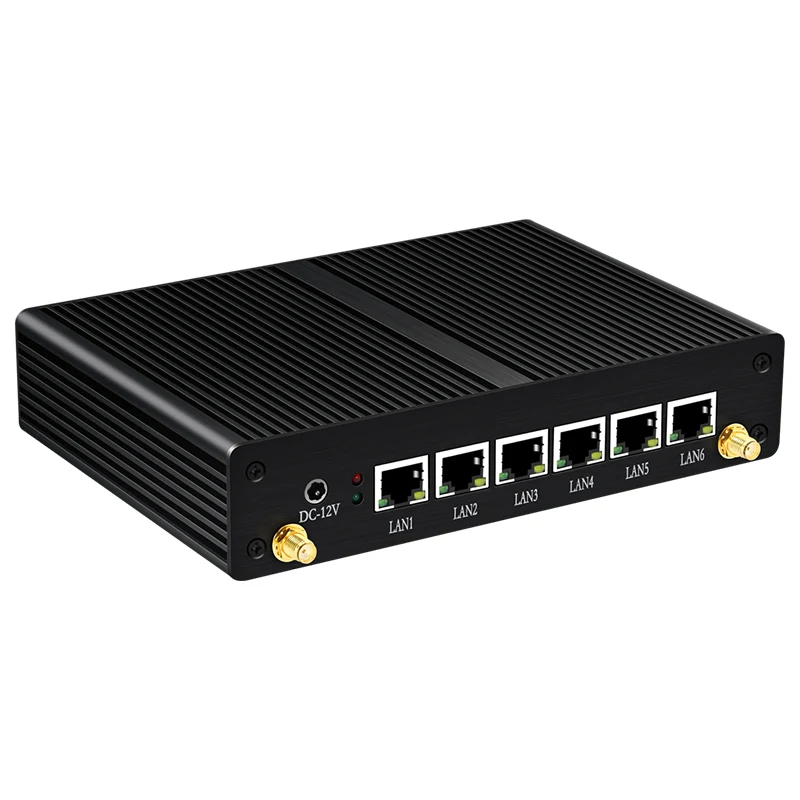

XCY firewall mini pc Core i3 4010U 5010U pfsense aes ni 6 LAN vpn server X86 Router
- Category: Firewall & VPN >>>
- Supplier: Shenzhen Innovative Cloud Computer Co. Ltd.
Share on (62367639044):
Product Overview
Description
\t\t\t\t\t\t\t\t\tCustomizable \t\t\t\t\t\t\t
We can support OEM/ODM service, the process of customization is following:
1: Provide your specific requirement.
2: Our design engineers draw the design draft.
3: You confirm the design draft.
4: We start produce it.
Assisting customers in their journey towards customized solutions:
☑ Logo(Packing , Computer Logo)
☑ Computer Colors
☑ Security
☑ Interfaces Customization
☑ Virtualisation
☑ Data Protection
☑ And so on...
For more information, Pls leave email.
Product Description
XCY firewall mini pc Core i3 4010U pfsense aes-ni 6 LAN vpn server X86 Router
Notice | The price is for i3-4010U barebone PC without RAM and SSD, if you need 4010U or 5010U, please kindly email me. |
Processor | 2955U (2 cores 2 threads, 2M Cache, 1.40 GHz, TDP: 15W) Core i3 4010U (2 cores 4 threads, 3M Cache, 1.70 GHz, TDP: 10W) Core i3 5010U (2 cores 4 threads, 3M Cache, 2.10 GHz, TDP: 15W) |
Graphics Card | 2955U: In-tel H-D Graphics Graphics Base Frequency: 200 MHz Graphics Max Dynamic Frequency: 1.0GHz Core i3 4010U: In-tel H-D Graphics 4400 Graphics Base Frequency: 200 MHz Graphics Max Dynamic Frequency: 1.0GHz Max Resolution: 3200x2000@60Hz Core i3 5010U: In-tel H-D Graphics 5500: Graphics Base Frequency: 300 MHz Graphics Max Dynamic Frequency: 900 MHzMax Resolution: 2560x1600@60Hz |
Memory(RAM) | 2GB/4GB/8GB/ DDR3L 1066/1333/1600 Mhz, Max up to 8GB, 204-pin SO-DIMM Notice: This is barebone PC without memory and hard drive, if you need memory and hard drive, please email me.Thanks very much. |
Hard Disk(SSD) | HDD：2*SATA 2.5"HDD(Maximum data conversion rate SATA2.0) SSD ：1* Full Height mSATA socket 16GB/30GB/60GB/120GB/240GB/500GB mSATA SSD 500GB HDD Support 1* mSATA SSD+2*2.5 inch SATA HDD Only one mSATA installed by default |
Support OS | Official Win10/8/7 Linux ubuntu Openelec, etc. Notice: we pre-install activated non-genuine version Win7/8/10 OS for free only,; If you need legal genuine Win7/8/10 OS or other OS like Linux, Ubuntu, Pfsense..., please leave us message. |
I/O | 1*RS232 2×USB3.0 2×USB2.0 |

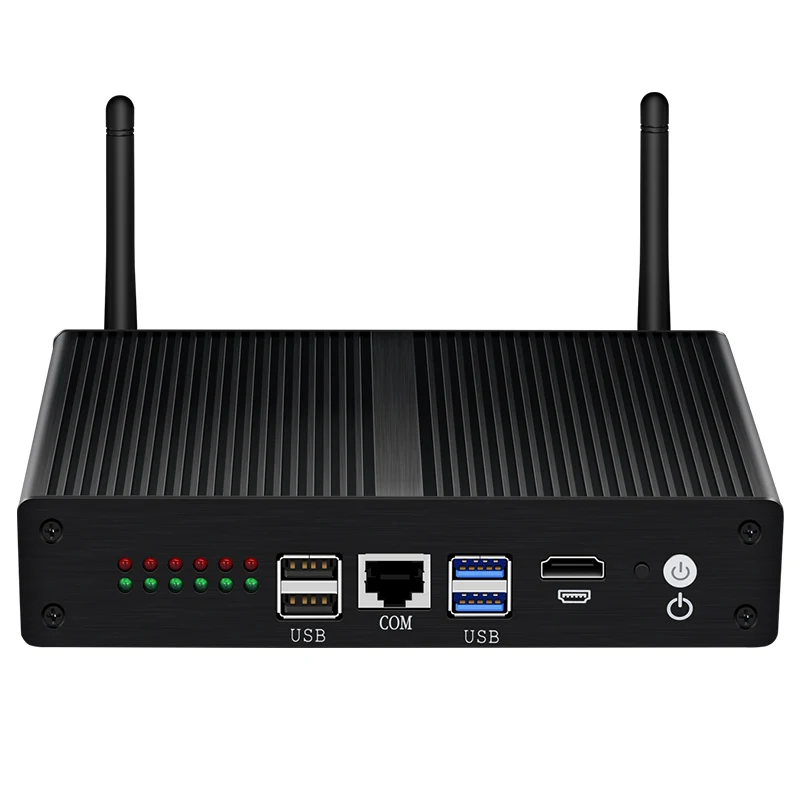

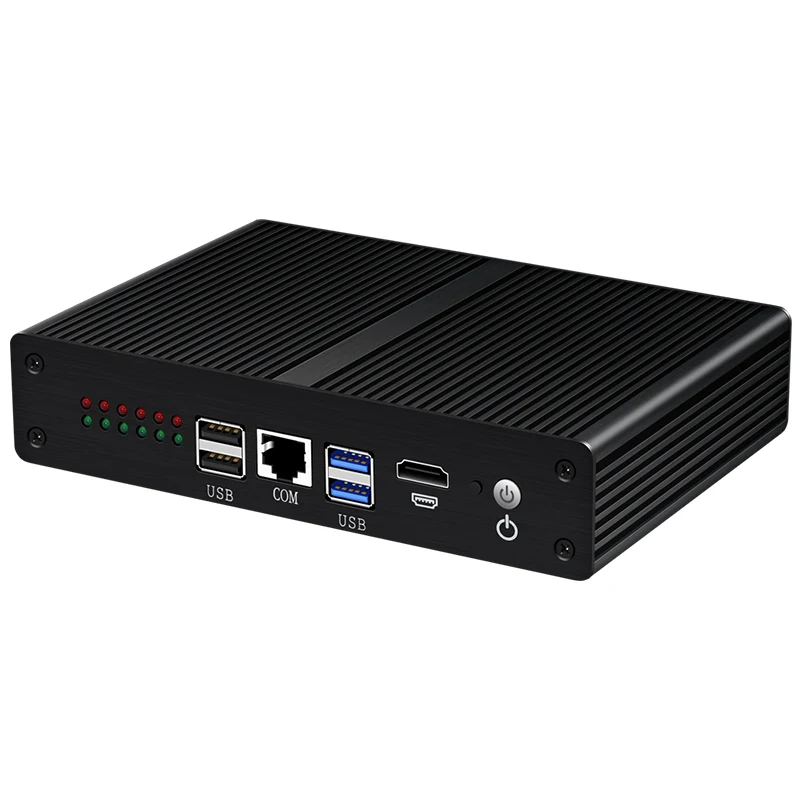

Front-Panel Connectors | Power on/off HDD LED+PW LED 2 x USB 3.0 2 x USB2.0 1 x RS232 COM 1 × H-D-M-I |
Rear-Panel Connectors | 1 × DC IN 12V/5A 6 × LAN (RJ-45 Ports 10/100/1000 Mbps Adaptive) 2 x WIFI antennas connectors |
Ethernet port | 6 x RJ45 10/100/1000Mbps In-tel i211-AT Gigabits Ethernet Support Wake On Lan |
WIFI | with dual antenna,802.11.b/g/n |
Extension Options | NGFF: 1*M.2 SSD 1× Full Height Mini PCI-E WIFI/3/4G |
Power | Input: AC 100-240V /50-60Hz Output: DC 12V/5A |
Cooling System | Fanless passive Cooling,Heat sink aluminum block |
Chassis Material | Aluminum Alloy |
Mounted | VESA/Wall-Mounted/Desktop |
Operating Temperature | -20-65℃ |
Storage Temperature | 15℃-35℃ |
Relative Humidity | 10%~90% (non-condensing) |
Dimension | 136*126*40mm |
Package Content | 1x Mini PC 1x Power Adapter 1x WIFI Module with Dual antennas (If you buy Barebone PC without RAM and SSD, there will be no WIFI) 1x VESA ,SATA Power Cable,SATACable (Free gift), 1x User Manual Notice: This is barebone PC without memory, hard drive and WIFI module , if you need them, please email me.Thanks very much. |
Packing & Delivery
Payment:
we are support "L/C; DA; DP; T/T; Paypal. "But according the contract and which country"
Packing List:
Normally we use the carton box, 5 or 10pcs per carton
1 x Mini PC
1 x Power adapter(correct power plug based on buyer's country)
1 x WiFi modlue with dual antennas(barebone not include WiFi)
1 x VESA bracket(some model not support)
1 x Sata power cable and data cable.(some model just support one Msata)
1 x Warranty card & user manual
Power adapter type:
Delivery :
Normally we shipping by DHL,EMS,UPS,FEDEX,UPS usually take 3-7 working days to most countries,Pls choose that you need.
Our Company
FAQ
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support.
Q3. Can your device work 24h*7 days? And what about the temperature range it can operate in?
Re: Yes it can be working in 24h*7 days, working temperature range 0°C~50°C.
Q4. What is the lead time of your products?
Re: Sample order within 1~3 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model to insure the quality before shipping.
Q5.What’s the warranty?
Re: 1 year warranty. After expired warranty and sent back to our company, we will still try our best to repair for you without repair cost (except change new accessories).
Q6.What are the OS do your computers support?
Re: Support Win7, Win8, Win10, Linux ubuntu , pfsense etc. Some model is support XP, such as C1037U,Core CPU is not support XP.
Q7. Which models can run pfsense as a firewall?
Re: 2 or more LAN mini pc can run pfsense as a firewall. we have 2 LAN/4 LAN/6 LAN model.
