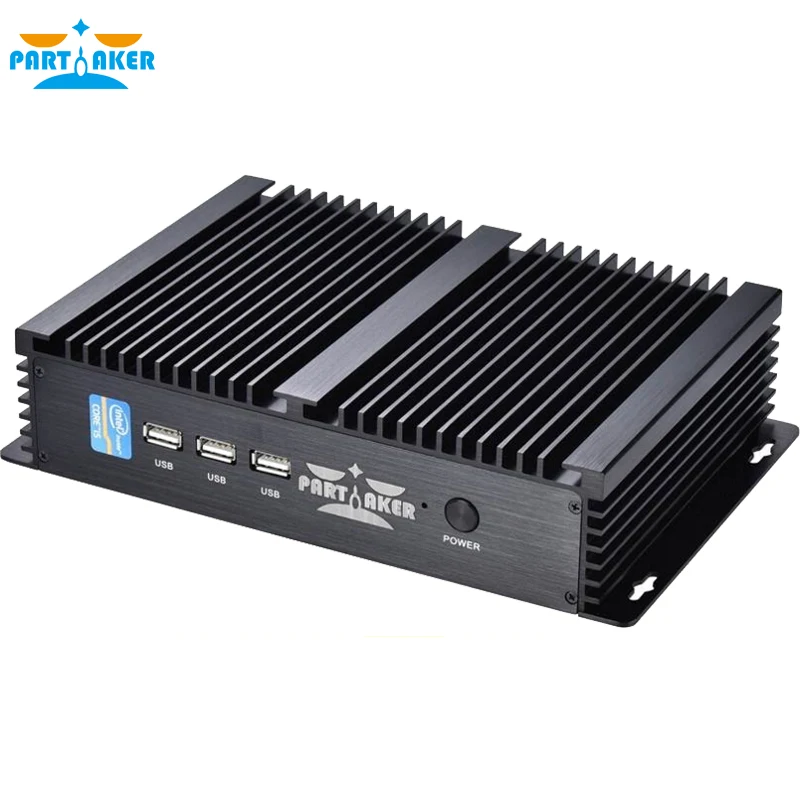

Partaker I3 Fanless Core i3 5005u Processor Industrial Mini PC with 2 RS232

This Mini PC Motherboard can install 7 types of processors:

1. CPU Intel Core i3 4005U/5005U  2 core 4 threads 3MB cache 1.7GHz TDP 15W Graphics HD 4400.

2. CPU Intel Core i5 4200U 2 core 4 threads 3MB cache 1.6GHz Max 2.6GHz TDP 15W Graphics HD 4400.

3. CPU Intel Core i7 4500U 2 core 4 threads 4MB cache 1.8Ghz Max 3.0Ghz TDP 15W Graphics HD 4400.

4. CPU Intel Core i5 5250U 2 core 4 threads 3MB cache 1.6Ghz Max 2.7Ghz TDP 15W Graphics HD 6000.

5. CPU Intel Core i3 6006U   2 core 4 threads 3MB cache   2.0Ghz TDP 15W   Intel HD Graphics 520.

6. CPU Intel Core i5 7200U 2 core 4 threads 3MB cache 2.5Ghz Max 3.1Ghz TDP 15W Intel HD Graphic 620.

7. CPU Intel Celeron 1007U 2 core 2 threads 2MB cache 1.5Ghz TDP 17W Intel HD Graphic.

Model Number: Partaker I3
CPU: Intel Core i3-4005U Processor (3M Cache, 1.70 GHz)
Graphics: Intel HD Graphics 4400
Memory: 2* DDR3L 1333/1600 LPDDR 1333 /1600 (MAX. 16G RAM)
Storage: 1* Msata SSD+1* 2.5 Inch HDD
Network Card: 1000M Gigabit Lan
Audio Cards: ALC662 sound chip
WiFi: With dual antenna, 802.11.b/g/n

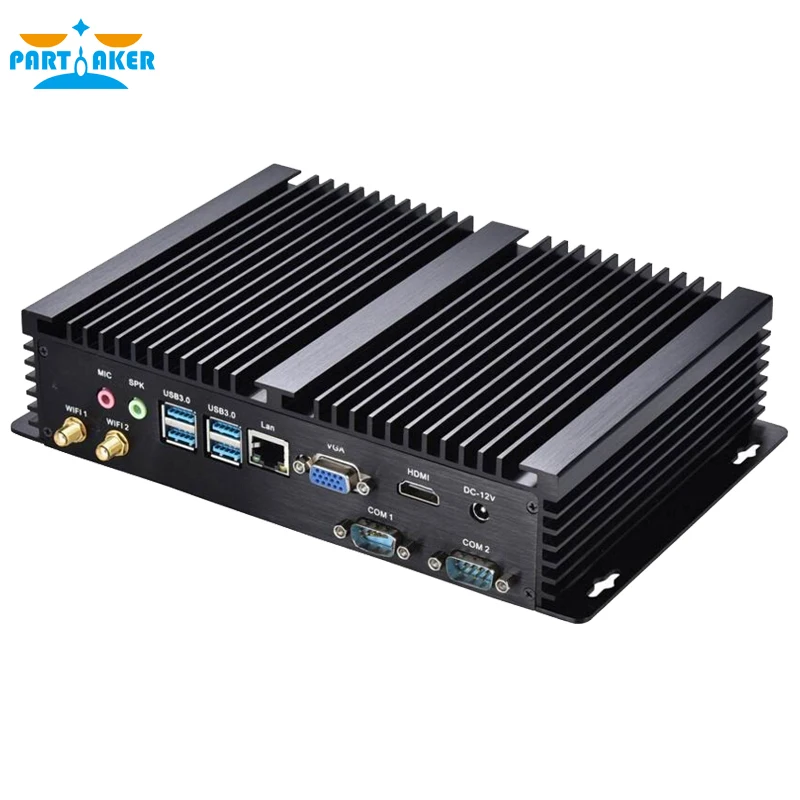

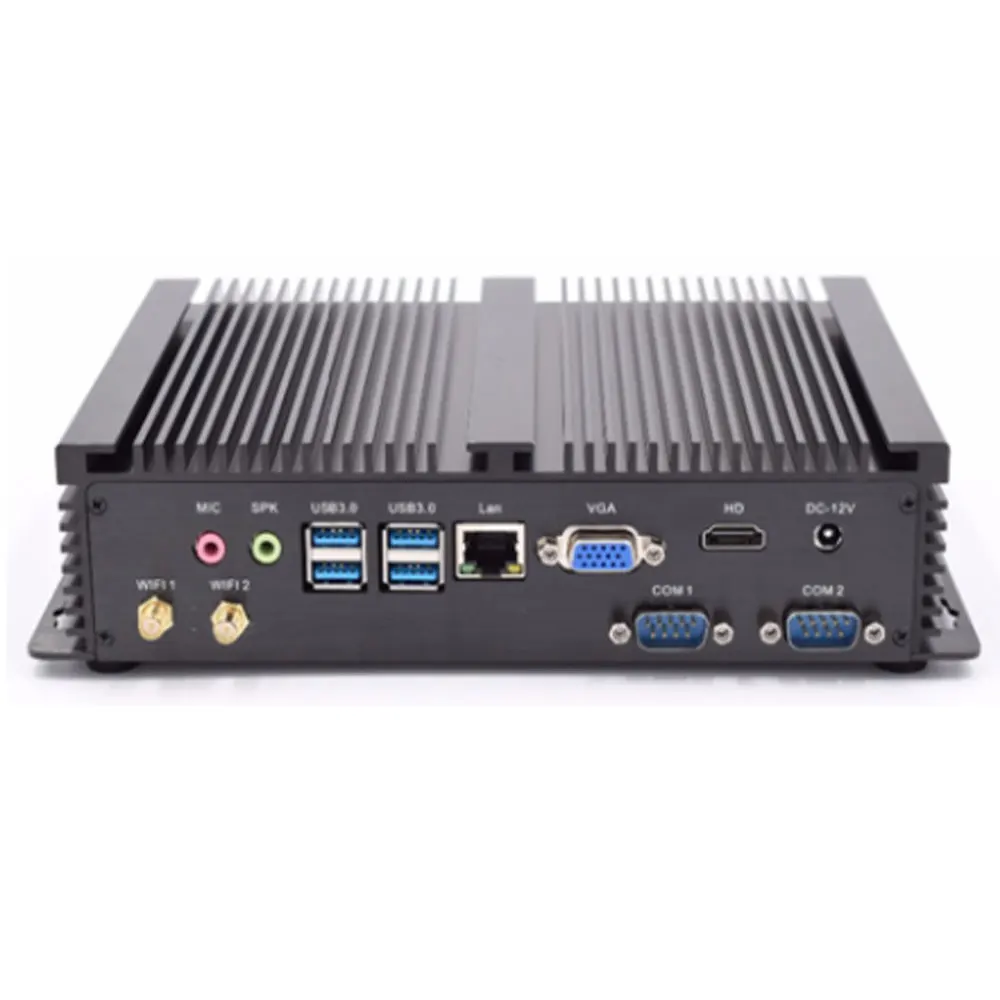

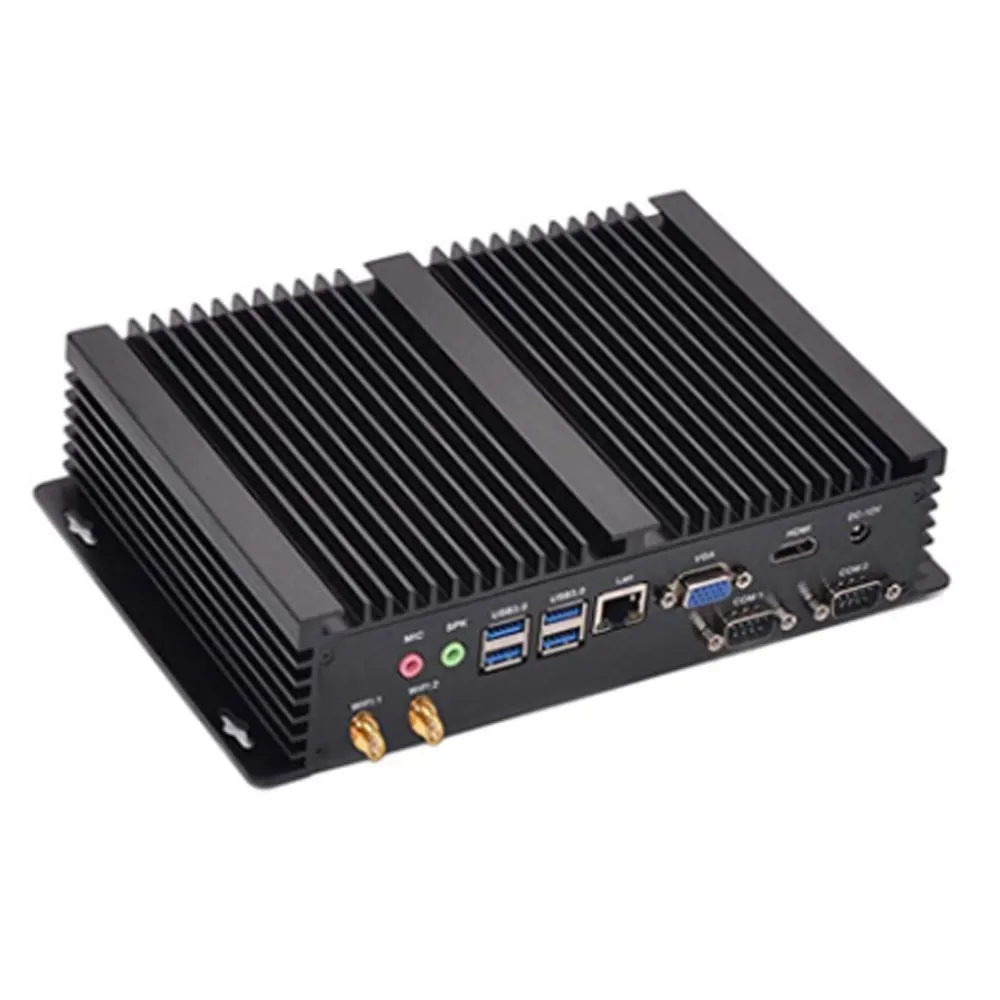

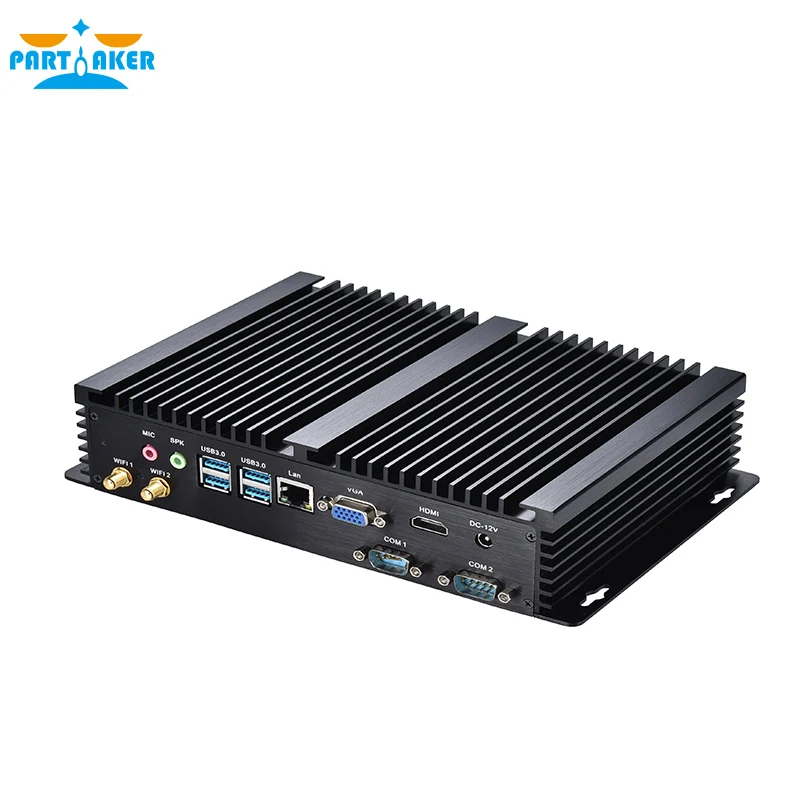

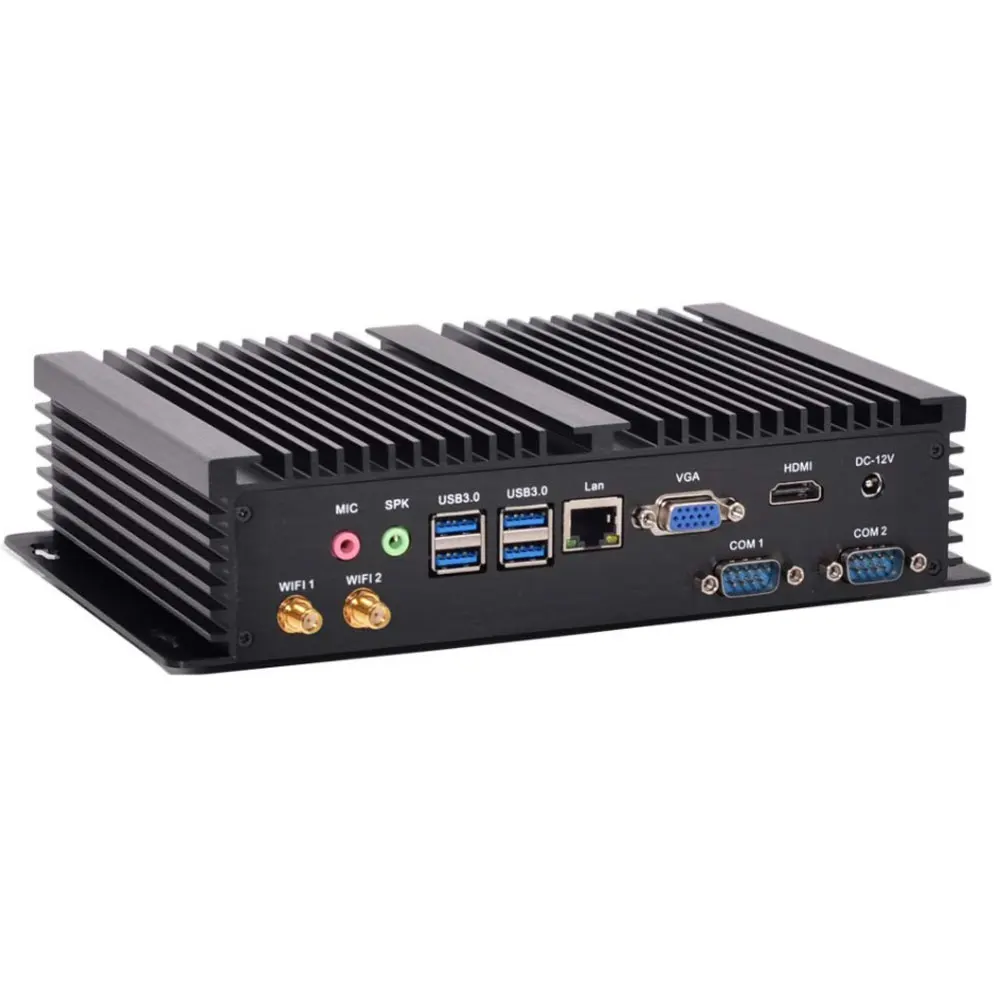

I/0 Port: 1*DC + 1*HDMI+ 1*VGA+ 1*LAN+ USB 2.0*3+ USB 3.0*4+ 1*MIC Input+ 1*SPK Output+ 2*COM RS232
Power: DC100-240V AC/50-60Hz, DC 12V
Noise: Fanless System
Operating Temperature: 0/70 Centigrade(32F~140F)
Storage Temperature: (-20/+80) Centigrade
Relative Humidity: 10%~90%(non-condensing)
Temperature: 0-70 Centigrade
Humidity: 10%-90%
System: Support Windows XP/7/8/8.1/10,WES7/8,Linux, Vxworks etc; Except Barebone without RAM,SSD,HDD, and without any system. Others with Windows 10 pro (language: English) as the default option, and linux ubuntu or other language options needs to leave the message on the order, thank you.

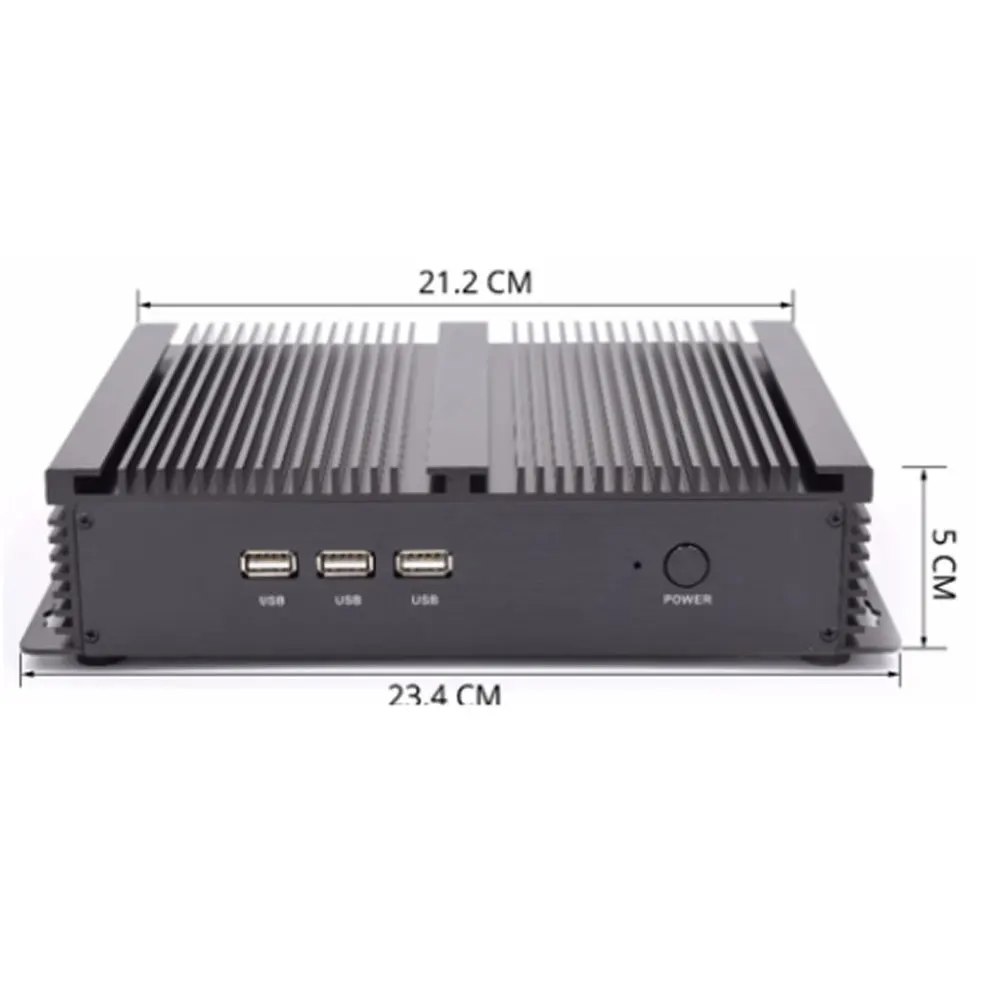

Size: 234*150*43MM
Weight: 2.5KGS

Features:

1)- Beautiful: Industrial aesthetic design and Reasonable interface layout;

2)- Noiseless: Fanless system, low consumption, 0.00dB noise;

3)- Special: Support 64 bits computing Hyper-Threading Virtualization technology etc, Can install 1pc 2.5'' SSD or HDD and 2pcs MSSD(5CMx3CM) together(welcome to contact our Pre-Sales if you need it) up to 512GB SSD or 1TB Hard disk large volume;Max up to 6GPS by SSD;

4)-Stable: Newest Intel Core CPU+Intel Graphics HD+Fanless professional passive cooling by alloy case, be able to work 24hours per day;

5)- Slim: Only 45mm body thickness;

6)- Smooth: High-end Intel Graphics HD, fight again dedicated Graphics! Support online games, small 3D games, large-scale mapping software, blu-ray, full 1080P and 4K resolution, 2*HDMI dual monitors display;

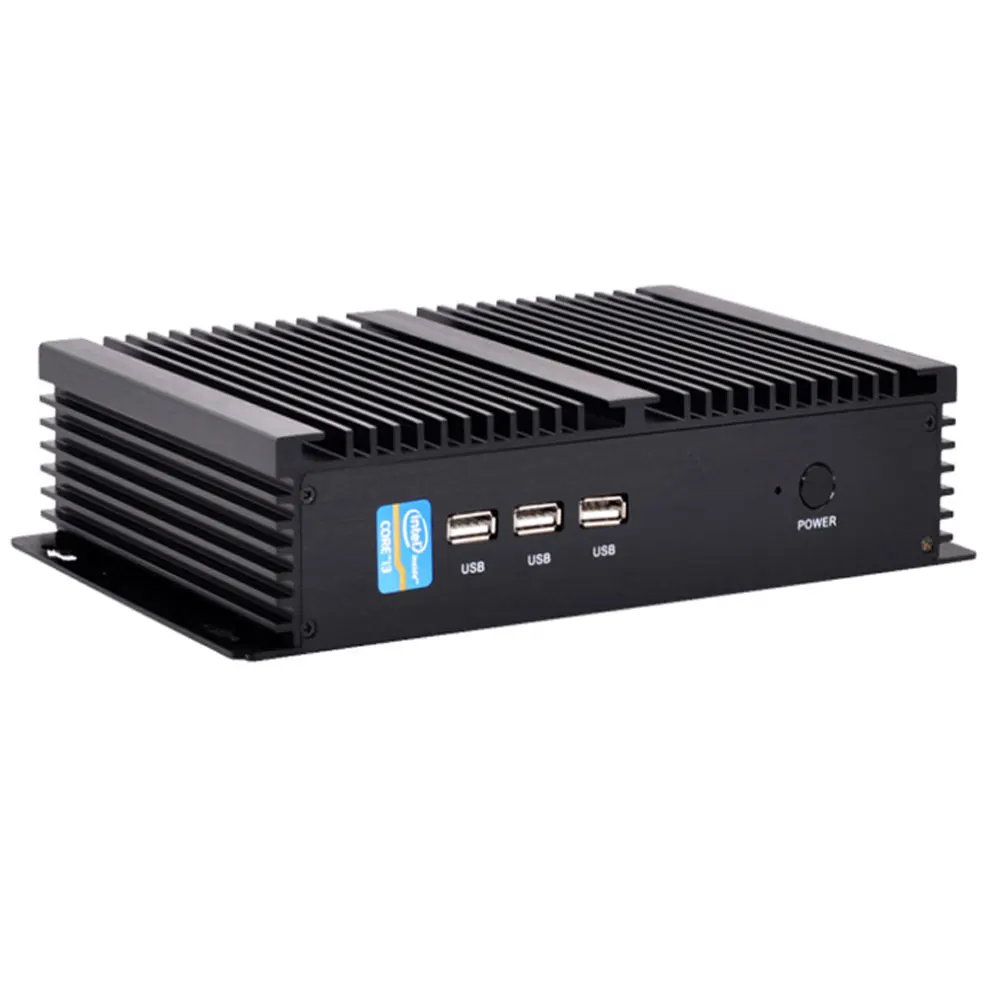

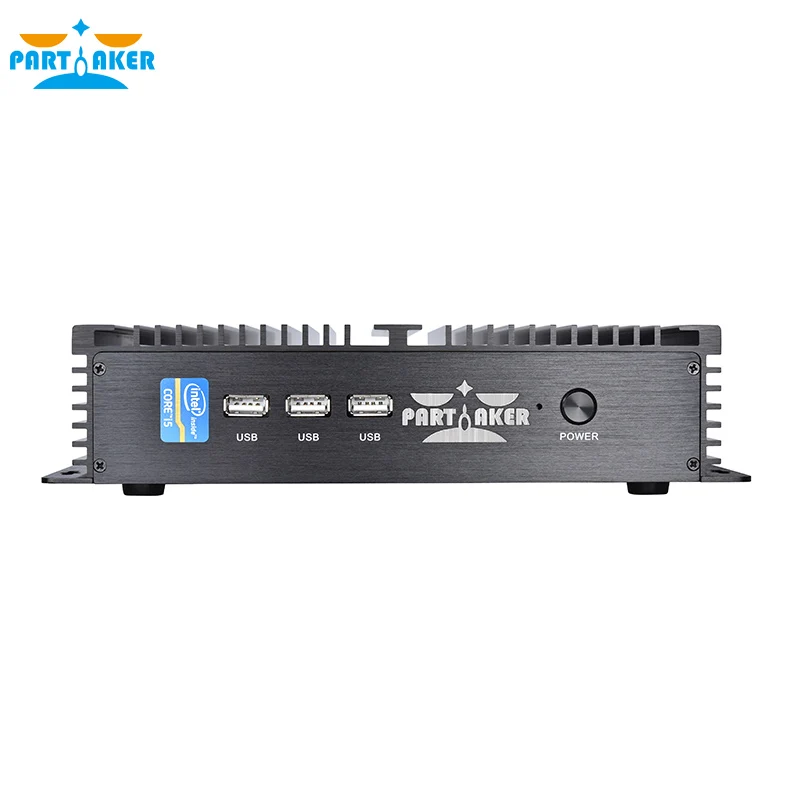

7)- Strong: Work with any brand monitors; 1*RJ45 Gigabit Lan Nics+2*RJ232 COM+4*USB3.0 3*USB2.0+1*HDMI+1*VGA Suit for multiple application for example integrate with touch devices, industries, car repair shops, security, education, home as HTPC, business, fanancial and projects;

8)-Low-carbon green: TDP only 15W, very economical, saving a lot energy every year, low consumption but with a very amazing performance.

9)-Certification: CE, FCC & RoHS.

Buy with confidence! 3 Years long warranty for fanless system!
