Custom color 10M domes pvc geodesic with bathroom set geo camping tent
Product Description
Custom color 10M domes pvc geodesic with bathroom set geo camping tent

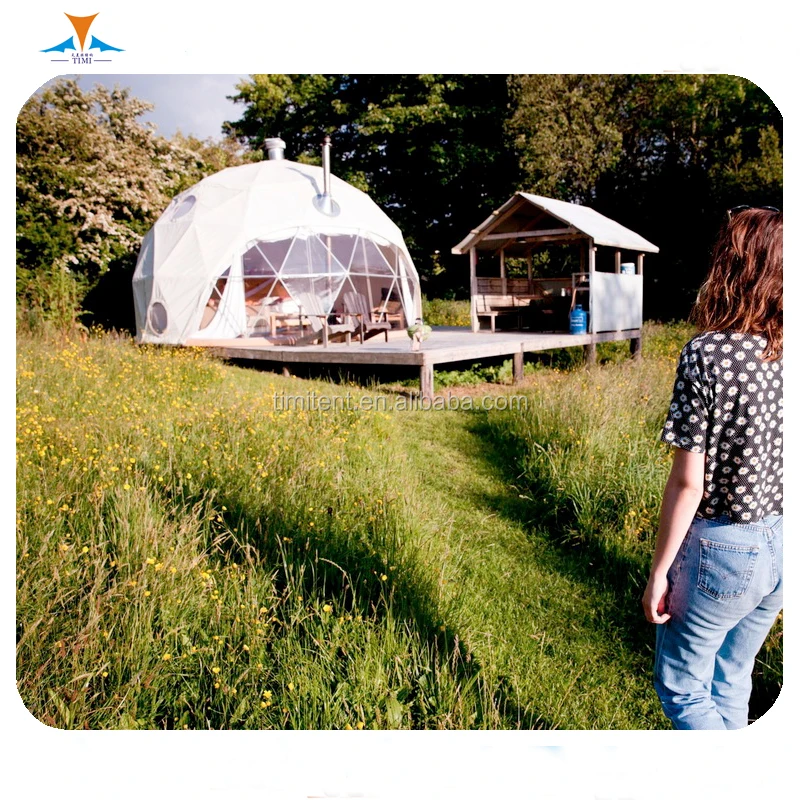

Returning to nature and pursuing simplicity are already a way of life pursued by many people living in cities. Timi membrane structure architectural nature geodesic dome hotel tent. Because it is easy to set up, natural and environmentally friendly, it can be built in unique places such as mountains, lakes, snow, grasslands and islands, so it can also make you feel different natural scenery.
| Material | Truss structure, mild steel; Stainless steel, aluminum alloy 6082-T6 truss |
| Coating | Spray Painting; Galvanization;Powder Coated |
| Color | Sliver, White , Darkgray; or as Client's Request |
| Finishing treatment | Hot Dip Galvanization or Painting |
| Steel code | Q235-B; Q345-B; Stainless steel, aluminum alloy 6082-T6 |
| Fabrication | Advanced Automatic Bolt /Welding Machines |
| Quality control | GB/T19001-2000----ISO9001:2000 |
| Advantages | 1.Stable and Aesthetic 2.Structure is durable for 50years 3.Fast and easy to install 4.Extensive Applications: Storage, Warehouse, Exhibition Hall,Terminal Building, Stadium, Theater, Special-shaped Buildings, etc 5.High anti-rust performance 6.Flexible composition: Doors and Day-lighting roof could be installed at any position |

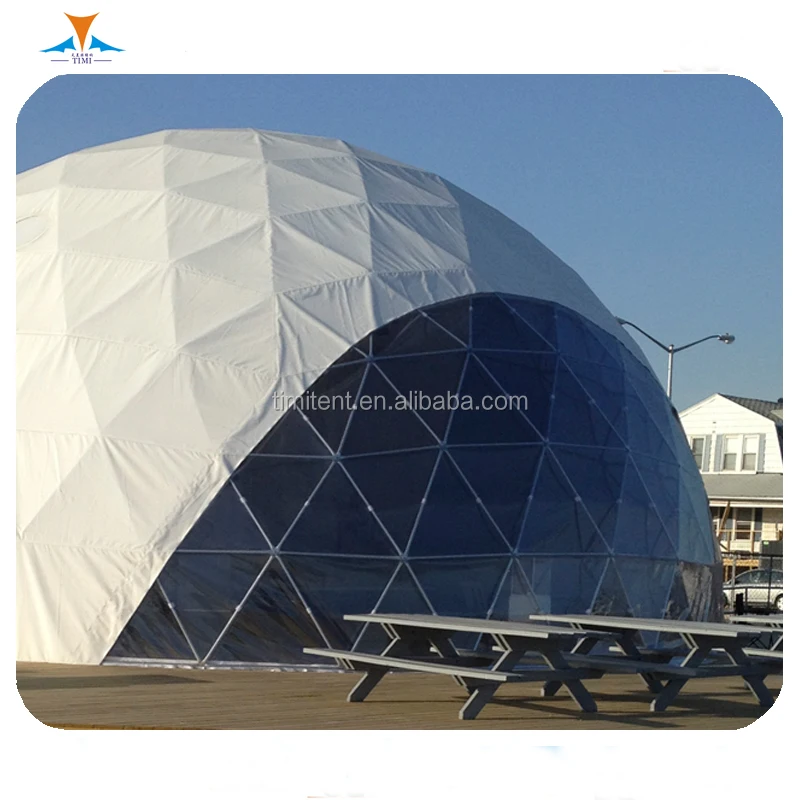

Geodesic Dome Tent With Clear PVC Fabric is our lastest design and it is also very special shape and popular in Europe and America because of special of our normal tent . And it can use for movies reflect and cocktail party and family party and so on . This tent with clear pvc window and door, it is very strong, which frame can use 20 years while pvc can use 10 years . Acutally , it is very economic if you consider from long - term interestes . Meanwhile, the geodesic dome tent can do customize size according to your requirements.
Covers: colourful cover, transparent cover, inflatable roof cover
Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
Wooden Flooring System: VIP cassette flooring, simple cassette flooring
Doors: double-wing glass door, single-wing glass door, glass fire door, aluminium door, rolling shutter(automatic or manual)
Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
Fixing Methods: ground anchors, weight plate, expandable bolts
Rain Gutters:inner roof beam rain gutter or rain gutter between two similar tents
Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
Specifications :
Event Tent Series:
Type | Top height | frame diameter |
6m | 3m | Φ20x1.5mm |
10m | 5m | Φ32x2mm |
15m | 7.5m | Φ36x2mm |
20m | 10m | Φ48x3mm |
25m | 12.5m | Φ48x3mm |
30m | 13m | Φ60x3mm |
35m | 14m | Φ60x3mm |
40m | 15m | Φ76x4mm |
The length can be extended by 5m bay such as 15m,20m,30m,40m... | ||

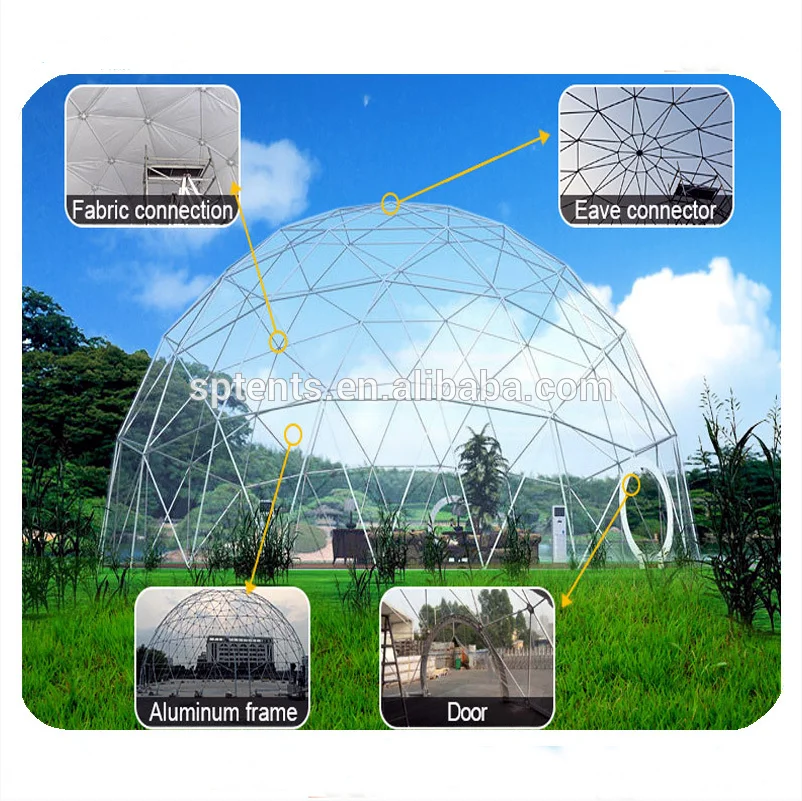

- Frame struss: hard pressed extruded aluminium 6061/T6(15HW) which can last more than 20 years.
- Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
- Connector: strong hot-dip galvanized steel
- Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
- Wind load: max. 100km/h (can be reinforced)
- Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design)
- Easy to be assembled and dismantled, movable.
- No pole inside, 100% available interior space.
Packaging & Shipping
Packaging | |
Size(cm) | 580(L) * 210 (W) * 200 (D) |
Weight | 20 T |
Packaging Details | 1.Structure frame will be packed in membrane film; 2.Roofing membrane will be packed in PVC carry bag; 3.Other small parts will be packed in boxes; 4.It's ok to pack according to your requirement. |
Company Information
Guangzhou Timi Membrane Structure Engineering Co., Ltd. is a professional manufacturer of shading structure. From design, research and development to production, to sales and after-sales service, we provide complete service flow. The geodesic dome tent is a hot-selling product in 2019, so our factory has increased the investment of capital and talents to provide a strong guarantee for the needs of customers' large-volume products.

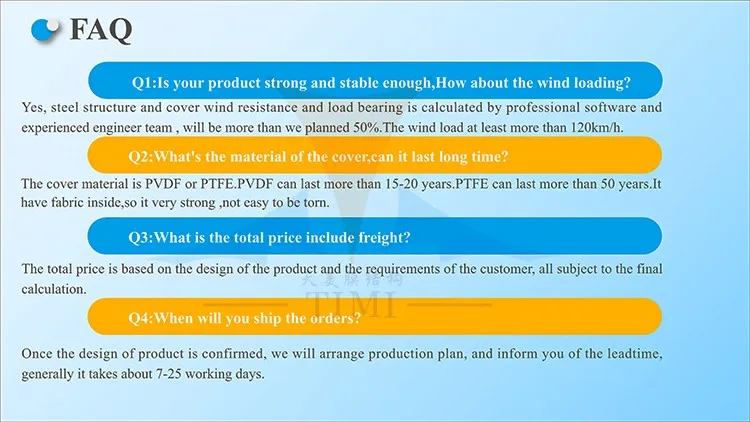

FAQ
