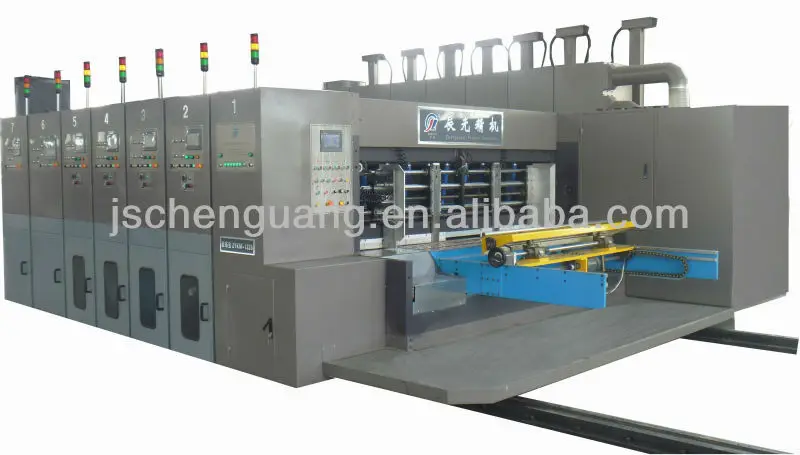

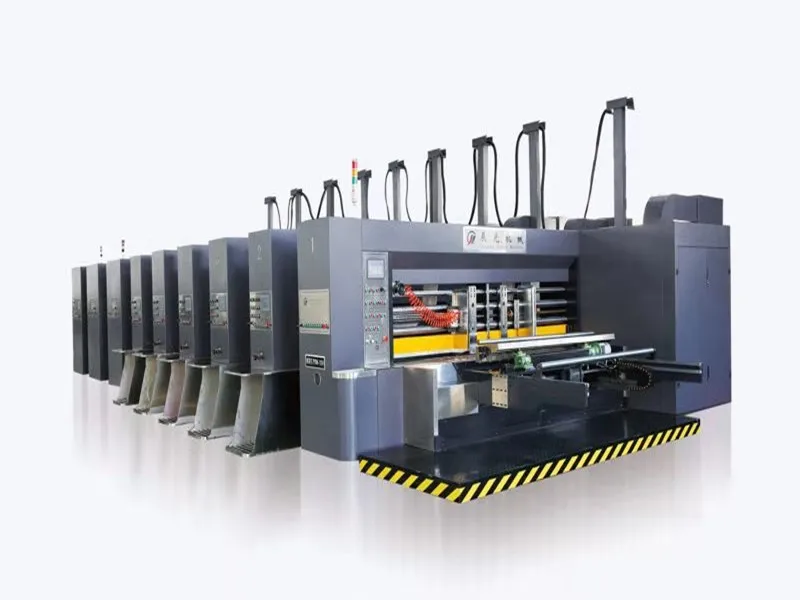

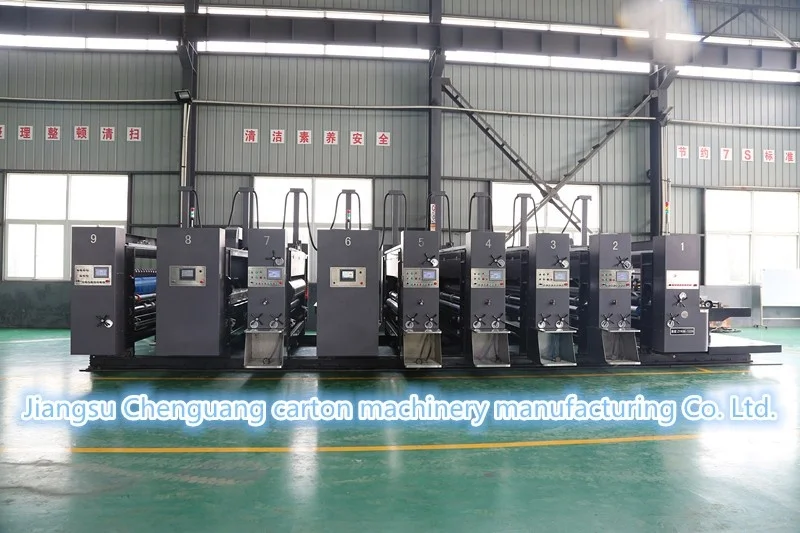

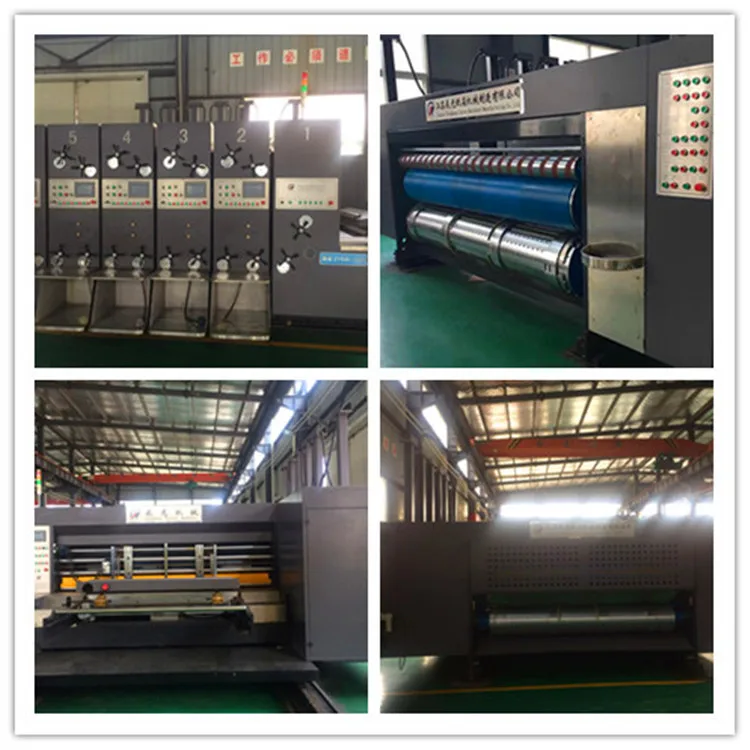

The whole machine is adopted international famous brand appliances and computer software,the quality is stable and reliable.Man-machine interface, Multi-point touch screen control ,computer order management, easy to operate.Replace the order faster(can be stored 999 orders in advance)There is lack of ink alarm device and the real-time monitoring for the ink working condition system .
Feeding Unit
1.Equipped with advanced feed system 2.Draught fan can regulate wind power. It suits all kinds of paperboards. 3.Left and right baffles can adjust. 4.Dust pelletizing system can clean dust quickly. 5.Rubber roller use quick release so as to change quickly. 6.Machine with locks move and install overload protection..

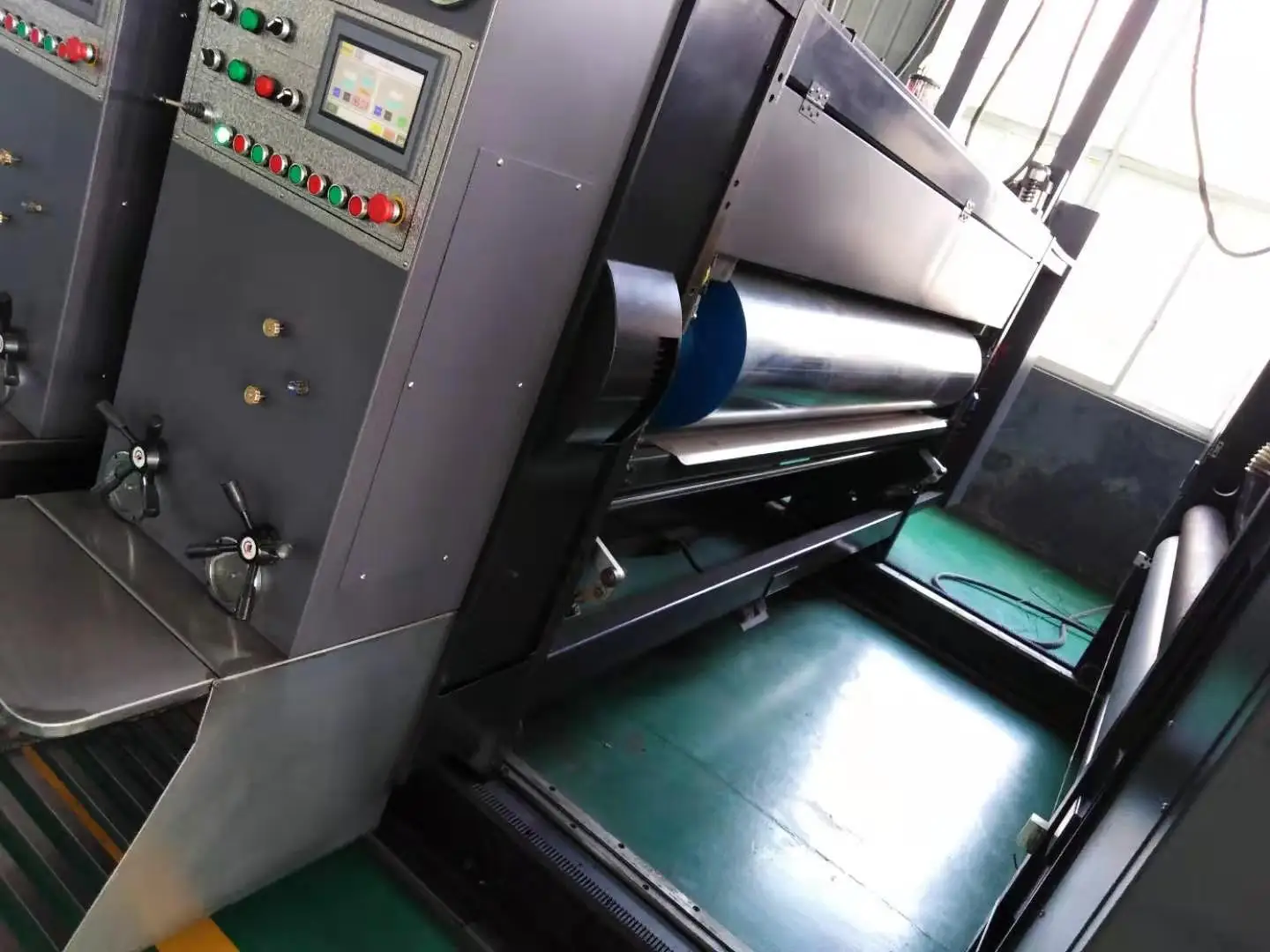

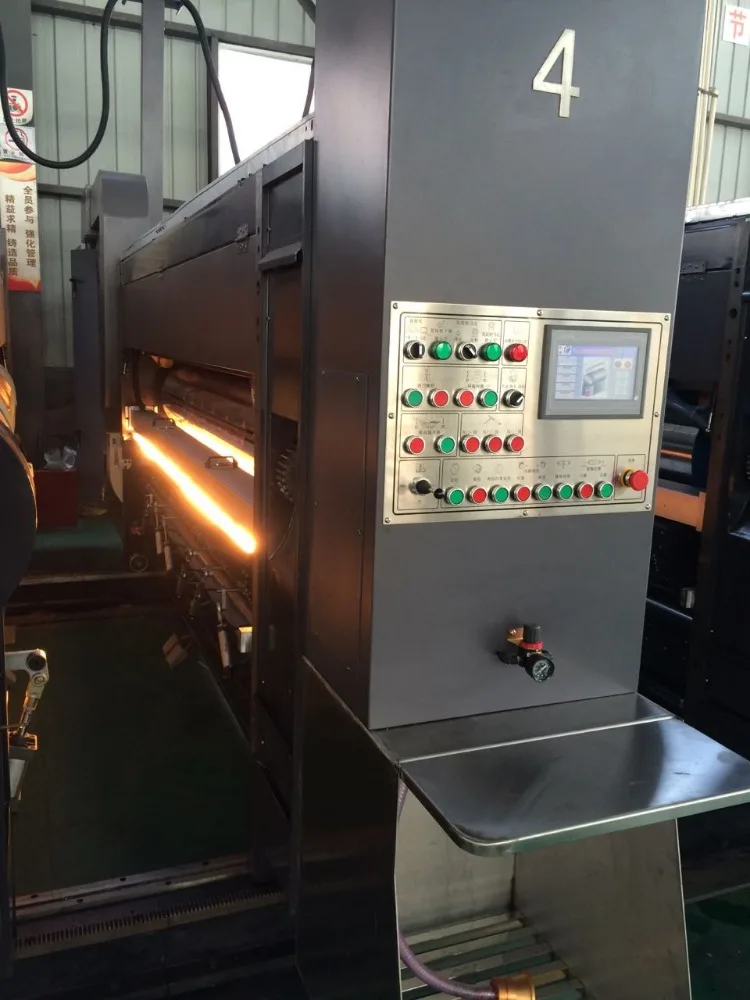

* Printing Unit
1.Printing wheel (printing plate form wheel) phase position adjust by planetwheel, twirl 360°adjust electrically, itcan stop at operation or stop. PLC control system, setups are return to zero,scrape form memory, automatic reset and phase position adjust after enteringvalues. 2.Printing roller can move from left to right, by ±5MM. printing surface with scale mark make hang form and distancemeasurement easily. 3.Install foot pedal control roller rorate. It is easy to change form,scrape form and pull switch so as to ensure staff safety. 4.Anilox roller use “ Haili” to ensure ink distribution effect and printingquality. Rubber shaft use Dongjun, waist drum type, good ink distribution effectand good printing quality. 5.Optional: high reticle ceramic anilox roller with doctor blades, single scrapetype, closed scraper cavity. They can save more ink and ensure .

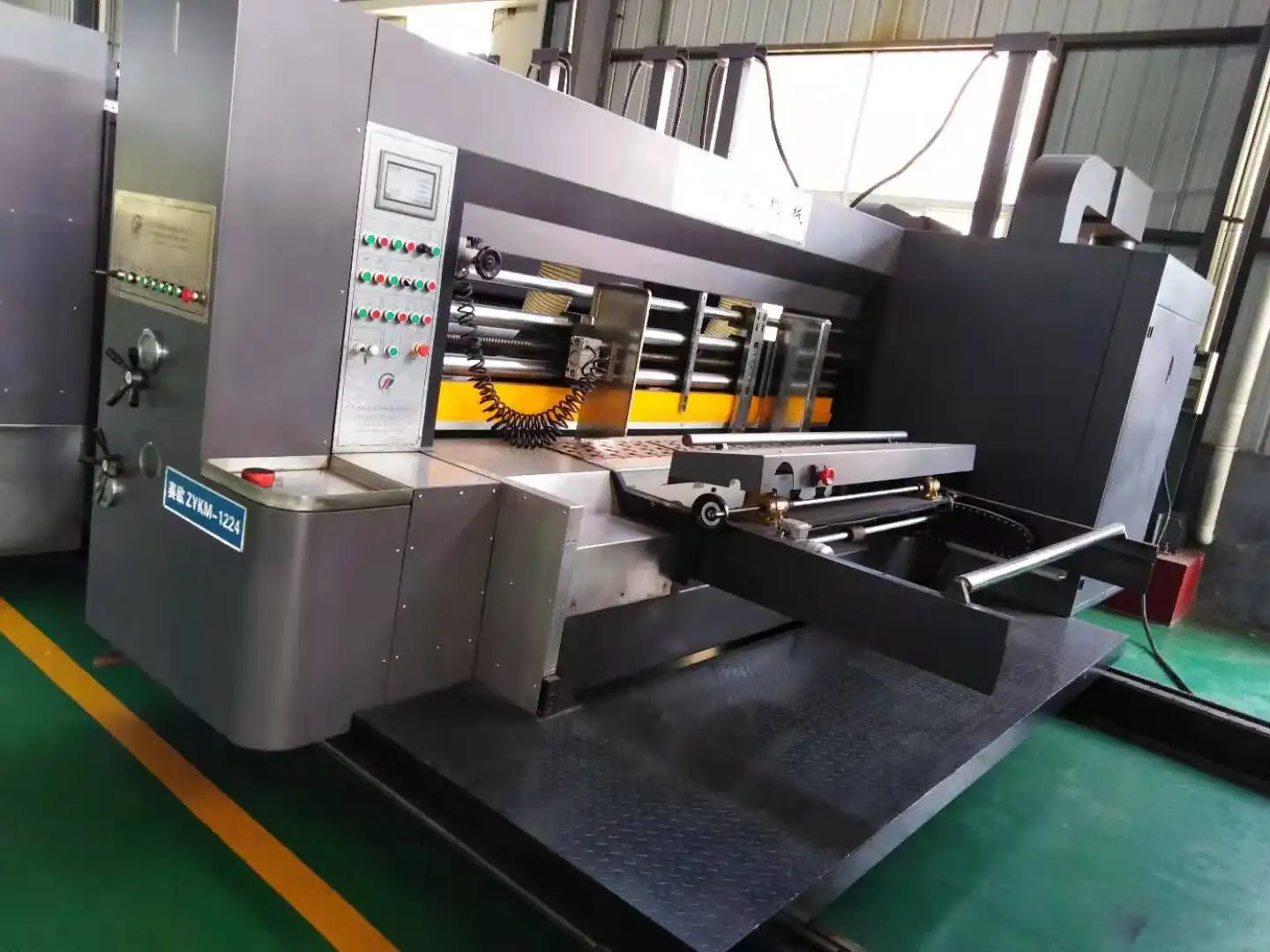

Slotting Unit
1.With single shaft type slotting, the height ofbox and phase position will be adjusted electrically. PLC system have automaticknife slotting, restore orders and so on functions, it makes slotting moreconvenience and high efficiency. 2.Synchronous tool apron is made ofhigh-precision screw with a linear slide rail, which can move left and rightstably and precisely so that the slotting cutter can be adjusted smoothly. 3.The copper folk of cutter is designed forautomatically compensating gap device, which prolongs the service life ofcopper fork. 4.Multiple-spacing device is installed in case ofknife collision. 5.Automatic inflatable paper-carving knife.1.With single shaft type slotting, the height ofbox and phase position will be adjusted electrically. PLC system have automaticknife slotting, restore orders and so on functions.

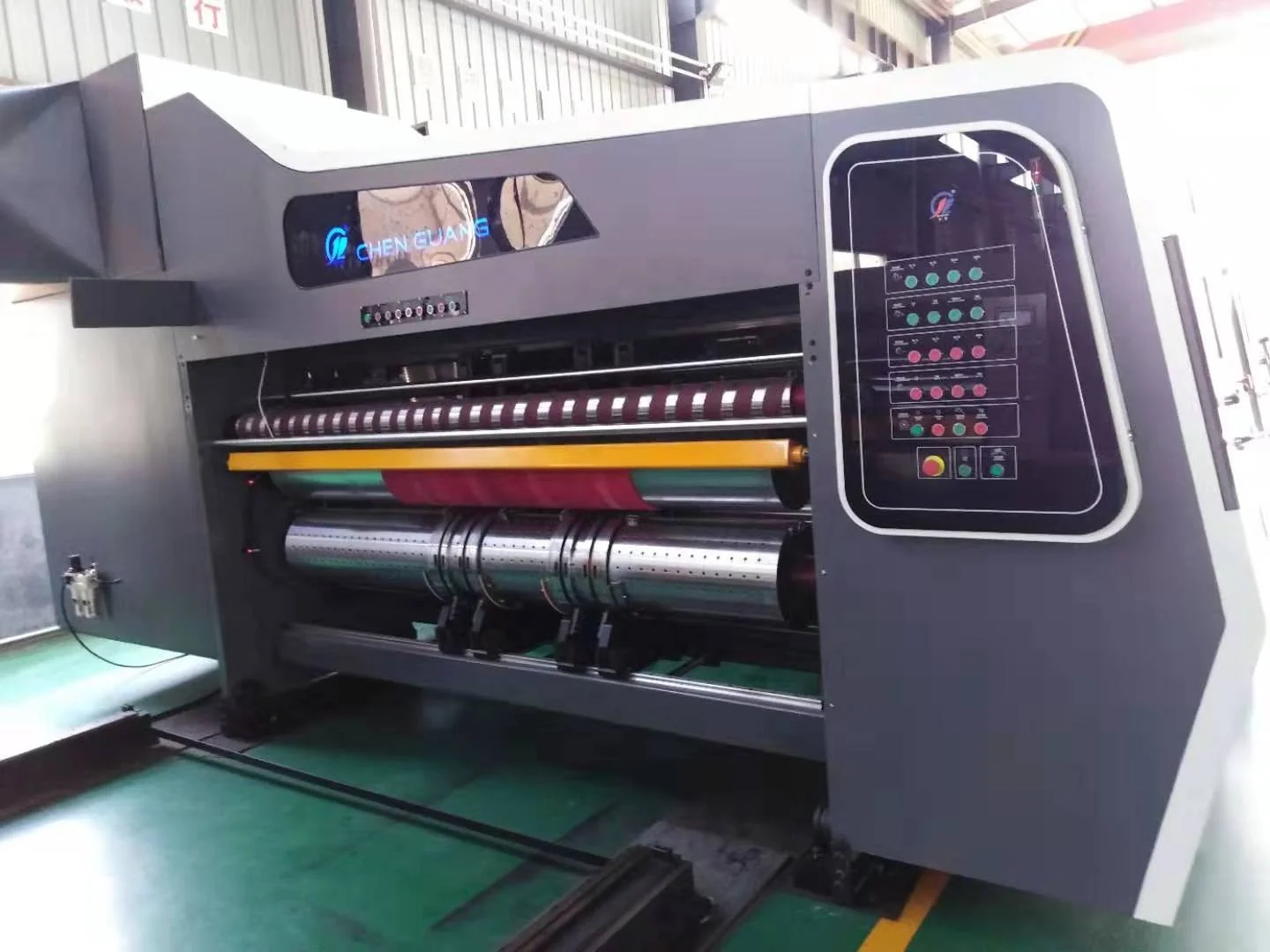

Die-Cutting Unit
1.Using servo speed to make rubber mat speed and knife tool speed same, toensure paperboards die-cutter size exactly, to increase die-cutting quality andlengthen rubber mat lifetime. 2.Rubber mat moves from left to right. It can adjust main machine operationspeed. 3.Lengthen rubber mat lifetime. 4.Die-cutting roller surface have stainless steel dental crown to fix knifetool.
MAIN FEATURES: a.It adopts centralized computer control and servo independent drive; it can connect to the whole plant ERP management system. b.A safety emergency protection switch is set between the operation surface and the unit, and the moving button is prohibited for each unit. c.The PLC program controls the servo drive to ensure the stability and reliability of the operating data. d.The whole machine has multiple touch screen controls, which can store common orders, and it is more convenient and quick to change orders.
Size Information
Size Chart of This Design
Mode
920
1224
1425
1628
Max.Mechanical Speed
320
260
180
160
Max.Feeding Size(L*Wmm)
900x2050
1200x2500
1400x2600
1600x2900
Milimum Feeding Size(L*Wmm)
280x600
350x600
380x650
450x650
Alternate Sheet Feeding Size(mm)
1100x2000
1500x2500
1700x2600
1900x2900
Max.Printing Area(mm)
900x2000
1200x2400
1400x2500
1600x2800
Standard Plate Thickness(mm)
7.2
Min.Slotting Spacing Of The Positioner(mm)axb
150x150
160x160
160x160
160x160
Min.Slotting Space For Reverse Cutter(mm)axb
240x80
160x160
260x80
260x80
Related Products

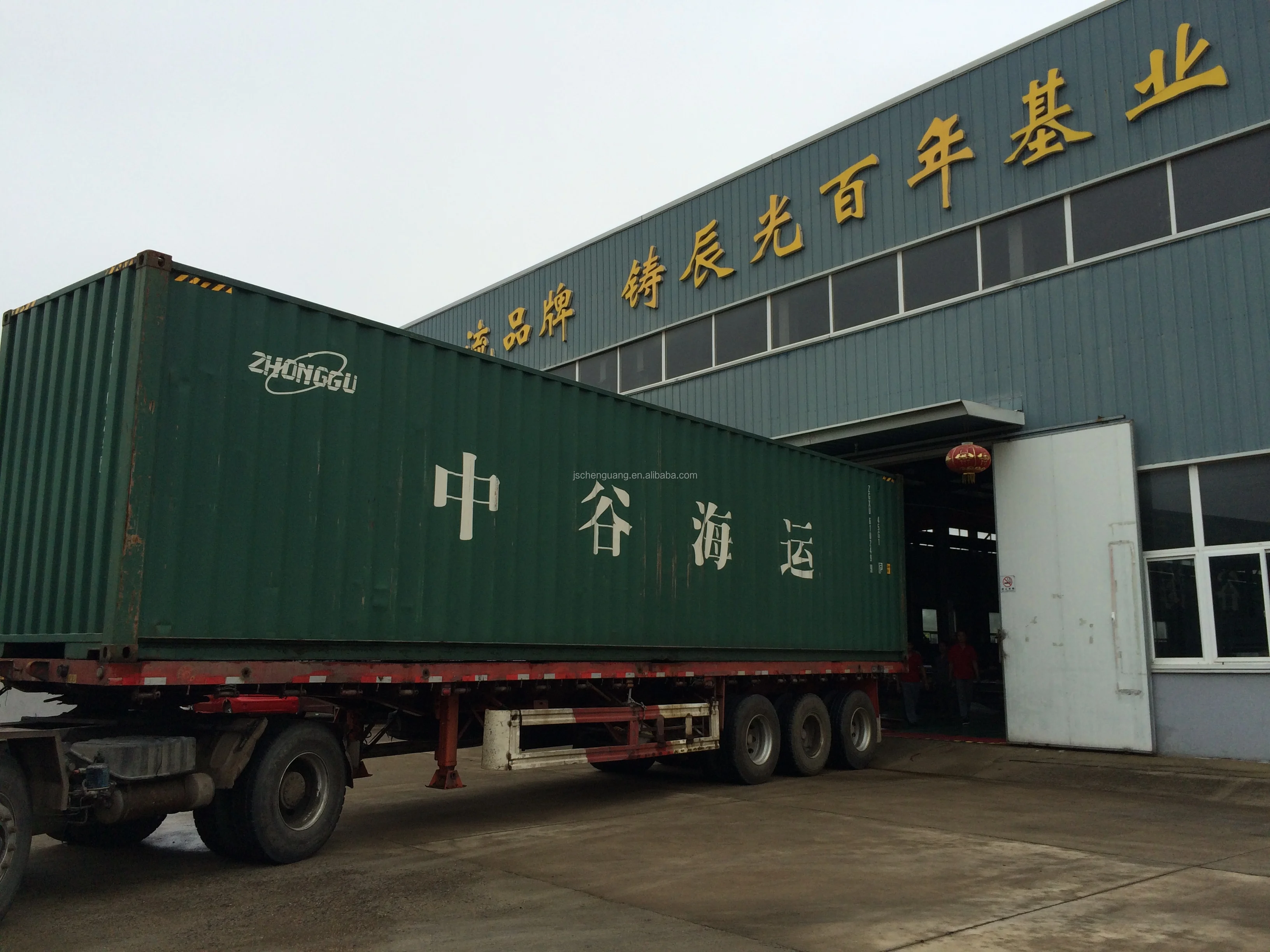

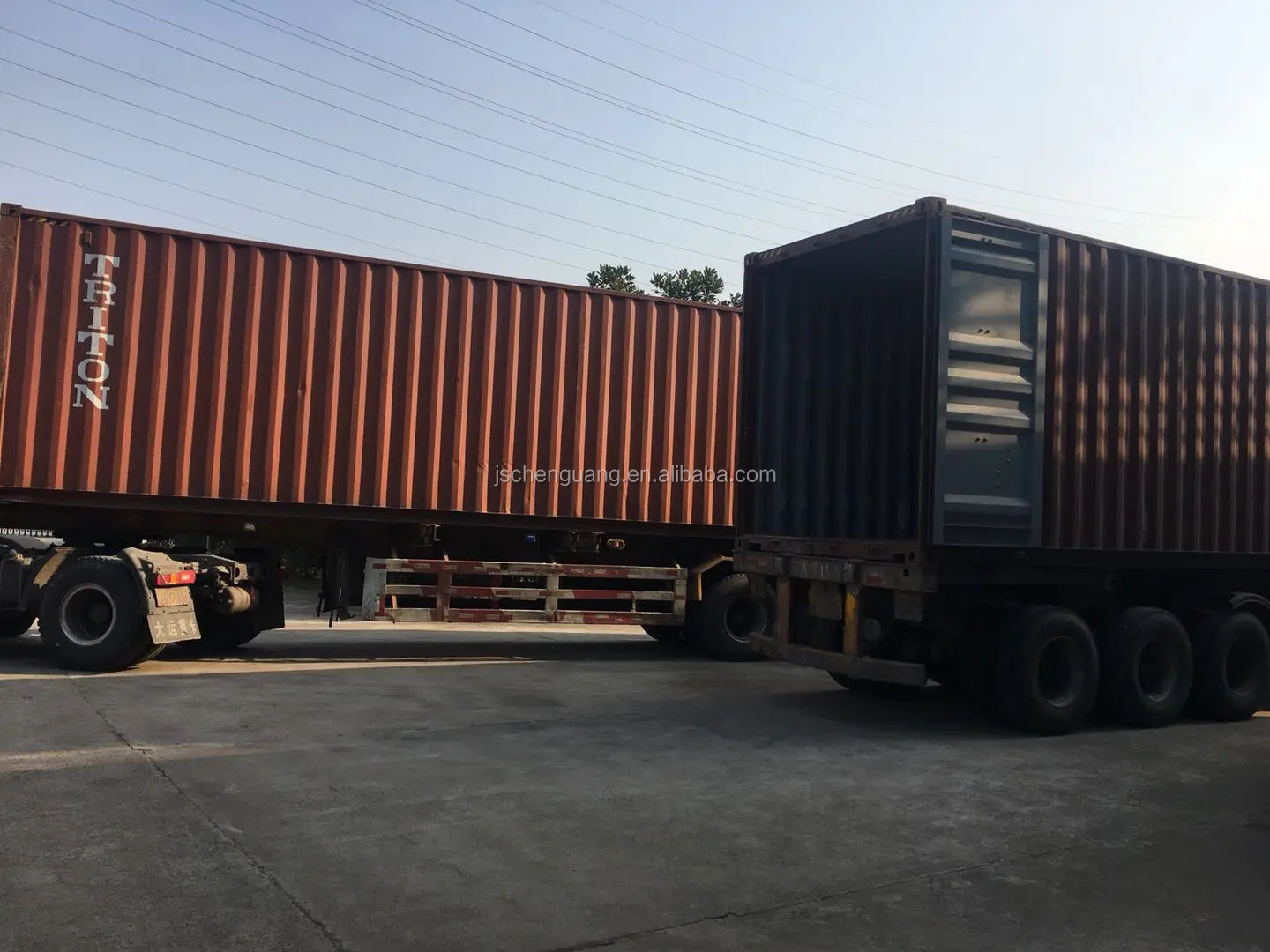

Packing&Shipping
Packing detai

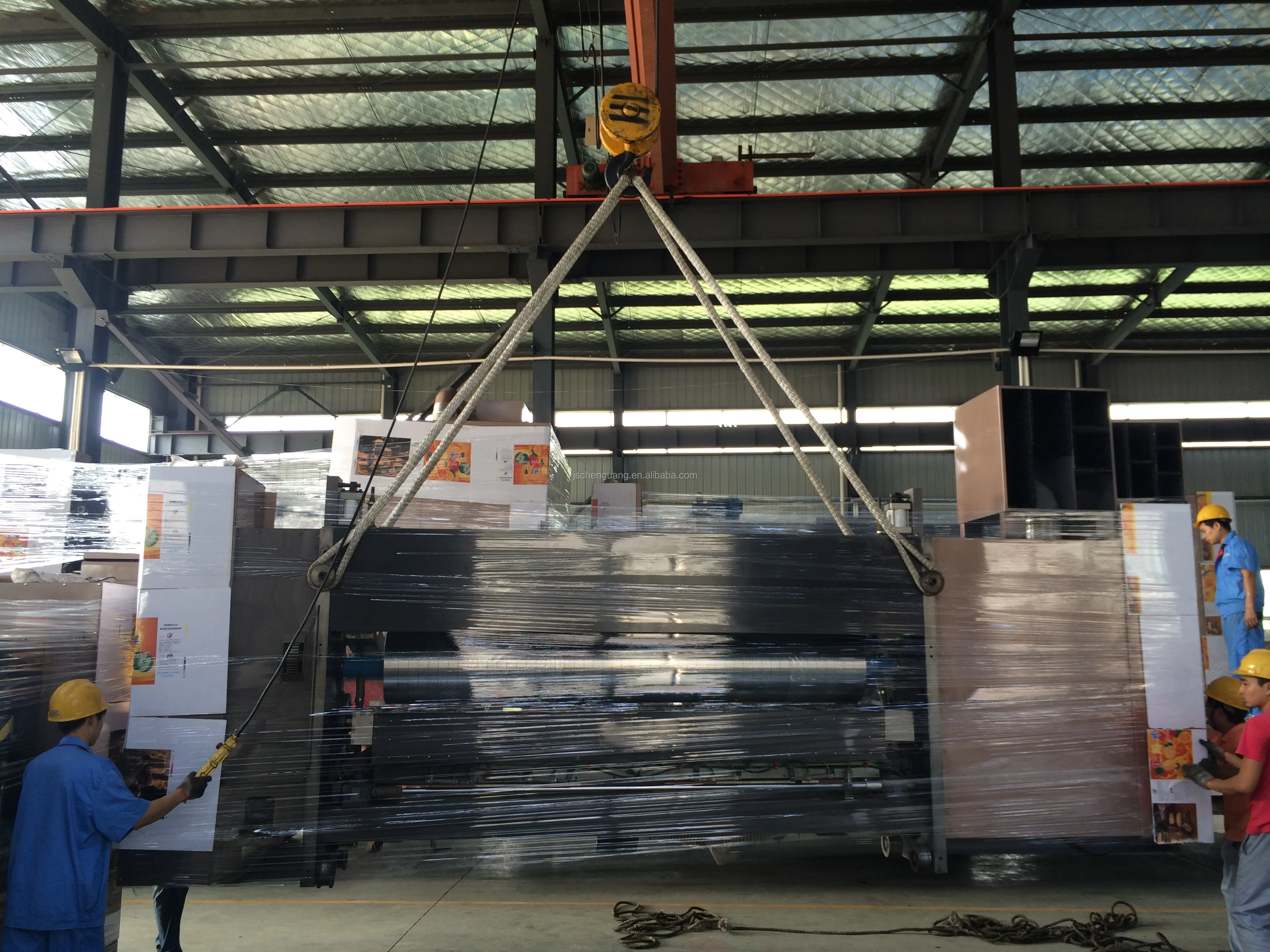

packing(inner):with stretch film Packing(outside):Wooden
frame
Delivery time
60days after get your deposit and confirmed all the artworks
Delivery claus
FOB Shanghai port
Tertms of payment
T/T
Guarantee
The whole machine is guaranteed for one year.
After Sales Service

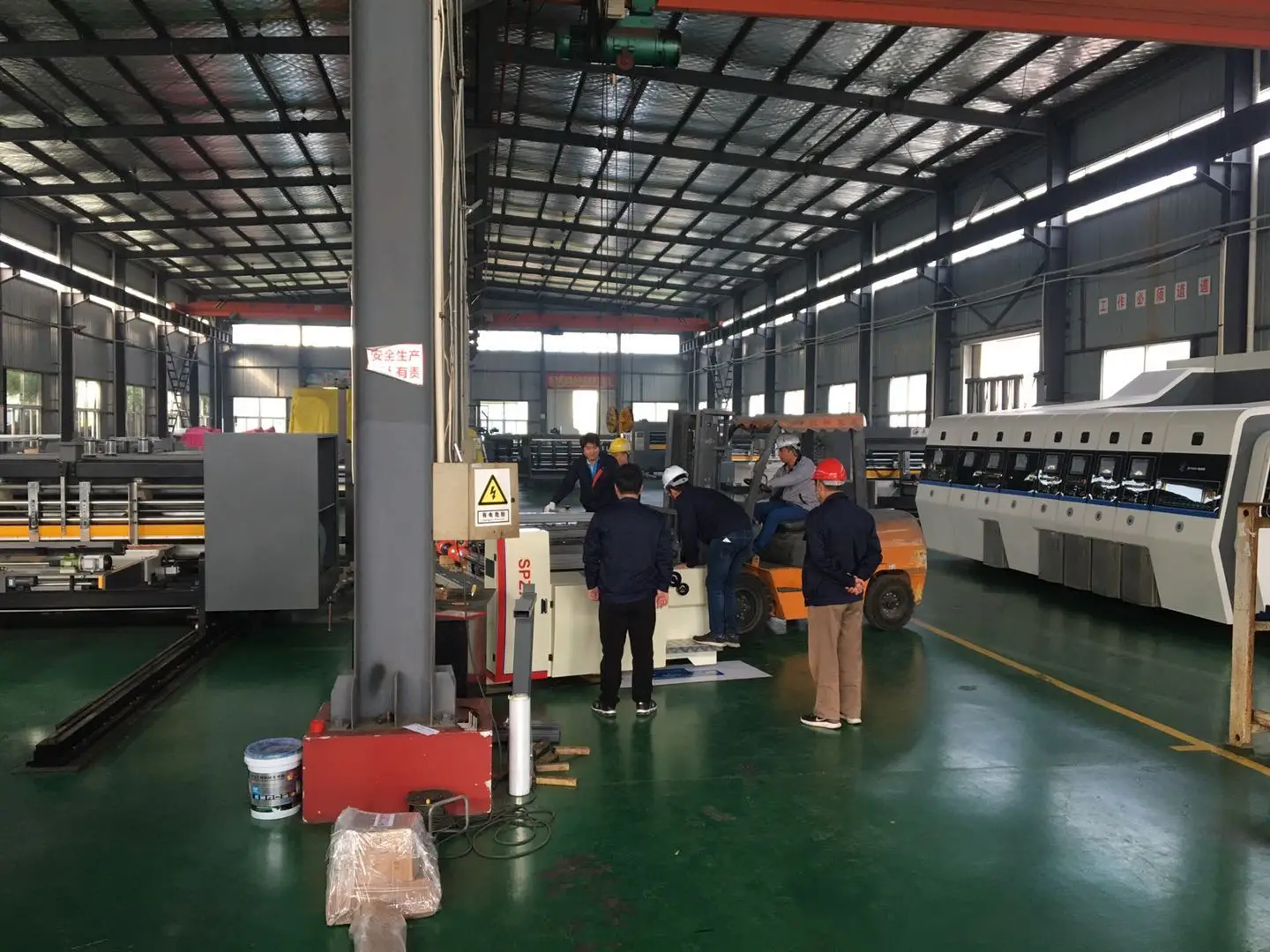

Installation and Training Services
a.Installation Services are available with all ChenGuang machines.Our Comapny will dispatch technician to The Buyer's factory to installation and preparation of machines.Moreover,we will training your operators, so that you can use the machine in a best way. b.ChenGuang company advise the buyer could send their own technican come to our factory to learn how to operate machines. ChenGuang company technician will teach and train the learners hand by hand till he can operate machine by himself.
After Sales Service a.ChenGuang Company machines guarantee time is one year. b.Many easy broken spare parts will be prepared in the tool box together with machines. c.Any parts broken ,Just a pictures or a videos. d.The new free parts will reach within 3-7 Express working days .
Company Introduction
Chenguang Precision Machinery Co., Ltd has been the supplier of intelligent cartons around the world for more than ten years. We are intended to provide our clients with the most practical carton manufacturing service. Dongchen, which is the registered trademark of Chenguang, has been honored with many rewards at home and abroad, such as internationally advanced and high-tech enterprise award.Today, you can find Chenguang among carton machinery manufacturing companies at every corner of the world, and our partners are from over 90 countries around the world.
FAQ
Q1.Are you a factory ora trading company? A1:We are an experienced factory. Q2:Can I see the running machine in your factory? A2:Seeing is believing ! It would be our honor If you can come and visit us. and we have confidence that our machine performance will make you satisfatory. Q3: How about your machine quality? A3: We have the most strict QA & QC system for the quality suppporting, the machine quality is guaranteed with the CE standard and passed the ISO9001:2008, SGS and TUV certificated. Q4:What are you main products? A4:Our main products includes OLABO-Vacuum Transfer Top Pringting Slotting Die-Cutting Machine, SAIO-High-Speed Printing Slotting Die-Cutting Machine, Chain Feeder Pringting Slotter Machine and full-automatic OLABO-Open&Close Type Vacuum Transfer Top Flexo Folder Gluer etc.
