Hot mix asphalt mixing plant for sale
Product Description

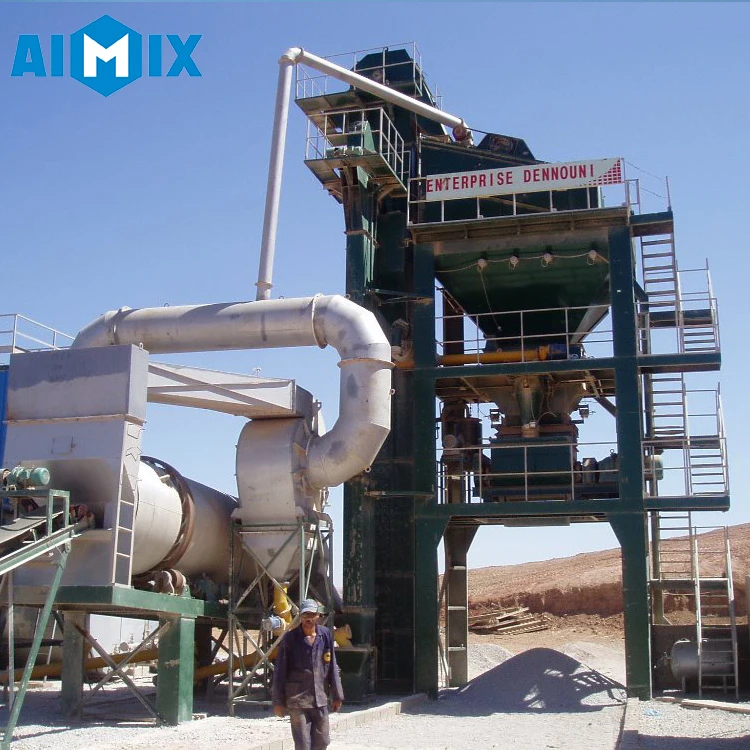

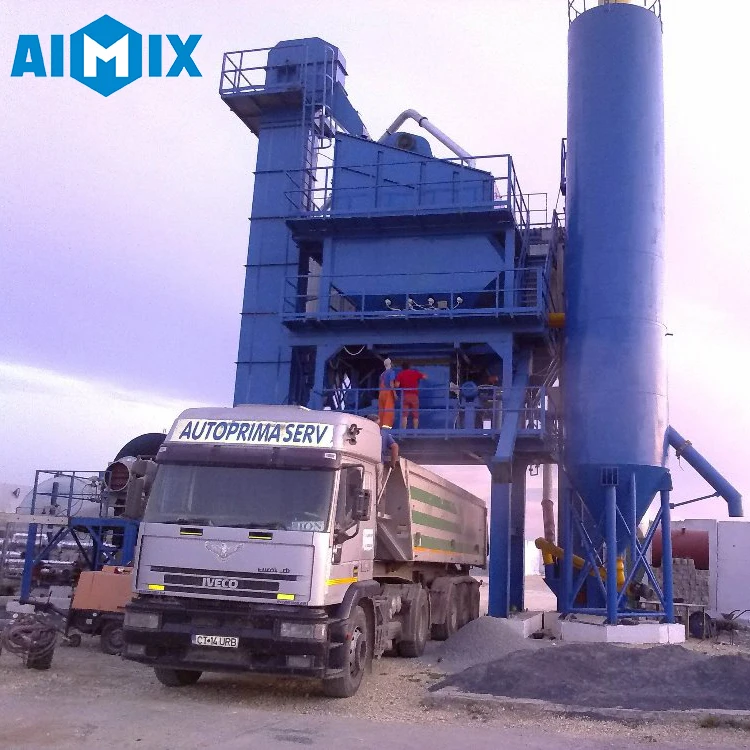

The stationary asphalt mixing plant is designed to meet the requirements of high grade highway construction. ALQ series stationary asphalt mixing plant has quality up to the internationally leading level. The plant is designed with optimized structure, which is highly automatic and reliable. It is composed of the cold aggregate bin, drum dryer, batcher, aggregate elevator, screening and measuring device, hot oil heating type bitumen supply tank, cyclone and impulse dust collecting system. The whole equipment is automatically controlled by the computer.
Parameter of ALQ series asphalt mixing plant:
Type | ALQ40 | ALQ60 | ALQ80 | ALQ100 | ALQ120 | ALQ160 |
Production capacity (t/h) | 40 | 60 | 80 | 100 | 120 | 160 |
Drying roller drive (KW ) | 7.5*2 | 5.5*4 | 5.5*4 | 7.5*4 | 11*4 | 15*4 |
Fuel | Diesel,heavy oil,natural oil,liquefied gas,pulverized coal | |||||
Filter area (m3) | 260 | 320 | 420 | 460 | 510 | 620 |
Vibrating screen (layer) | 4 | 4 | 4 | 4 | 4 | 5 |
Hot aggregate bin (m3) | 9.5 | 9.5 | 9.5 | 12 | 14 | 30 |
Rated mixing capacity (kg) | 600 | 900 | 1200 | 1500 | 1700 | 2300 |
Finished product bin (m3) | 17 | 17 | 17 | 28 | 28 | 28 |
Asphalt tank (m3) | 30 | 30 | 40 | 40 | 40 | 2*40 |
Heavoil tank (m3) | 30 | 30 | 40 | 40 | 40 | 40 |
Termal oil furnace (kcal/h) | 300000 | 300000 | 300000 | 300000 | 500000 | 500000 |
Detailed Images

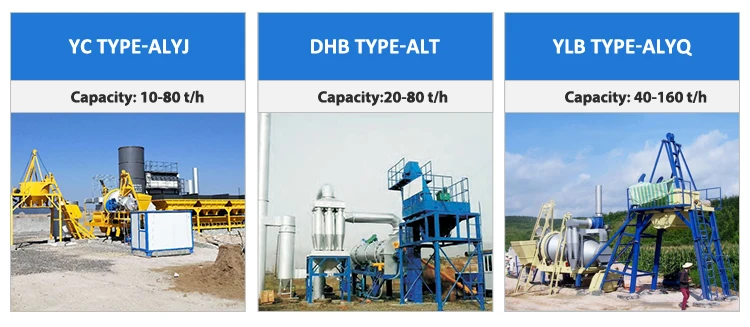

Related Products
Packaging & Shipping
We have been engaged in foreign trade for more than 30 years, and have very rich experience in sea transportation. According to past cases, each of our goods is intact and delivered to customers on schedule.
Certifications
We have got certificate ISO9001:2000 and passed SGS test. At present, our products are popular at home and abroad.
After-Sales Service
Our skilled engineer can provide professional service which include: equipment installation, commissioning, machine operator & administrator training, free technical support, etc
Asphalt Mixing Plant Design
The whole asphalt mixing plant designs according to your requirement of the details.
Installation & Operation Guidance
We will provide station foundation design to you. After you’ve finished foundation construction. Then we can send our engineer to your work site for asphalt mixing plant installation.
Customer Visit
Our products have been delivered to more than 80 countries and regions. Such as Algeria, Argentina, Australia, Bangladesh,Belarus, Bhutan, Bolivia, Botswana, Brazil, Cambodia, Colombia, Congo, Czech, Denmark, Djibouti, Dominican republic, East Timor, Ecuador, Egypt, Ethiopia, Fiji, France, Ghana, India, Indonesia, Kazekhstan, Kenya, Laos, Lebanon, Libya, Lithuania,Malawi, Malaysia, Maldives, Mauritius, Mongolia, Mozambique, Myanmar, New Zealand, Nigeria, Oman, Pakistan, Paraguay,Philippines, Qatar, Russia, Senegal, Seychelles, Sri Lanka, Syria, Thailand, Togo, Trinidad and Tobago, Uganda, Ukraine, United Arab Emirates, USA, Uzbekistan, Vietnam, Yemen etc.
Company Information
Founded in 1982, Aimix Group CO.LTD is located in the west of Xingyang City, to the east if Century Square, Shangjie District which is considered to be the home of construction machinery in China. It enjoys convenient transportation and well-developed economy.
After over 35-year development, we are now one of the leading manufacturers of construction machinery in China. Currently, our company covers an area of 120,000 square meters, with a construction area of 60,000 squares meters.
Our company has more than 1000 staff, among whom there are 16 engineers, more than 90 professional technicians, 60 administrative staff and 600 skilled workers.
Currently, we can supply customers from all over the world with the following equipment: concrete batching plant; stabilized soil mixing plant(pug mill plant), asphalt mixing plant, dry mortar production line, block making machine, concrete mixer, self-loading concrete mixer, cement silo, concrete pump, concrete pump with mixer; pump truck; concrete transit mixer, tower crane,construction lift etc.
International Exhibitions at home and abroad
During 2012, from Nov.27th-30th, attended the Shanghai Bauma International Exhibition
During 2013, from Oct. 18th-21st, attended the BICES (Beijing International Construction Machinery Exhibition & Seminar)
During 2013, from Nov.20th-24th,attended the Bangalore International Exhibition for Construction Machinery (EXCON) in India
During 2014, from Oct 15th-18th, attended the Canton Fair in Guangzhou
During 2014, from Nov. 25th-28th, attended the Shanghai Bauma Exhibition
During 2015, from Jun. 2nd -6th, attended Russia Exhibition:16th International Exhibition Construction Equipment & Technologies’2015
During 2016, from Nov.10th-13rd, attended Indonesia Exhibition (JCC< Jakarta Convention Center) During 2016, from Nov.10th-13rd, attended Philippines Construction in Manila
During 2017, from Mar 8th-11st, attended Tunisia Exhibition
During 2017, from Mar 8th-14th, attended Pakistan Exhibition
During 2018. from Jan 9~11st, attended the Phipipings Exhibition
Till now, our products have been delivered to 6 continents and over 80 countries in the world.
FAQ
Q1: What is the delivery time?
A: 30-50days after receiving advance payment
Q2: What is the payment terms?
A: T/T. L/C are all accept.
Q3: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q4: How about the price?
A: We are manufactory, not dealer, so we can give you a lower price than those trade companies can.
