Price:RUB 381,471.26

Quantity:


Product Overview

Description

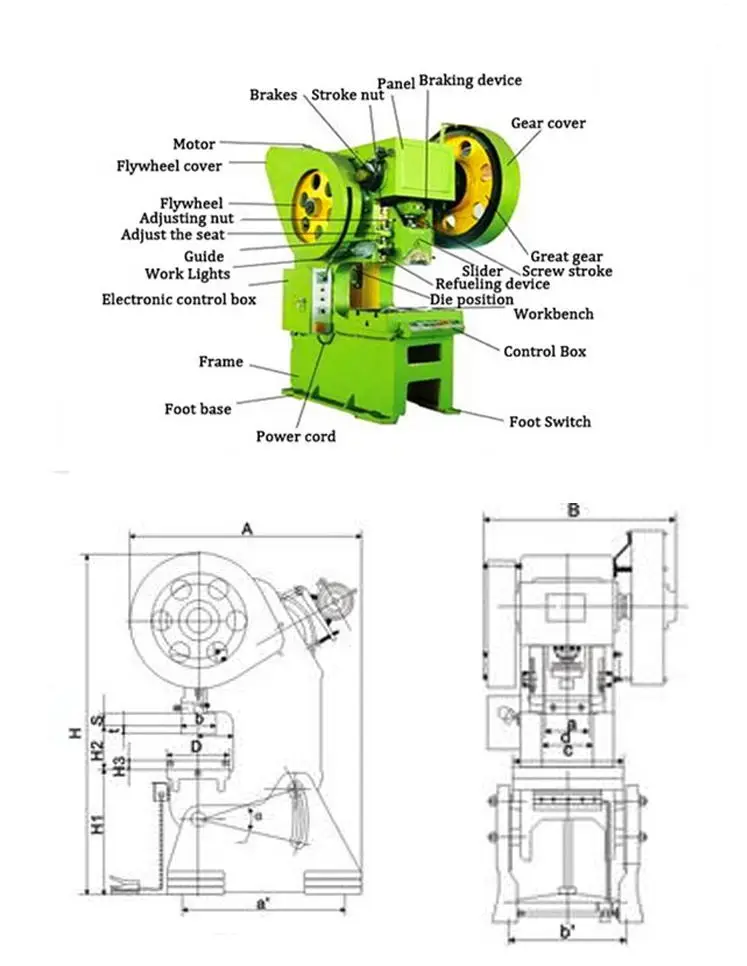

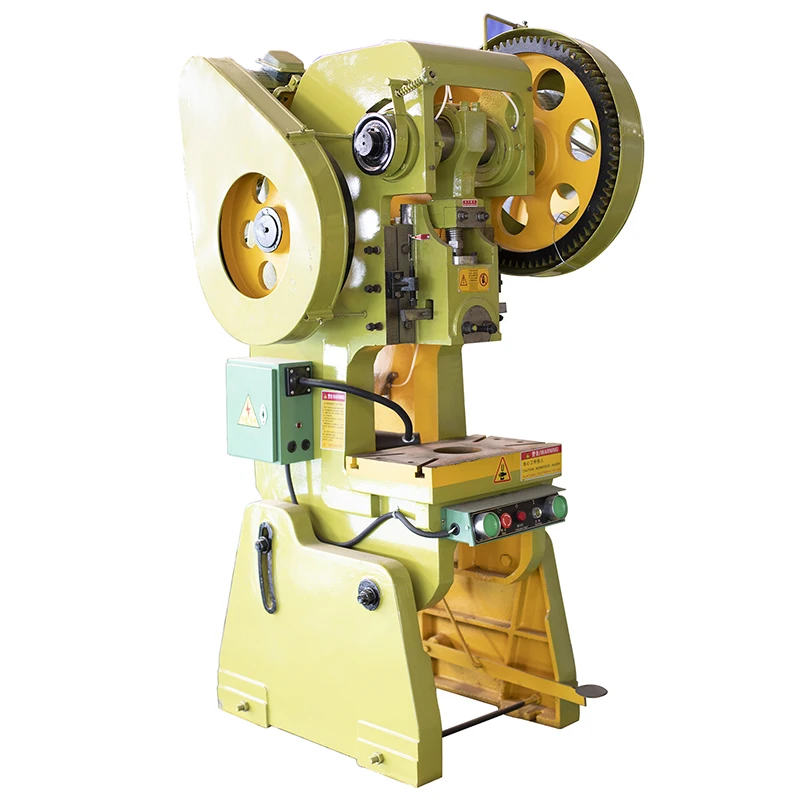

1. J23 Series Presses is one of the new generation of plate process and developed by Nanjing YSDCNC Machinery Co., Ltd. ,The press is for cutting, punching, blanking, bending and light stretching work.

2. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.Steel-welded frame, high rigidity and less deformation Compact.Thick plates and large columns provide you with the stable platform you need for your demanding application.

3. Wide body frame eliminating vibration for improved ide life and machine,which means economical and practical. Operation space is wide, and the movable bolster could be moved out of frame to set the die. The structure is simple and the appliance is also beautiful.

4. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.

Technical paramters
Unit
J23-10
J23-16
J23-25
J23-35
J23-63
J23-80
Nominal force
KN
100
160
250
350
630
800
Stroke of Nominal force
mm
2
2
3
4
5
6
Stroke of sliding block
mm
50
60
70
80
100
120
Number of strokes
times/min
130
110
60
50
50
45
Closed height
mm
180
190
210
290
350
370
Closed height adjustment
mm
35
40
50
60
80
90
Distance from slider block centre to the frame
mm
130
150
180
200
260
275
Length between columns
mm
140
160
230
270
310
410
Hole size for die handle
Diameter
mm
35
35
40
50
50
60
Depth
mm
50
60
60
70
70
70

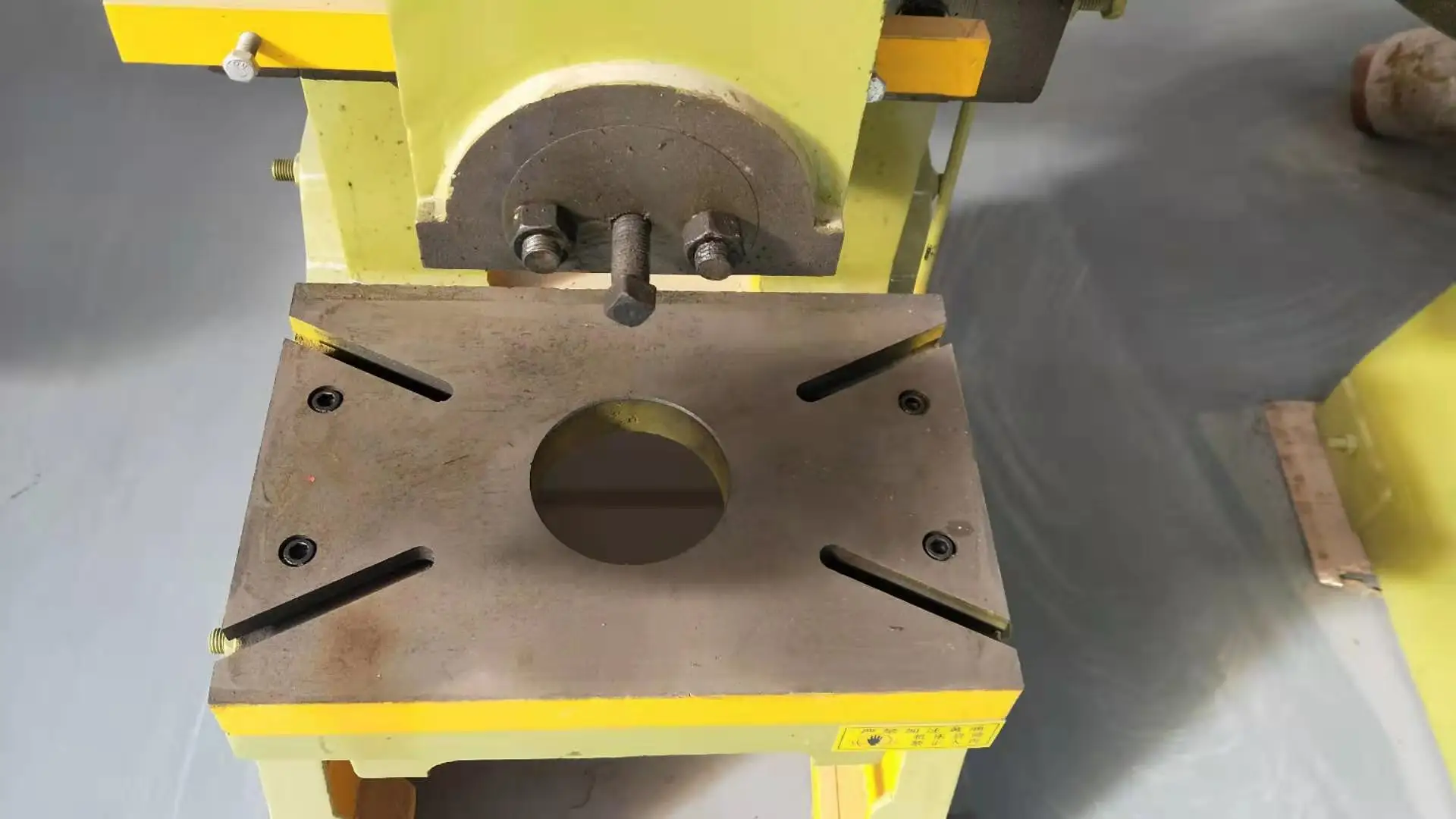

Size of worktable
Left-Right
mm
360
440
500
610
750
750
Front-Back
mm
240
270
320
400
530
530
Blanking hole diameter
mm
80
100
130
150
180
180
Table plate thickness
mm
35
40
50
65
100
100
The maximum tilt angle
°
35
35
30
30
20
20
Dimensions
Left-Right
mm
680
730
920
1050
1350
1350
Front-Back
mm
630
950
1180
1460
1715
1715
Height
mm
1658
1750
2040
2200
2670
2670
Power
KW
1.1
1.5
2.2
4
7.5
7.5
