Arc chamfering machine right angle round hole chamfering machine portable straight edge mould electric chamfering machine ax716
- Category: Chamfering Machines >>>
- Supplier: Dongguan Hangyuan Hardware Tools Co. Ltd.
Share on (62367869335):
Product Overview
Description
Product Description
| Min.Plate thickness | 6mm |
| Min.Chamfered aperture | 16mm |
| Min.hole depth | 14mm |
| min.Sheet thickness | 5mm |
| Chamfer size | C0.1~3.5mm |
| Four Highlights | 1.Strong motor:700W real power 2.Cost-effective:Cost-effective, high-end goods, affordable! 3.Slim handle:Outstanding operational flexibility 4.Optimize the air duct:Detachable, windshield design |
| By industry | Mold base,Machining,Flange hardware,Valve pipe,Steel structure,Shipbuilding industry |
| By material | Steel,Bakelite,Copper pieces,Saigang |,Aluminum alloy,Acrylic |
| Divided by shape | Round hole,Waist hole,Square hole,curve,Shaped hole,straight line |

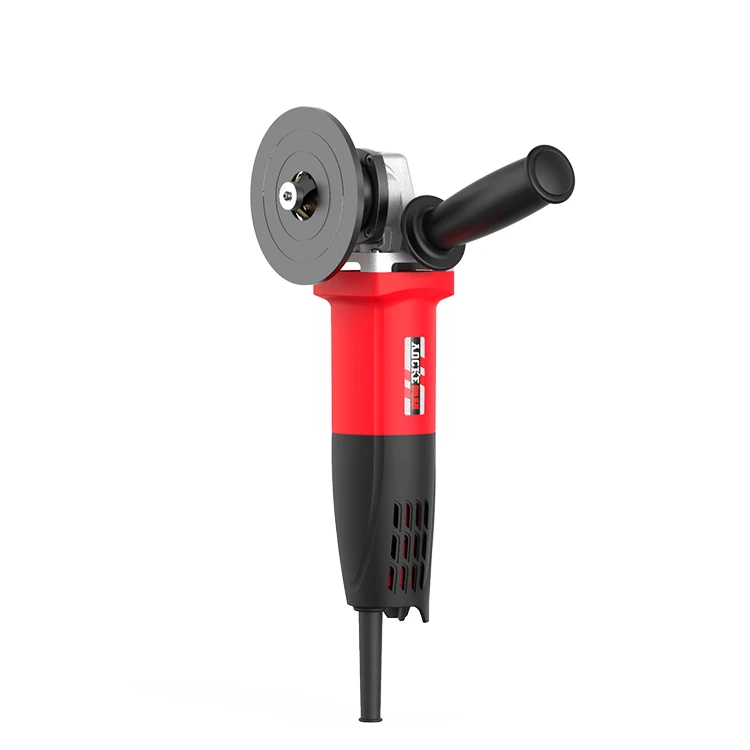

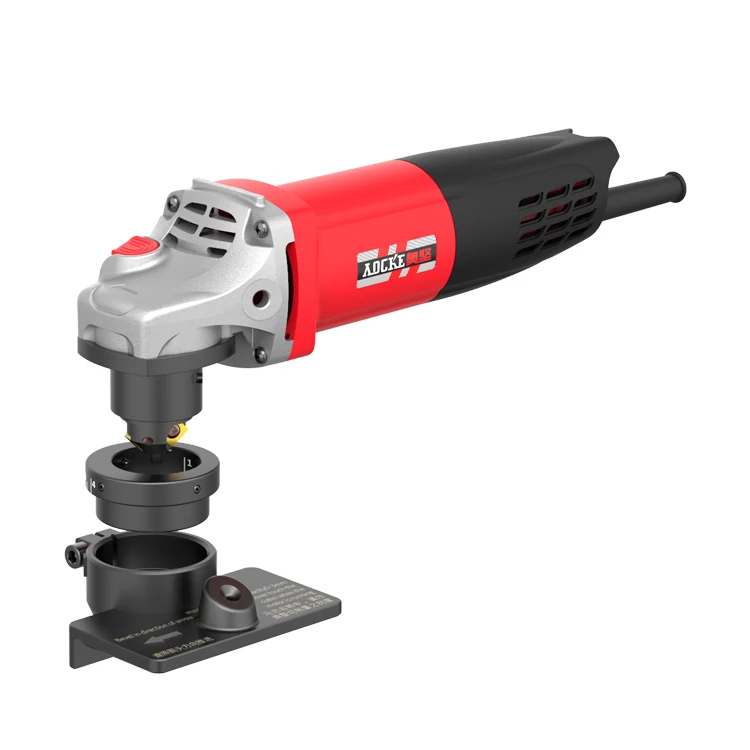

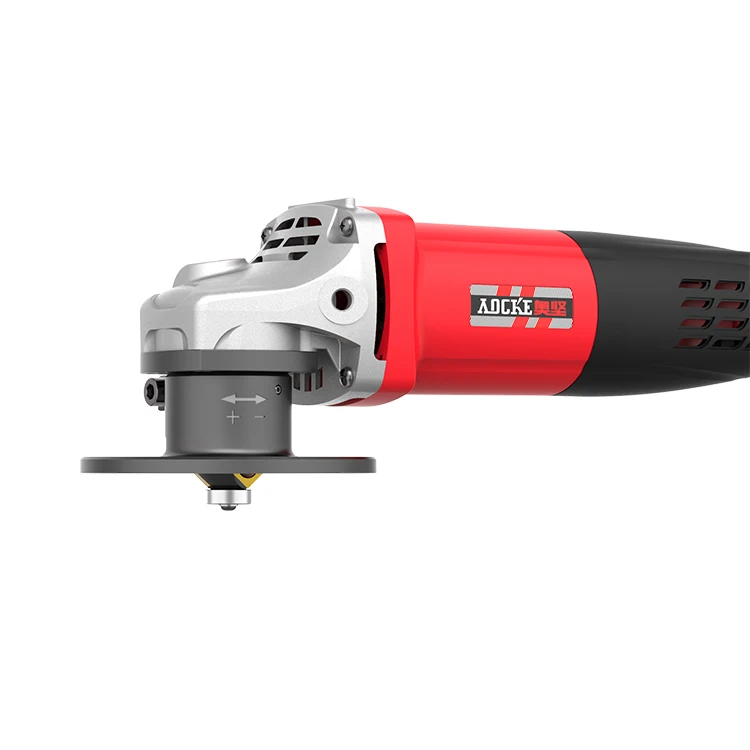

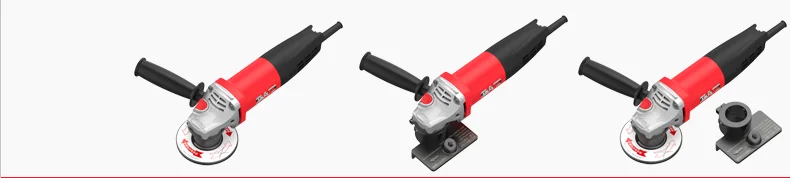

| AX716 | Curved round hole chamfering guide wheel 16mm |

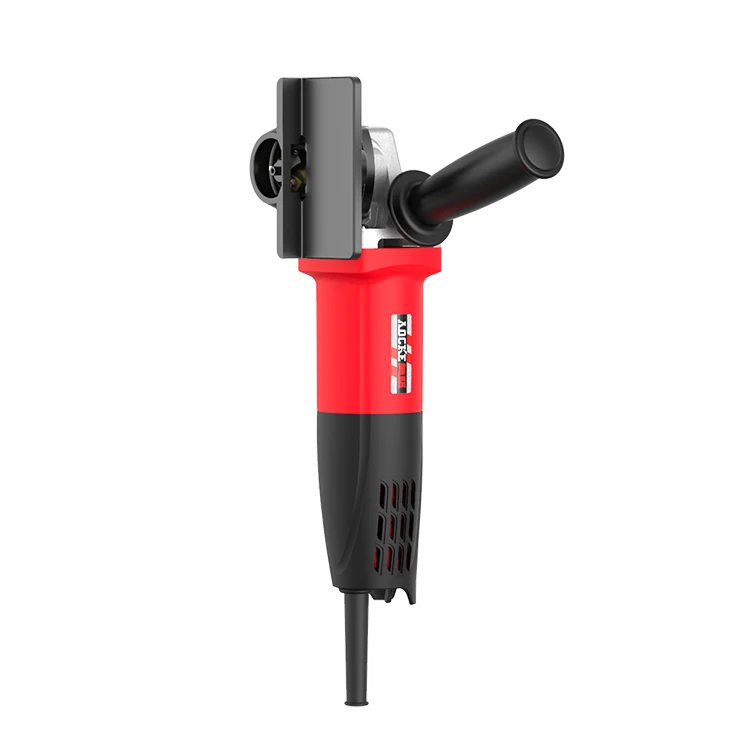

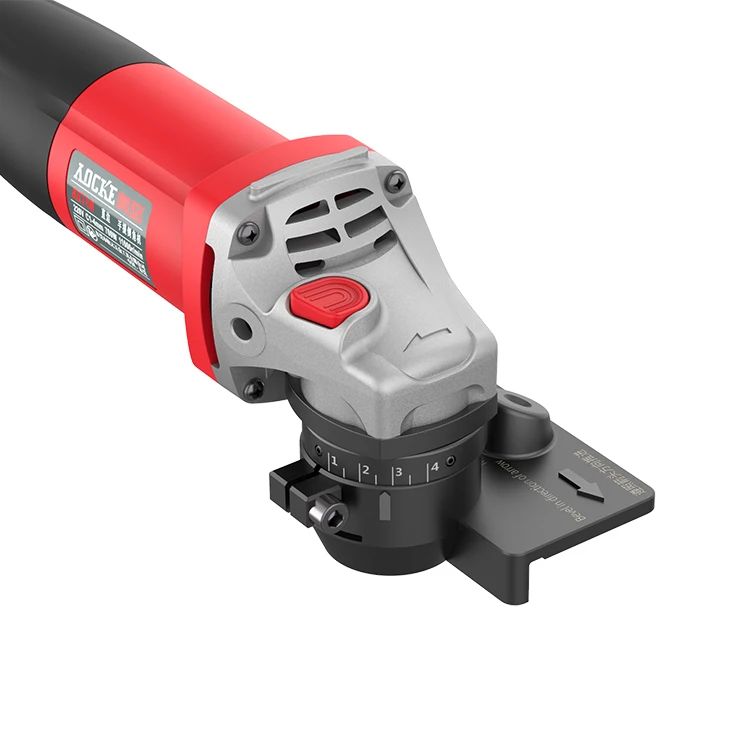

| AX740 | Straight edge chamfer C0.1~3.5mm |

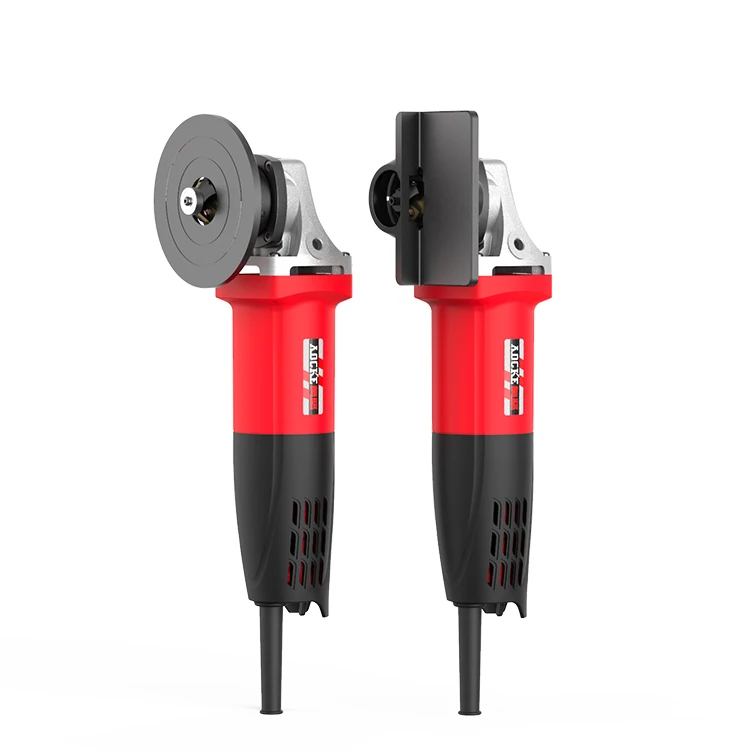

| AX716S | Curved straight edge dual use one set top two |
| Machine type | AX716 | AX740 | AX716S |
| Rated power | 700W | 700W | 700W |
| Rated speed | 11000rpm | 11000rpm | 11000rpm |
| Guide wheel diameter | Ø16mm | — | Ø16mm |
| Inverted hole range | >16mm round hole | >16mm round hole | |
| Chamfer shape | 45 degree C angle | 45 degree C angle | 45 degree C angle |
| Chamfer size | C1~3.5mm | C1~3.5mm | C1~3.5mm |
| Thickness requirement | >5mm | >5mm | >5mm |
| Knife model | AGF-932A |
AGF-932A | AGF-932A |
| Knife specification | 9.5×9.5×3.2×4.5mm | 9.5×9.5×3.2×4.5mm | 9.5×9.5×3.2×4.5mm |
| Machine classification | Curved edge, round hole chamfering | Straight edge chamfer | Curved edge, round hole, straight edge chamfer |
| Machine weight | 2.1Kg | 2.3Kg | 2.1+0.6Kg |
| Machine characteristics | Suitable for curves, round hole chamfers can also be inverted straight professional straight edge chamfering | Professional straight edge chamfering | Suitable for curves, round holes and straight edge chamfers |
