clear skylight polyarbonate sheet for carport

Share on:


Price:$2.50 - $3.00
Price in USD:Details

Quantity:


Product Overview

Description


Products -Multiwall

UV coated high quality polycarbonate multiwall sheet

Our promise: As a professional Polycarbonate products manufacturer, we promise that all of our products are made of 100% new BAYER or GE raw material with at least 50 micor uv coating on one side. And we give 10-year quality warranty against yellowing and natural breakage.

Main features for multiwall sheets

\t
Property
\t
Unite
\t
Value
\t
Thickness
\t
mm
\t
6mm
\t
8mm
\t
10mm
\t
16mm
\t
40mm
\t
Area Weight
\t
kg/sqm
\t
1.1-1.3
\t
1.3-1.5
\t
1.5-1.7
\t
2.7
\t
6
\t
U-Value
\t
Watt/M2.K
\t
2.56
\t
2.39
\t
2.3
\t
2
\t
1.58
\t
UV thickness
\t
μ
\t
50
\t
50
\t
50
\t
50
\t
50
\t
Light Transmission
\t
%
\t
85
\t
83
\t
80
\t
70
\t
60
\t
Service Temperature
\t

\t
-50 to 120
\t
Practical thermal expansion range
\t
mm/m
\t
3
\t
Falmmability
\t

\t
B1
\t
Width Dimension Tolerance
\t
mm
\t
±3
\t
Length Tolerance
\t
%
\t
±5
\t
Weight Tolerance
\t
%
\t
±5
Products- U Panel

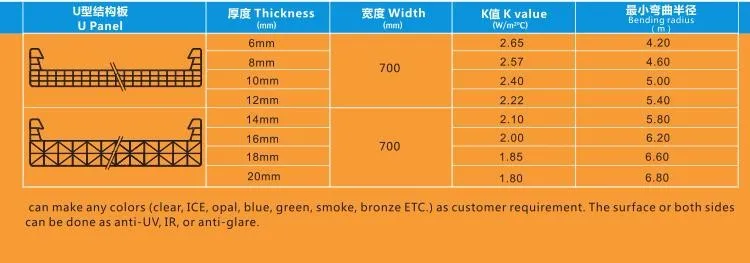

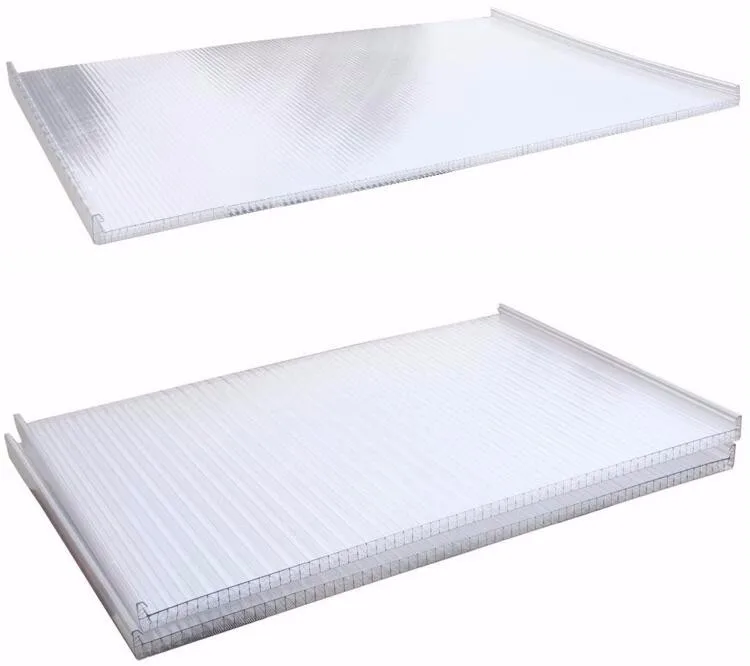

Multiwall U Panels:

Developed by Polyvalley, the U panel has advantages as 100% water proofed, easy-installation, high light transmission, heat insulation, high impact resistance and so on. There is special space between the two panels connection part. So, whole long panels can be used for the large span buildings without worrying about the heat expansion problem. Polyvalley offers the complete set of installing accessories and technique support.

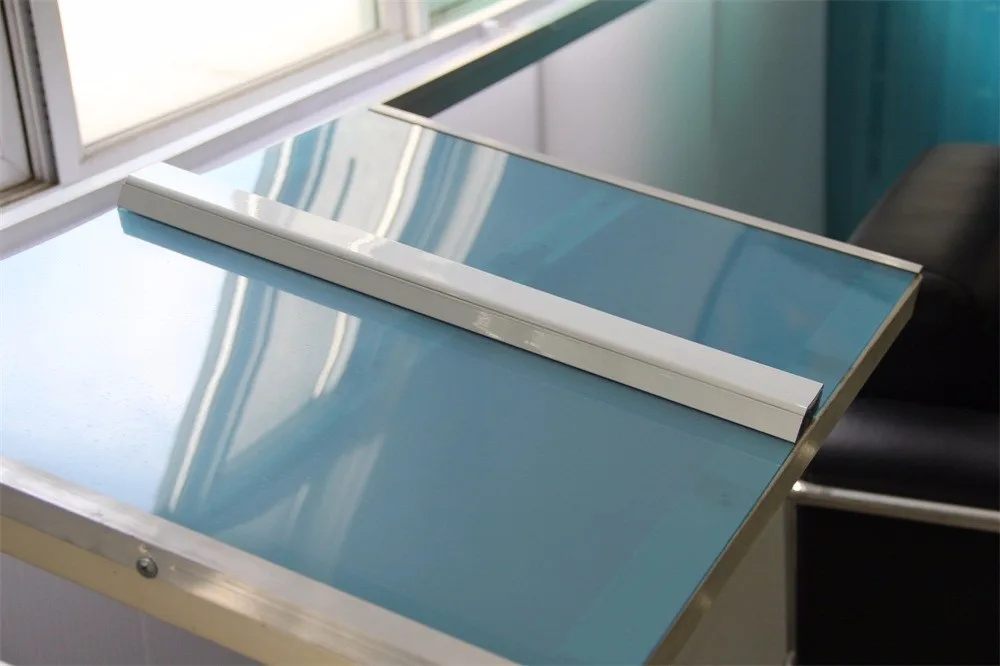

Solid U Panels:

olycarbonate U-locked solid sheet is an architectural system that offers very high light transmission, high load capacity, elegant appearance, versatility, low maintenance etc. With special connecting system, the solid U panel could be 100% water-proofed. It’s the best material for roofing system, skylight, station, large stadium etc.
The Advantages
>100% water proofed
>high light transmission
>Longer service life time
> More stable expansion and contraction
> Keep silence when raining compared with hollow system

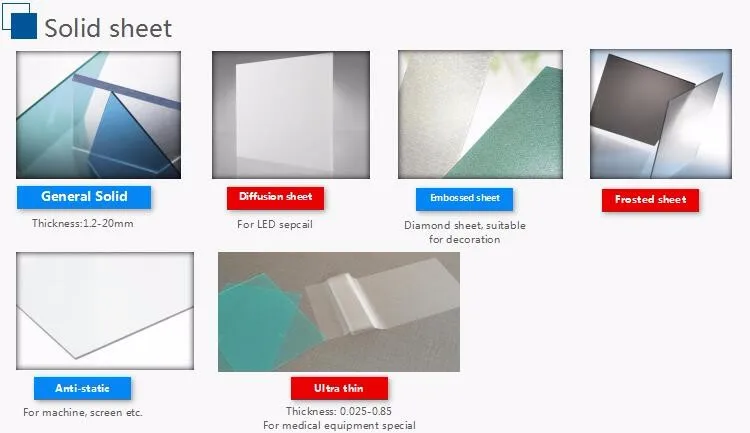

Solid Sheets

Polyvalley has two polycarbonate solid sheets lines. With advanced facility, polyvalley can make any kind of special functional sheets besides normal compact sheets, such as diffussion sheets for LED or screen, anti-scratch sheets, anti-static sheets, frosted sheets, emobossed sheets etc. Secondary processing like drilling holes, cutting to irregular shape, bending are available either.

Corrugated sheets

Made by 100% virgin Bayer material and 50 micro-meter UV layer, Polyvalley multi-wall corrugated sheet offers ten-year quality warranty against breakage and yellowing. It adopts two-wall R structure and can get very high light transmit (around 88%). With very small vertical bar distance, it can get a very good strength. And during installation, the connection part of two sheets can be overlapped perfectly to avoid water permeation.

Polyvalley offers solid corrugated sheets either, same corrugations as multi-wall.  Much more higher lighter transmission and strength.


Polyvalley offers many different kinds of corrugated sheets. Customized corrugation is also available. You are always welcomed to contact us for more information at any time.

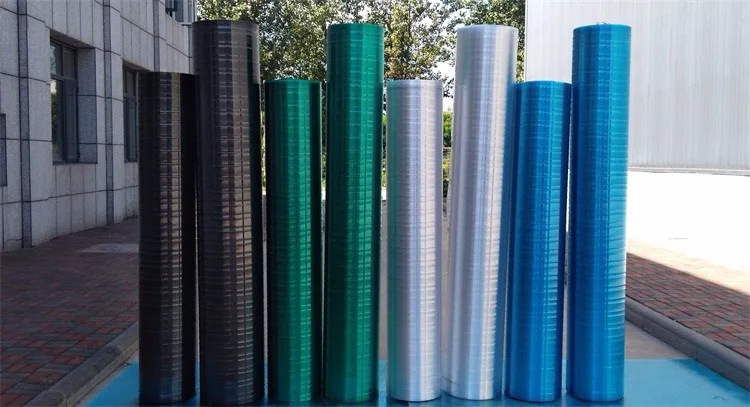

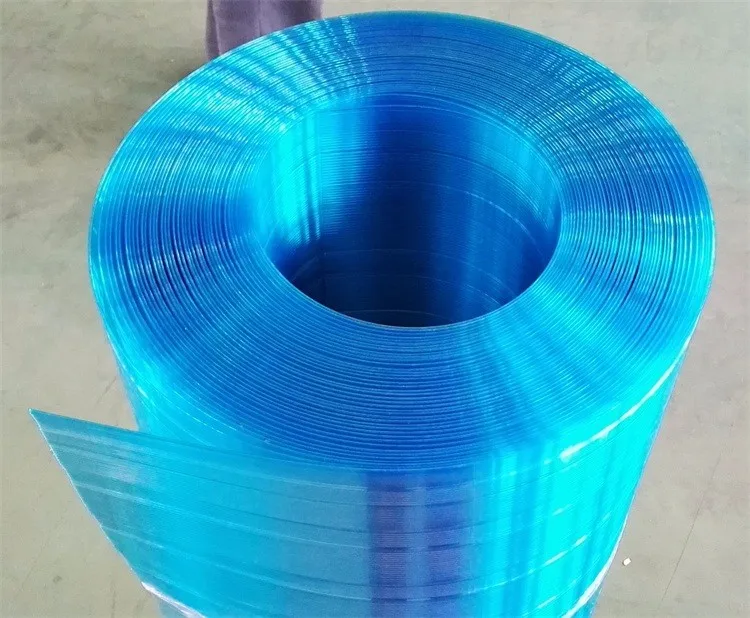

Multiwall roll sheet

Developed by Polyvalley, the waved sheet is a new polycarbonate sheet with advantages as high light transmit, easy-shaped, heat isolation, high load impact etc. The waved sheet have very small bending radius, thus can be rolling packed. It is very suitable for skylight, carport, greenhouse and so on.
Main Features:
Very small bending radius, can be rolling packed, suitable for transportation.
Small Expansion and Contraction, it can be made as longer as required.
High light transmission: can be over 85%, very suitable for greenhouse.
Very high impact resistance: With waved structure, its load and strength is as 2 or 3 times high as normal flat sheet.
Good weatheability: with UV layer on the surface, the waved sheet can keep its high light transmission for many years without yellowing.
Easy and lower cost installation: the two sheets can be connected directly with its waved structure. Not only easy and lower cost for installation but also water-proofed.

\t
Thickness:
\t
 2-3mm
\t
Modular Width:
\t
1220mm, 2100mm
\t
Effective Width:
\t
1220mm, 2100mm
\t
Length:
\t
no limited (can be packed in rolls)
\t
Weight:
\t
0.65-0.68kgs/sqm
\t
Structure:
\t
2 wall sheet
\t
Color:
\t
Clear, white, bronze, blue, green, metallic, orange, red etc.
Company Profile

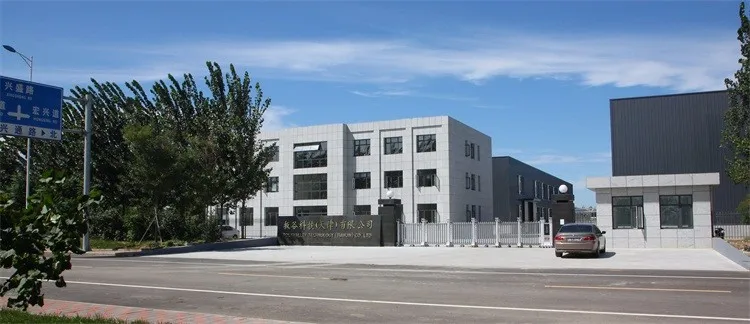

About Polyvalley

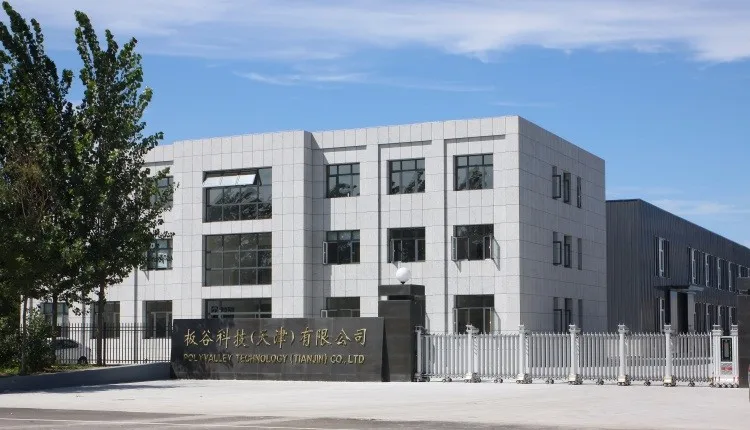

Polyvalley Technology (tianjin) Co.,Ltd. Polyvalley Technology (Tianjin) Co.,Ltd. is located in the Chinese Bohai Sea bay economic center Tianjin city and specializing in R&D, manufacturing and self-exporting of polycarbonate sheets.

Since establishing, Polyvalley was given the orientation to the R&D and manufacturing various kinds of high level PC sheets. It owns several independent PC sheet co-extruding production lines with advanced equipments. All of polyvalley PC sheets including hollow flat sheet, solid sheet, structural sheet, click sheet etc. were made by international well known brand raw materials such as GE and Bayer. Polyvalley product sells well not only in all provinces of China but also overseas such as Brail, USA, India, Japan, Russia, Italy etc.

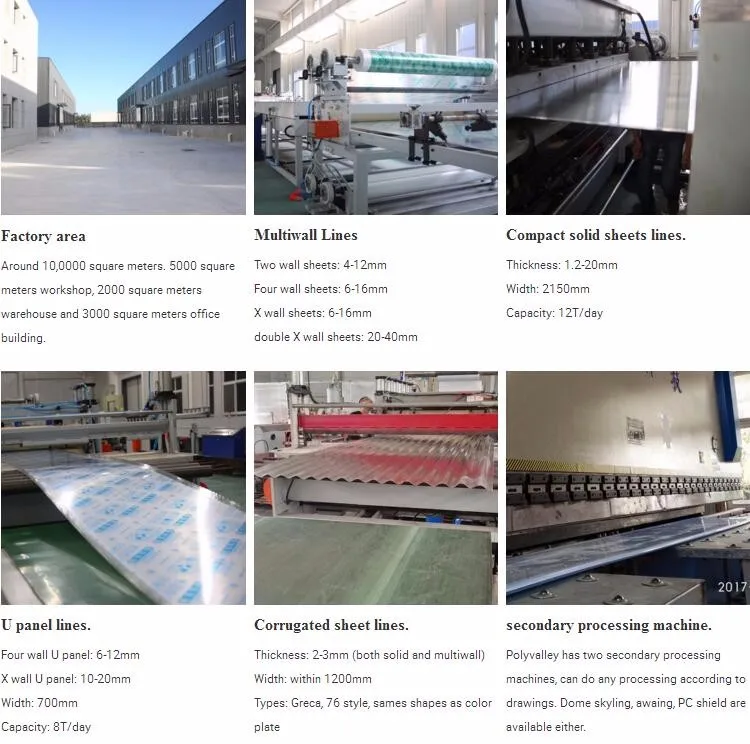

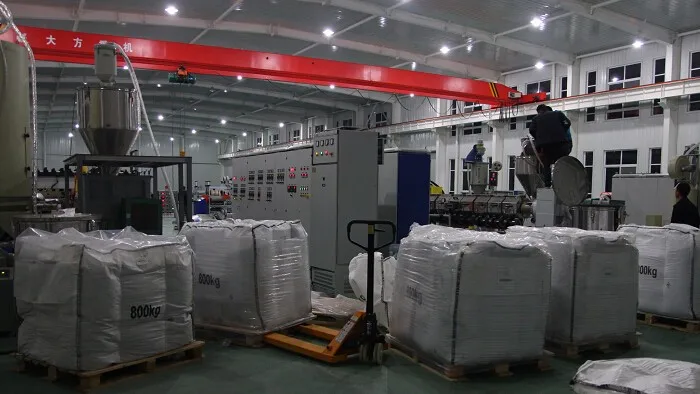

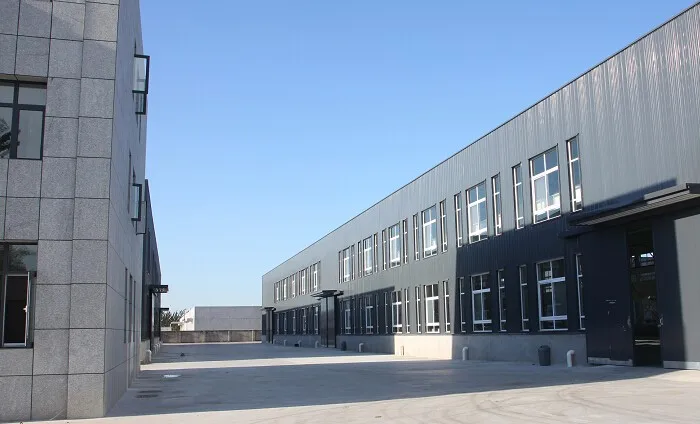

Company Facility

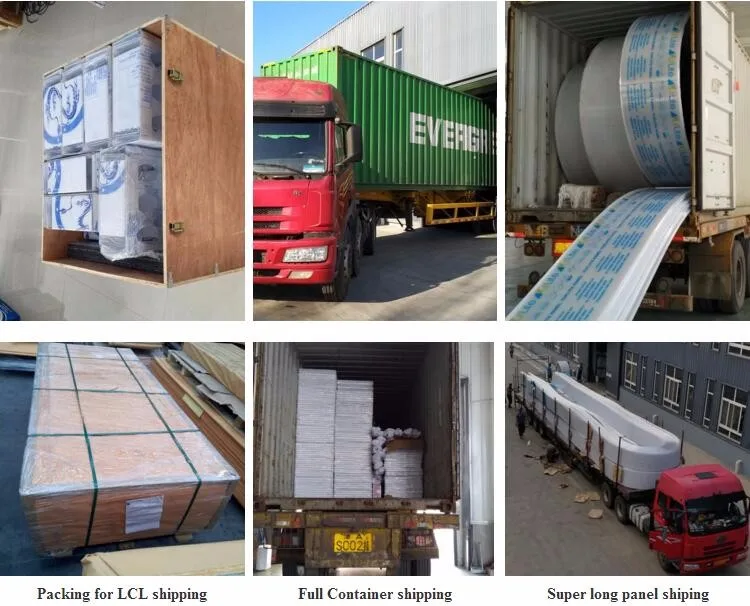

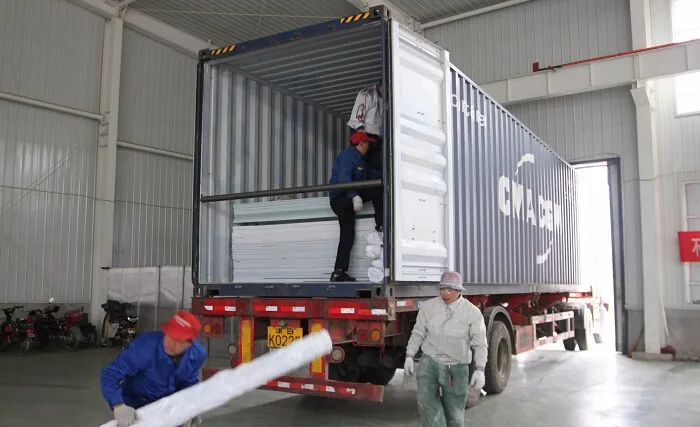

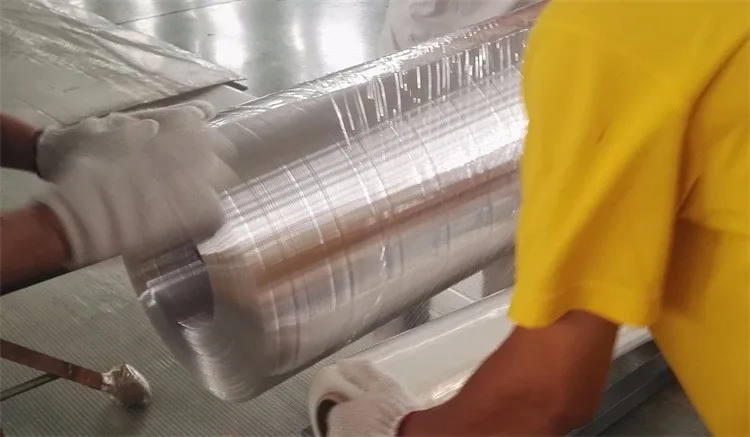

Packing & Delivery
