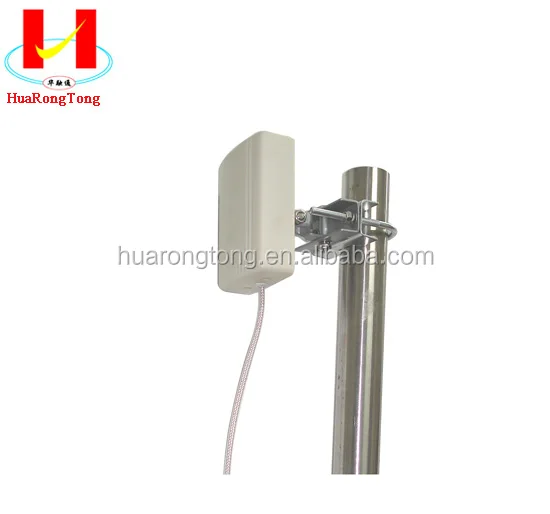

5GHz 5.8GHz wifi small size 105x85x35mm 12dbi patch panel antenna for UNII system TDJ 5800BP30VH14
- Category: >>>
- Supplier: Foshan Huarongtong Antenna Co. Ltd.
Share on (62367955415):
Product Overview
Description
Why us
1, We are manufacture ,have our own factory
2, Over 20 years experiences in antenna manufacturing
3, OEM ODM service available
4, 2 years warranty for products
5, ISO ,CE and Patent certificate
6, With almost 20 years of trading experience
5GHz 5.8GHz wifi small size 105x85x35mm 14dbi patch panel antenna for UNII system
Application:
5.8GHz wifi wlan system
5.5GHz 5.8GHz UNII system
ISM system
Features:
Light weight ,good appearance
Low VSWR, high gain
pole mounting or wall mounting for customization
Datesheet :
Technical parameters | |
Model | TDJ-5800BP30VH12 |
Frequency Range-MHz | 5725-5850 |
Bandwidth-MHz | 125 |
Gain-dBi | 12 |
Horizontal Beamwidth-° | 30 |
Vertical Beamwidth-° | 60 |
F/B Ratio-dB | ≥20 |
Isolation Between Pols -dB | ≥25 |
VSWR | ≤1.5 |
Nominal Impedance-Ω | 50 |
Polarization | vertical and horizontal |
Maximum Power-W | 50 |
Dimensions-mm | 105x85x35 |
Weight-kg | 0.5 |
Rated Wind Velocity-m/s | 60 |
Connector | N-K |
Mounting Mast Diameter-mm | Φ35~50 |

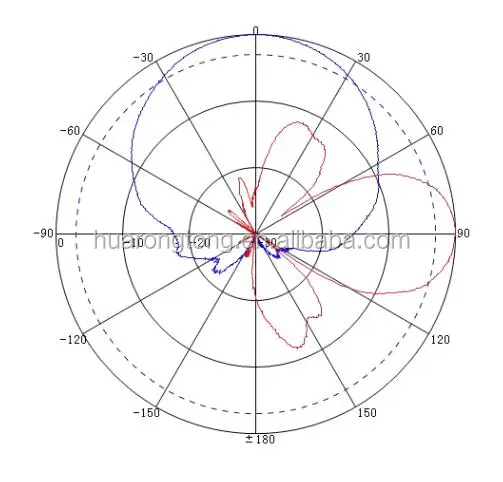

Radiation pattern

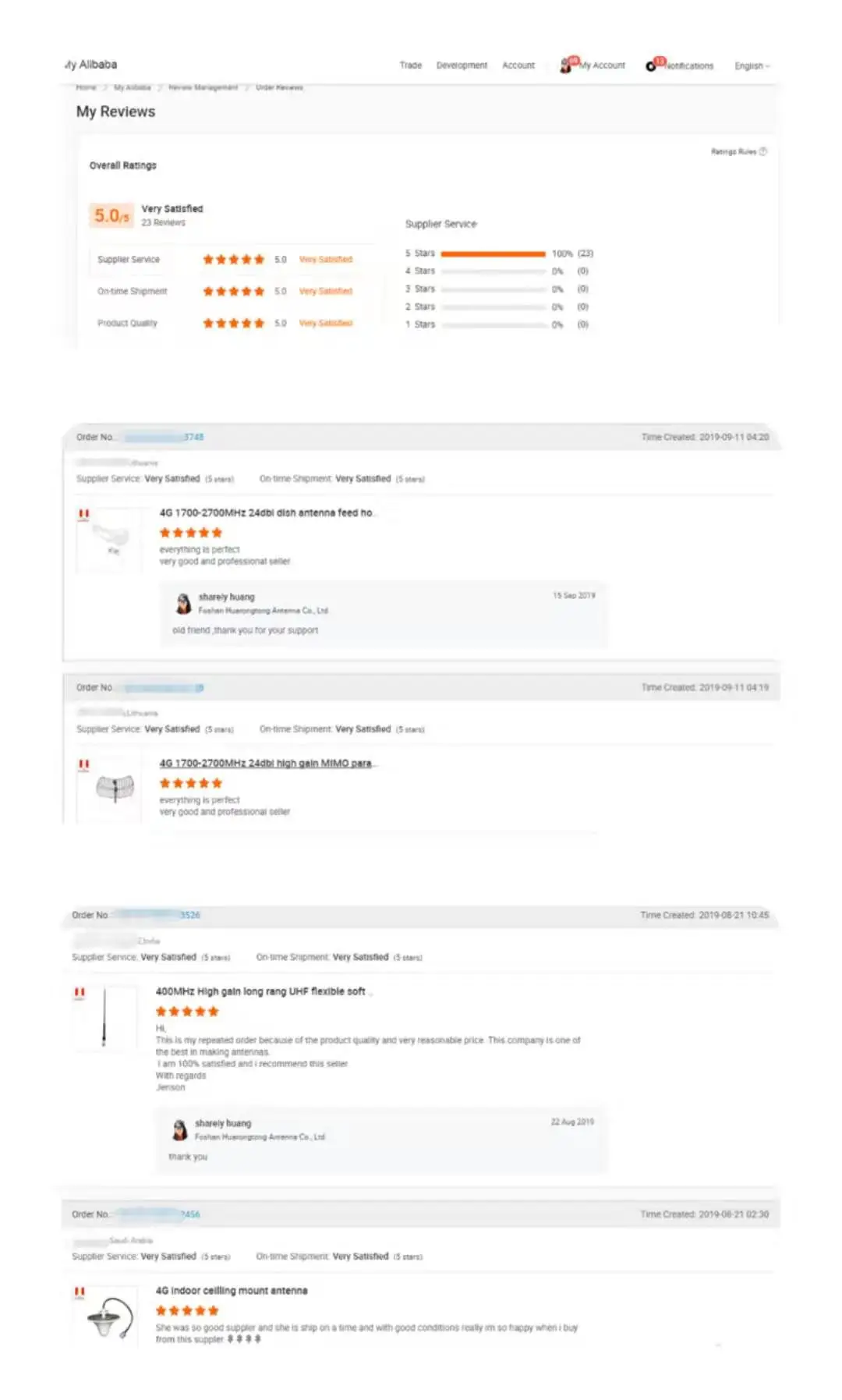

Customer feed back
