Product Overview

Description



Product Description







Introduction


       The equipment for purification distillation test rotates and shapes a thin film in negative pressure condition


by heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate.

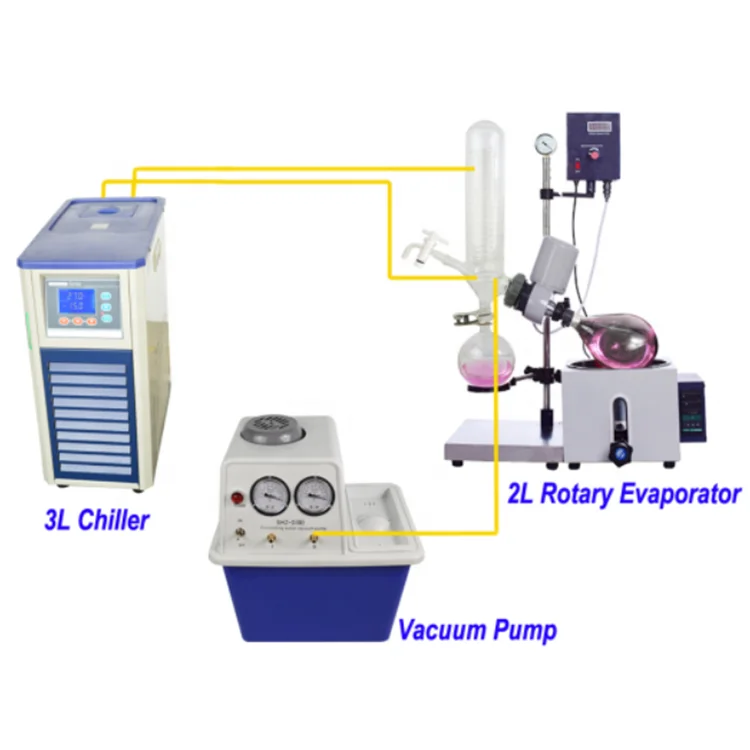

       The rotary evaporator can be made into system devices with Circulating Water Vacuum Pump , Vacuum


Pump , Low Temperature Circulating Pump, Circulating Cooler, Constant Temperature Reaction Bath , Low


Temperature Cooling Liquid Circulating Pump.





Specification























































































Model



HEM-01A



HEM-01B



Condenser



Vertical Condenser



Collect Flask



1L



Rotary Flask



1L



2L



Motor Power



40W



Power Voltage



220/110V for Optional



Bath Power



1200 W



Bath Volume



2L



Bath Material



SS304 Combined Bath  Material Completely Closed Heated



Evaporation Rate(Water)



1L/ H



Speed Range



0 - 120 RPM



Lift and Stroke



Water Bath Lifting with Manual Control, 150 mm



Glass Material



GG-17 Glass



Heating Temperature Range



Rm-99 Degree



Heat Control



PID



Heat control accuracy



 ±1 Degree



Ultimate Vacuum



0.098 Mpa



Dimensions (W x H x D)



450×520×650 mm



Weight



30 kg



       Remark: Heating Temperature Range can be extened to 199 Degree.





Details





































Company Information







FAQ





Q1: Are you trading company or manufacture?


A:We are professional manufacturer of lab equipment and we have our own factory.





Q2 .Where is your company location ? How can I visit there ?


A :Our factory is in Shenzhen city ,Guangzhou province , China , near Shenzhen International Airport , you can fly to Shenzhen International Airport  to visit our factory !





Q3:Could you do design for us?


A:Yes. If you provide us the content and tell us where to put, just tell us how to do in detail.





Q4:Will you provide service beyond the warranty?


A:Yes. Our warranty is two year from the delivery date.





5. What is MOQ ?
A: 1 Set.
