3000L Turnkey brewery/beer brewing system/beer manufacturing equipment
- Category: Food & Beverage Machinery >>>
- Supplier: Jinan,Rainbow,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Professional factory beer brewing equipment
Company Profile:
We, Jinan Rainbow Machinery Co., Ltd are a professional manufacturer and leading supplier of good quality beer brewing system, ranging from 100L-20000L per patch (used for home, pub/hotel, factory, etc.) at a very competitive price, with product design, production, sales, installation and after-sales support.
We have been exporting beer brewing tanks to many places like USA, Canada, Ecuador, Argentina, Germany, France, Czech Republic, Finland, Norway, Switzerland, Portual, Australia, Taiwan....etc.
SPECIFICATION:

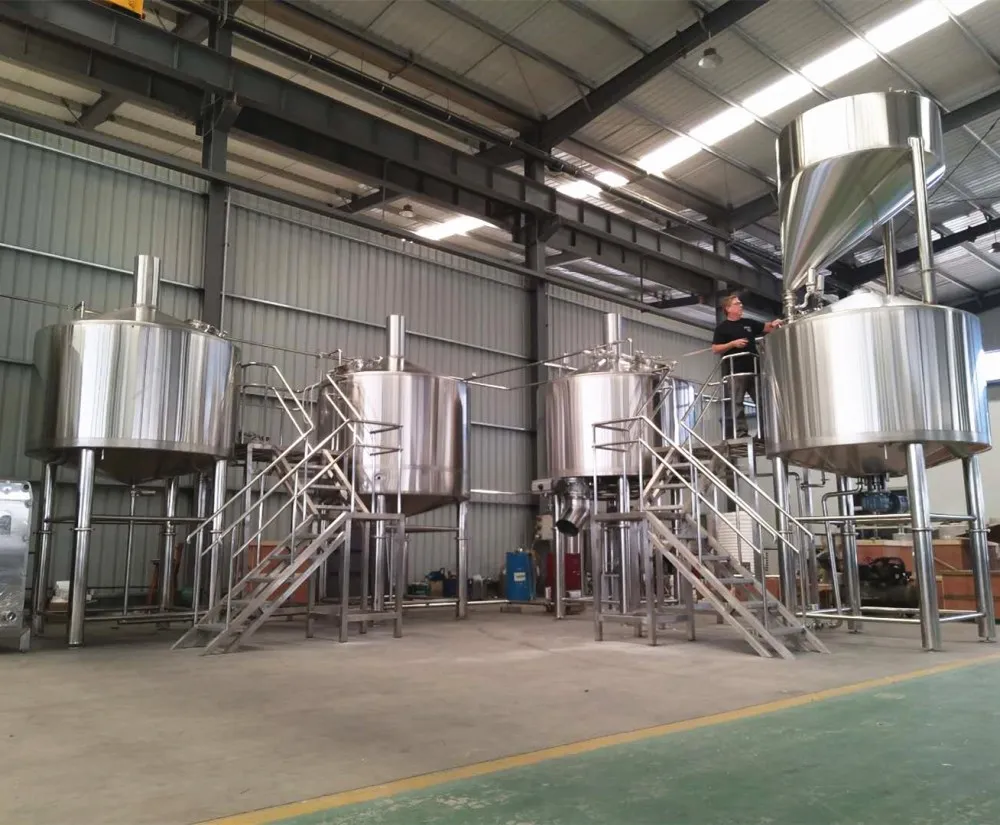

This 3000L beer brewery system is maily used for factory.
Here following is the general configuration for your reference.
Can be customized.
Items | Equipment | Specification | Quantity (PCS) |
Malt miller | Malt miller | 1000kg/hour | 1 |
Brewhouse | Mash tun | 3000L | 1 |
Lautering tun | 3000L | 1 | |
Brew kettle | 3000L | 1 | |
Whirlpool tank | 3000L | 1 | |
Plate heat exchanger | 35 m2 | 1 | |
Pumps | 5/10 m³/h |
| |
Working platform |
| ||
Fermentation | Fermenter | 3000L | 6-20 |
Aeration&yeast adding tank | 50/100L | 1 | |
Cooling unit | Glycol water tank | 5000L/8000L | 1 |
Chiller | 10hp |
| |
Glycol pump | 5 m³/h |
| |
CIP unit
| Alkali tank | 300L/500L | 1 |
Sterilization tank | 300L/500L | 1 | |
Pump | 5m³/h | 1 | |
Control unit | Siemens PLC/PID controlling system | 1 | |
Spare parts | All necessary spare parts such as pipes, valves, gauges and clamps…etc. | ||
Optional combination of the brewhouse:
1- mash tun, lauter tun, brew kettle/whirlpool
2- mash/brew kettle, lauter tun, whirlpool
OPTIONAL: hot liquor tank, cold liquor tank, wort grant, hop back tank.
filter machine, bright beer tank, CIP tanks (with acid tank), hop gun.......

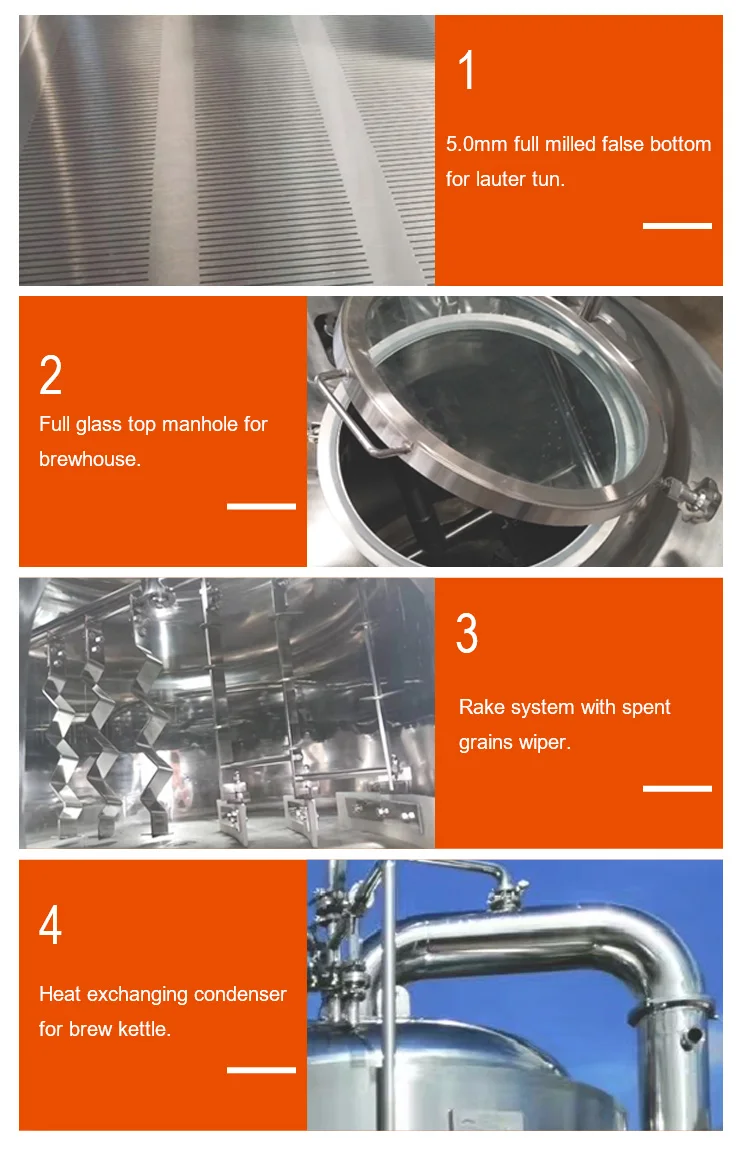

Brewhouse:
1) - interior shell stainless steel 304, 3mm;
- exterior shell stainless steel 304, 2mm
2) -Top manway with glass
- Bottom/side manway for spent grains
- agitator, rake
- removable false bottom
-Tangential inlet for whirlpool
-Thermowell for temperature sensor and thermometer....
-Optional: grist case, auger, wort tank.....

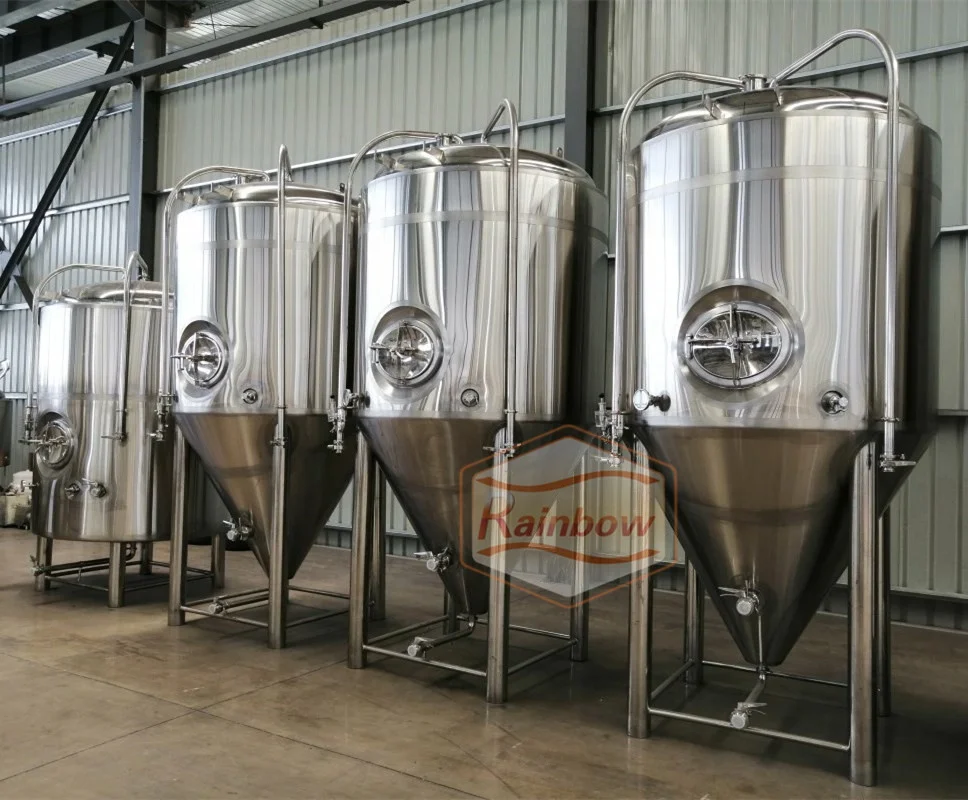

Fermentation:
1) - Interior shell stainless steel 304, 3mm;
-exterior shell stainless steel 304, 2mm

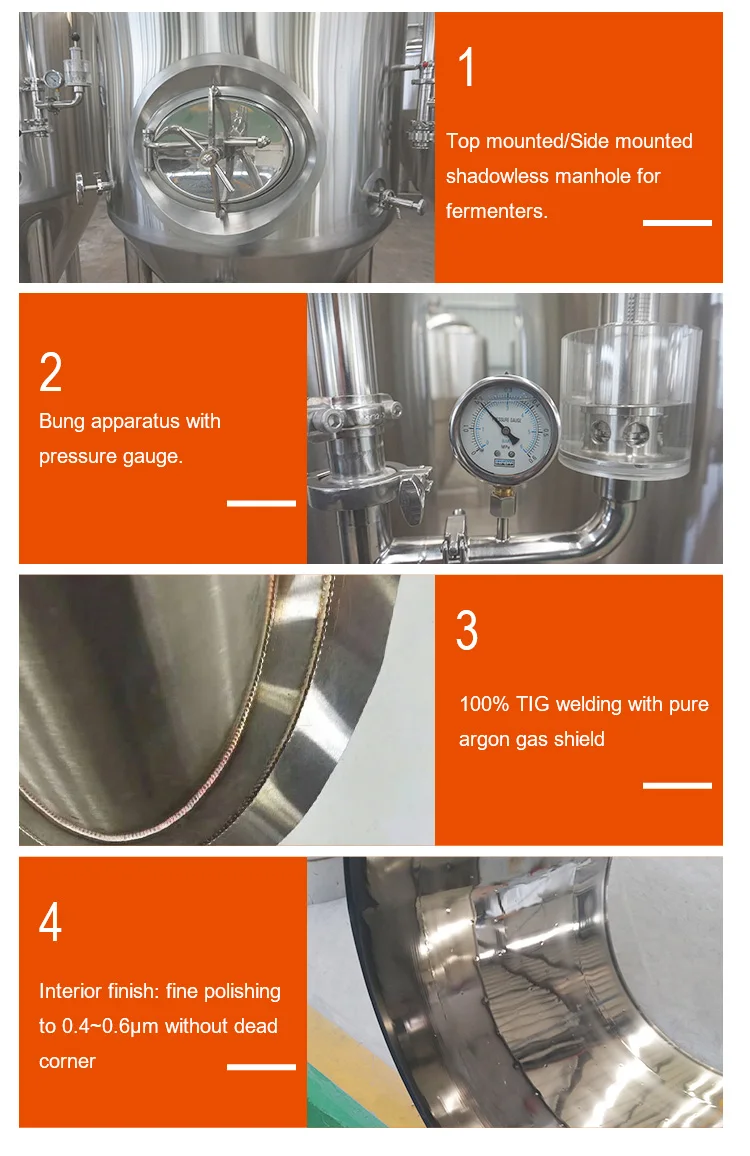

2) -Side mounted manway
-Dimple cooling jackets on both cylinder and cone
- Inside 360 degree rotating CIP washing ball;
- safety&vacuum valve
-sample valve
-Bung apparatus
- rotating racking arm on cone
-carbonation stone (optional)
- dry hops port on top
-100% TIG welding with pure argon gas shield
-Interior Finish: mirror polishing to 0.4~0.6μm without dead corner
-Testing pressure: 3 bar
-working pressure: 1.5-2 bar
Welding and polishing
-100% TIG welding with pure argon gas shield
-Interior Finish: mirror polishing to 0.4~0.6μm without dead corner
For your information:
1. We have the capacity of 100L, 200L, 300L, 500L, 1000L, 2000L, 3000L, 5000L, 8000L...( 1bbl, 2bbl, 5bbl, 10bbl, 15bbl....) per patch for your reference.
It can be customized, such as the capacity, material(SUS304/316), voltage(can be customized), heating source(electric, steam or gas fired heating), etc.
2. The brewer can also brew draft beer, pale beer, brown beer, stout beer etc,
to meet different taste of customers.
OPTIONAL:
Beer bottling line: bottle washing machine, filling machine, capping machine,
pasteurization tank, labelling machine.
Kegs washer and filler.
Beer kegs(10L,20L,30L,50L...).
Steam boiler.
