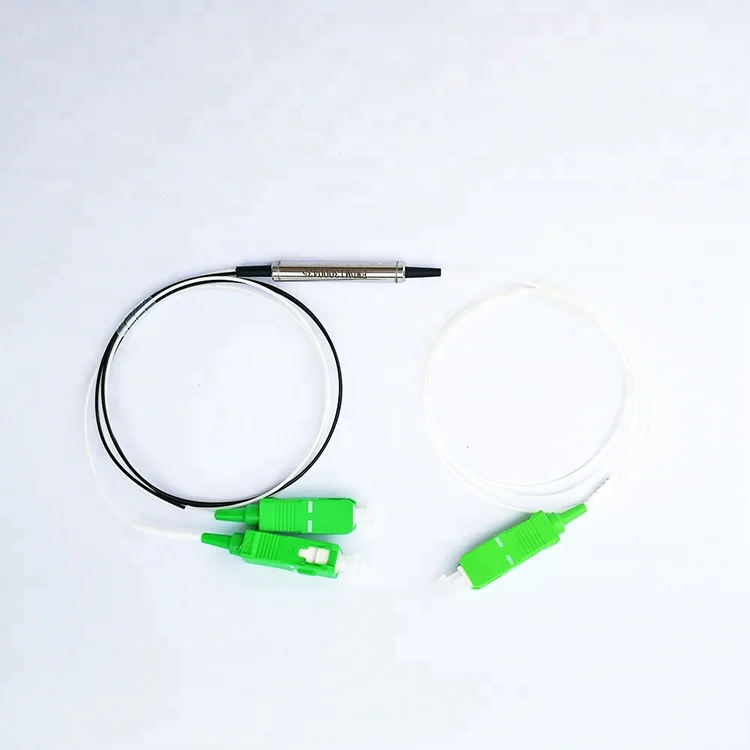

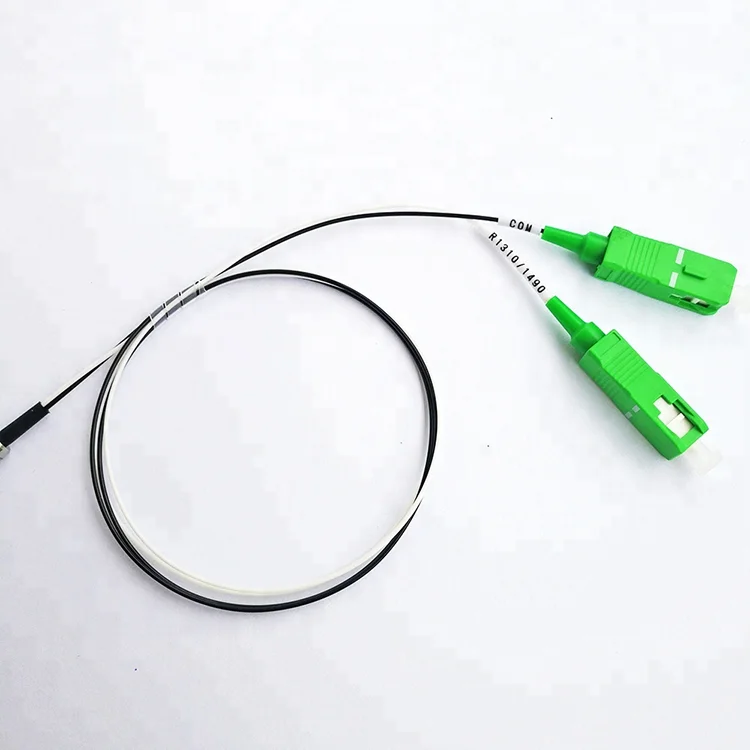

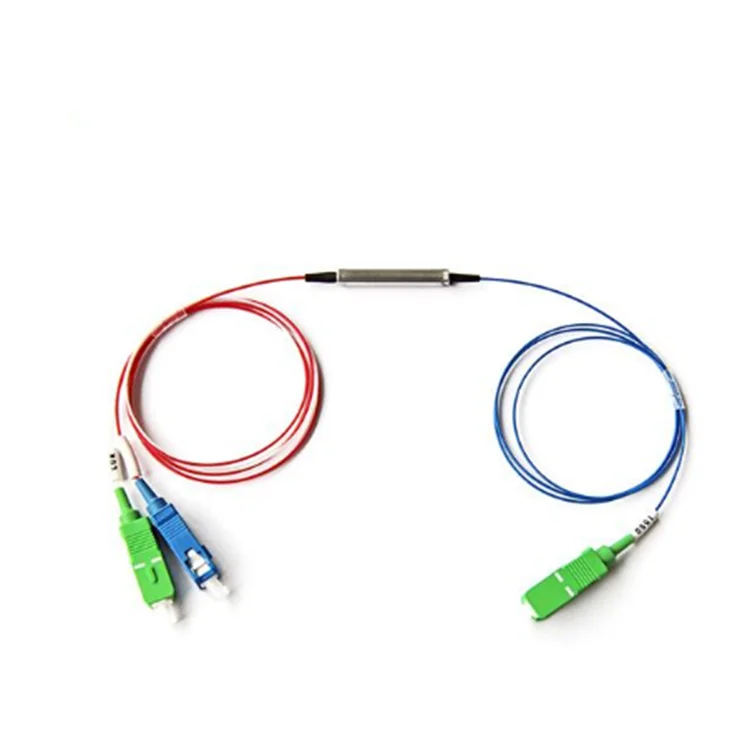

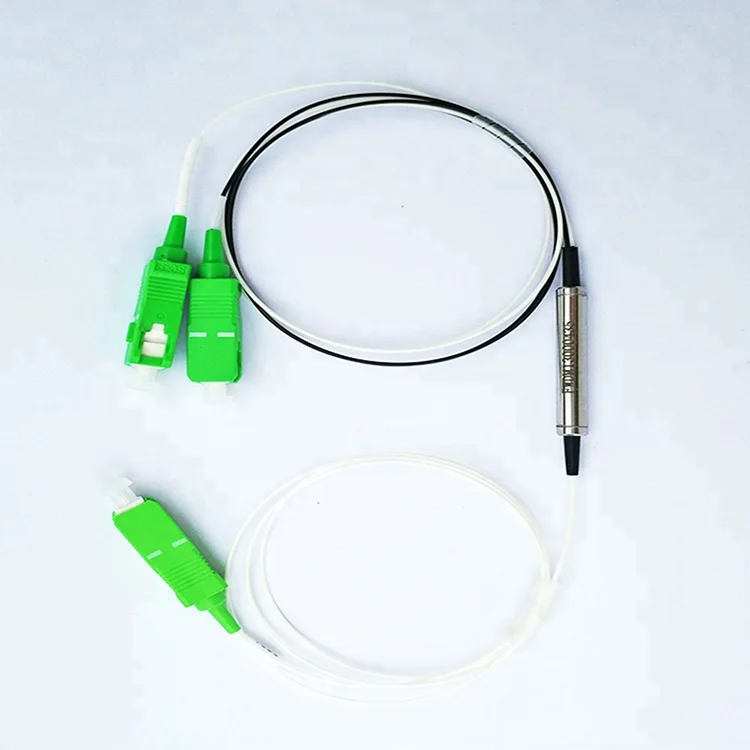

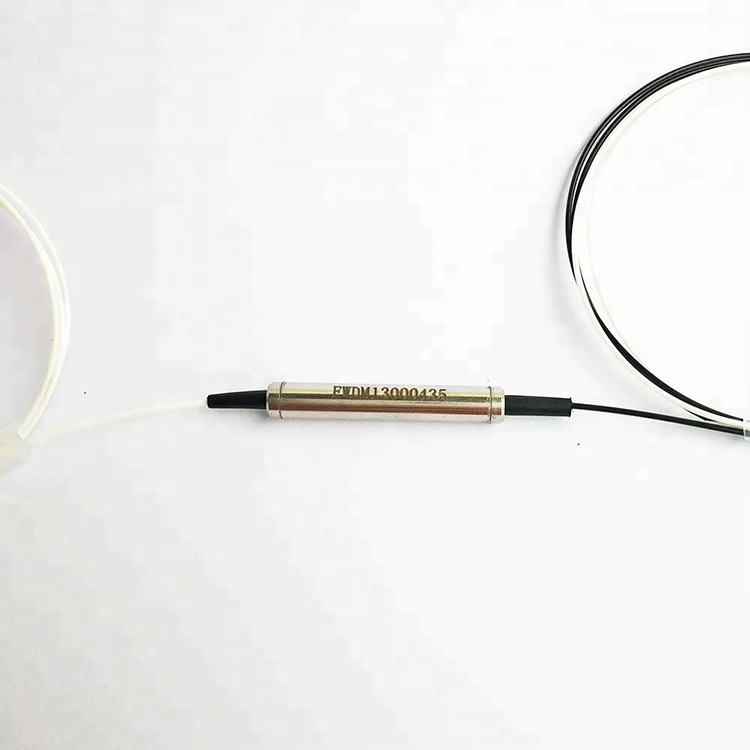

3 port High Isolation fiber optic splitter 1310/1490/1550nm 1 Channel FWDM Module

WDM module extensively used in optical amplifiers, WDM networks. The device combines or separates light at different wavelengths (1310nm/1490nm/1550nm) in a wide wavelength range. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive business etc.

It works on 1310nm/1490nm, so CATV signal here is delivered over same fiber using 1550nm, and FWDM is a place where all this get together.

Wide Wavelength Range
Low Insertion Loss
High Channel Isolation
High stability and reliability

Applications

System Monitoring
Transmitters and Fiber
Fiber optical amplifier

CATV System

FTTH System

CWDM DWDM Module

Why cooperate with GAOFU?

Experiences: More than 10 years professional experiences in fiber optic patch cord industry.

Product serialization: form extensible product series that covers the market.

Flexibility: The modular design support high scalability and a flexible combination and collocation. Fast delivery.

Practicality: Close to customer's requirement and reduce the operating costs.

Adaptability: Customer-oriented, providing highly adaptable customized development solutions to meet customer's specific applications.

Market foresight: Closely link to the upstream and downstream of the industry chain, follow up and master the newest technology and development trend, provide the most competitive products and solutions.
