Double suction pump is an important type of centrifugal pump. This type of pump impeller actually consists of two back-to-back impellers, from which the water flow into a volute.
One double suction pump works just like two same diameter end-suction pumps work at the same time, so its flow quantity can be doubled by using the same outer diameter impeller.
The horizontal split structure of pump shell makes easy inspection and maintenance possible. Meanwhile, the entry end and exit end of double suction pump are in the same direction, being perpendicular to the pump shaft, which is helpful for the layout and installation of pumps and water pipes; double suction pump is characterized by symmetrical impeller structure and non axial force, so it can run more smoothly and can satisfy the operating requirement of mass flow and high lift.
Application Field:
This product is widely used in city water supply and drainage, urban water supply; water supply and drainage of central heating system; iron and steel metallurgy, petrochemical refineries, paper mills, oil fields, power plant, airport construction, chemical plants, textile mills, sugar refinery, chemical plant, power plant water supply and drainage, the factory, mine fire water supply system, air conditioning system of water supply, farmland irrigation and drainage; and all other kinds of water engineering.Impeller Equipped with double suction impeller, which release the axial force to lowest level. Most advantaged CDA hydraulic model. The pump body can be adjusted to transformed impeller so that it can improve its efficiency in different situations.
Pump body Equipped with double volute case, it releases radial force. Force on shaft decrease and lead to longer service life. Convenient installation. Pump cover with automatic correction function. Relative pipeline position of motor and pump body is changeable so as to adjust to different occasions. There is on vortex beside inlet, stable operation and low wastage.
Bearing Convenient maintenance, enlarged bearing, long service life. Bearing sleeve fixed up in bottom of bearing, which contributes to stationary position and its reliability, easy dismounting.
Shaft Enlarged one, fine rigidity stable operation, novel structure. There is no damage on rotor even though short time of reversal and it is easily changed back into right direction. It is a complete sealed shaft that could not get in touch with liquid and has nothing to do with thread corrosion. Spare parts finely meet the pump specifications.
Base Welded steel one for you chose which has the feature of impact resistance and fine malleability. It is portable and durable one.
Shaft Sealing Branded mechanical sealing with no leakage, axle sleeve is stainless steel, which avoids corrosion. Wadding used meets requirements for environmental protection. Injection type of wadding can ensure current on-line service without stop the machine so that it can save loss of
machine halt. Frictional power consumption decreases.
Packaging & Shipping
Ways Of Packing
1
Small parts packed in the wooden cases
2

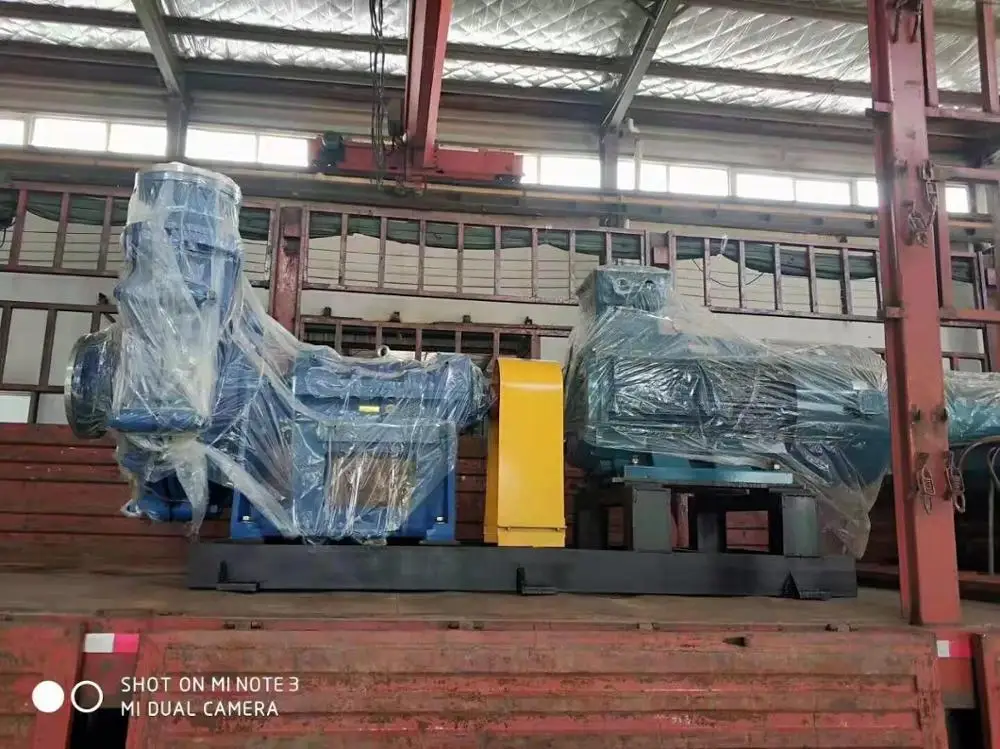

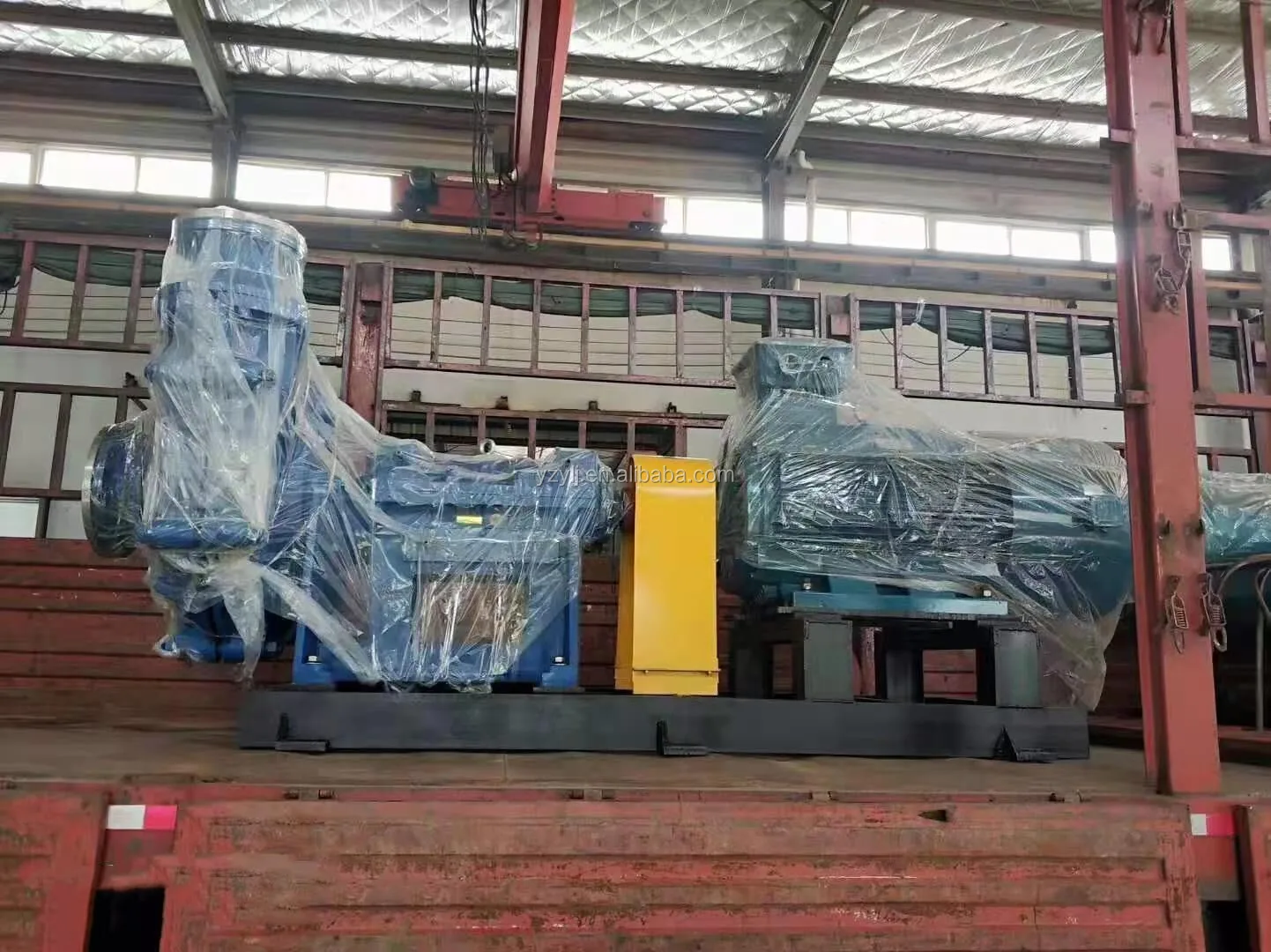

Big parts packed by plastic membrane
3
The whole big machine is loaded in the container
Our Services
Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
Sales service:Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
How about the Guaranteed? Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund. How about price? Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
How about the service and payment terms? Answer: We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
