Injection Moulding Machine for laminated toothpaste tube
Product Description

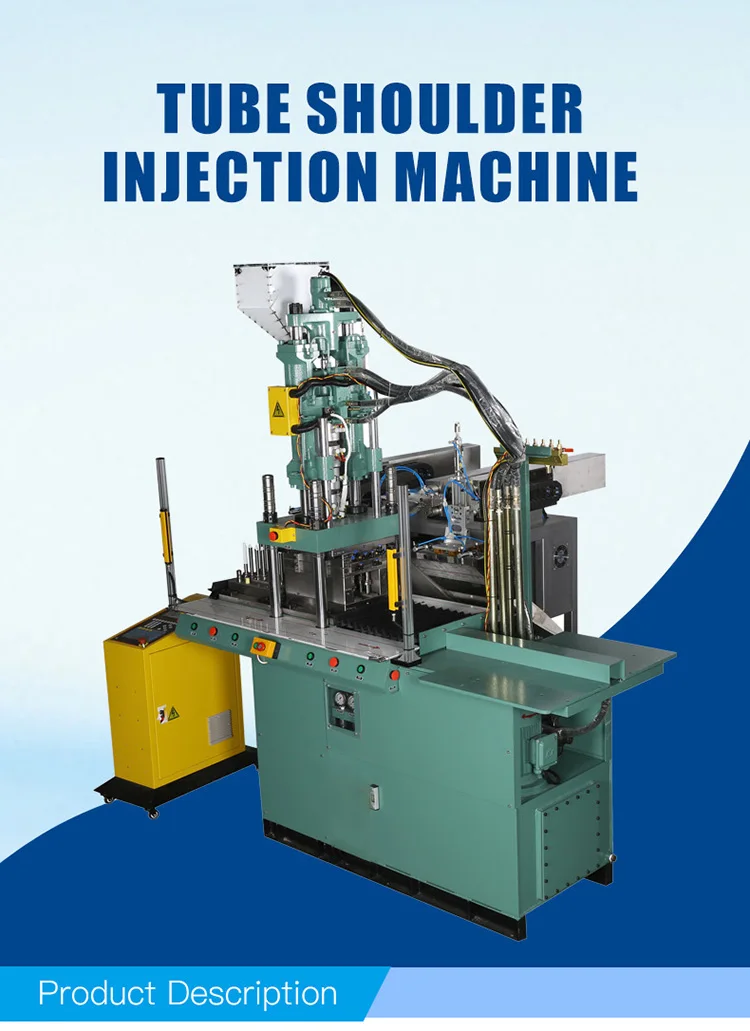

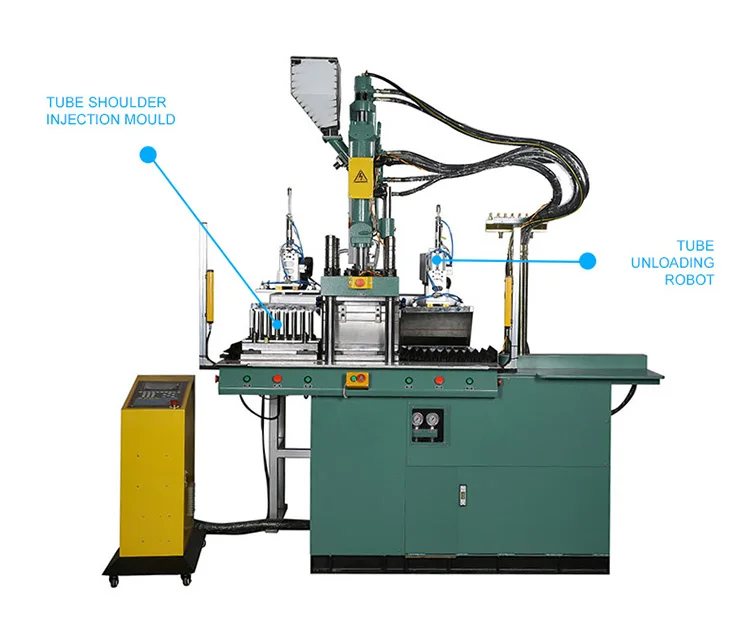

FT-400DS TUBE SHOULDER INJECTION MACHINE
This machine is the right choice for flexible production of different tubes. Its main advantages are the high precision production process, the rapid mould change, low investment costs and high overall efficiency.
Technical data:
Item
Data
Injection Unit
Screw Diameter
Φ32mm
Max Injection Pressure
1531kg/cm3
Shot Volume
97cm3
Shot Weight
89g
Injection Rate
55cm3/sec
Clamping Unit
Clamping Force
40ton
Top Plate Size
550×395mm
Sliding Table Size
390×820mm
Sliding Table Stroke
420mm
Mould Size
410×255mm
Min.Mould Thickness
150/250mm
Mould Open Stroke
200mm
Max.Open Distance
350/450mm
Ejector Force
1.5ton
Ejector Stroke
55mm
Others
Hydraulic System Pressure
140kg/cm2
Oil Tank Volume
210L
Electric Power
5.5kw
Barrel Heating Power
3.6kw
Total Wattage
91.kw
Dimension
1.8×1.5×2.5m
Weight
2 ton
Features:
1. Up to 60 tube per minute
2. Rapid set-up time for exchange of size moulds
3. Inexpensive size parts
4. Simple operation and maintenance
5. Attractive cost/Benefit Ratio
6. Prompt customer service
FAQ
1. How many years experience on laminate tube business?
A: We start laminated tube business since 1998, we have 20 years experience until now.
2. Are you a factory or trade company?

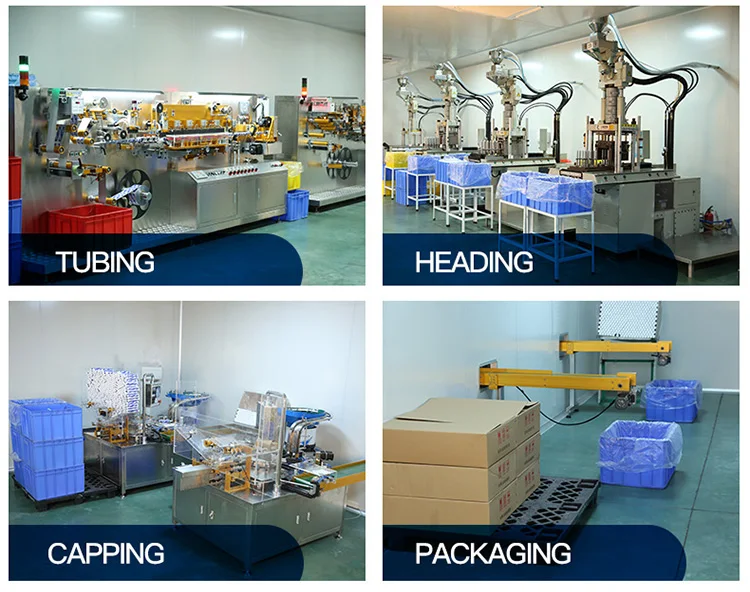

A: We are factory with export license. Our headquarter is located in Guangzhou, and two factories there. We have three more factories in north Shanghai.
3. How can I get a offer?
A: Please send your tube size details to our mail, we will reply you as soon as possible.
4. What is your advantage?

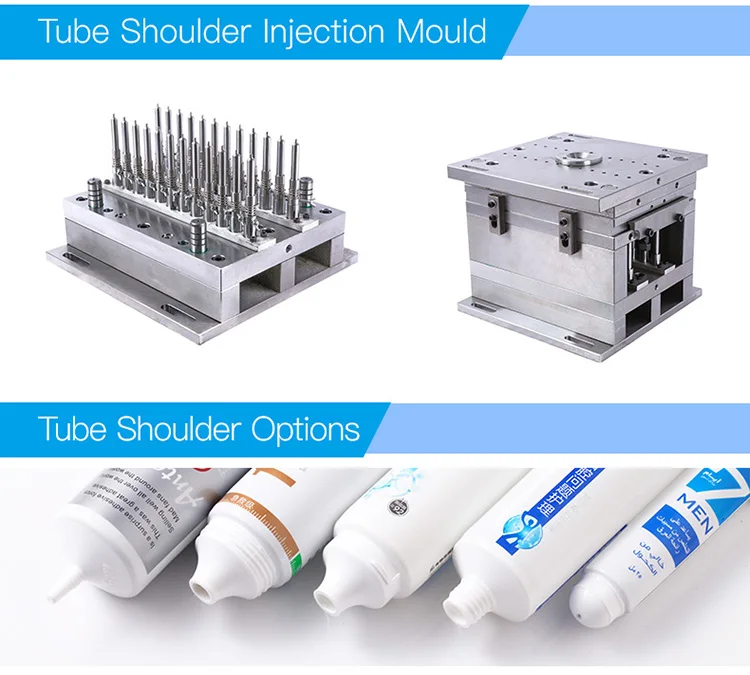

A: We can offer one-stop service for laminated tube. We can offer you tube laminates, tube machines, tube shoulder mould, plastic cap and colorful packaging box.
