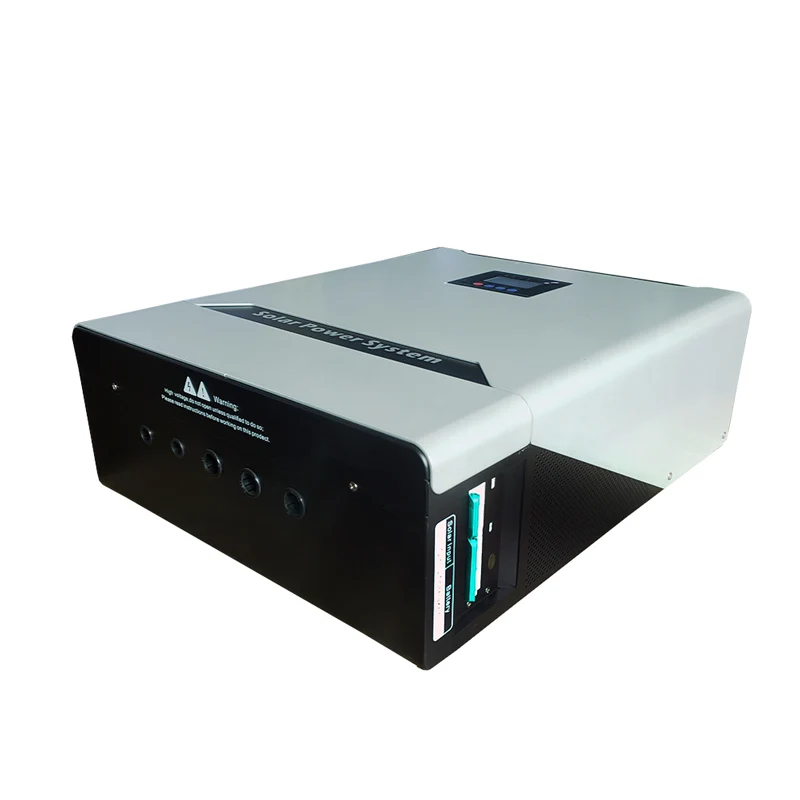

Off Gird Pure Sine Wave1.5kw 12/24/48VDC 220VAC Charger Hybrid Solar Power Inverter MPPT Solar controller
- Category: >>>
- Supplier: Foshan Snat Energy Electrical Technology Co. Ltd.
Share on (62368258352):
Product Overview
Description
- Double CPU intelligent control technology, performance excellence;
- The power mode / energy saving mode / battery mode can be set up,
- Flexible application;
- Smart fan control, safe and reliable;
- The pure sine wave output, can adapt to various types of load;
- Wide input voltage range,high-precision output automatic voltage function.

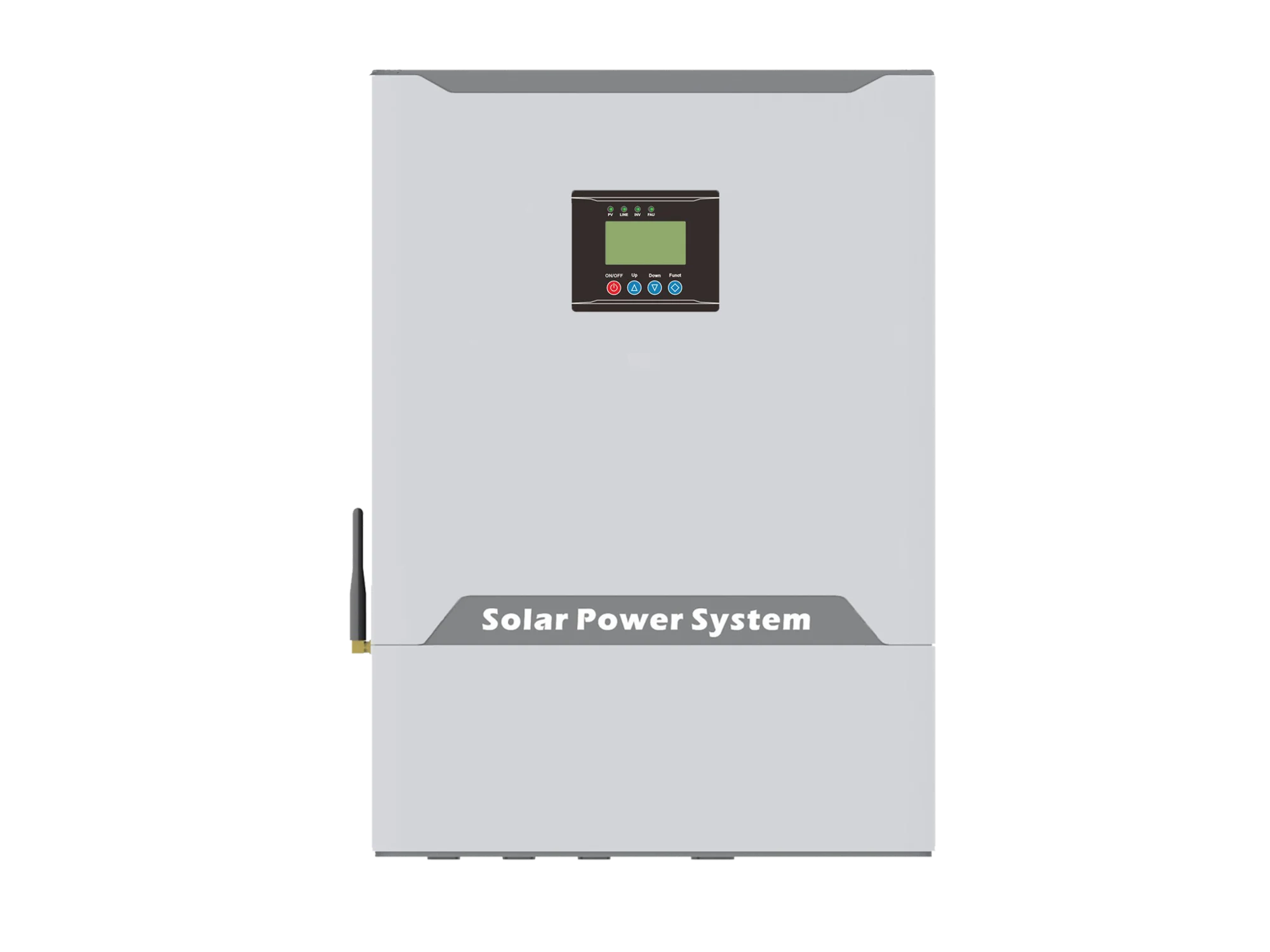

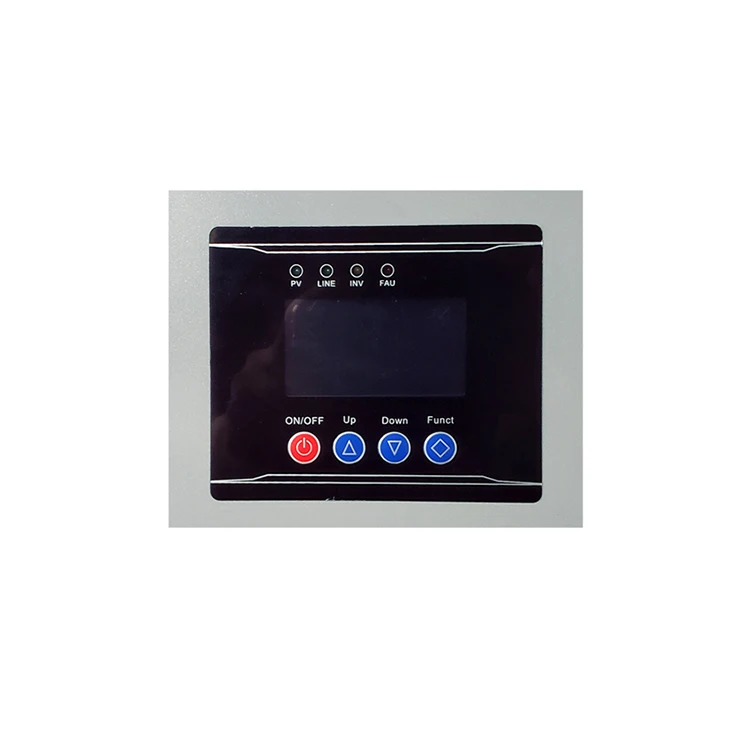

- The LCD real-time display device parameters, running status at a glance;
- The output overload, short circuit protection, automatic protection and alarm;
- The intelligent MPPT solar controller, overcharge,overdischarge protection, current limiting charging, multiple protection;
1--Fan
7--Solar input port
8-- AC input port
9-- Battery access port
10-- AC output port
11-- AC input/outputfuse holder

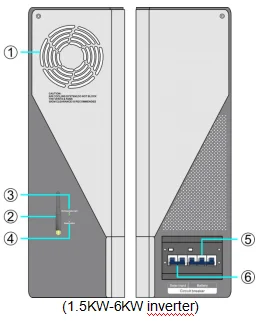

1--Fan
2--Wi-fi communication instructions(optional function)

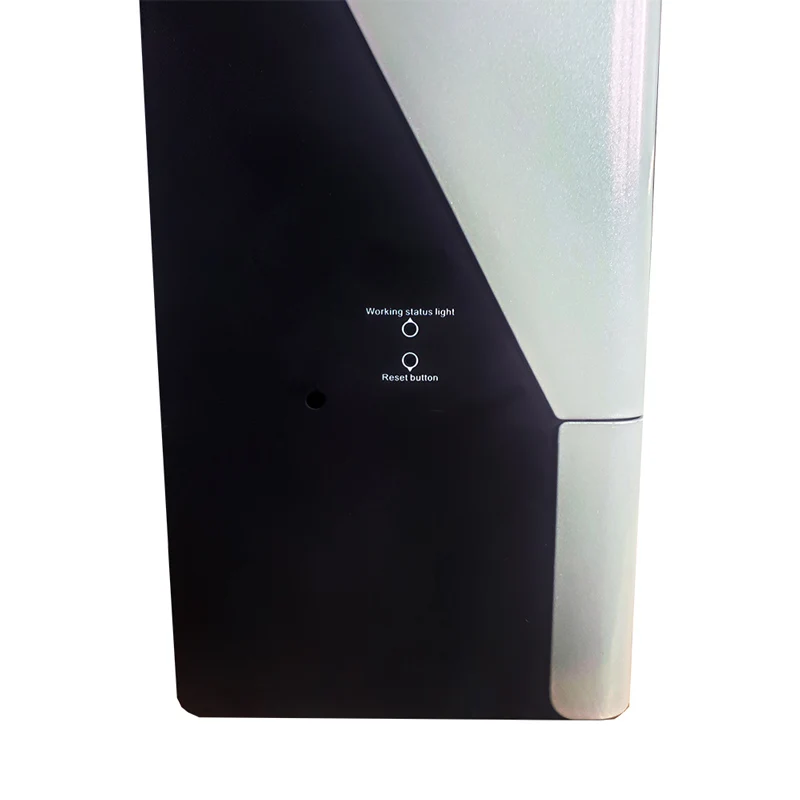

3--WIFI working status indicator
4--WIFI reset button

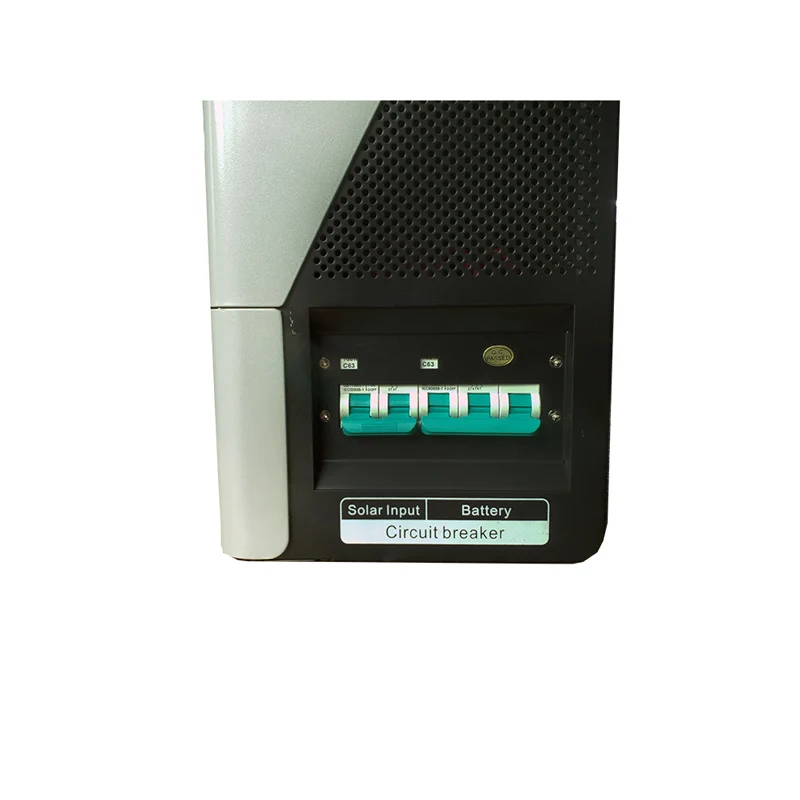

5-- Battery input breaker
Model: MPPT | 1KW | 1.5-6KW | |||
power rating(w) | 1000 | 1500/2000 | 3000/4000 | 5000/6000 | |
Battery | rated voltage(VDC) | 12/24 | 12/24/48 | 24/48 | 48 |
Charge Current | 10A MAX | 30A MAX | |||
Battery Type | Can be set | ||||
Input | Voltage Range | 85-138VAC/170-275VAC | |||
frequency | 45-65Hz | ||||
Output | Voltage Range | 110VAC/220VAC; ±5%( Inverter mode) | |||
frequency | 50/60Hz±1%( Inverter mode) | ||||
Output wave | Pure Sine Wave | ||||
Change time | <10ms(Typical load) | ||||
frequency | >85%(80% Resistive load) | ||||
overcharge | 110-120%/30S;>160%/300ms; | ||||
Protection function | Battery over-voltage and low-voltage protection, overload protection, short circuit protection, over-temperature protection | ||||
Solar Controller | MPPT Voltage Range | 12VDC:15V~150VDC;24VDC:30V~150VDC;48VDC:60V~150VDC | |||
PV Power | 12VDC-30A(400W); | 12VDC-60A(800W); | |||
24VDC-30A(800W) | 24VDC-60A(1600W); | ||||
| 48VDC-60A(3200W) | ||||
Rated charge current | 30A(Max) | 60A(Max) | |||
MPPT efficiency | ≥99% | ||||
Average charging voltage(lead acid battery | 12V/14.2VDC;24V/28.4VDC;48V/56.8VDC | ||||
Floating charge voltage | 12V/13.75VDC;24V/27.5VDC;48V/55VDC | ||||
Operating ambient temperature | -15-+50℃ | ||||
Storage ambient temperature | -20 - +50℃ | ||||
Operating / storage environment | 0-90% No Condensation | ||||
Dimensions:W * D * H (mm) | 420*320*122 | 520*420*222 | |||
Packing size: W * D * H (mm) | 535*435*172 | 635*535*252 | |||
