QGW Steel pipe wet sand blasting and coating machine for dental
- Category: >>>
- Supplier: Qingdao Changjia Machinery Co. Ltd.
Share on (62368269679):
Product Overview
Description
Product Description

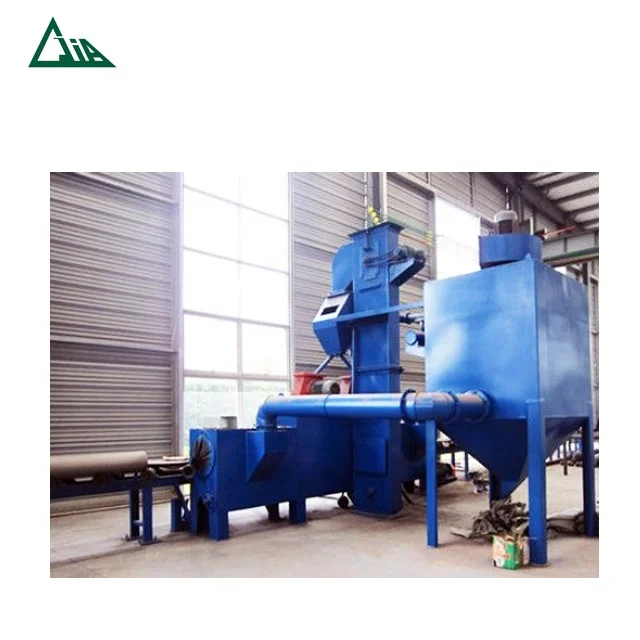

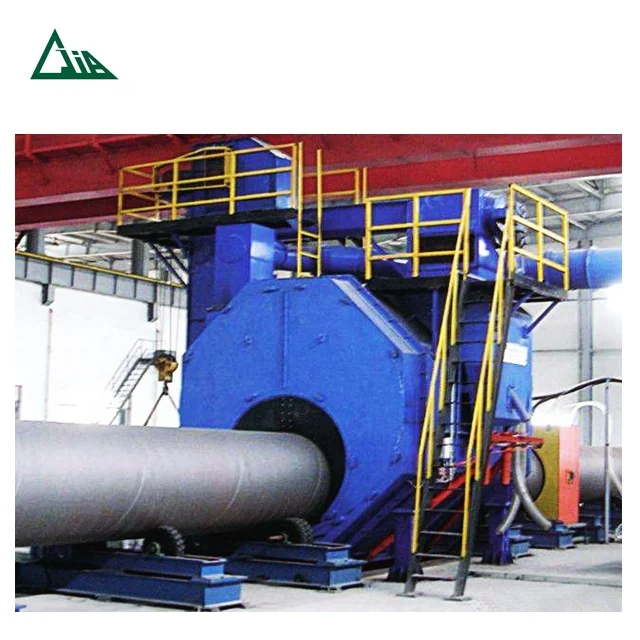

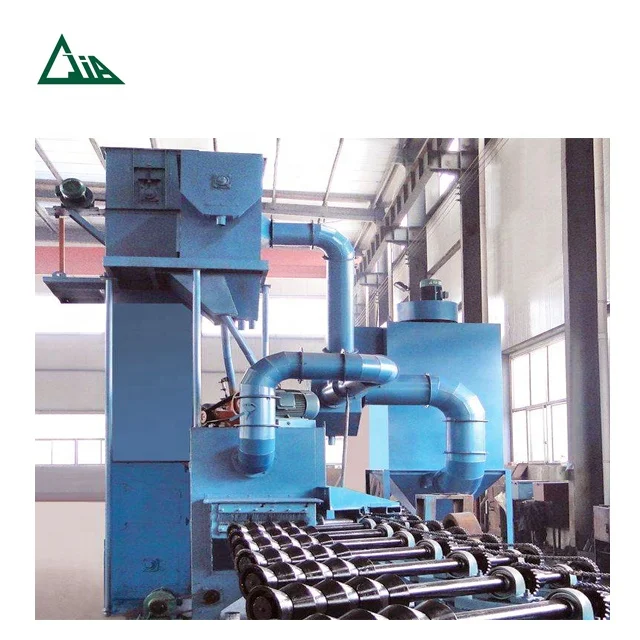

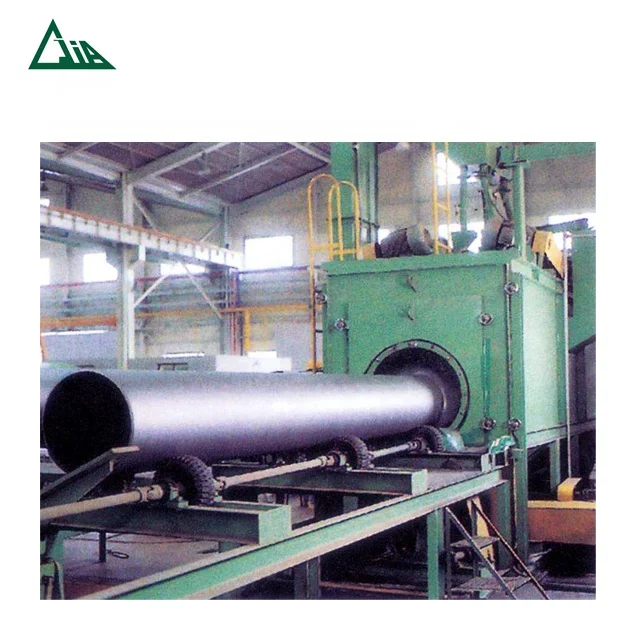

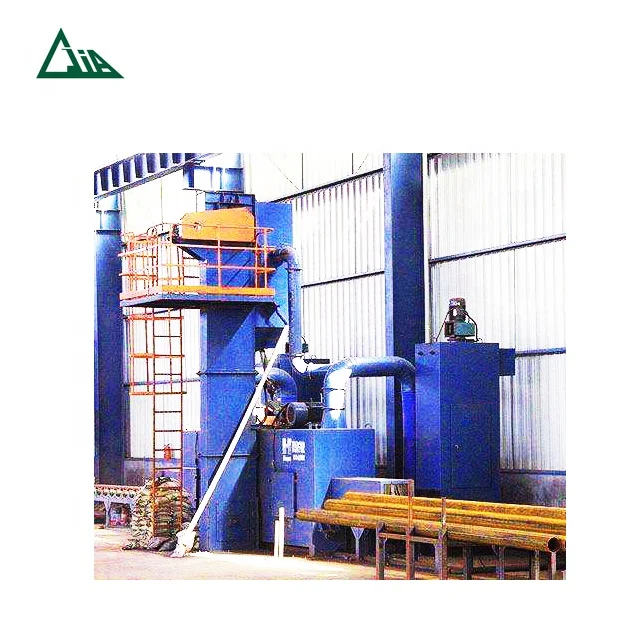

QGW Steel pipe wet sand blasting and coating machine for dental
QGW Steel pipe wet sand blasting and coating machine for dental for pipes is a kind of cleaning machine that combines the inner and outer walls of steel pipe. The outer surface of the steel pipe is cleaned by shot blasting, and the inner surface is cleaned by shot blasting to remove the oxide scale on the surface. The machine mainly uses the high-speed pill flow thrown by the high-efficiency powerful blasting machine to throw the surface and the inner cavity of the rotating workpiece located in the chamber body, and remove other sticky sand, rust layer, welding slag, oxide scale and its debris. Get a fine, smooth surface. Improve the adhesion of the paint film to the steel surface, and improve the fatigue strength and corrosion resistance of the steel, improve the intrinsic quality of the steel and extend its service life.
It is used in the shot blasting treatment of the inner and outer surfaces of steel pipes and steel pipes to remove the blasting treatment of the inner and outer surfaces of the oxide layer and the steel pipe products, and to remove the oxide layer and the welding slag, etc., and exhibit metallic luster to facilitate the painting of the workpiece. And coating
Detailed Images
Shot blaster
1. The shell of the shot blaster is made of 10 mm high-quality carbon steel plate by laser cutting and precise bending welding. The shell is positioned and welded with special tools to ensure the parallelism of the two ends of the shell and the concentricity of the holes.
2. The top guard board is precisely processed by die steel CNC, with a processing accuracy of ± 0.01; after machining, it is processed by low-pressure vacuum heat treatment.
3. The end shield is made of high wear-resistant manganese 13 steel plate, which is cut by laser.
Main Features
1.Full manganese steel body + full manganese steel shield, with a service life of 20 years;
2.Advanced venturi wet dust removal system;
3.Using a crushing material secondary separation system; 4.High-performance ABB motor + mold steel CNC machining blasting machine;
5.Semi-automatic control system for steel shot flow;
6. Adopt variable frequency speed roller conveyor system;
7.Magnetic sorting system + transverse spiral sorting + air separation sorting system;
Application
This type of equipment is widely used in the pretreatment of anti-corrosion of mines, oilfields, steel pipes, shot blasting of submarine or desert gas conveyor pipes, etc. It is used to improve the appearance quality and surface technological state of its products and components.
Electric control box
1. Using Siemens PLC and touch screen
2. Using Delta or BEST inverter
3. Use Chint or Schneider brand low voltage electrical components
4. Using shot blasting time controller
5. Using flow detection ammeter
6. 1 set of dedicated constant temperature air conditioner (optional)
2. Using Delta or BEST inverter
3. Use Chint or Schneider brand low voltage electrical components
4. Using shot blasting time controller
5. Using flow detection ammeter
6. 1 set of dedicated constant temperature air conditioner (optional)
Recommend Products
Company Profile
Qingdao Changjia Machinery Co., Ltd., located in Lingang Industrial Park, West Coast New Area, the Ninth National New Area in China, is a backbone enterprise of foundry machinery and environmental protection machinery integrating scientific research, development, production, sales and service. The company has the right to import and export by itself and has passed the certification of ISO9001 international quality system.
The company occupies an area of 60 Mu, with a building area of 20,000 square meters, and has more than 300 employees, including 58 professional and technical personnel. Through cooperation of research and development with universities, it has assimilated and absorbed advanced equipment manufacturing experience at home and abroad and improves the level of scientific research and development. Strong R&D strength, advanced production technology, perfect testing methods and scientific management system have made the company always at the advanced level in the same industry in China.
The company adheres to the quality policy of "integrating modern science and technology, making first-class products, providing sincere service and seeking common development", adhering to the working spirit of "meticulous and sincere", and sincerely hopes that friends from all walks of life will come to our company to guide, inspect and negotiate business. The company is willing to cooperate with all walks of life at home and abroad with advanced technology, modern management methods and high-quality staff to develop together, so as to make our manufacturing equipment cleaner, high-quality and efficient, to make our sky bluer, to create a prosperous future, and to build Chinese manufacturing of clean-up equipment and environmental protection equipment.
Certifications
Product packaging
FAQ
Q1: How to choose the suitable products?
You only need to confirm your dimensions and productivity of workpiece. We will provide you with a solution.
Q2: How about your MOQ?
Different products, MOQ will be different, you can contact us for details.
Q3: How is the quality?
Our company has a completely scientific quality management system. We guarantee the high efficiency performance of each product.
Q4: What can we do if your item doesn't work well?
Please email or call us, we will give analysis and solution as soon as we can.
Q5: Price, price, price?
We promise that you will get the best quality with the most reasonable pricing.
