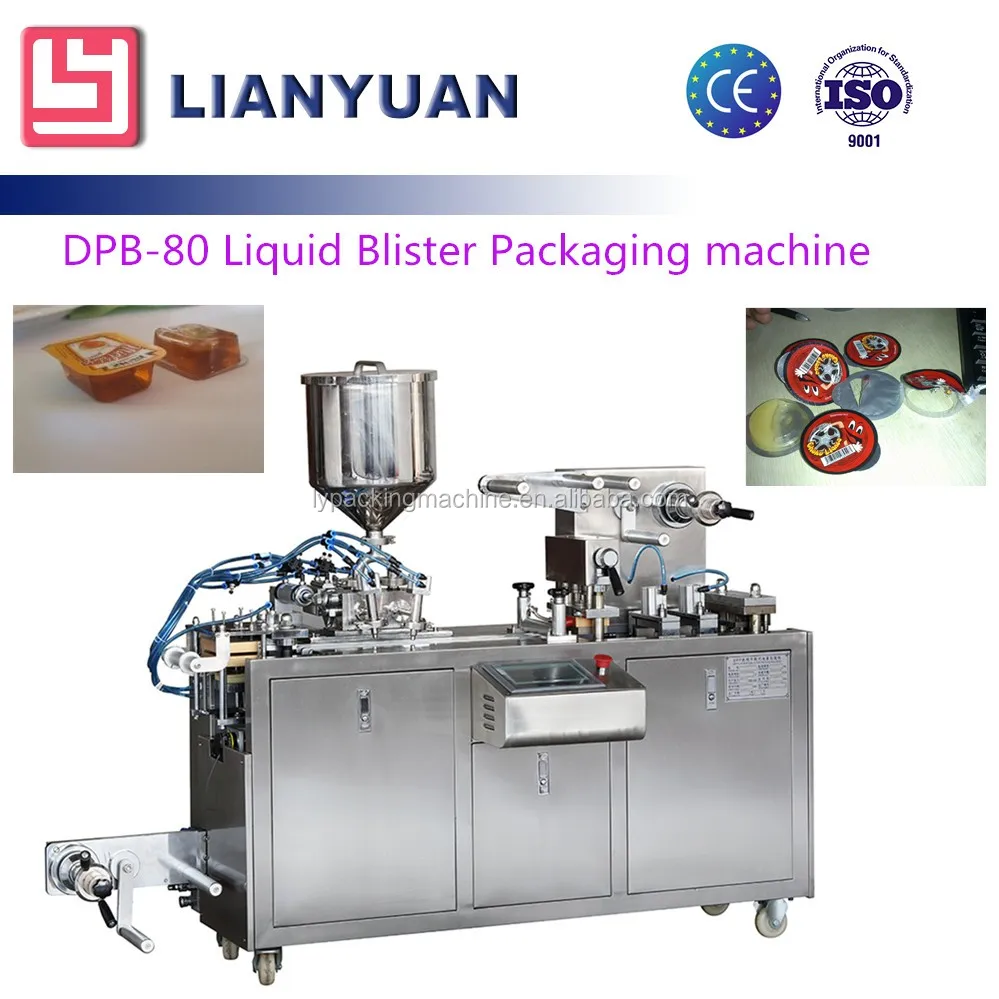

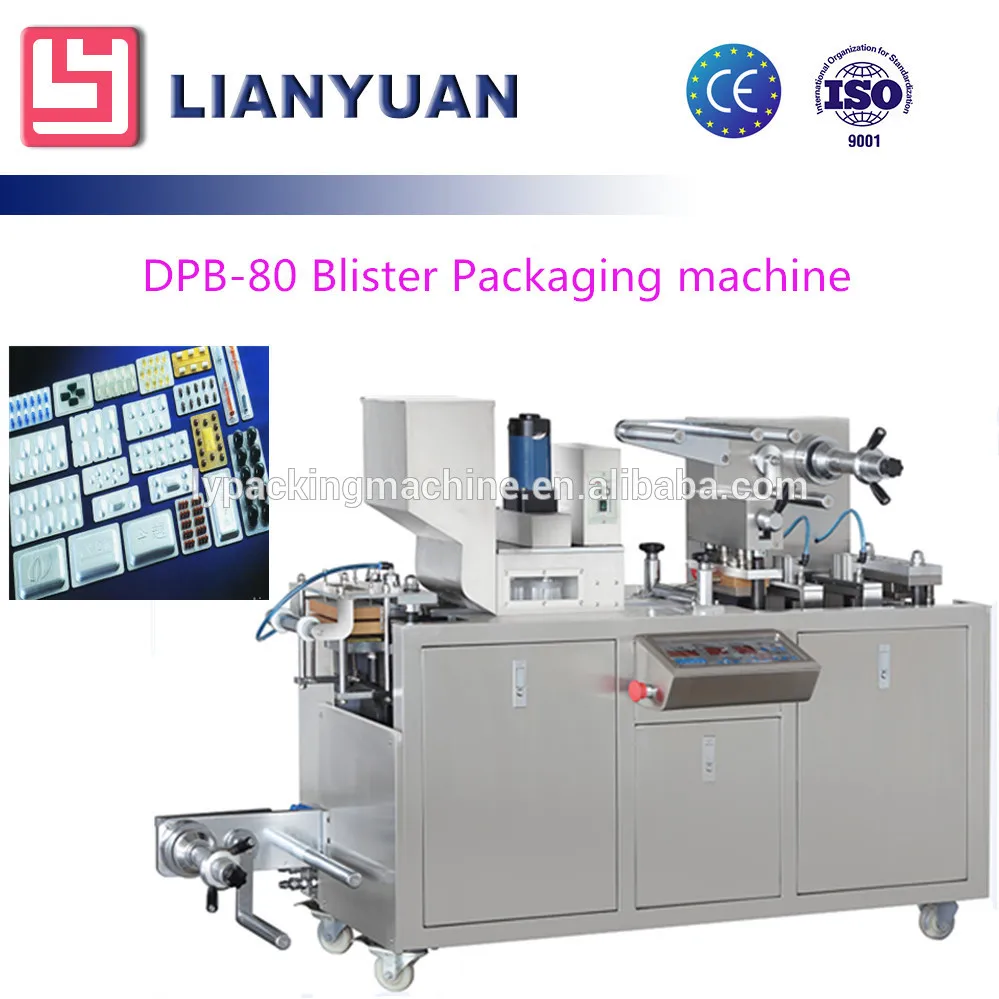

DPP 80 Automatic Pill Blister Packaging Machine For Sale
- Category: Blister Packaging Machines >>>
- Supplier: Zhejiang Lianyuan Machinery Co. Ltd.
Share on (62368327806):
Product Overview
Description
Product Description

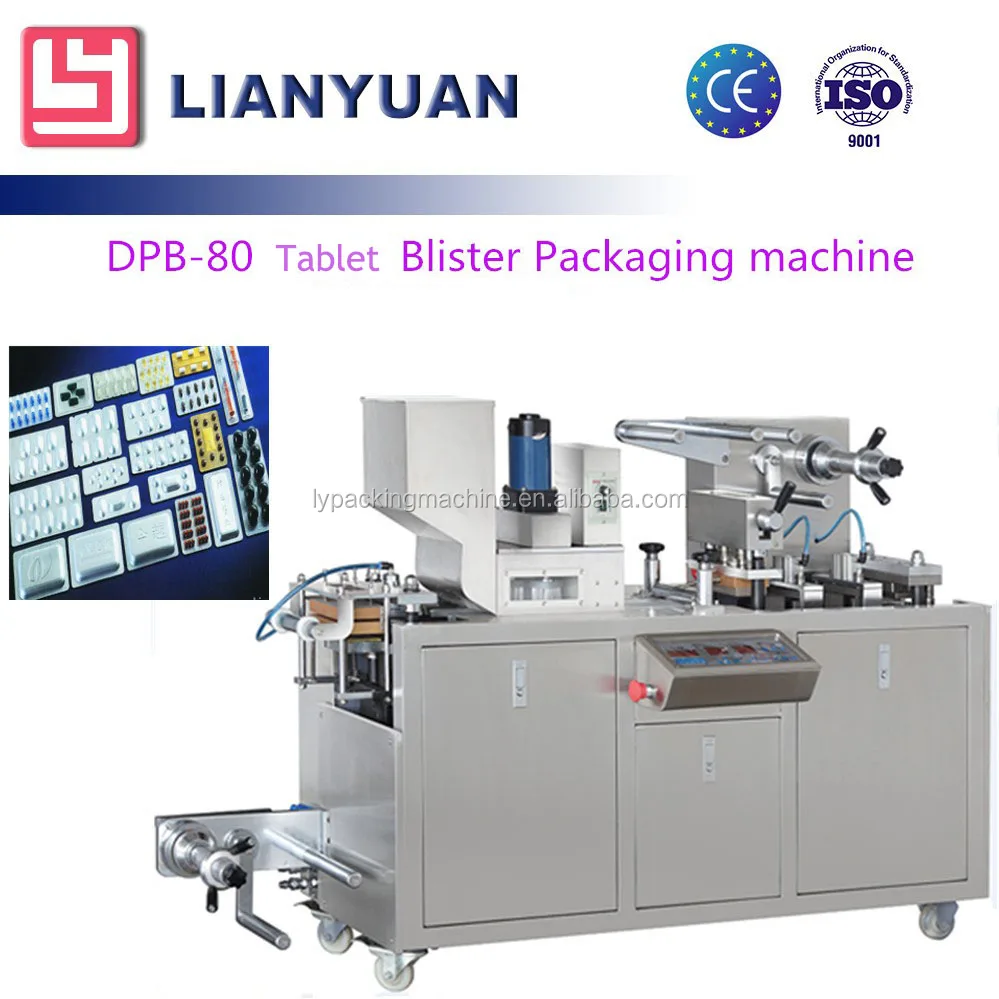

DPB-80 Mini Alu Pvc Capsule Tablet Dpp-80 Hot Selling Injection Blister Packing Machine
Features:
It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement.
It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.
Work process:
1. Forming ( up and down heating)
2. Heating Sealing ( up heating)
3. Embossing
4. Impression
5. Cutter
6. Finished product output
Technical Specification:
Model | DPB-80 |
Punch frequency | 10-33times/min |
Production capacity | 2400plates/hour |
Max. Forming area & Depth | 105*70(standard depth ≦15mm), Max. Depth 25mm( As adjusted） |
Standard Stroke range | 30-80mm(can be designed as per user’s required) |
Standard plate size | 80*70mm (can be designed as per user’s required) |
Air pressure | 0.4-0.6Mpa |
Compressed air required | Air compressor≥0.3m3/min |
Total power supply | 380V/220V 50Hz 2.8Kw |
Main motor | 0.75Kw |
PVC hard Film | 0.15-0.5*110 (mm) |
PTP Aluminum film | 0.02-0.035*110 (mm) |
Dialysis Paper | 50-100g*110（mm） |
Mould cooling | Tap water or Recycling water |
Overall Dimension | 1840*590*1100 mm (L*W*H) |
Weight | Net 450kg Gross weight: 520kg |
Noise index | <75dBA |

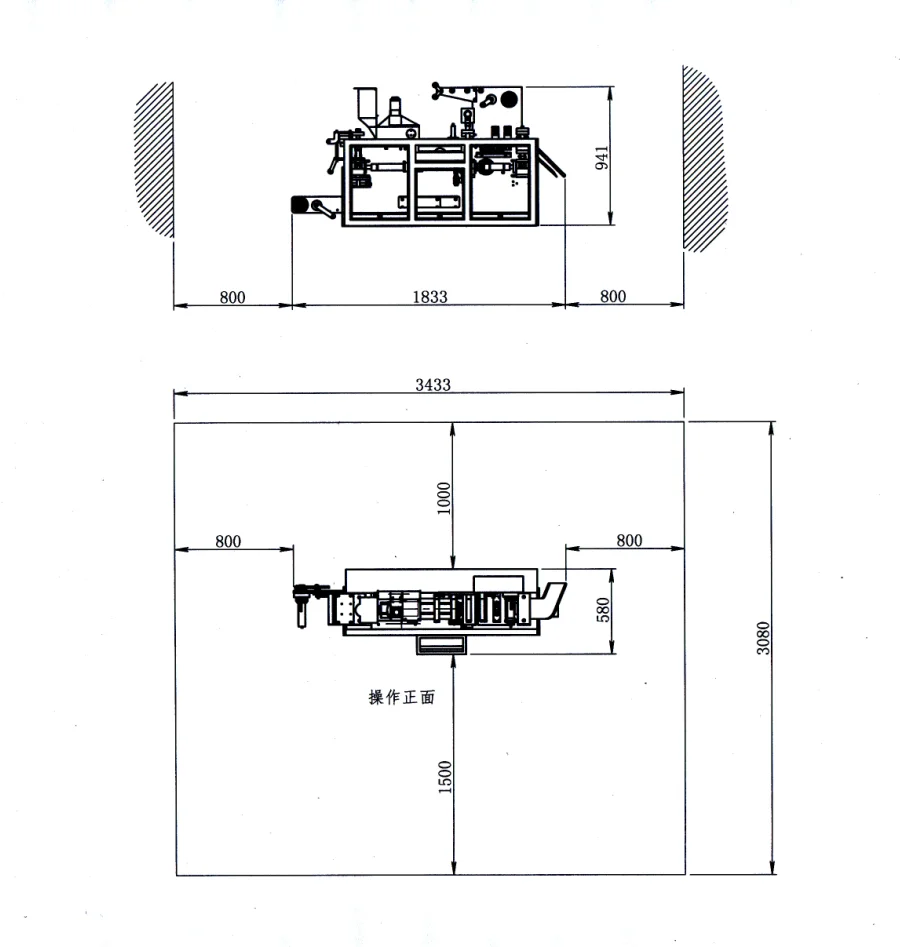

Layout:

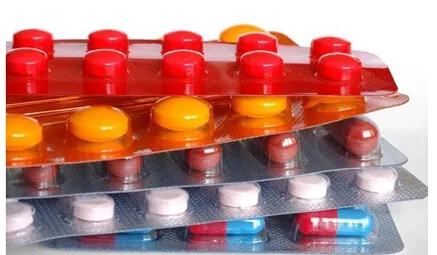

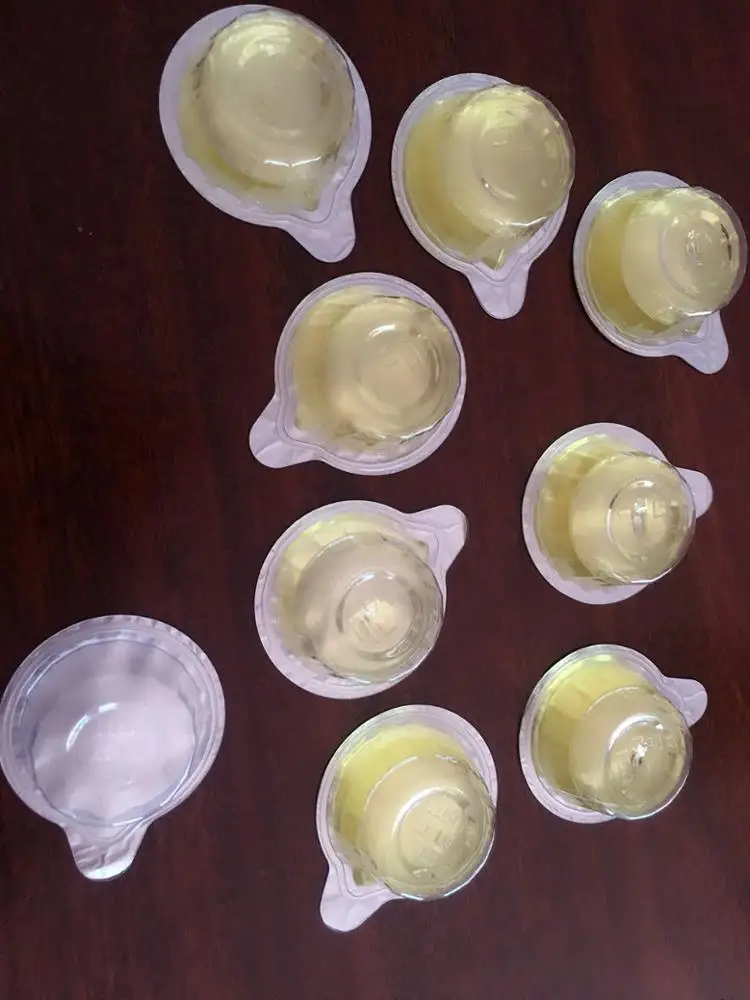

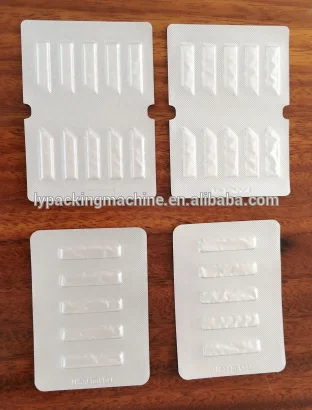

Packaging Samples
Welcome to contact with us for more detail and get free customized packaging solution !

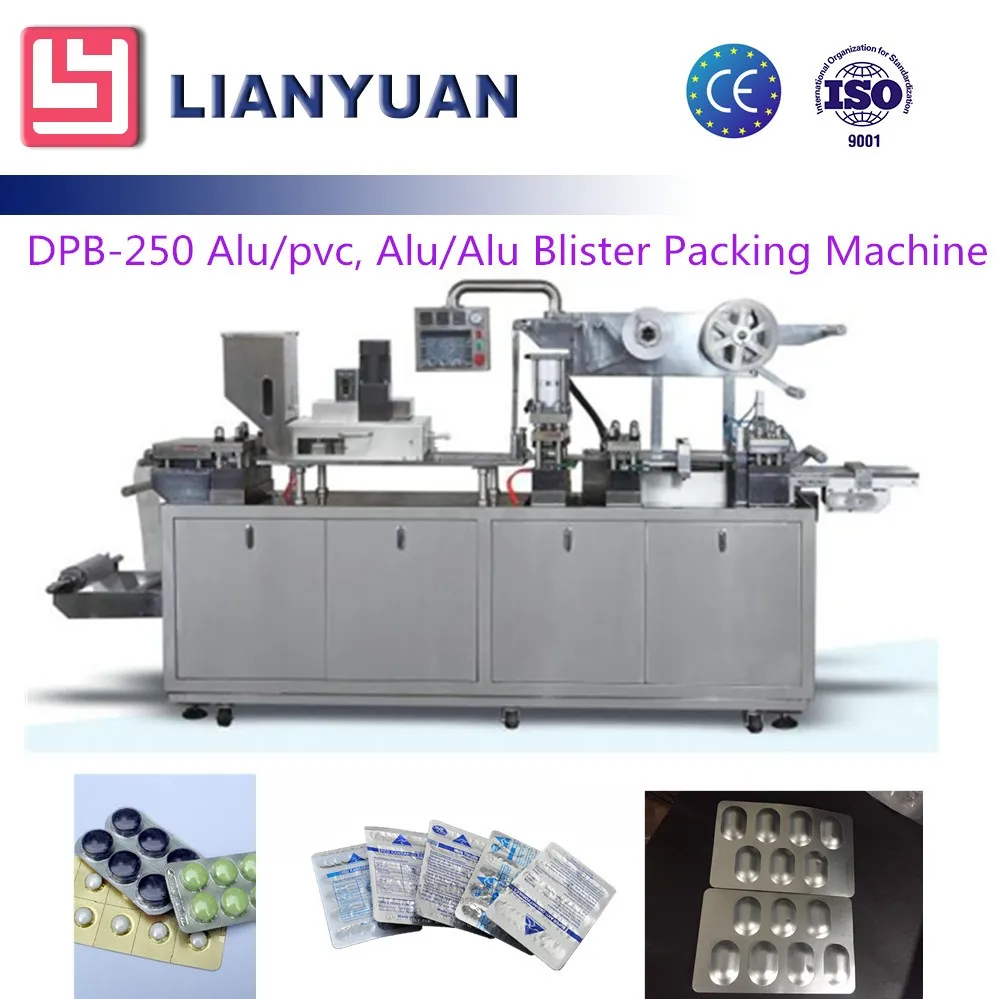

Related Products
Company Information
Zhejiang Lianyuan Machinery Co., Ltd is located in Wenzhou, Zhejiang Province who is supplying packaging machines,filling machine.sealing machine,bottle plant for seven years.
● Our modern standard workshops over more than 3000 square meters of area,and more than 200 sets of manufacturing equipments. We are such comprehensive manufacturer who composed of research, development and production.
● Our company has invested all the force into the new technological area of packaging machine all the time since its foundation.And now we have formed in ourselves' special competitive market that based on the advanced technologies.
● Our products have more than 20 series with more than 80 types of machines. Such as,Automatic Powder/Granule packaging machine,Automatic Cup filling & sealing machine,Vacuum packaging machine Automatic bottling plant, Automatic bottling plant,Automatic Liquid packaging machine,Plastic Bag sealer,Pad printer,Ribbon hot printer,thermal shrink packaging machine,strapping machine,Hand wrapper Desktop container sealer and so on.
● Our products are sealing well not only on domestic market but also on international market,such as American,Africa,Middle East and European. My company has always been the best quality, excellent service waiting for all friends to visit us and sincere cooperation,
join hands to create brilliant.
join hands to create brilliant.

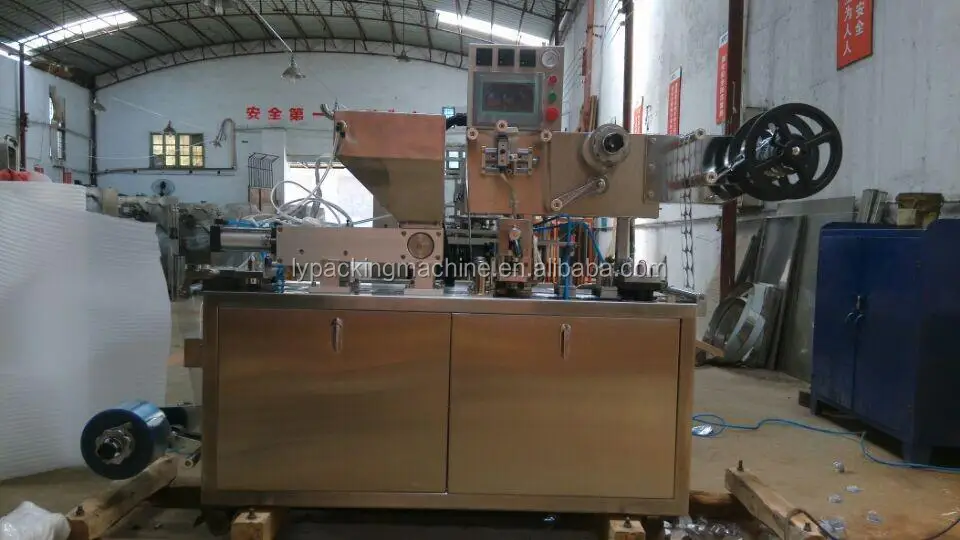

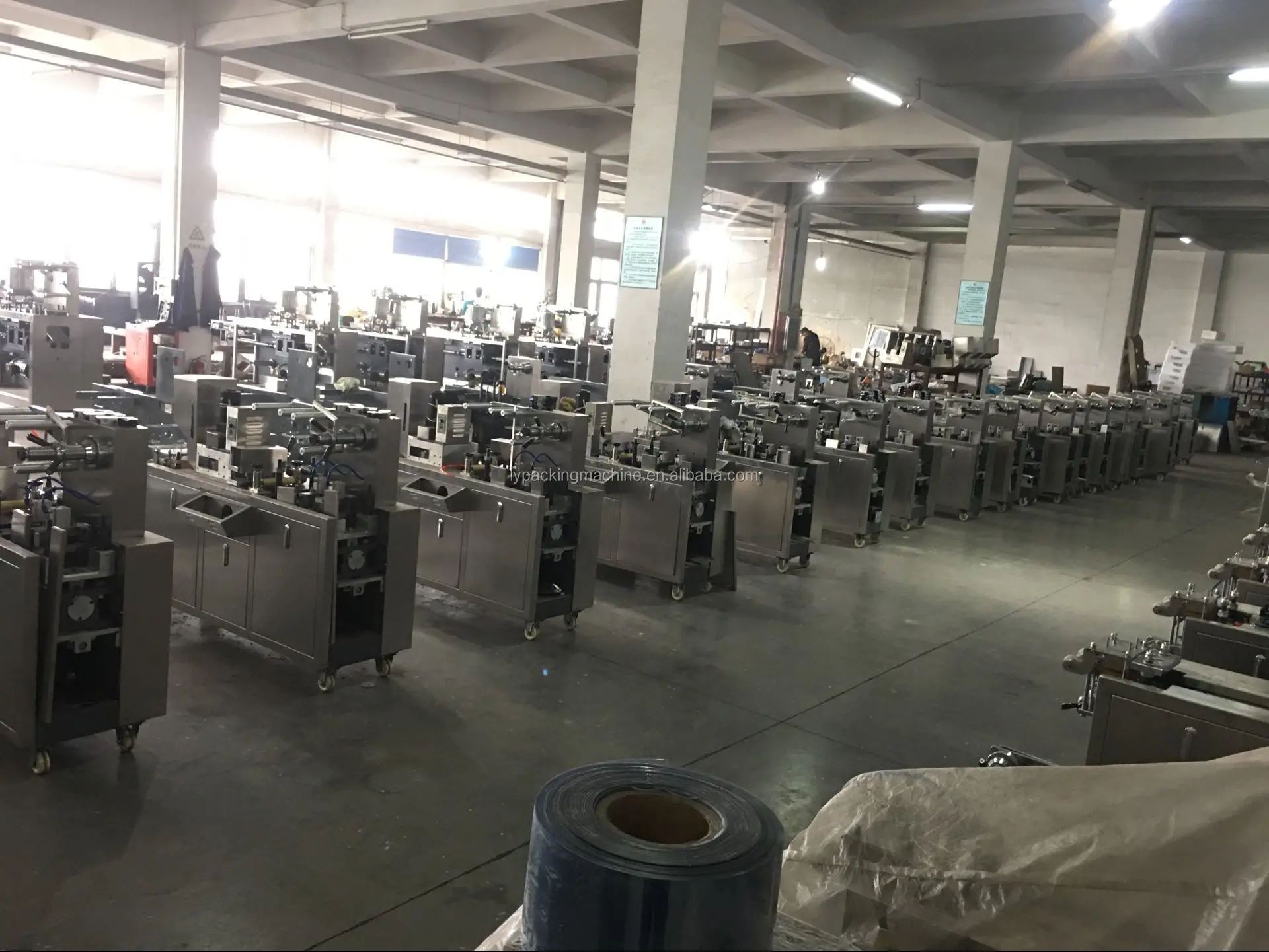

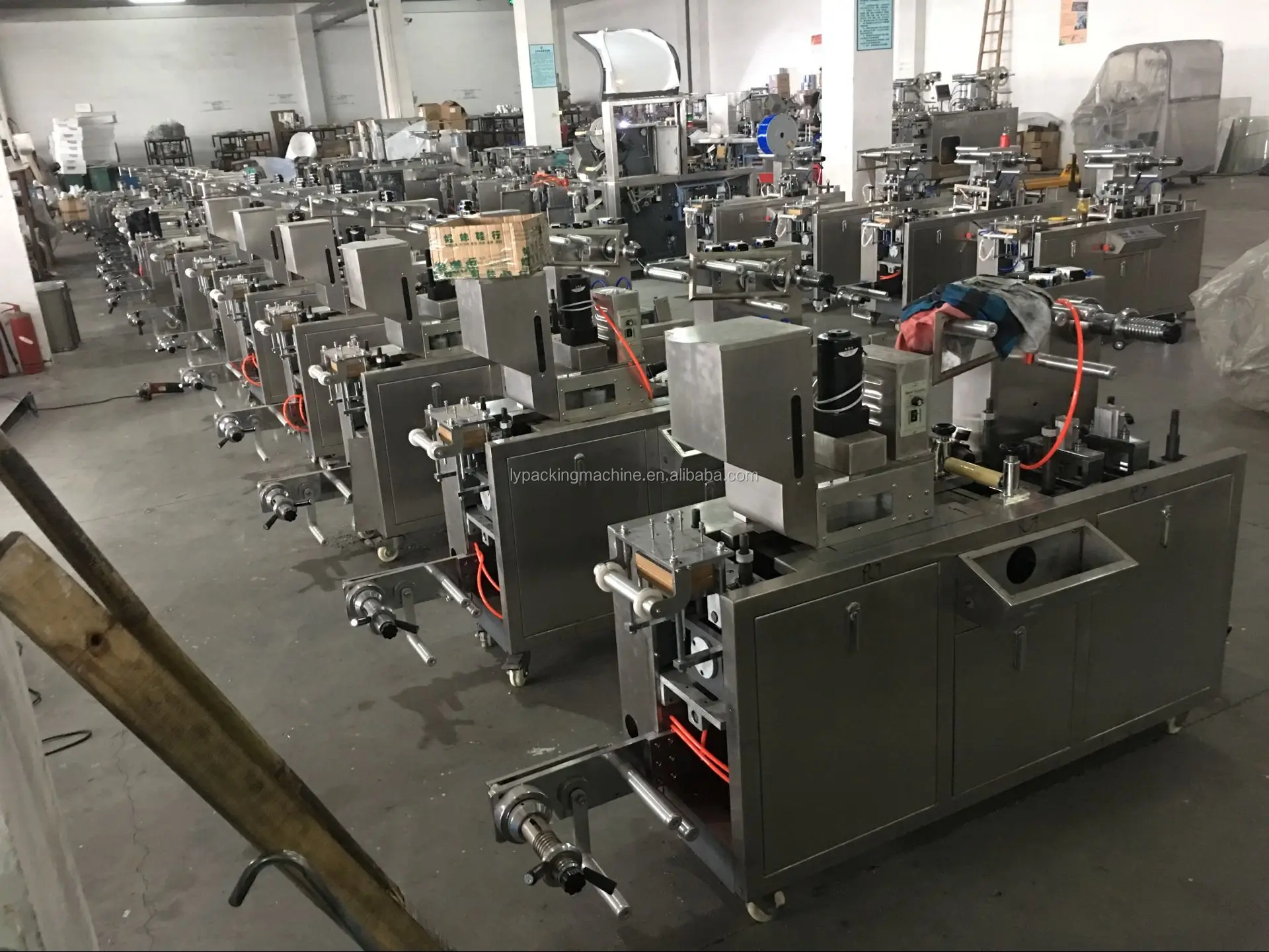

Factory View
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Customized
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* One year warranty
Why Choose Us

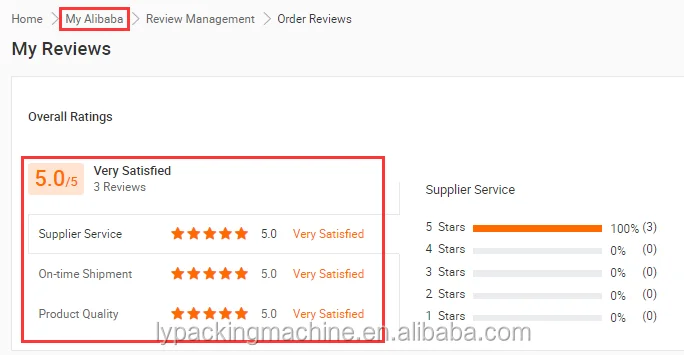

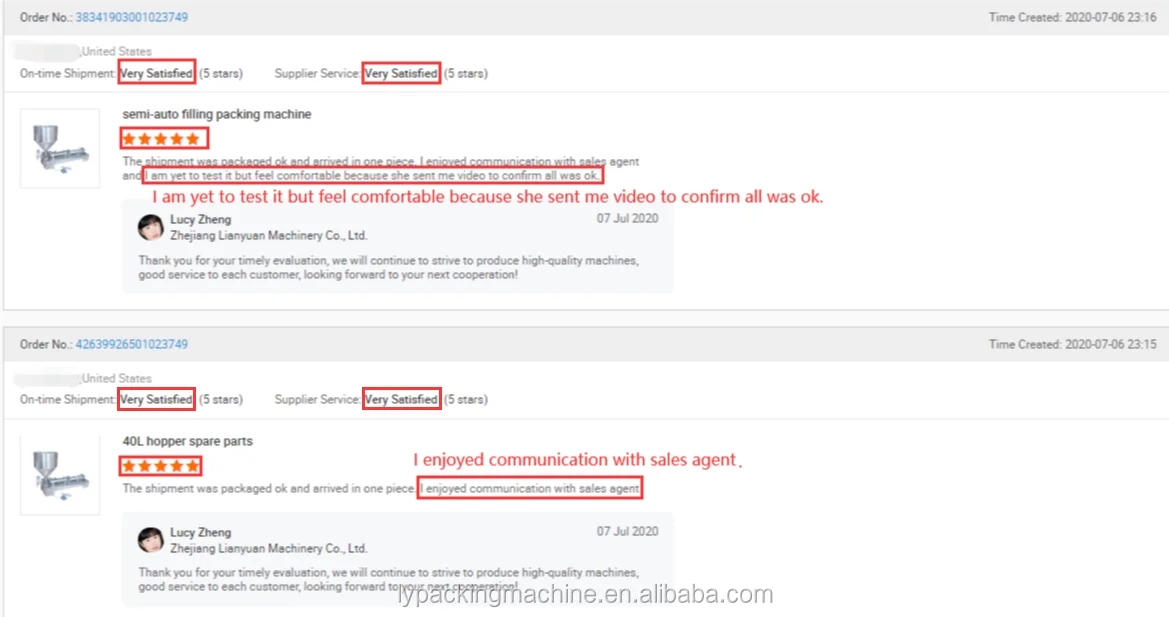

Customer Feedback & Visit

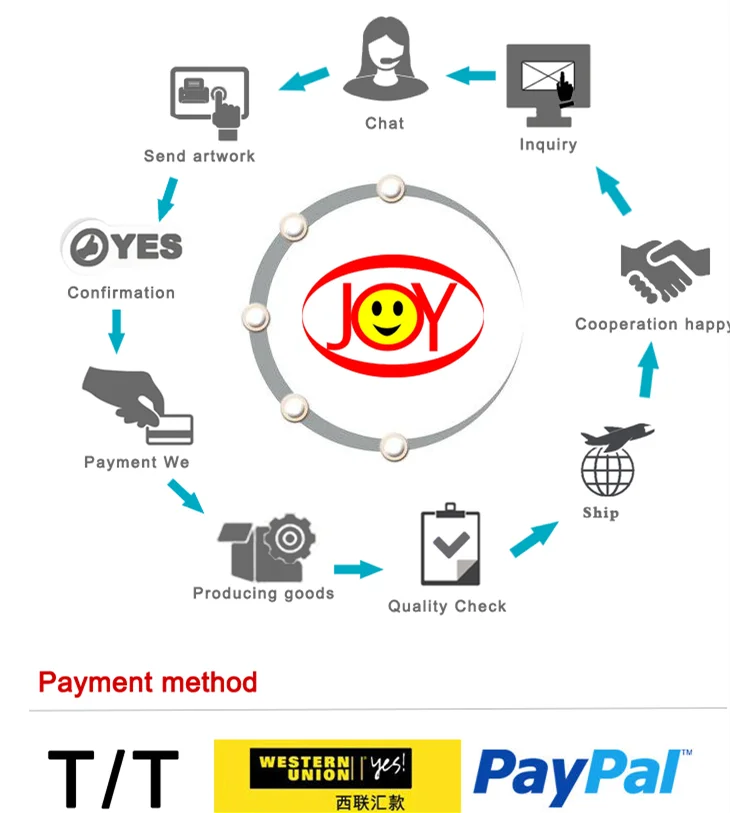

How to make order
Packing & Delivery
Packaging | ||
Size | 194cm(L)*69cm(W)*120cm(H) | |
Weight | 570kgs | |
Packaging Details | The normal package is carton. If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
FAQ
1.Q:Are you a manufacturer or a trading company?
A:We are the manufacturer with over 10 years experience.
2.Q:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery.
3.Q:How to order?
A:You can send me an inquiry,then we could comfirm the details through emails or telephone.
4.Q:What do you need to make a specific offer for my product?
A:To make a special offer we will need the dimension(s) of the package(s) you want to use on this machine. We also need the approximate production volume you need per day. If with other special request please also inform us before we make the project
5.Q:Can you offer oversea service?
A:Yes, if request. But we suggest online problem solving at first. If the problem still shows we can arrange engineer to go to your factory personally to solve the issue.
