crawler piling machine with hydraulic hammer for sale 15 m depth
- Category: Pile Driver >>>
- Supplier: Shandong Hightop Group
Share on (62368416136):
Product Overview
Description
crawler piling machine with hydraulic hammer for sale 15 m depth
Product Description
Data Sheet:
Engine | CUMMINS |
Engine power | 110KW |
Drilling depth | 15m |
Drilling Diameter | 1000mm |
Drilling Head Torque | 80kn/m |
Drilling Head Speed | 10-50r/min |
Winch lifting force | 100kn |
Winch lifting speed | 70m/min |
Wire rope diameter | 24mm |
Attached winch lifting force | 30kn |
Attached winch lifting speed | 50m/min |
Wire rope diameter | 12mm |
Maximum pressure | 100kn |
Maximum lifting force | 100kn |
Stroke | 2500mm |
Walking speed | 5km/h |
Gradeability | 30° |
Pressure | 28mpa |
Machine weight | 19ton |
Working diameter | 3.6m |
Dimensions | 9.8*2.5*3.35m |

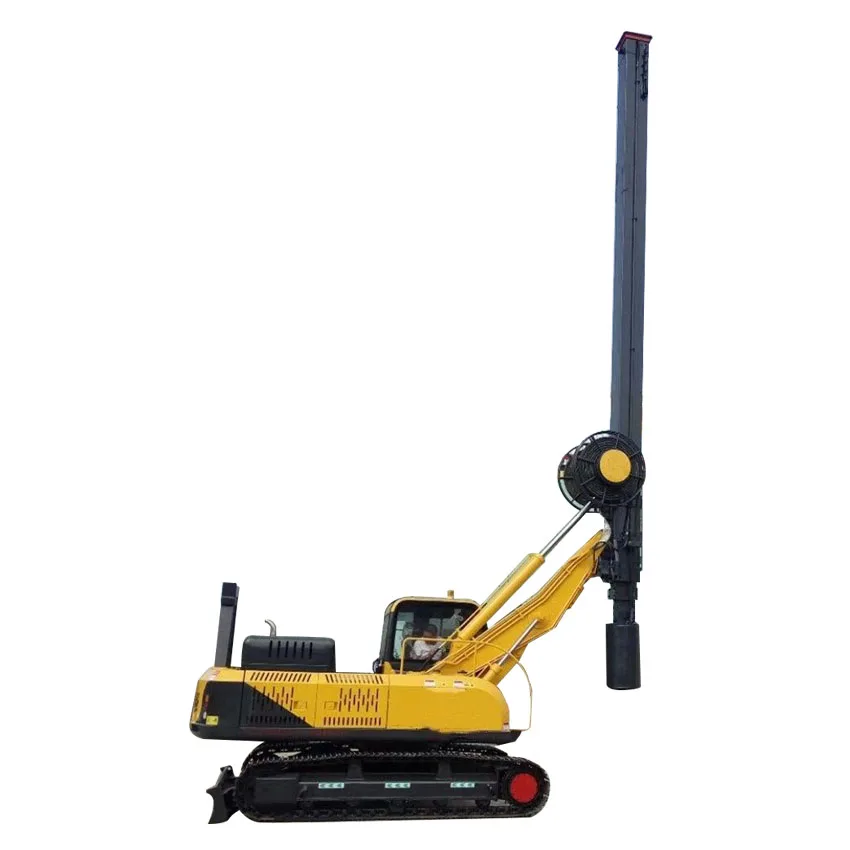

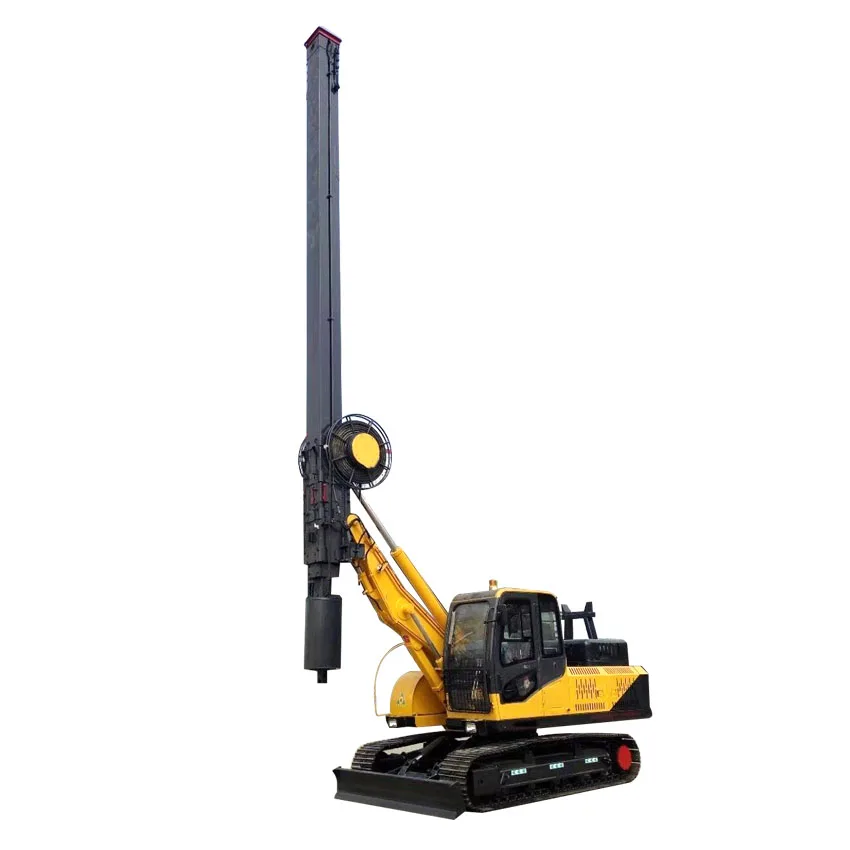

Images of Products:
crawler piling machine with hydraulic hammer for sale 15 m depth
