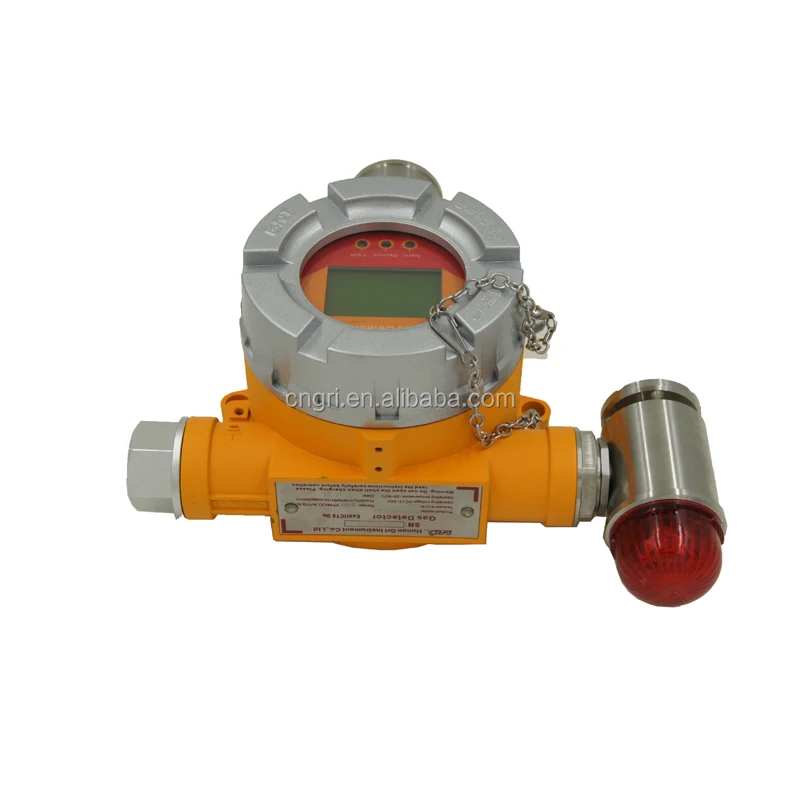

High Accuracy 0 5PPM Fixed Ozone O3 Gas Analyzer
- Category: >>>
- Supplier: Hunan Gri Instrument Co. Ltd.
Share on (62368543723):
Product Overview
Description
Product Description
9106 is a high performance intelligent infrared gas detection alarm which developed by our company, high performance, supply couples of types of gas detection,low power microprocessor to ensure product performance and stability, realtime monitoring of the concentration of infrared gas. Mainly used in petroleum chemical industry,metallurgy, mining, fire, gas, environmental protection, electric power, communication, papermaking, printing and dyeing, food reserves, city water supply, sewage treatment,
food, brewing, research, education, national defense and other places.
Main Features
1.Three kind of signal output, RS485 and 4~20mA (three wire) digital / analog signal and switch at the same time.
2.Big screen segment type LCD real-time display gas concentration.
3.Gas concentration unit optional (such as ppm, mg/m3), it have the instrument status, fault and communication abnormality prompt function.
4.It can be set high and low alarm point, two level sound and light alarm.
5.Two relay to control peripheral devices (such as the action of machine and sound and light alarm).
6.Round casting stainless steel housing is suitable for offshore platforms, as well as high temperature, high humidity and other harsh environments.
7.Good sealing, anti-corrosion, explosion-proof and anti EMI, RFI function.
8.Supporting use of our company ‘s GRI-9800 series alarm host.
9.European design standards. HCN HCN
Technical
Measured gas:combustible gas,toxic gas,oxygen and VOC.
Testing priciple: Electro-chemical,PID, VDIR,EX.
Sampling way:Diffusion, pump(pipeline)
Response time:T90≤30s
Input power: 12-24VDC
Current consumption:20-200MA
Signal output:Signal output
Operating temperature:-40 °C -70 °C
Explosion-proof grade:Exd II CT6
Protection grade: IP65
Equipment service life:10 years ( in the air )
Applications
The detector is suitable for explosion-proof, toxic gas leakage and rescue, underground pipelines, mines, metallurgy, power plants, chemicals, tunnels, etc., effectively avoiding the occurrence of poisoning accidents, ensuring the safety of workers and avoiding losses of production equipment.
Measuring Gas Type
| Item number | Gas type | Measuring range | Item number | Gas type | Measuring range | Item number | Gas type | Measuring range |
| GRI-9106-E-CO | CO | 0-200/1000PPM | GRI-9106-E-PH3 | PH3 | 0-5/20/1000PPM | GRI-9106-E-CLO2 | CLO2 | 0-20/200/2000PPM |
| GRI-9106-E-H2S | H2S | 0-50/100/200/1000/5000PPM | GRI-9106-E-CHO2 | CHO2 | 0-10/50/1000PPM | GRI-9106-E-HCN | HCN | 0-100PPM |
| GRI-9106-E-O2 | O2 | 0-25%VOL | GRI-9106-E-O3 | O3 | 0-5/2/100/1000PPM | GRI-9106-E-C2H4 | C2H4 | 0-10/200/1500PPM |
| GRI-9106-E-NO2 | NO2 | 0-20/500PPM | GRI-9106-E-F2 | F2 | 0-10PPM | GRI-9106-E-H2O2 | H2O2 | 0-100/500/2000PPM |
| GRI-9106-E-NO | NO | 0-100/1000PPM | GRI-9106-E-HF | HF | 0-10PPM | GRI-9106-R-CO | CO | 0-5%/10%/20%/50%/100%VOL |
| GRI-9106-E-SO2 | SO2 | 0-20/100/2000PPM | GRI-9106-E-HCL | HCL | 0-20/200/1000PPM | GRI-9106-R-CO2 | CO2 | 0-2000/5000/10000PPM/5%/20%/50%/100%VOL |
| GRI-9106-E-CL2 | CL2 | 0-20/200/2000PPM | GRI-9106-E-HBr | HBr | 0-20/200/1000PPM | GRI-9106-R-SF6 | SF6 | 0-1000/2000/3000PPM |
| GRI-9106-E-NH3 | NH3 | 0-100/1000/5000PPM | GRI-9106-E-C2H4O | C2H4O | 0-20/100PPM | GRI-9106-R-CH4 | CH4 | 0-5%/10%/20%/20%/100%VOL |
GRI-9106-E-H2
| H2 | 0-10000/10000/40000PPM | GRI-9106-E-SIH4 | SIH4 | 0-50PPM | GRI-9106-P-VOC | VOC | 0-20/200/2000/10000PPM |
Note: The above table is a general parameter. If you need other gas and range, please contact our online customer service.

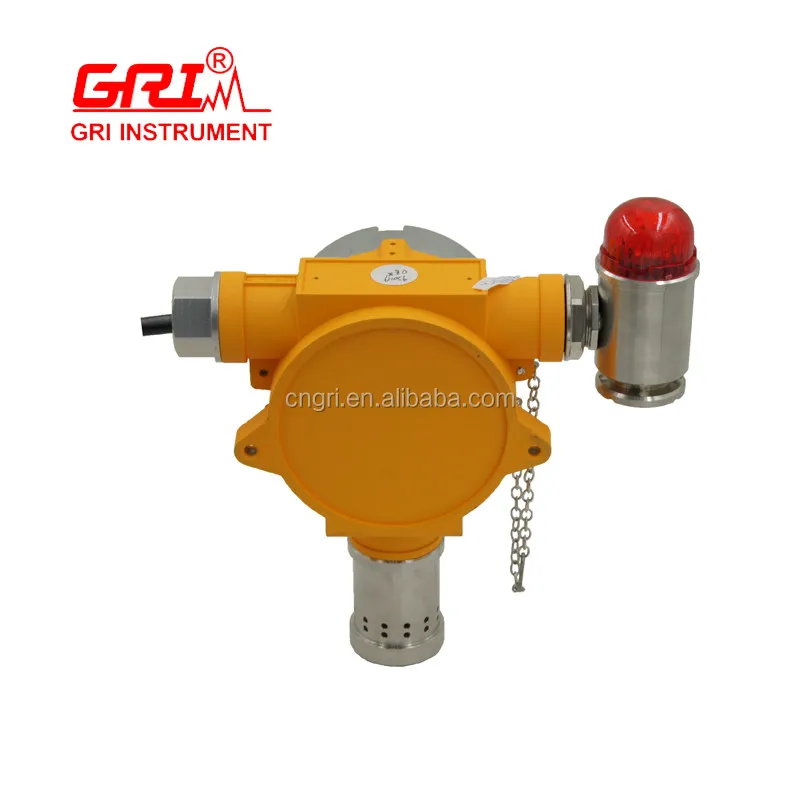

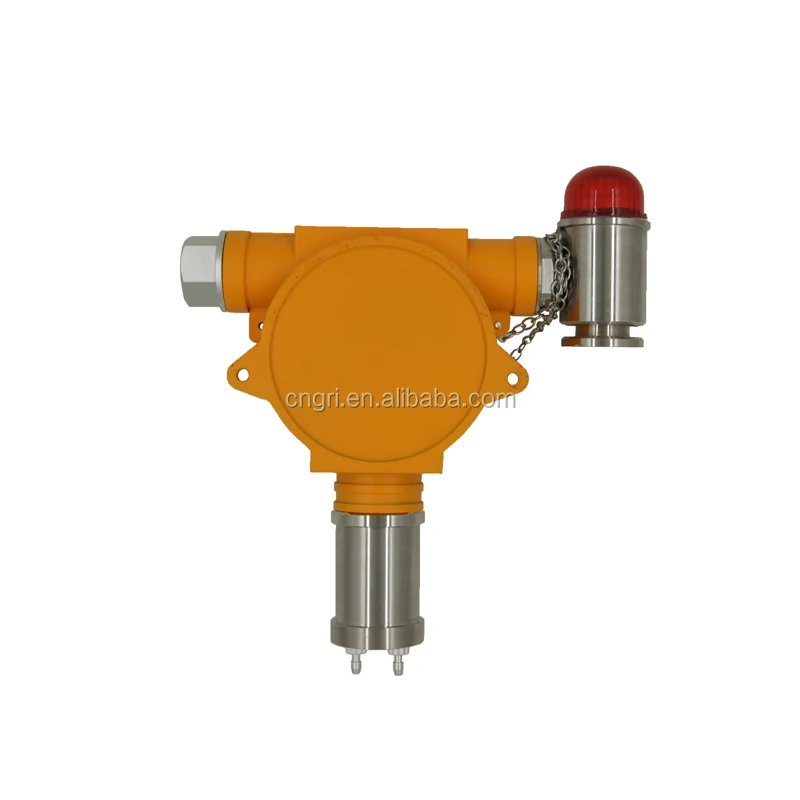

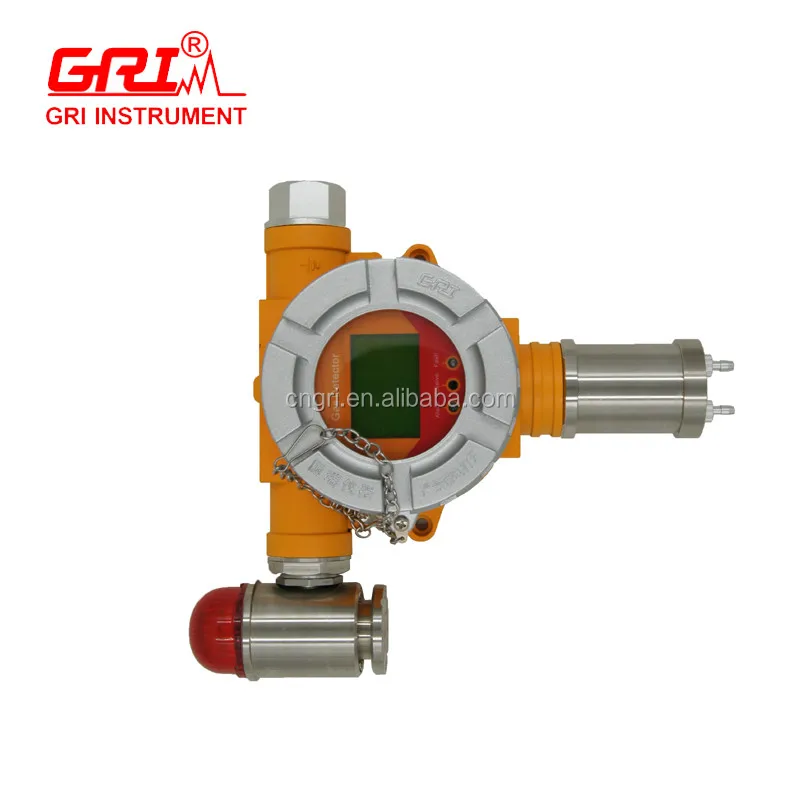

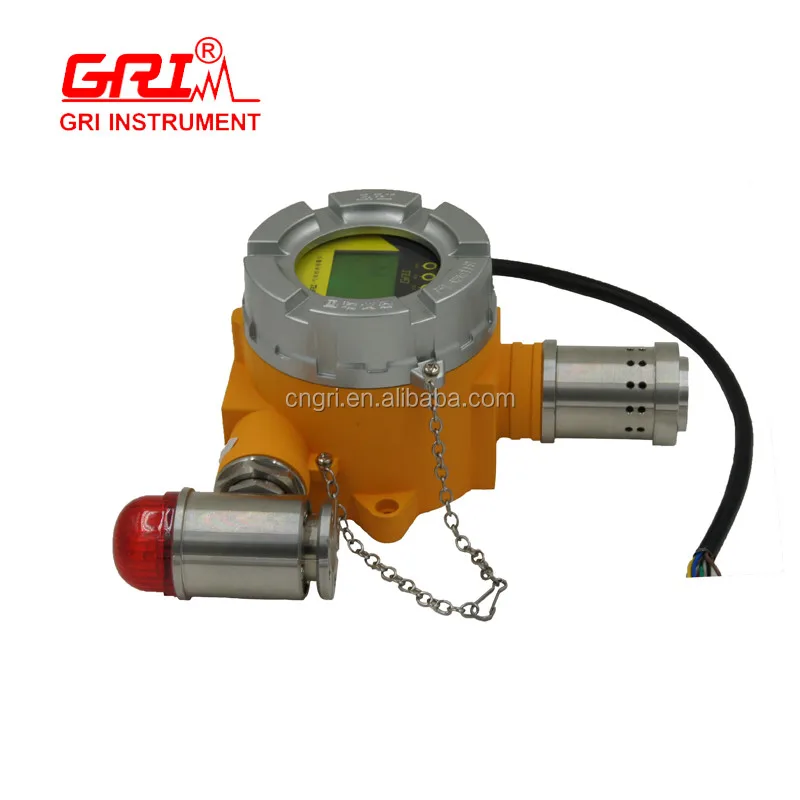

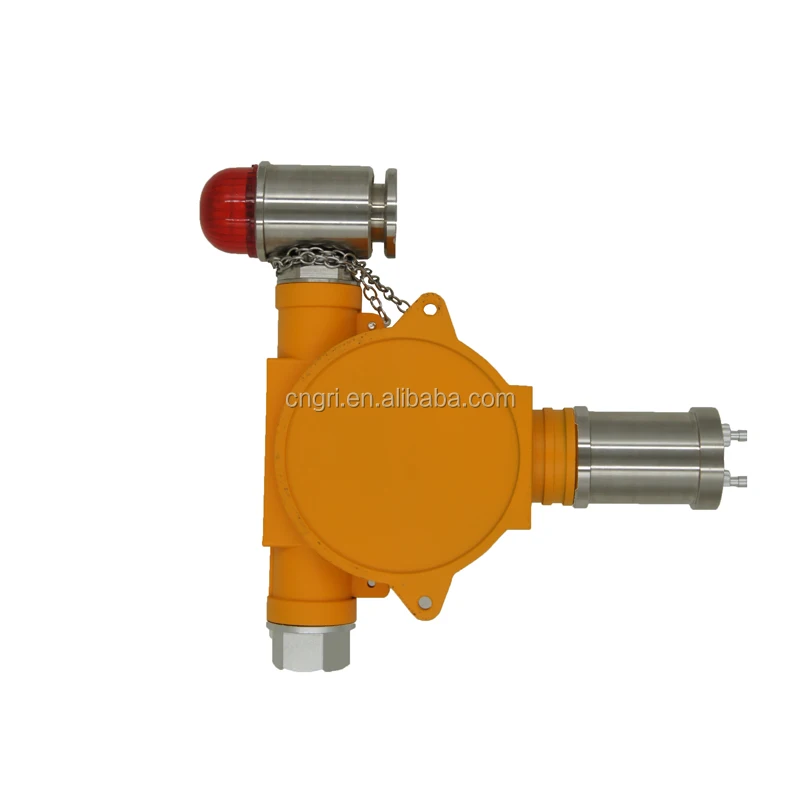

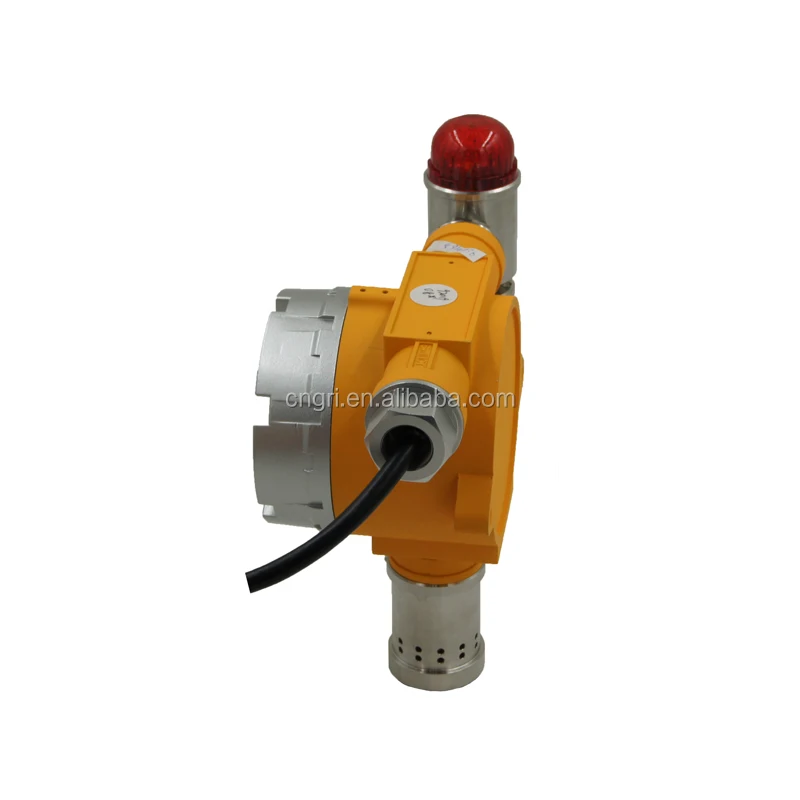

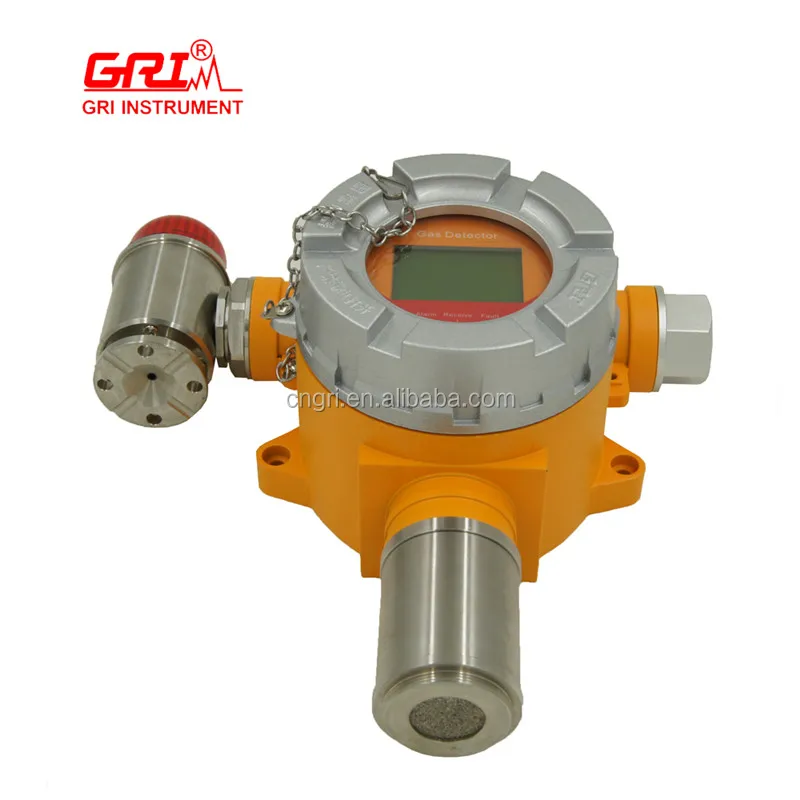

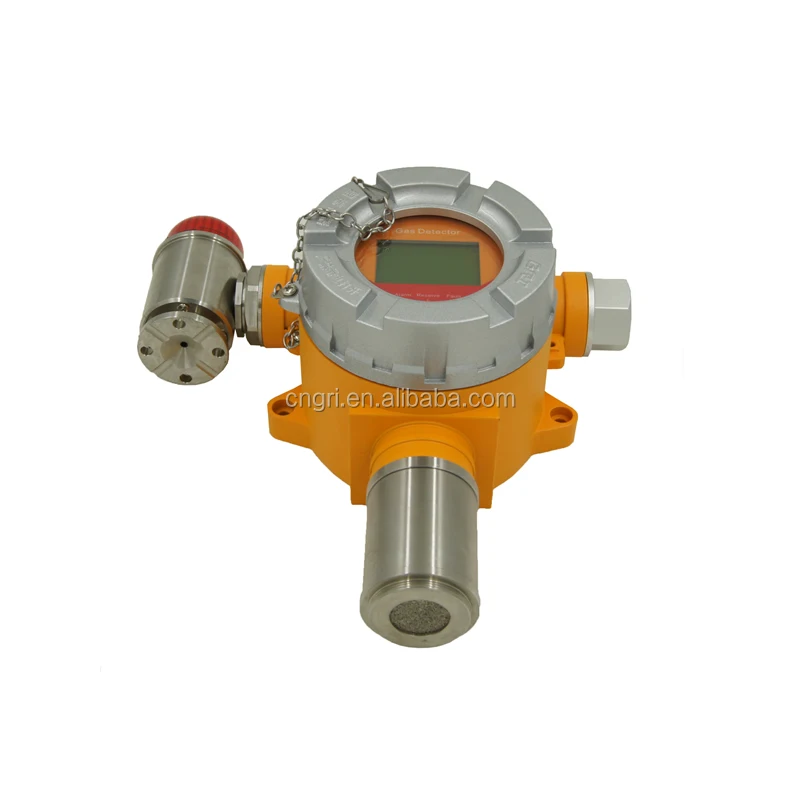

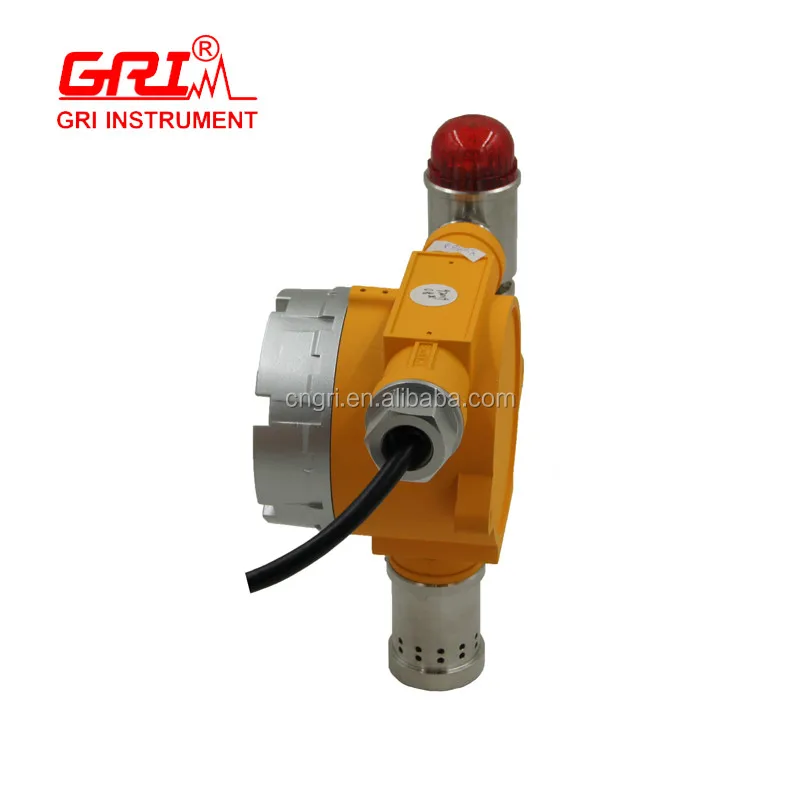

Detailed Image
Packaging & Shipping
One set product is packed in a carton box with PE foam.
