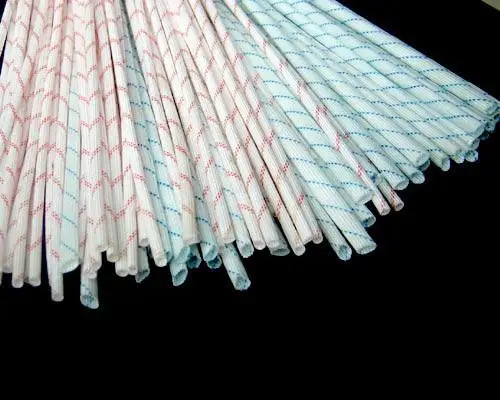

Electrical braided 2715 fiberglass electric insulation sleeving electrical insulation materials 2715 cable braided sleeve
- Category: >>>
- Supplier: Henan Yaan Electrical Power Technology Co. Ltd.
Share on (62368589505):
Product Overview
Description
Product advantage

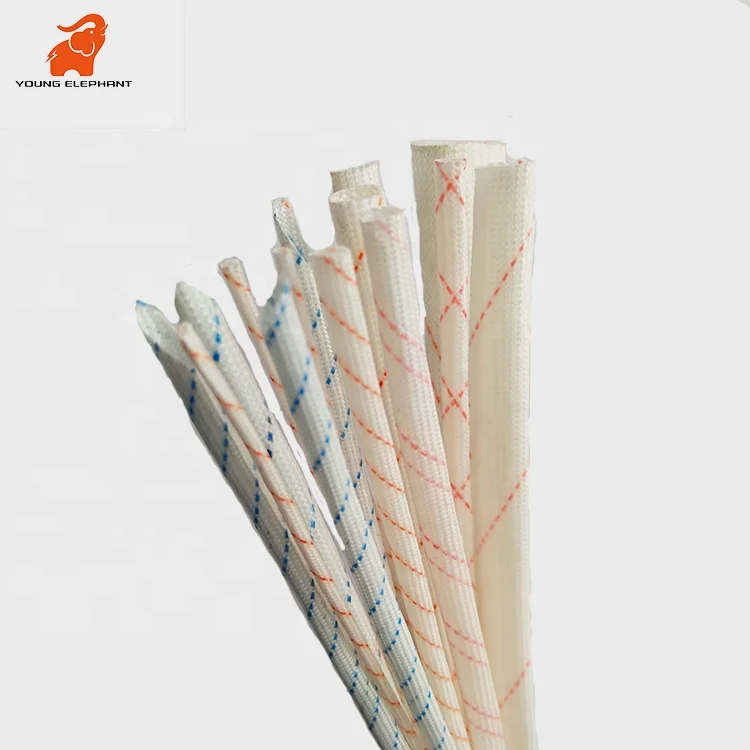

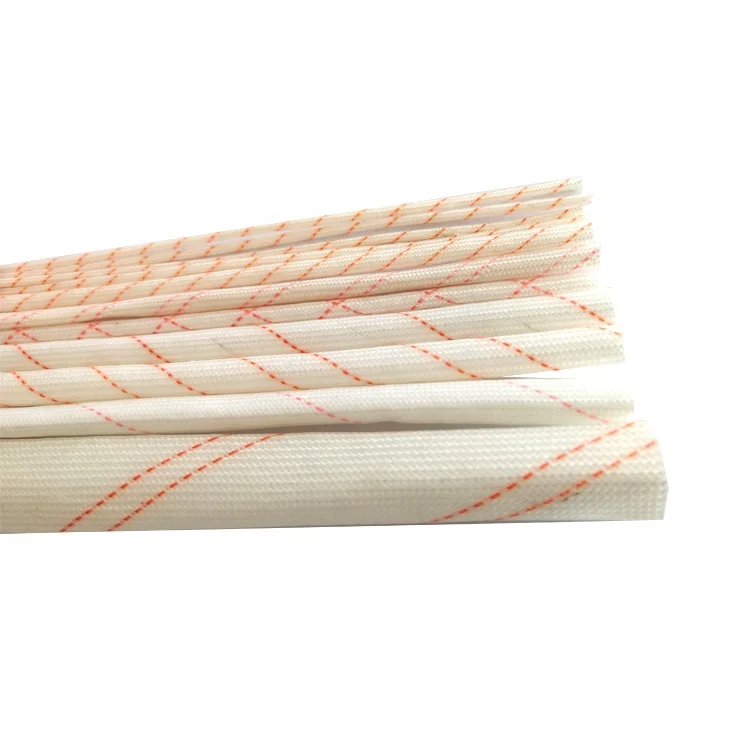

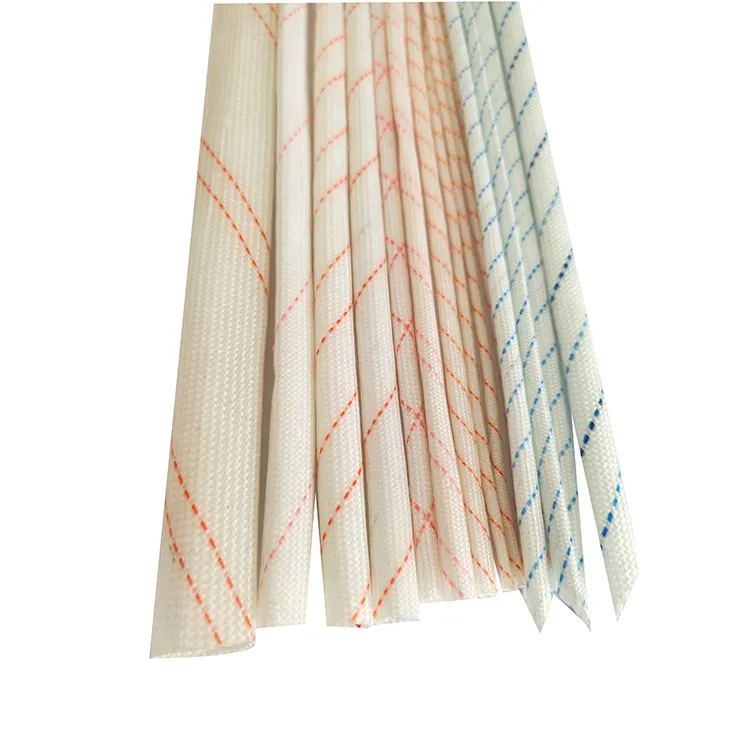

PVC coated fiberglass sleeving uses an alkali-free glass fiber tube coated with modified polyvinyl chloride resin to be plasticized.
It has excellent softness and elasticity as well as good dielectric properties and chemical resistance.
Indicator name | unit | Index value | ||||||||||||||
Exterior | / | The coating should be uniform, the surface should be smooth, and there should be no defects affecting product performance. | ||||||||||||||
Inner diameter and wall thickness | mm | Inner diameter | Wall thickness | |||||||||||||
Standard | tolerance | 406 | 407 | |||||||||||||
Two way(±) | unidirectional(+) | Min | Max | Min | Max | |||||||||||
0.3 | 0.05 | 0.10 | 0.20 | 0.30 | 0.15 | 0.30 | ||||||||||
0.5-0.8 | 0.10 | 0.20 | 0.25 | 0.50 | 0.20 | 0.50 | ||||||||||
1 | 0.15 | 0.3 | 0.25 | 0.9 | 0.20 | 0.75 | ||||||||||
1.5 | 0.15 | 0.3 | 0.35 | 0.90 | 0.20 | 0.75 | ||||||||||
2 | 0.20 | 0.40 | 0.35 | 0.90 | 0.20 | 0.75 | ||||||||||
2.5 | 0.20 | 0.40 | 0.40 | 0.90 | 0.20 | 0.75 | ||||||||||
3 | 0.25 | 0.5 | 0.40 | 0.90 | 0.20 | 0.75 | ||||||||||
4-6 | 0.25 | 0.5 | 0.50 | 0.90 | 0.30 | 0.75 | ||||||||||
8 | 0.50 | 1.00 | 0.50 | 1.20 | 0.30 | 0.90 | ||||||||||
10-25 | 0.50 | 1.00 | 0.65 | 1.20 | 0.40 | 0.90 | ||||||||||
Breakdown voltage | Numerical value | KV ≥ | Projectile slot or straight mandrel / 100mm foil electrode | Median | Lowest value | Median | Lowest value | |||||||||
At room temperature | 5.7 | 4.3 | 3.0 | 2.5 | ||||||||||||
Under high temperature | 2.6 | 2.0 | 1.5 | 1.2 | ||||||||||||
After damp heat | 2.5 | 2.0 | 1.8 | 1.2 | ||||||||||||
Insulation resistance | At room temperature | Ω | - | ≥1.0×109 | ≥1.0×109 | |||||||||||
After damp heat | ≥1.0×108 | ≥1.0×108 | ||||||||||||||
Flame spread | S | ≤60 | ||||||||||||||
- | Any one of the three samples indicates that the flag should not burn. Cotton is also not ignited by ignited or hot particles or ignited drops. | |||||||||||||||
Solder heat resistance | - | Pass (only for nominal inner diameter ≤ 5mm hose) | ||||||||||||||
Bending after heating | - | No visible cracks or shedding of the coating (test temperature: 130±2°C, exposure time: 96±1h) | ||||||||||||||
Bending at low temperatures | - | No visible cracks or shedding of the coating (test temperature: ≤-25±2°C) | ||||||||||||||
Product details
Applications:
Suitable for wiring insulation and mechanical protection of motors, electrical appliances, instruments, radios, etc.
Availability:
-Length: 1000+20/-10mm. Continuous can be supplied on request.
-Colour: Special colour can be produced on request.

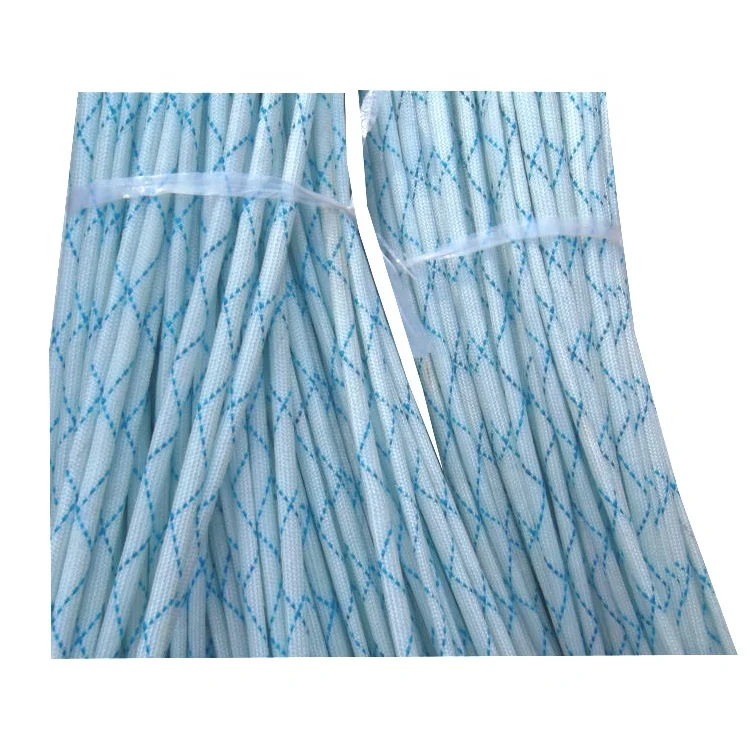

Wrapped by proctective film;
Packed by standard import & export cartons or.iron pallets.
Suitable for wiring insulation and mechanical protection of motors, electrical appliances, instruments, radios, etc.
Certificate and team
Yaan is a young dynamic organized and disciplined and passionate young international team
founded by, is a growth-oriented company and thinking. Simple, stylish, personalized office
environment has always been our style!
Our customer is all over the world,and we have more than 10 years import & export experience
All the finished products are displayed in the exhibition hall.

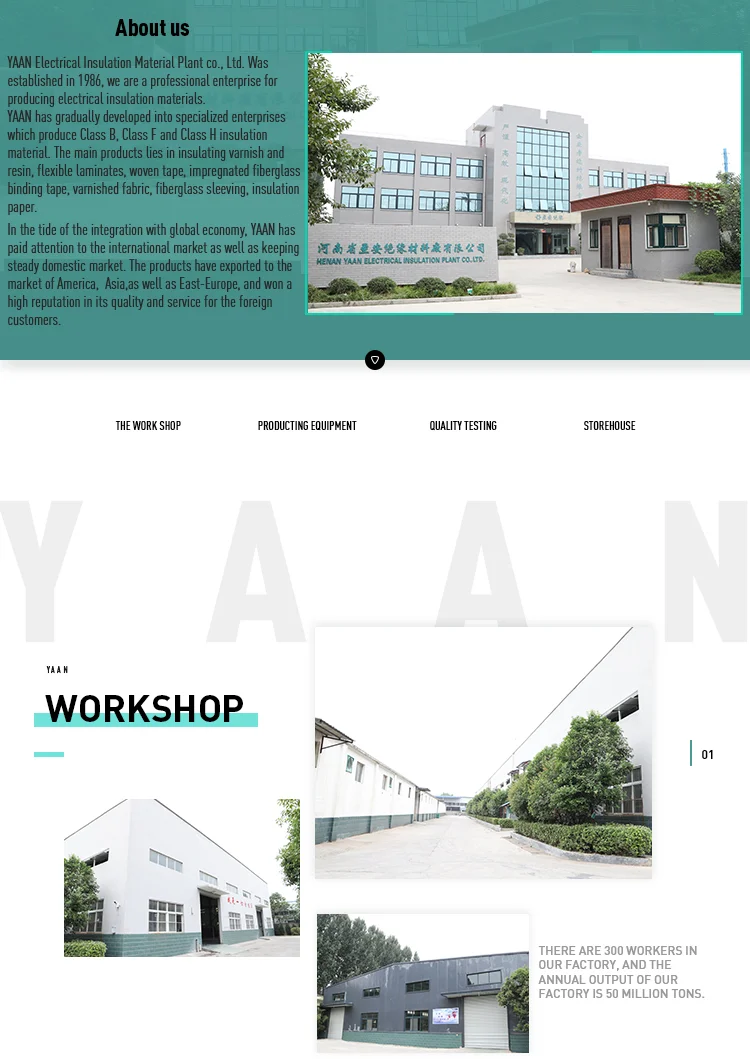

About us
There are 300 workers in our factory, and the annual output of our factory is 50 million tons.
In the recent years, when continued in introducing elitists , the factory has also taken in advanced
production equipment and gradually improved its comprehensive developing force.
Introduction of foreign advanced production and testing equipment to ensure reliable quality
of the raw material.
This is our raw material with good quality.

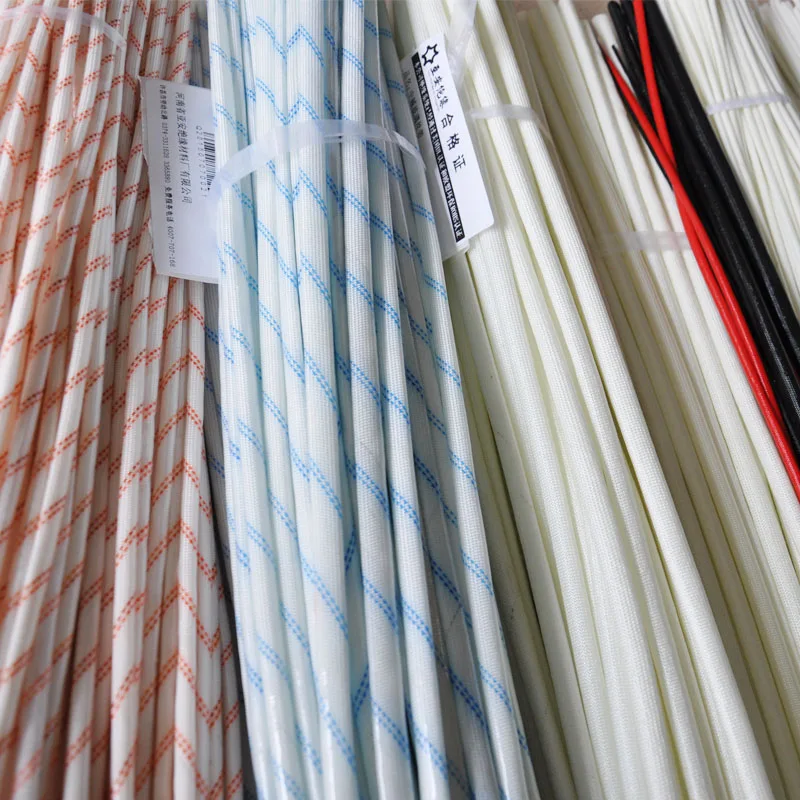

All of our finished products are stored in the warehouse.
FAQ
1.Q: Are you trading company or manufacturer ?
A: We are a manufacturer, We have more than 35 years experience in producing electrical insulation material.
2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xuchang,Henan provience.
3.Q: Which certification do you have?
A: The plant has passed the certificate of ISO 9001 quality system certification;
The products have passed ROHS test.
4.Q: Can i get a samples for free?
A: Of course we can sent you a sample for free, customers just need to pay a litter shipping change.
5.Q: How long is the delivery time?
A: Generally it is 5-15 days if the goods are in stock, or it is 15-30 days.
