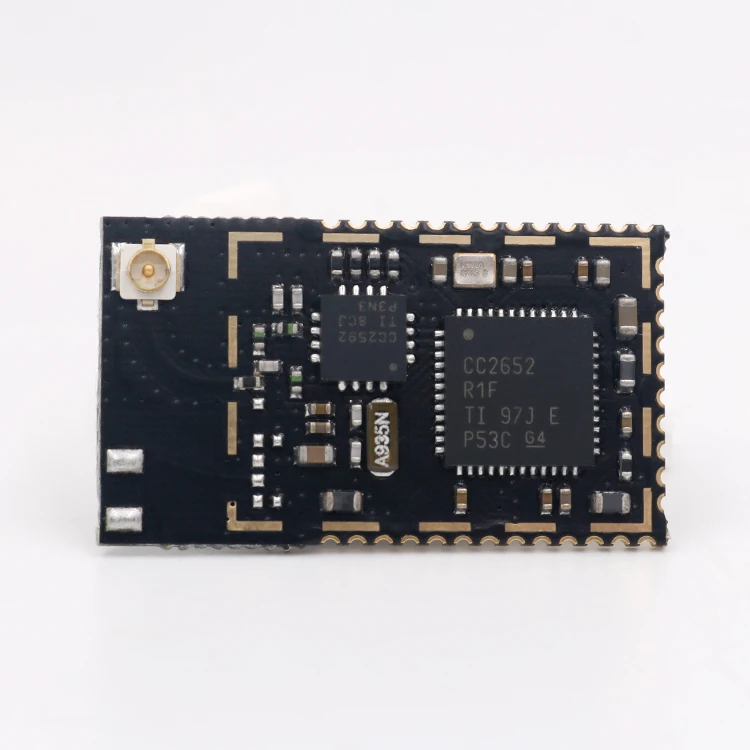

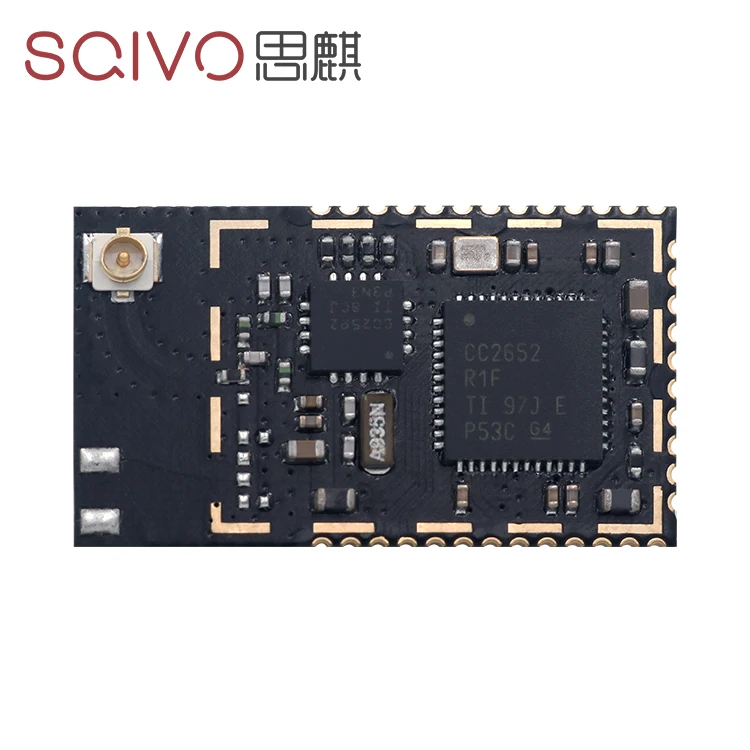

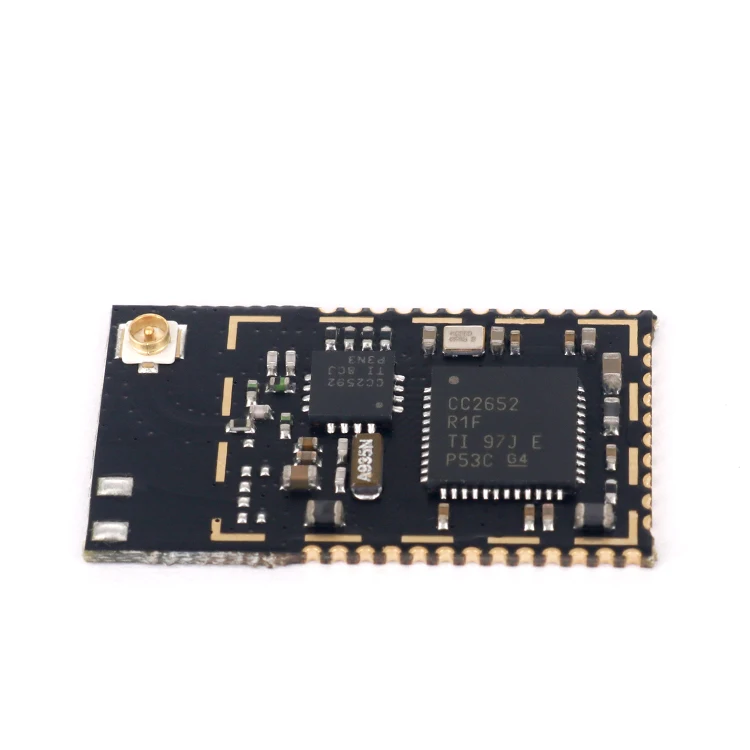

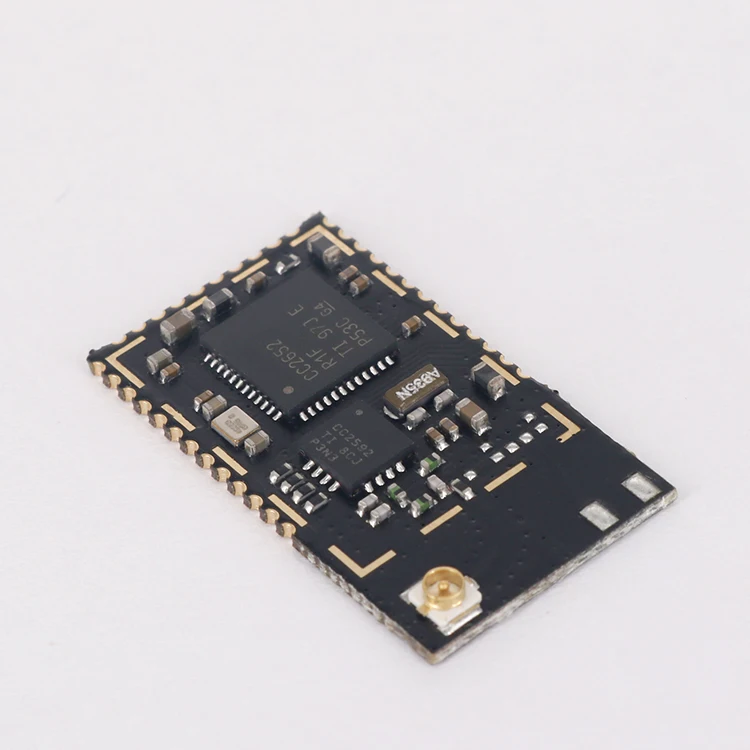

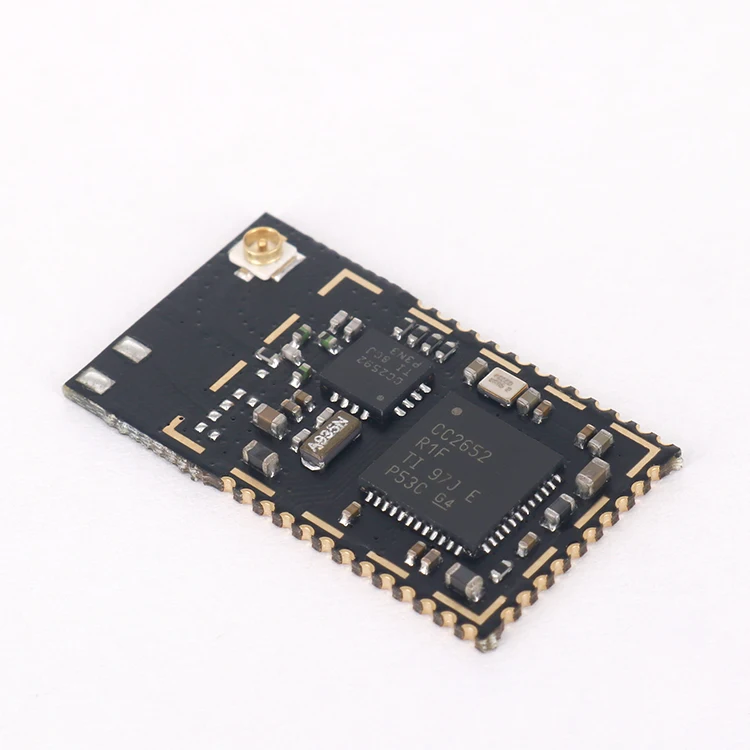

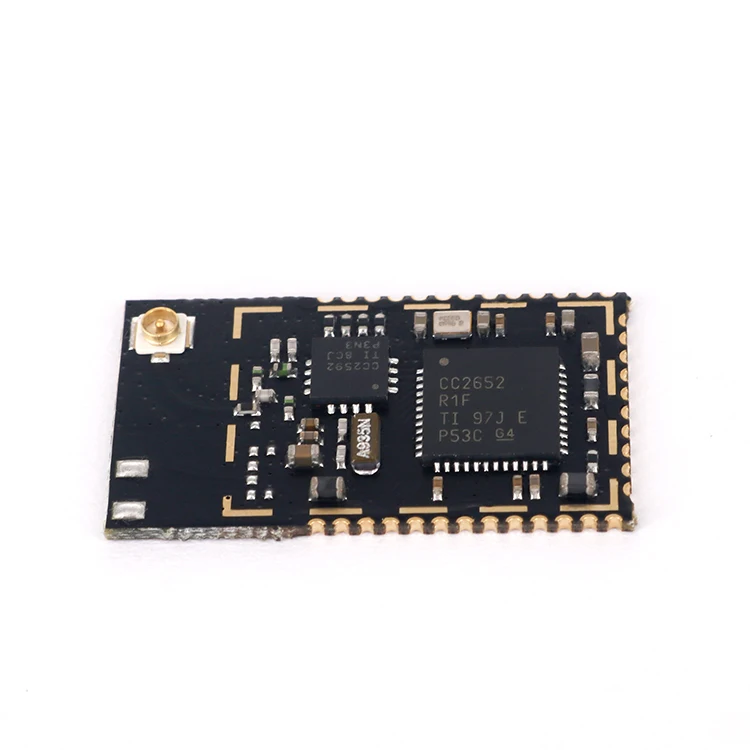

CC2652 CC2592(PA LNA)PCB antenna nb iot zigbee home automation module zigbee
- Category: >>>
- Supplier: Sqivo Technologies (shenzhen) Co. Ltd.
Share on (62368689729):
Product Overview
Description
CC2652 + CC2592(PA+LNA)PCB antenna nb iot zigbee home automation module zigbee
We offer OEM/ODM service for modules, PCB & PCBA manufacturing.
Antenna type | IPEX | 50Ω characteristic impedance |
Operating temperature | -40 ~ +85℃ | - |
Operating humidity | 10% ~ 90% | Relative humidity,No condensation |
Storage temperature | -40 ~ +125℃ | - |
Size | 16.0 * 22.5 mm | - |
Weight | 1.5g | - |
Connector | 3*8*1.27 mm | SMD |
Operation Range | About 1000m | Test condition: clear and open area& 20dBm, antenna gain:5dBi, height: 2m, air data rate: 250kbps |
Communication interface | I/O | See details in Pin definition |
Transmitting length | 1 ~ 103 bytes | For one package |
Receiving length | 1 ~ 103 bytes | For one package |
Product Description
The CC2652R device is a multiprotocol wireless 2.4-GHz MCU targeting Thread, Zigbee®, Bluetooth® 5 Low Energy, IEEE 802.15.4g,
IPv6-enabled smart objects (6LoWPAN), Wi-SUN®, and proprietary systems, including the TI 15.4-Stack.
We have following zigbee 2652 modules for sale:
1. CC2652_PCB_Antenna
2. CC2652+IPEX+Chip_Antenna
3. CC2652+PA_IPEX+Chip_Antenna
4. CC2652+PA_IPEX+Chip_Antenna_HERDER
5. CC2652+PA_PCB_Antenna
6. CC2652 + PCB antenna
7. CC2652 + IPEX antenna
8. CC2652 + chip antenna
9. CC2652 + chip antenna+IPEX
10. CC2652 + CC2592(PA+LNA) + PCB antenna
11. CC2652 + CC2592(PA+LNA) + IPEX antenna
12. CC2652 + CC2592(PA+LNA) + chip antenna
13. CC2652 + CC2592(PA+LNA) + chip antenna+IPEX
14. CC2652 + CC2592(PA+LNA) + chip antenna+IPEX+36P connector
IPv6-enabled smart objects (6LoWPAN), Wi-SUN®, and proprietary systems, including the TI 15.4-Stack.
We have following zigbee 2652 modules for sale:
1. CC2652_PCB_Antenna
2. CC2652+IPEX+Chip_Antenna
3. CC2652+PA_IPEX+Chip_Antenna
4. CC2652+PA_IPEX+Chip_Antenna_HERDER
5. CC2652+PA_PCB_Antenna
6. CC2652 + PCB antenna
7. CC2652 + IPEX antenna
8. CC2652 + chip antenna
9. CC2652 + chip antenna+IPEX
10. CC2652 + CC2592(PA+LNA) + PCB antenna
11. CC2652 + CC2592(PA+LNA) + IPEX antenna
12. CC2652 + CC2592(PA+LNA) + chip antenna
13. CC2652 + CC2592(PA+LNA) + chip antenna+IPEX
14. CC2652 + CC2592(PA+LNA) + chip antenna+IPEX+36P connector
Features
Microcontroller
Powerful 48-MHz Arm® Cortex®-M4F Processor
EEMBC CoreMark® score: 148
352KB of in-system Programmable Flash
256KB of ROM for protocols and library functions
8KB of Cache SRAM (Alternatively available as general-purpose RAM)
80KB of ultra-low leakage SRAM. The SRAM is protected by parity to ensure high reliability of operation.
2-Pin cJTAG and JTAG debugging
Supports Over-the-Air upgrade (OTA)
Ultra-Low Power Sensor Controller with 4KB of SRAM
Sample, store, and process sensor data
Operation independent from system CPU
Fast wake-up for low-power operation
TI-RTOS, drivers, Bootloader, Bluetooth® 5 Low Energy Controller, and IEEE 802.15.4 MAC in ROM for optimized application size
RoHS-compliant package
7-mm × 7-mm RGZ VQFN48 (31 GPIOs)
Peripherals
Digital peripherals can be routed to any GPIO
4× 32-bit or 8× 16-bit general-purpose timers
12-Bit ADC, 200 kSamples/s, 8 channels
2× comparators with internal reference DAC
(1× continuous time, 1× ultra-low power)
Programmable current source
2× UART
2× SSI (SPI, MICROWIRE, TI)
I2C
I2S
Real-Time Clock (RTC)
AES 128- and 256-bit Crypto Accelerator
ECC and RSA Public Key Hardware Accelerator
SHA2 Accelerator (Full suite up to SHA-512)
True Random Number Generator (TRNG)
Capacitive sensing, up to 8 channels
Integrated temperature and battery monitor
External system
On-chip Buck DC/DC Converter
Low Power
Wide supply voltage range: 1.8 V to 3.8 V
Active-Mode RX: 6.9 mA
Active-Mode TX 0 dBm: 7.3 mA
Active-Mode TX 5 dBm: 9.6 mA
Active-Mode MCU 48 MHz (CoreMark):
3.4 mA (71 µA/MHz)
Sensor Controller, Low Power-Mode, 2 MHz, running an infinite loop: 30.8 µA
Sensor Controller, Active-Mode, 24 MHz, running infinite loop: 808 µA
Standby: 0.94 µA (RTC on, 80KB RAM and CPU retention)
Shutdown: 150 nA (wakeup on external events)
Radio section
2.4-GHz RF transceiver compatible with Bluetooth 5 Low Energy and IEEE 802.15.4 PHY and MAC
Excellent receiver sensitivity:
–100 dBm for 802.15.4 (2.4 GHz),
–105 dBm for Bluetooth 125-kbps (LE Coded PHY)
Output power up to +5 dBm with temperature compensation
Suitable for systems targeting compliance with worldwide radio frequency regulations
EN 300 328, (Europe)
EN 300 440 Category 2
FCC CFR47 Part 15
ARIB STD-T66 (Japan)
Development Tools and Software
CC26x2 LaunchPad™ Development Kit
SimpleLink™ CC13X2-CC26X2 Software Development Kit
SmartRF™ Studiofor simple radio configuration
Sensor Controller Studio for building low-power sensing applications
Microcontroller
Powerful 48-MHz Arm® Cortex®-M4F Processor
EEMBC CoreMark® score: 148
352KB of in-system Programmable Flash
256KB of ROM for protocols and library functions
8KB of Cache SRAM (Alternatively available as general-purpose RAM)
80KB of ultra-low leakage SRAM. The SRAM is protected by parity to ensure high reliability of operation.
2-Pin cJTAG and JTAG debugging
Supports Over-the-Air upgrade (OTA)
Ultra-Low Power Sensor Controller with 4KB of SRAM
Sample, store, and process sensor data
Operation independent from system CPU
Fast wake-up for low-power operation
TI-RTOS, drivers, Bootloader, Bluetooth® 5 Low Energy Controller, and IEEE 802.15.4 MAC in ROM for optimized application size
RoHS-compliant package
7-mm × 7-mm RGZ VQFN48 (31 GPIOs)
Peripherals
Digital peripherals can be routed to any GPIO
4× 32-bit or 8× 16-bit general-purpose timers
12-Bit ADC, 200 kSamples/s, 8 channels
2× comparators with internal reference DAC
(1× continuous time, 1× ultra-low power)
Programmable current source
2× UART
2× SSI (SPI, MICROWIRE, TI)
I2C
I2S
Real-Time Clock (RTC)
AES 128- and 256-bit Crypto Accelerator
ECC and RSA Public Key Hardware Accelerator
SHA2 Accelerator (Full suite up to SHA-512)
True Random Number Generator (TRNG)
Capacitive sensing, up to 8 channels
Integrated temperature and battery monitor
External system
On-chip Buck DC/DC Converter
Low Power
Wide supply voltage range: 1.8 V to 3.8 V
Active-Mode RX: 6.9 mA
Active-Mode TX 0 dBm: 7.3 mA
Active-Mode TX 5 dBm: 9.6 mA
Active-Mode MCU 48 MHz (CoreMark):
3.4 mA (71 µA/MHz)
Sensor Controller, Low Power-Mode, 2 MHz, running an infinite loop: 30.8 µA
Sensor Controller, Active-Mode, 24 MHz, running infinite loop: 808 µA
Standby: 0.94 µA (RTC on, 80KB RAM and CPU retention)
Shutdown: 150 nA (wakeup on external events)
Radio section
2.4-GHz RF transceiver compatible with Bluetooth 5 Low Energy and IEEE 802.15.4 PHY and MAC
Excellent receiver sensitivity:
–100 dBm for 802.15.4 (2.4 GHz),
–105 dBm for Bluetooth 125-kbps (LE Coded PHY)
Output power up to +5 dBm with temperature compensation
Suitable for systems targeting compliance with worldwide radio frequency regulations
EN 300 328, (Europe)
EN 300 440 Category 2
FCC CFR47 Part 15
ARIB STD-T66 (Japan)
Development Tools and Software
CC26x2 LaunchPad™ Development Kit
SimpleLink™ CC13X2-CC26X2 Software Development Kit
SmartRF™ Studiofor simple radio configuration
Sensor Controller Studio for building low-power sensing applications
Pinout information
1) Male UFL connector for external antenna
2) Chip antenna
3) RF shield
1) Male UFL connector for external antenna
2) Chip antenna
3) RF shield
Product use effect
RF4CE remote control systems
Home/Building automation
Lighting systems
Industrial control and monitoring
Low-Power wireless sensor networks
Automatic meter-reading system
M2M Industrial Controls
Wireless Alarms and Security
Detailed Images
Radio Feature
Based on the TI CC2530 single chip ZigBee®/IEEE802.15.4 solution 2.4GHz ISM Band
250kbit/s over the air data rate – NB: actual usable data throughput with ZigBee is about 20kbps 16 channels (802.15.4 Channel 11 to 26) Output power: up to 20 dBm (with power amplifier)
Communication range: Up to 1000 meters with external antenna
Based on the TI CC2530 single chip ZigBee®/IEEE802.15.4 solution 2.4GHz ISM Band
250kbit/s over the air data rate – NB: actual usable data throughput with ZigBee is about 20kbps 16 channels (802.15.4 Channel 11 to 26) Output power: up to 20 dBm (with power amplifier)
Communication range: Up to 1000 meters with external antenna
