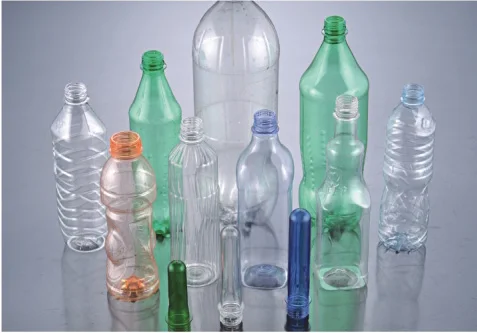

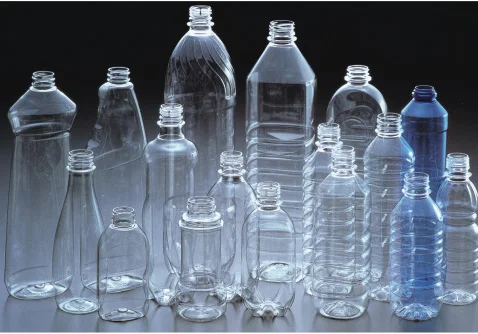

Semi-automatic Moulding Machine is suitable for producing PET bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, cosmetic bottle,pesticide bottle,oil bottle, hot fill bottle etc. Beverage bottle,dairy products,jar bottle, medicine bottle etc.

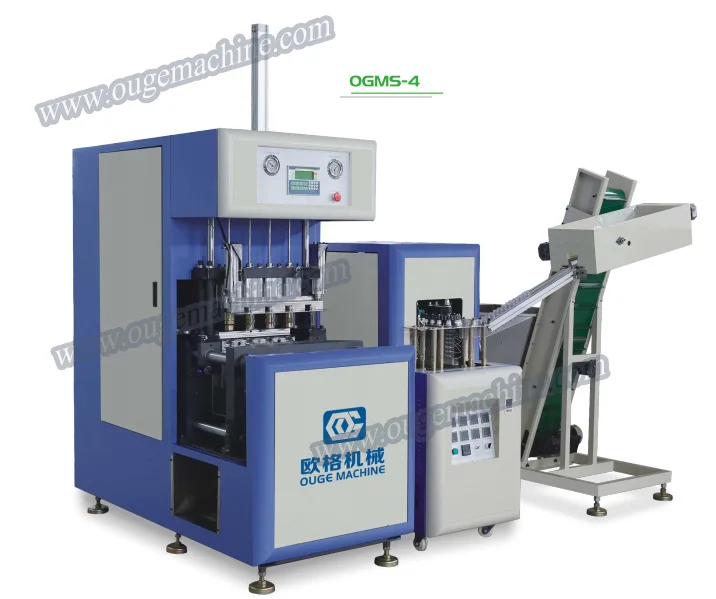

SPECIFICATIONS FOR OGMS-4 BLOW MOULDING MACHINE
Product
Theoretical output
pcs/h
2500
Volume
ml
1500
Max height
mm
360
Max diameter
mm
105

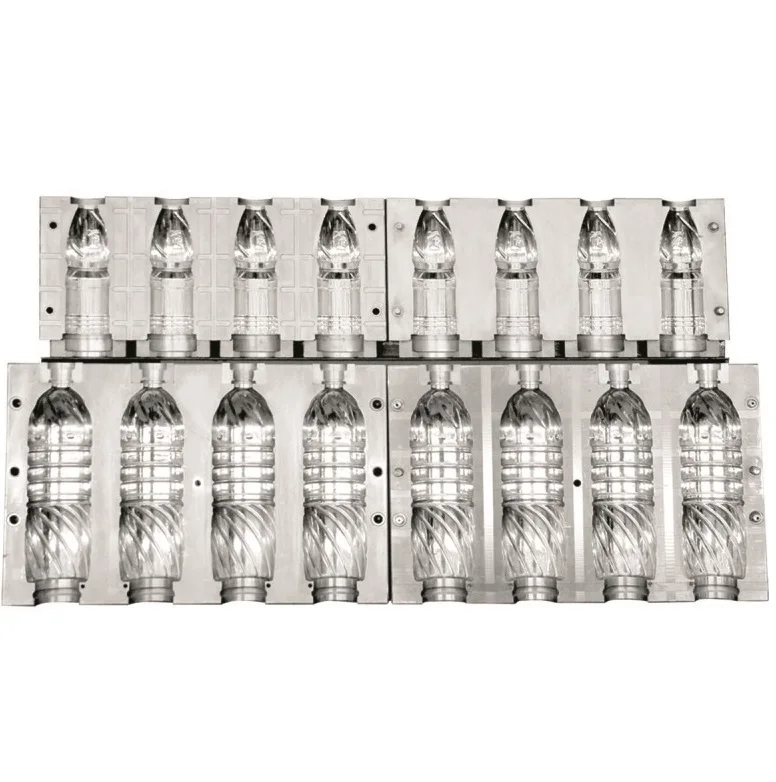

Mould
Number of cavities
piece
4
Mould plate dimension(LxH)
mm
700X420
Mould thickness
mm
240
Mould opening stroke
mm
200
Electrical
Power
V/Hz
220-380V/50-60Hz
Total power
KW
21
Heating power
KW
20
Machine Specification
Main body dimension(LxWxH)
M
1.9x0.85x2.25
Main body weight
KG
750
Pre-heater dimension(LxWxH)
M
1.8x0.60x1.4
Pre-heater weight
KG
350
Machine Specification
Bottle covenyor(LxWxH)
M
2.0x0.60x1.1
Bottle covenyor weight
KG
80
Main Features
1) Double crank arm for mold locking reaches high mold-locking strength and flexible action
2) Use PLC for control(time relay control optional),easy repair,low cost,with the time controllable accurately in 0.01s.
3)The gas circuit consists of moving and blowing so as to satisfy the different air demand of them.
4)The far-infrared heater uses a way of conversion self-rotating heating and the rail revolution makes the heating even,quick and reliable.
5) Every heating lamp has independent temperature control device,to get ideal preform heating effect. 6)The direction of the heating lamp is adjustable upon different preforms. 7)Only need one operator,do not need special training.Simple installing and starting.

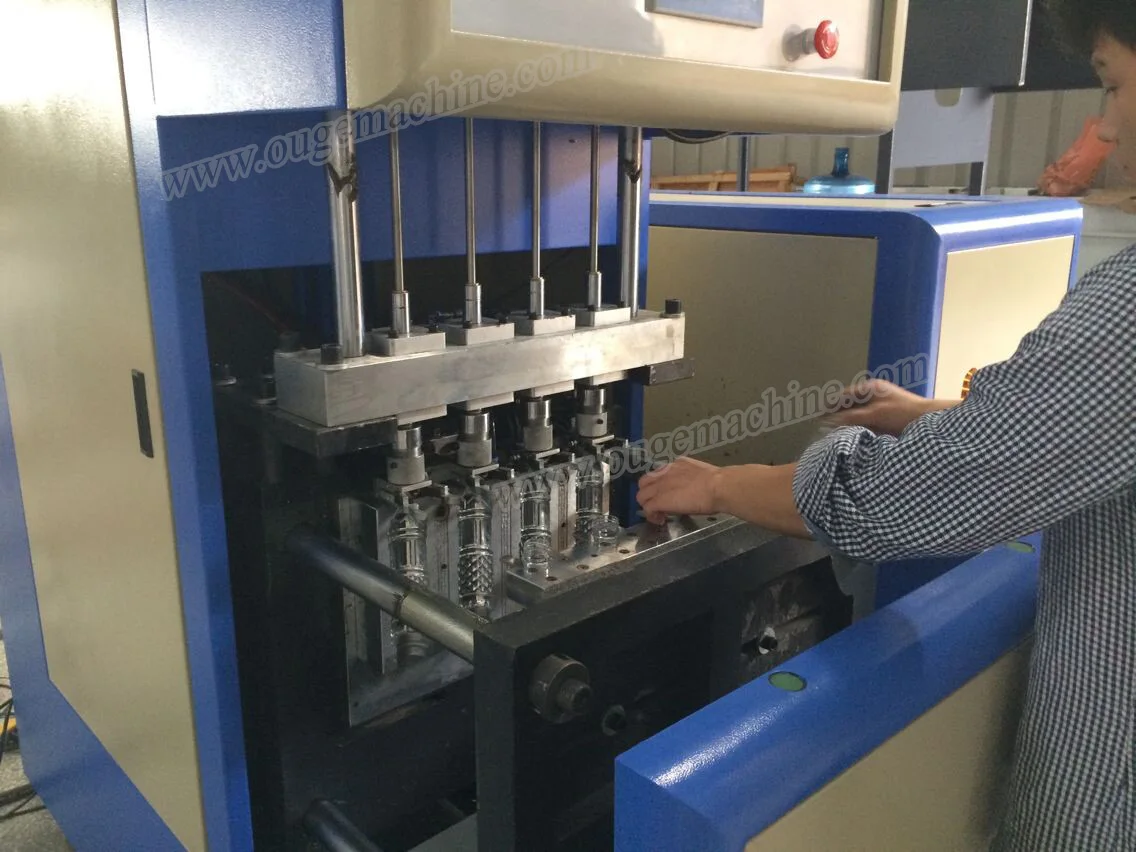

Machine Details
About Us

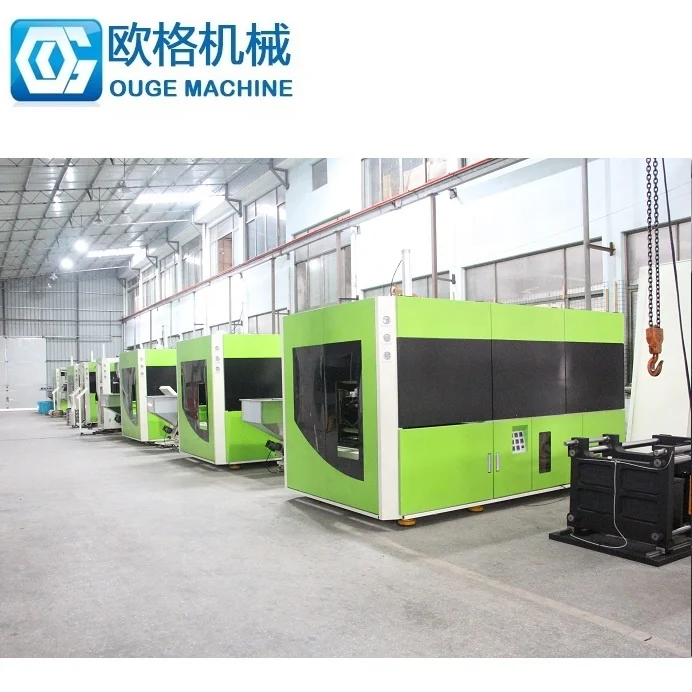

About OUGE
Ouge company is located in the East China Sea coast, the famous "mould hometown"---- Huangyan Taizhou,Zhejiang. Specializes in the production of PET automatic and semi-automatic blowing machines, preform moulds and bottle moulds. It consists of many professional engineers with rich experience in the PET industry and high-quality staff. The main products include: PET automatic and semi-automatic blowing machines, all kinds of moulds for carbonated beverage bottles, juice bottles, alcohol drinks bottles, and cosmetic containers, PMMA lamps, PP infusion bottles, edible oil bottles, etc. Over the past several years, Ouge has always been devoting its utmost efforts to improving the technology, researching the market and developing new products to suit for all customer needs.
Ouge company has always been adhering to the advanced design concept and good production technology. Due to superior products, advanced technology,favorable price and high-reputation after-sales service, it wins the trust of users.We firmly believe that Ouge machine you can trust, and is most worthy of your cooperation partner, dedicated to your factory work together to build a better tomorrow!
*After equipment reached the workshop of customer, place the equipment according to the plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production.
*The buyer needs to supply the round tickets and accommodation of our engineer, and USD50 daily salary for one engineer.
3.Training

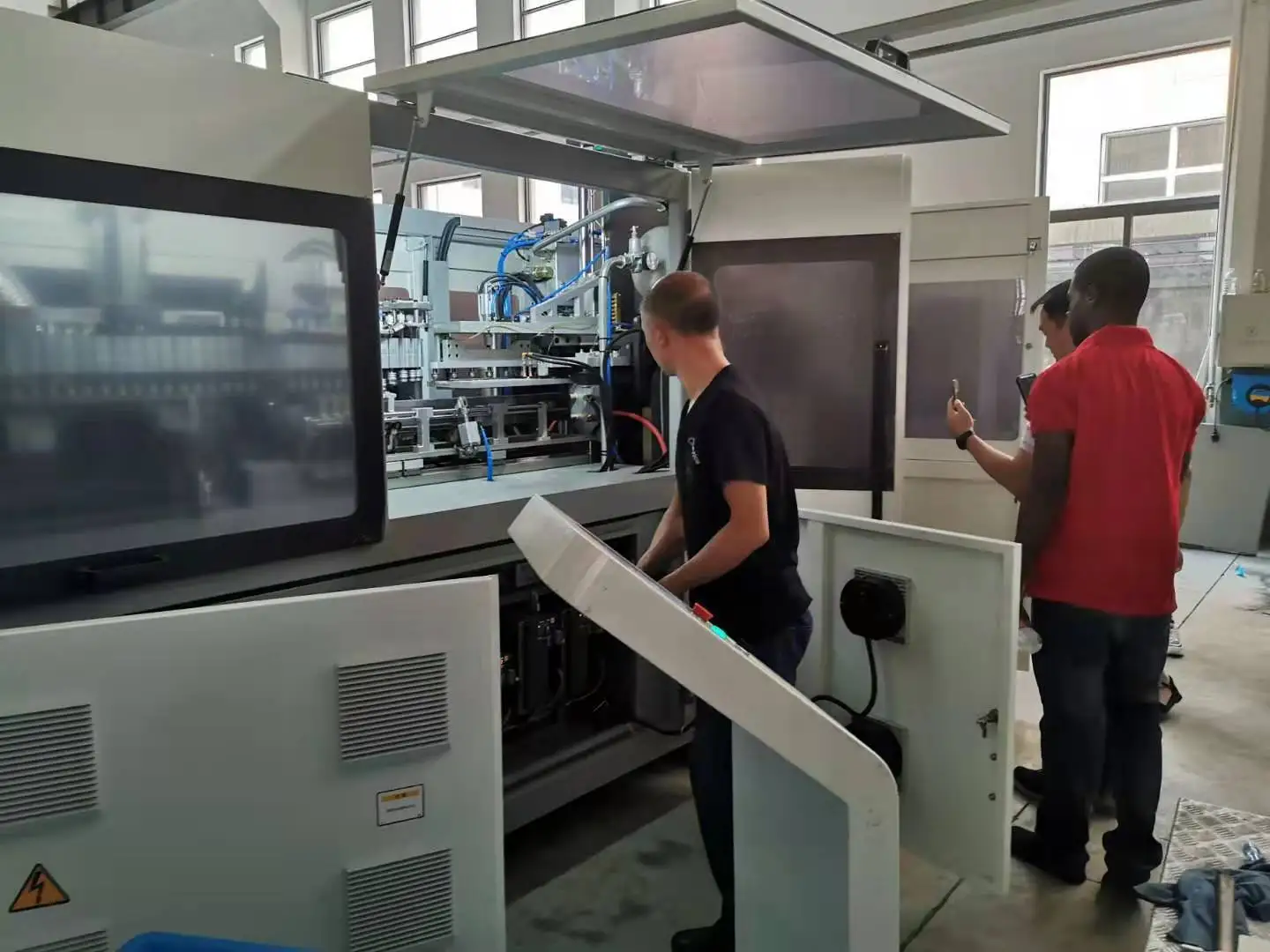

*Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. *Seasoned technician will guide and establish training outline.
*After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
* Engineers available to service machinery overseas.
4.After-Sales Service
* After checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price, in quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures.
* If you could not solve the problems, we will guide you by phone; if the problems are still cannot solve, we will arrange technician to your factory solving the problems.

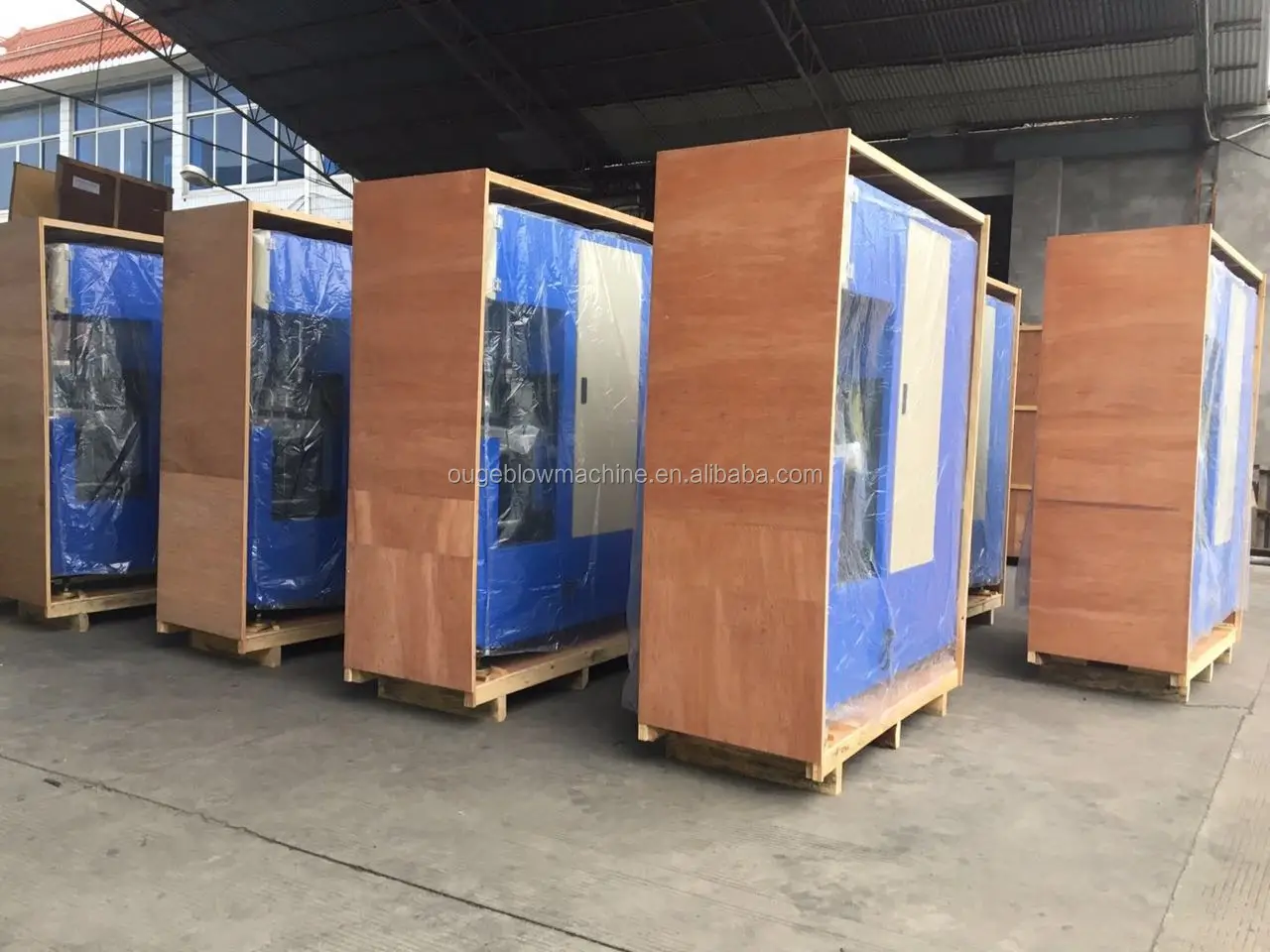

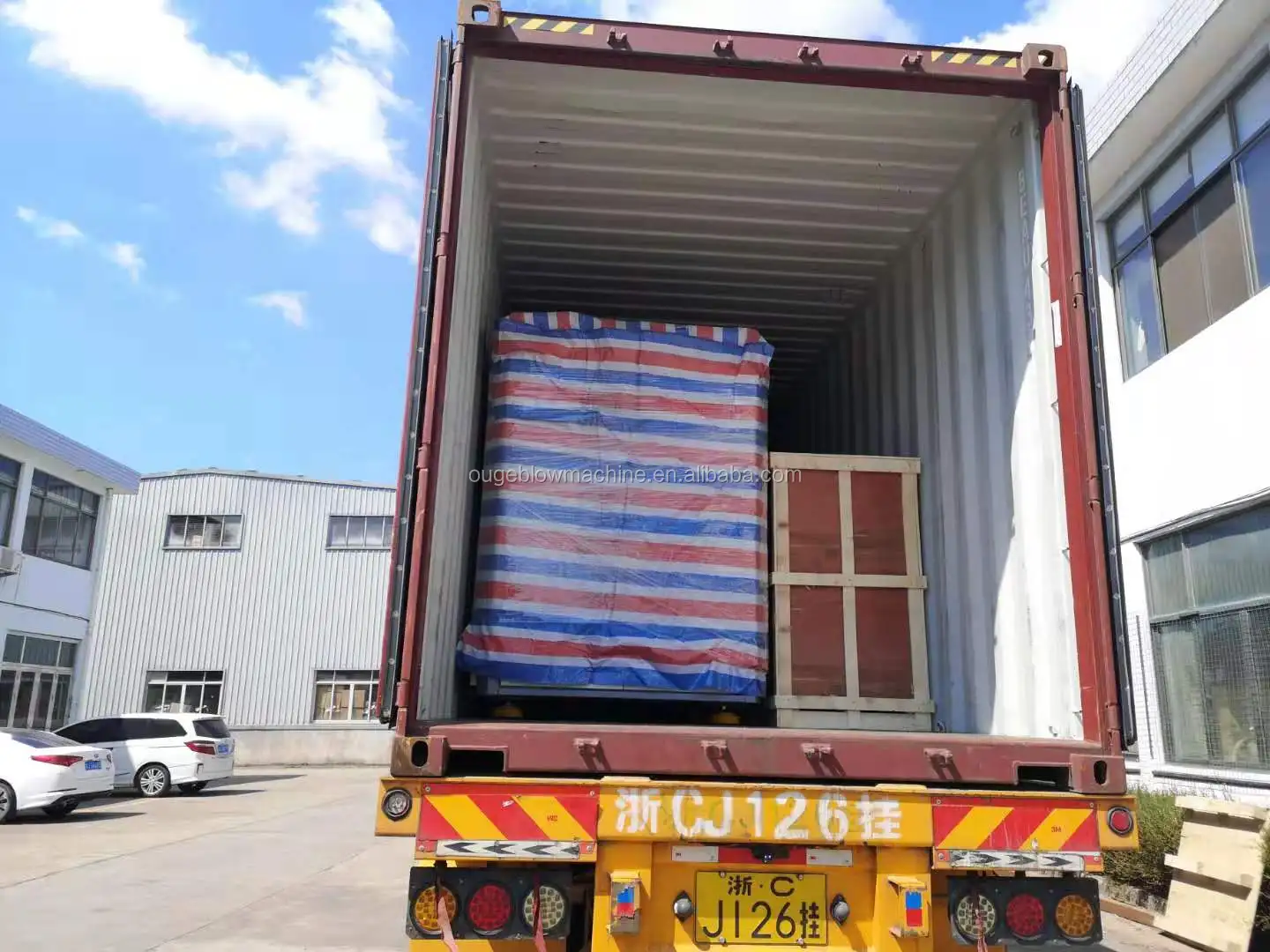

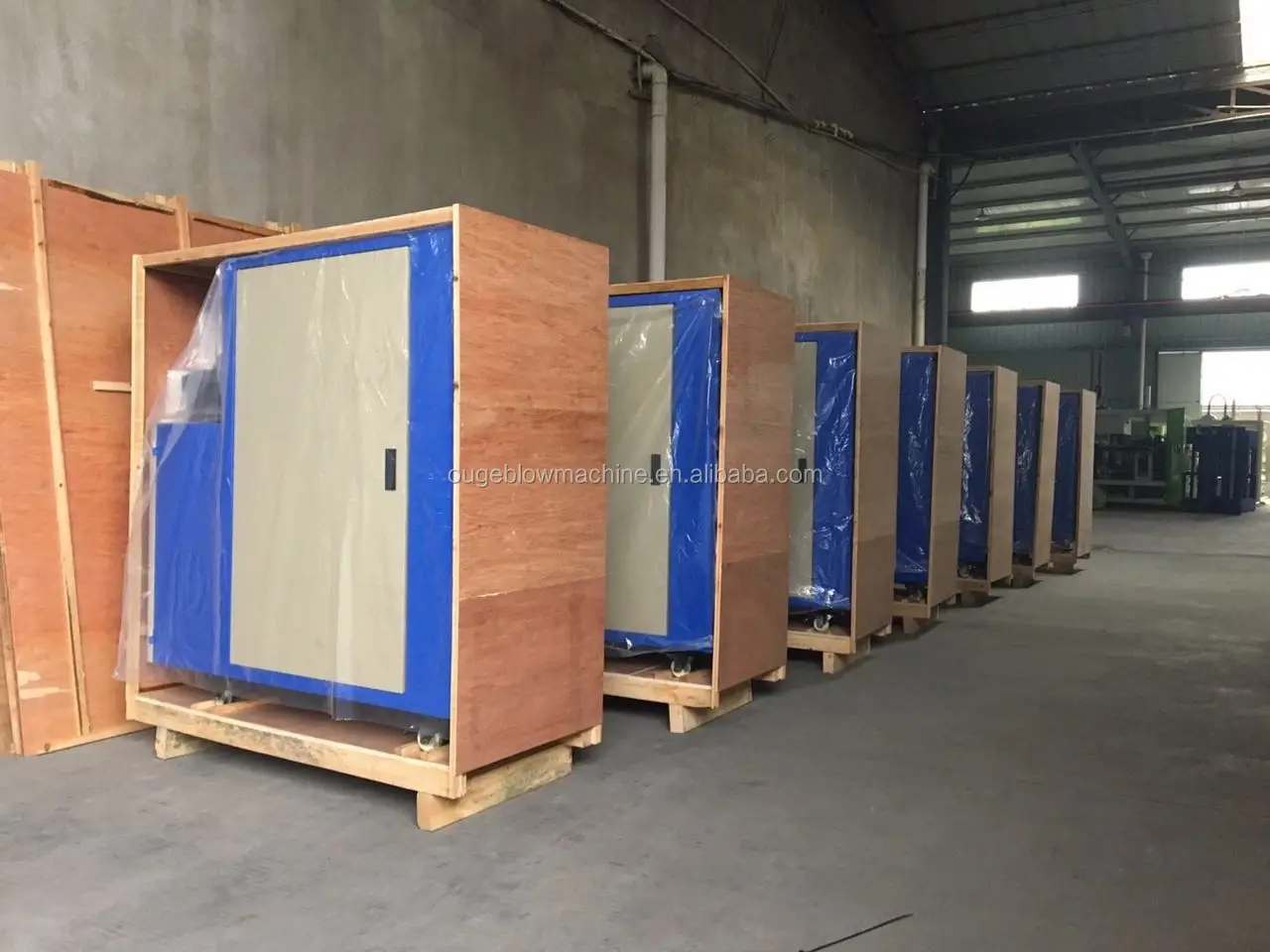

Packing & Delivery
Why Choose Us
1.Oversea engineer service
There're more than 10 people team of oversea service engineers who can do debug in oversea customers' factory.
2.Different types of blow machine cover all your needs
Ouge have more than 50 types of the machine design for your choosing.Capacity from 90BPH-12000BPH.Some design can according to your own idea as customized.

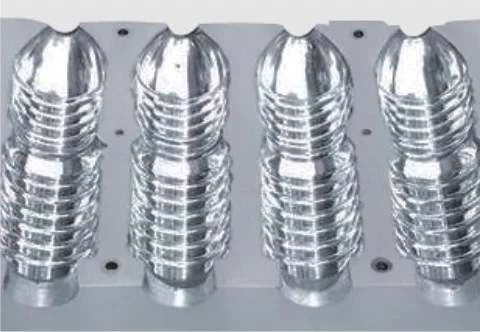

3.Free Mould Design
Ouge machine provide free design serive,we could help you to design your own bottles.
4.Good quality of blow machine and the spare parts
All of ouge machine using the top brand parts.Spare parts free change within one year.
5.Competitive Price
Ouge provide competitive price of machine and blow mould for customers.
6.Service on line 24hours/365days
We have sales team working all days for you. The reply within 12 hours.
OUGE specialized in providing complete blow molding strategy according to your requirement. We'd like to make more friends and crate win-win cooperation with you in the future. If you want more parameter about our machine, welcome to contact us immediately. Rita here will reply you in 12 hours.
