RD RD6006 USB DC DC Voltage current Step down adjustable power supply module DC buck Voltage converter voltmeter 60V 6A
- Category: Power Supplies >>>
- Supplier: Hangzhou Ruideng Technology Co. Ltd.
Share on (62368999549):
Product Overview
Description
Product Description
1.Technical parameters:
Model:RD6006
Input voltage range: 6-70.00V
Output voltage range: 0-60.00V
Output current range: 0-6.000A
Output power range: 0-360.0W
Output voltage accuracy: ±(0.3%+3 digits)
Input voltage accuracy:±(1%+5 digits)
Output ripple typical: 100mV VPP
Constant voltage mode response time:
2ms（0.1A-5A load）
Constant voltage mode load adjustment rate :
±(0.1%+2 digits)
Constant current mode load adjustment rate:
±(0.1%+3 digits)
Screen brightness setting:
0-5 level total 6 levels
Weight(with package): 607g

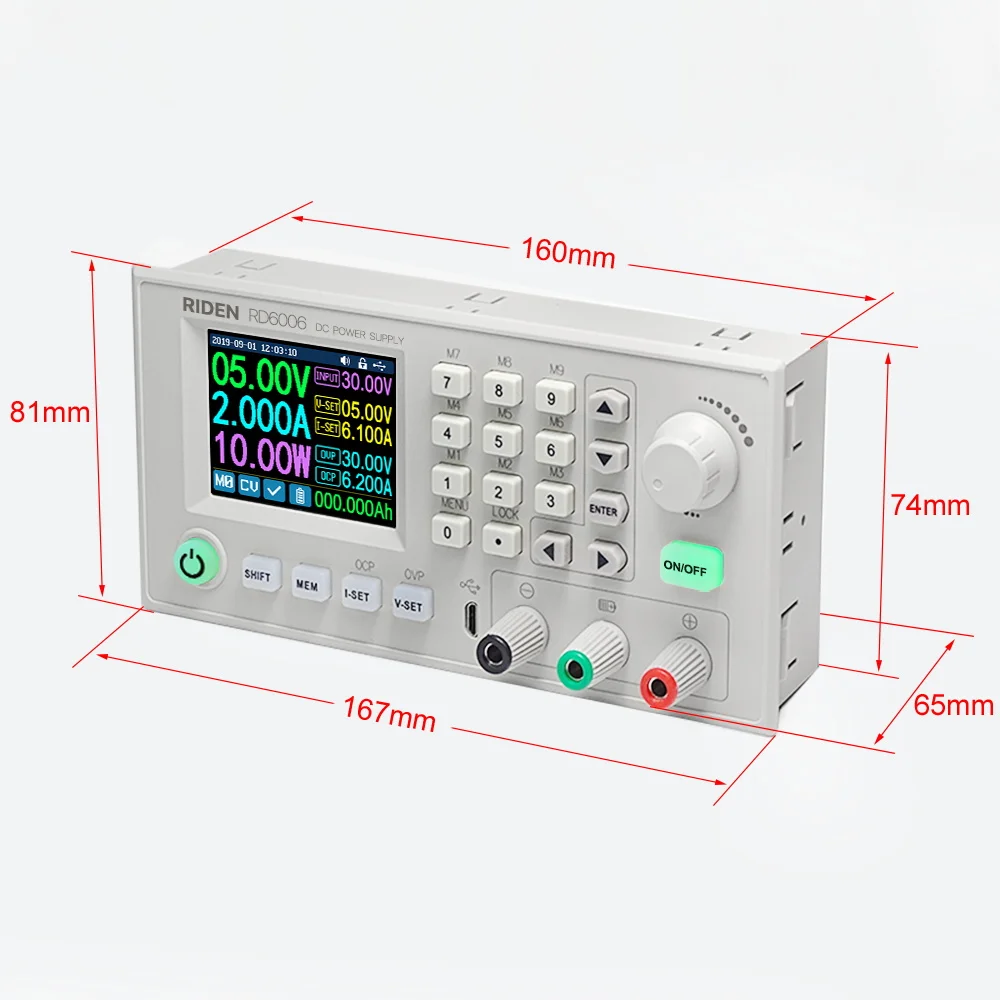

Product dimension:167*81*65mm
Display Screen:2.4 inch color LCD display
Input voltage measurement resolution: 0.01V
Output voltage measurement resolution: 0.01V
Current setting measurement resolution: 0.001A
Output current accuracy: ±(0.5%+5 digits)
Battery voltage measurement accuracy:
±(0.5%+3 digits)
Working temperature range:-10℃~40℃
External sensor Temperature detection range:
-10℃~100℃/0℉~200℉
-10℃~100℃/0℉~200℉
External sensor Temperature detection accuracy:
± 3℃/ ± 6℉
± 3℃/ ± 6℉
Capacity measurement range:
0-9999.99Ah
0-9999.99Ah
Energy measurement range:
0-9999.99Wh
0-9999.99Wh
Capacity and energy statistical error: ±2％
Working mode: Buck mode
Voltage drop >1V and >10%
Voltage drop >1V and >10%
2.Detailed operating instructions, APP and PC software zipfile, refer to the URL:
https://drive.google.com/open?id=17V-JWHvqMF-NuWSznEiJ4RKrnn_Pkt5v
3.NOTE:
1, RD6006 has two versions: RD6006 and RD6006-W,RD6006-W have WIFI board , RD6006 don't have . RD6006-W can use WIFI board to
connect APP and software, also use USB micro cable to connect PC solftware . RD6006 don't have WIFI board, only support PC
software by connecting with USB micro cable, no support APP.
2, for PC software, it only support win 7 and above for now. For APP, it only support android 5.0 and above. for APP and PC
software, please download first before buying , if you can download and install, you can make order, or else stop buying.
3.for APP and PC software, before buying, please download and install first, if it can't be install , stop buying. because some PC
language and phone system problem, it can't be install. so please check first before buying.
language and phone system problem, it can't be install. so please check first before buying.
4.RELATED PRODUCT:
There are some models recommended
5.PRODUCT DESCRIBTION :
A: Power button
B: Second function button
C: Quick storage button
D: Current/Over current protection value setting
E: Voltage/Over voltage protection value setting
F: Micro USB interface
G: Power supply output negative electrode
Battery charging negative electrode
H: Battery charging positive electrode
I: Power supply output positive electrode
J: Output switch
K: encoder potentiometer/Cancel button
L: Direction button
M: Confirm button
N: keypad
B: Second function button
C: Quick storage button
D: Current/Over current protection value setting
E: Voltage/Over voltage protection value setting
F: Micro USB interface
G: Power supply output negative electrode
Battery charging negative electrode
H: Battery charging positive electrode
I: Power supply output positive electrode
J: Output switch
K: encoder potentiometer/Cancel button
L: Direction button
M: Confirm button
N: keypad
O: Screen
Function description:
W: Time
AF: Protection status indication
X: Button tune
AG: Battery charging indication
Y: Button lock status
AH: Battery related information display area
Z: Communication interface
AM: Input voltage
AA: Actual output voltage
AL: Output voltage preset value
AB: Actual output current
AK: Output current preset value
AC: Output power
AJ: Over voltage protection value
AD: Current data group
AI: Over current protection value
AE: Constant voltage Constant current status
AF: Protection status indication
X: Button tune
AG: Battery charging indication
Y: Button lock status
AH: Battery related information display area
Z: Communication interface
AM: Input voltage
AA: Actual output voltage
AL: Output voltage preset value
AB: Actual output current
AK: Output current preset value
AC: Output power
AJ: Over voltage protection value
AD: Current data group
AI: Over current protection value
AE: Constant voltage Constant current status
Feedback
Our Youtube channel RD tech:
https://www.youtube.com/channel/UCy73jJ5-ZqhPzT7wJ6KTIaw
Operation and Test:
https://www.youtube.com/watch?v=RMRuErdv2LM
https://www.youtube.com/channel/UCy73jJ5-ZqhPzT7wJ6KTIaw
Operation and Test:
https://www.youtube.com/watch?v=RMRuErdv2LM
https://www.youtube.com/watch?v=pz0T9rD4Ij0
Assembly:
https://www.youtube.com/watch?v=HSaDy1A70IU
Assembly:
https://www.youtube.com/watch?v=HSaDy1A70IU
