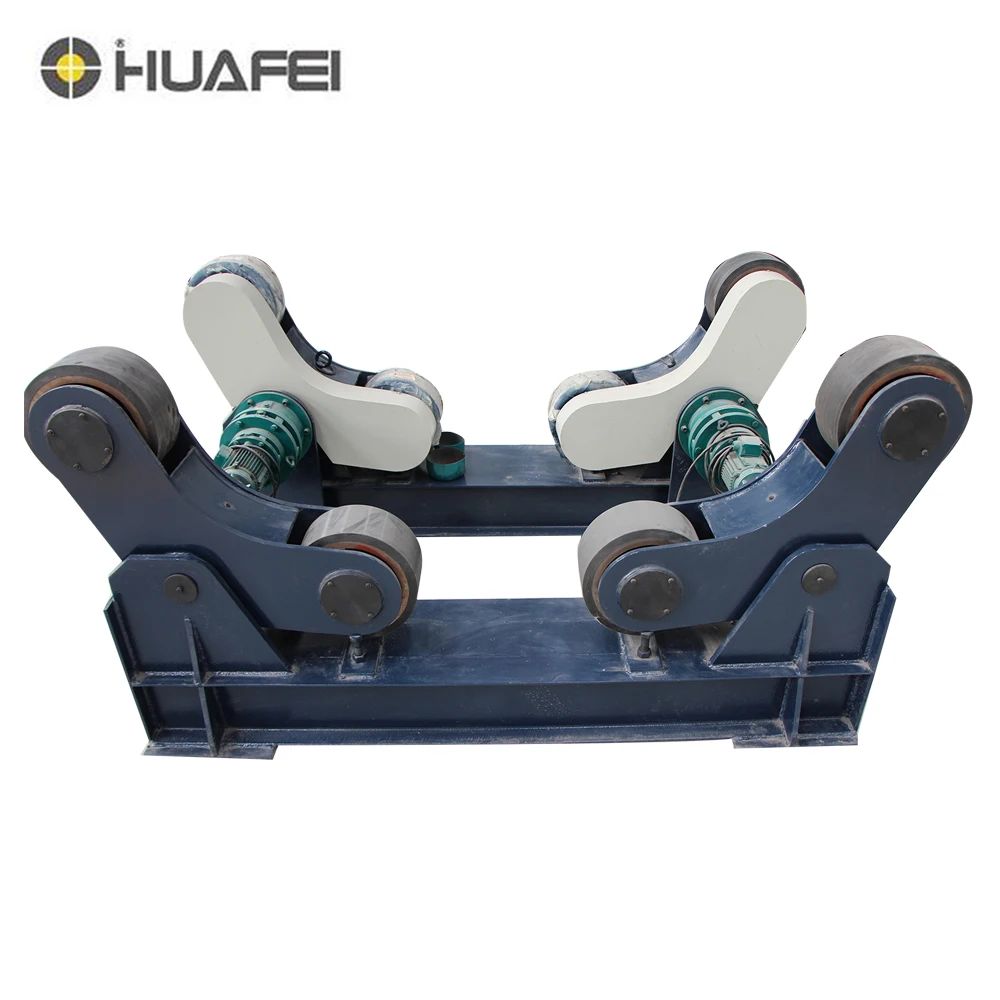

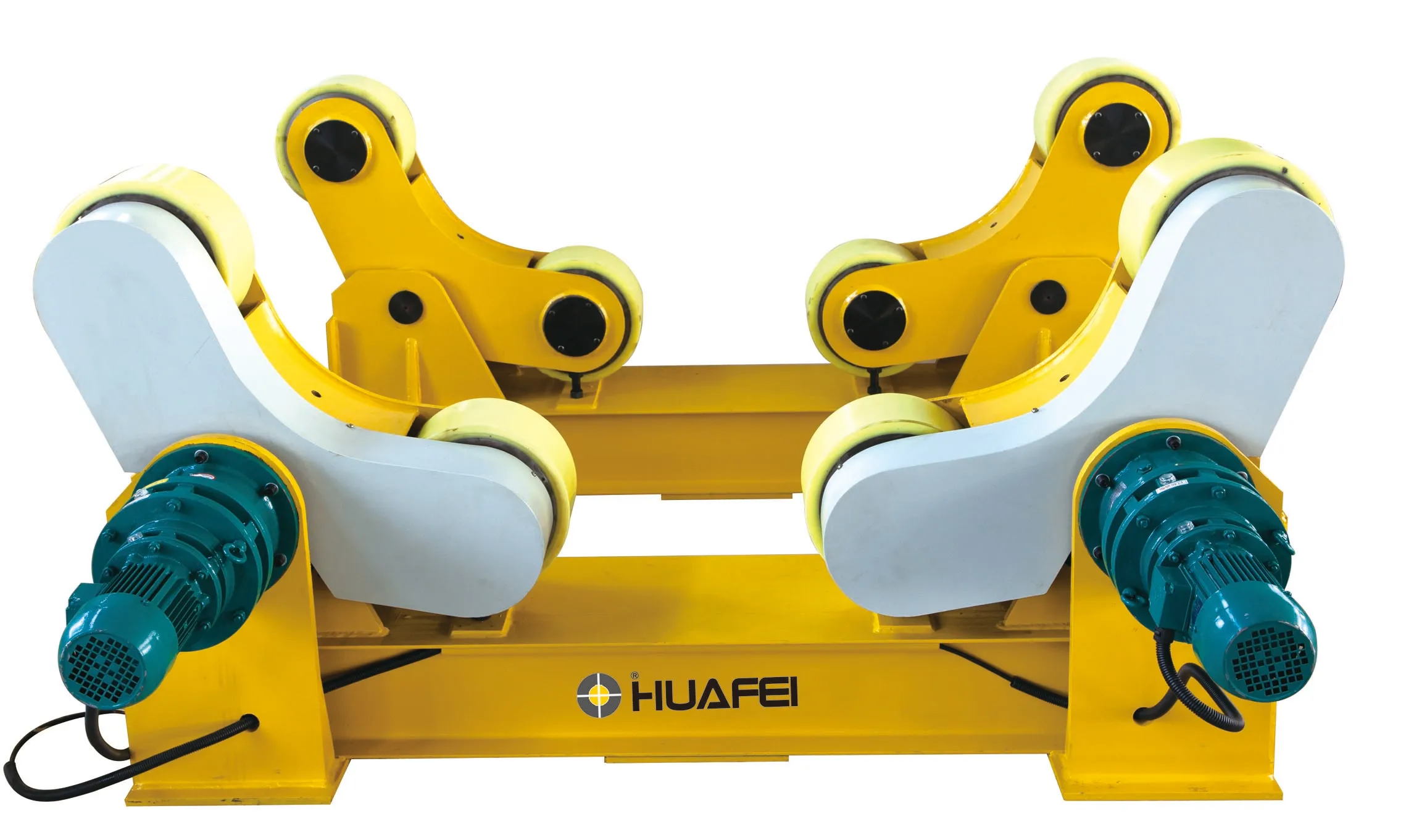

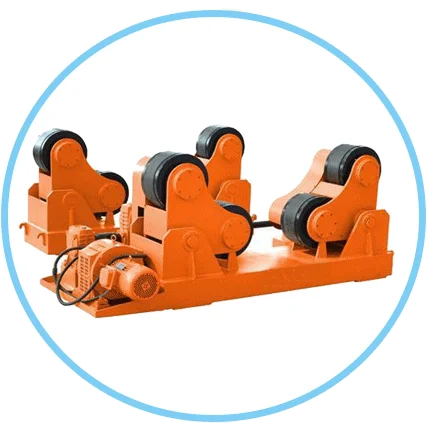

Self aligned welding turning rotator
Product Description
Product Description
The working way of Self-adjusting rollers is that active frame, two motors and reducer controlled by the same ac motor driver realize the two motors stepless speed change and synchronization operation. The motor drive the main driving wheel working through drive system. The work piece is putted on the primary and secondary wheels, when the primary wheel running, the friction between work piece and primary wheel can drive the work piece rotating. the friction between rotating work piece and secondary wheel can drive the secondary wheel running. Each swing arms of the self-adjusting roller can drive work piece to adjust the diameter by itself, so that the labor power is saved much and the work efficiency is increased.
| Model No. | HG1-5 | HG1 -10 | HG1-20 | HG1-30 | HG1-40 | HG1-50 | HG1-60 | HG1-80 | HG1-100 | |
Loading(t) | 5 | 10 | 20 | 30 | 40 | 50 | 60 | 80 | 100 | |
| Shell Diameter | Min(mm) | 350 | 600 | 600 | 600 | 750 | 800 | 900 | 900 | 900 |
| Max(mm) | 2500 | 4000 | 4500 | 5000 | 5000 | 5000 | 5500 | 5500 | 5500 | |
Roller speed(m/h) | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | |
Motor power(Kw) | 2×0.18 | 2×0.25 | 2×0.37 | 2×0.37 | 2×0.55 | 2×0.75 | 2×0.75 | 2×1.1 | 2×1.5 | |
Regulating mode | Frequency control | |||||||||
| Dimension
| Length (mm) | Active 1585 1450 | Active 1585 1450 | Active 2165 2125 | Active 2410 2410 | Active 2410 2410 | Active 2600 2600 | Active 2600 2600 | Active 3020 3020 | Active 3020 3020 |
Width (mm)
| Active 872 392 | Active 872 392 | Active 1010 425 | Active 1260 550 | Active 1290 550 | Active 1360 590 | Active 1360 590 | Active 1745 760 | Active 1770 760 | |
Height (mm)
| 660 | 660 | 945 | 1125 | 1135 | 1135 | 1135 | 1400 | 1400 | |

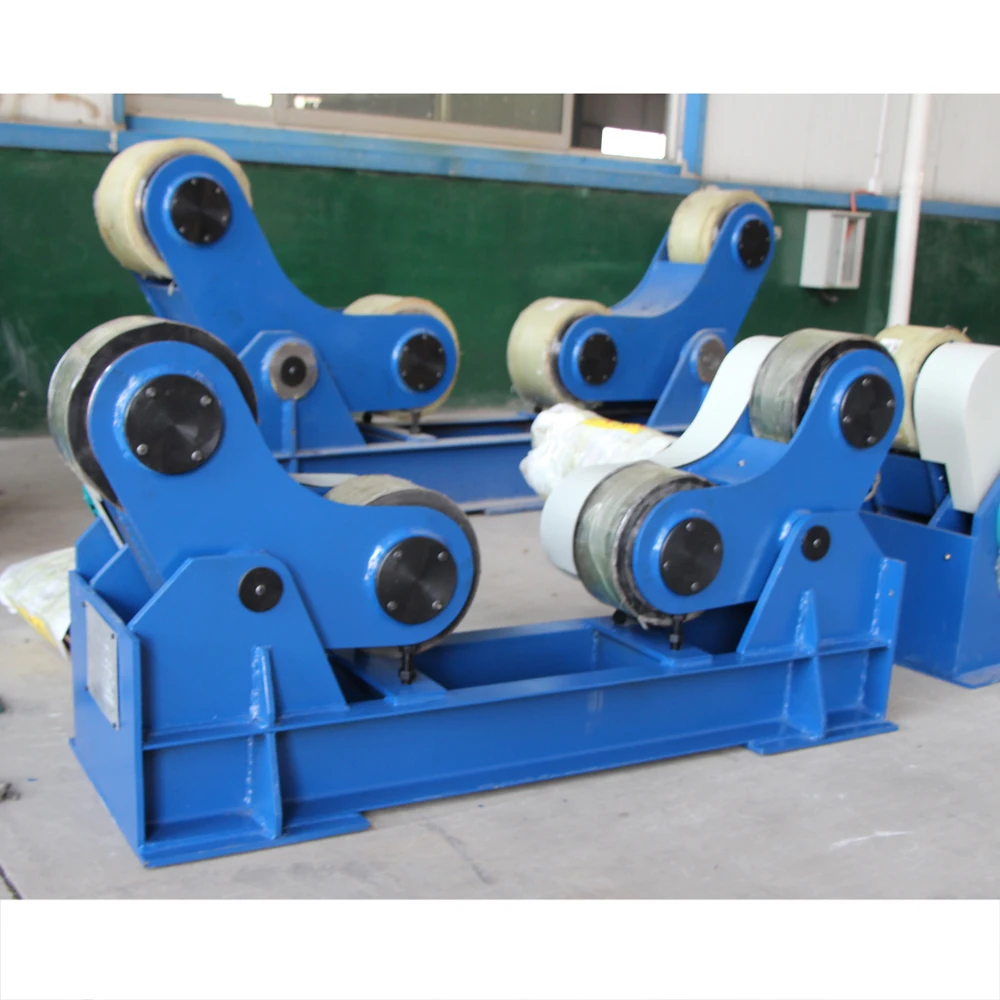

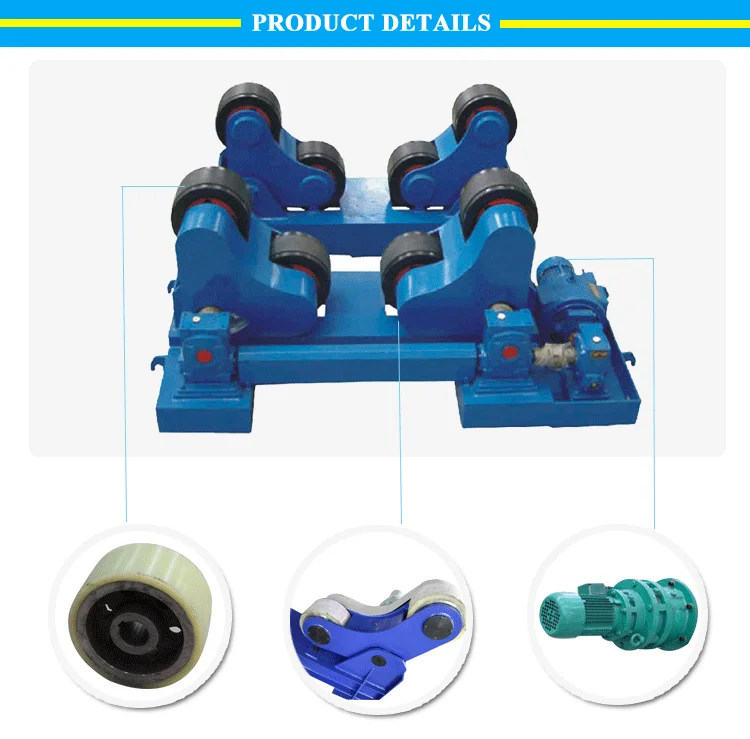

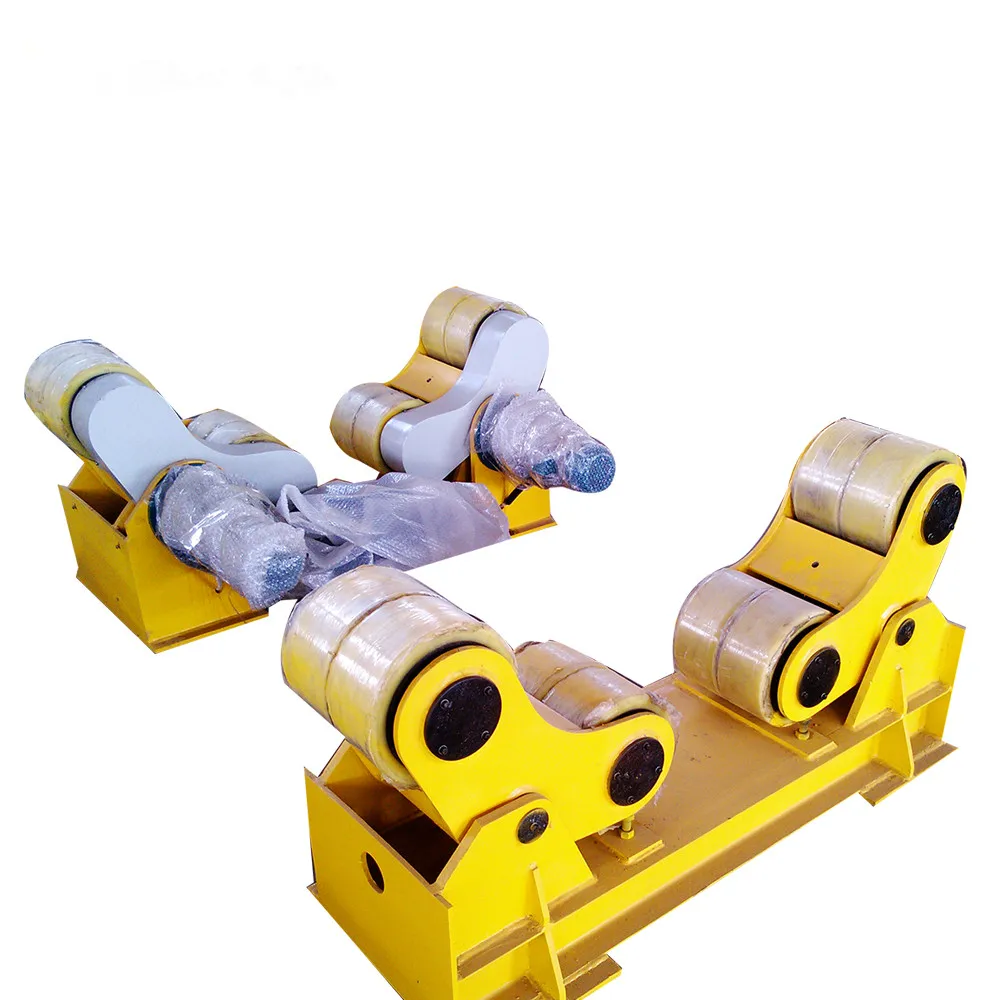

Self-adjusting roller is composed of primary frame and secondary frame.

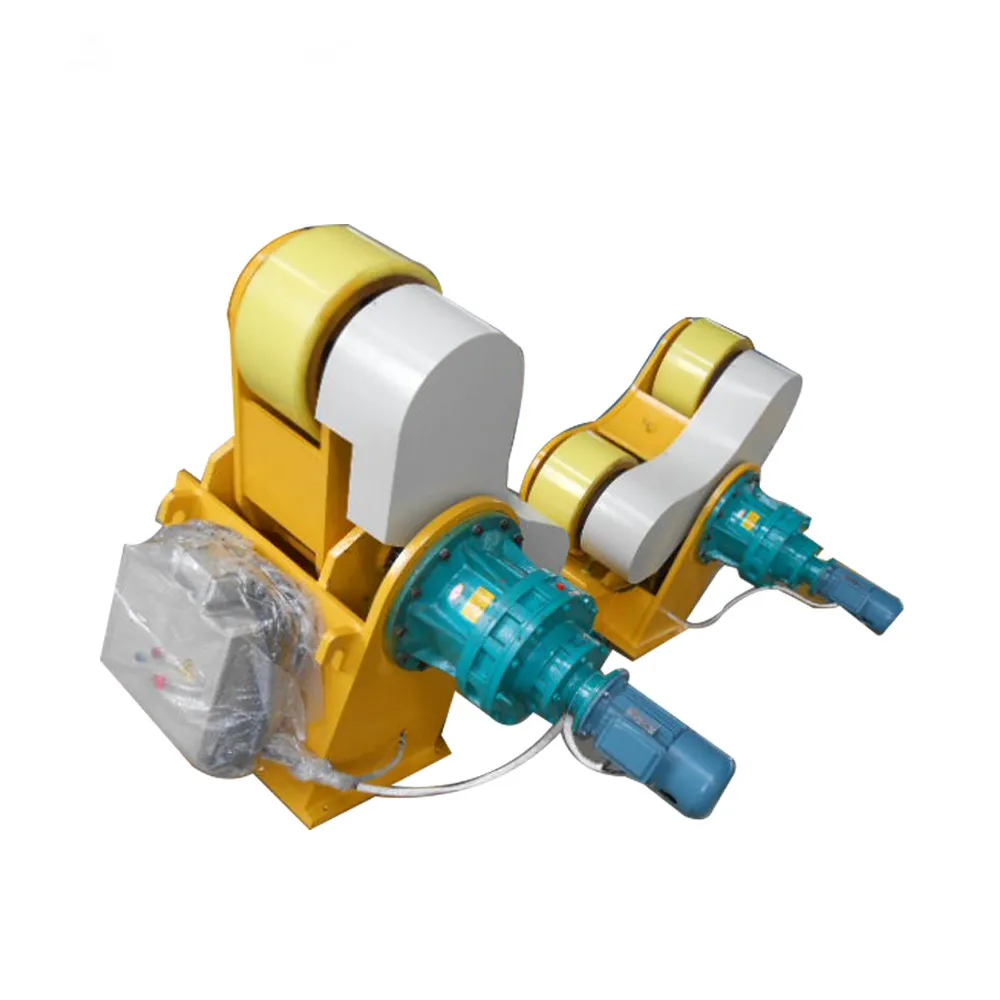

 | The primary part is composed of foundation, motor, transmission gear, swing arm and wheels |
 | The secondary part is composed of foundation, swing arm and wheels |
 | 1.According to the customers requirements, the rollerhas three forms: sub-rubber tire roller steel wheelssteel and plastic combination wheel; it can jointcontrol with other equipments. |
| 2.The control of the whole machine isPLC, AC variable frequency speedregulation, ensures the equipmentreliability. | |
| 3.Double-motor driven, the roller driveradopt Planet-cycloid Reducer orworm reduction gear mode. | |
| 4.Self-aligned Welding turning roller can adjust the center distance by reserved screwholes or lead screw in order to adapt todiameter of work piece. | |

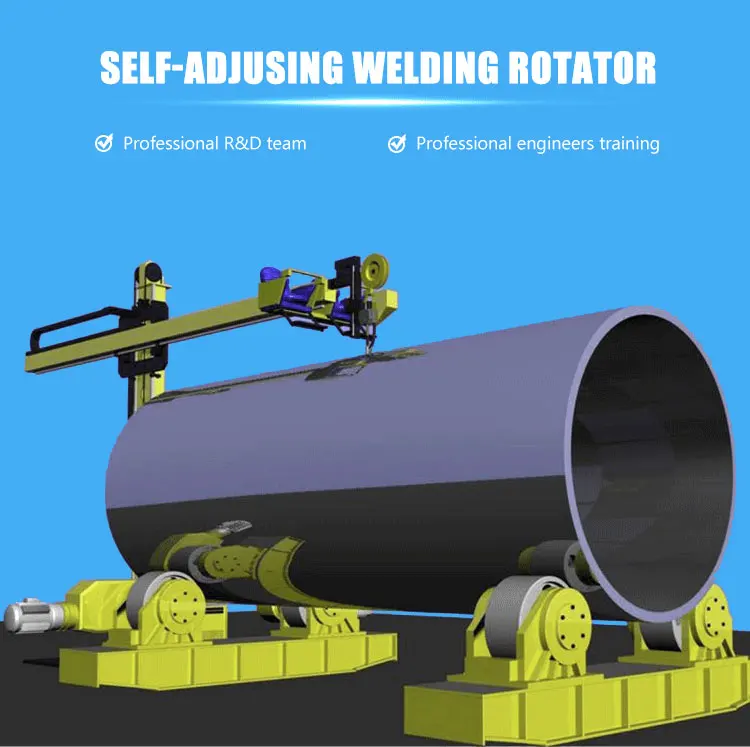

| 5.The roller is mainly used for the welding Polish rubber liningand assembly of cylindrical roller shell, but also can assem-bly and weld together with other tooling for the cone inequ-ality diameter rotary. |
