Scraped surface heat exchanger plate in heat exchanger for beverage machine
- Category: >>>
- Supplier: Shanghai Qingji Beverage Machinery Co. Ltd.
Share on (62369016665):
Product Overview
Description
Product Description

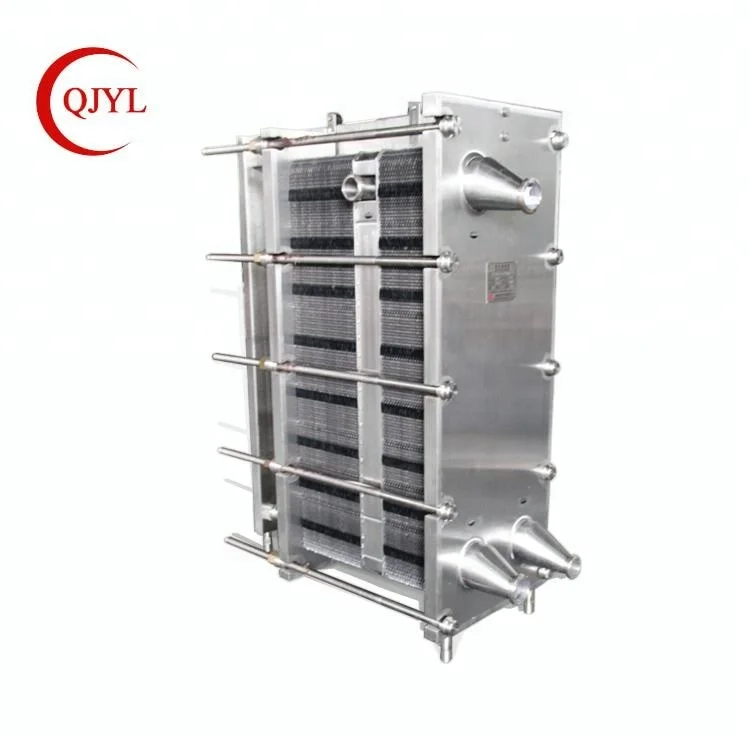

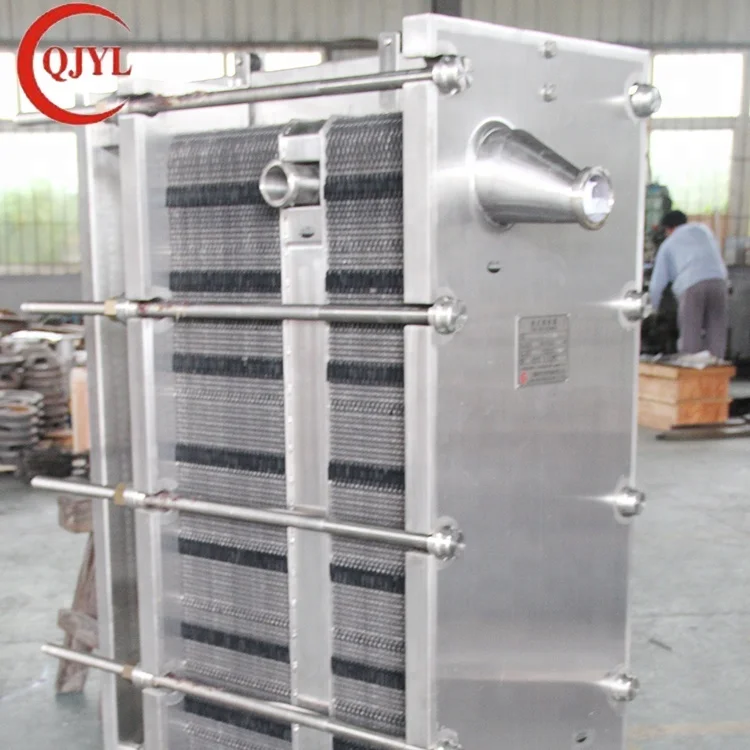

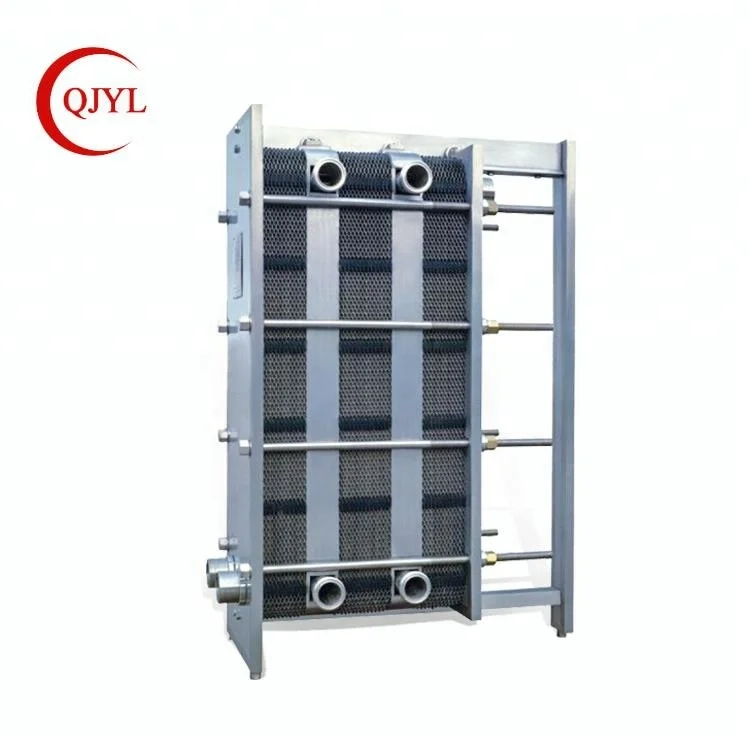

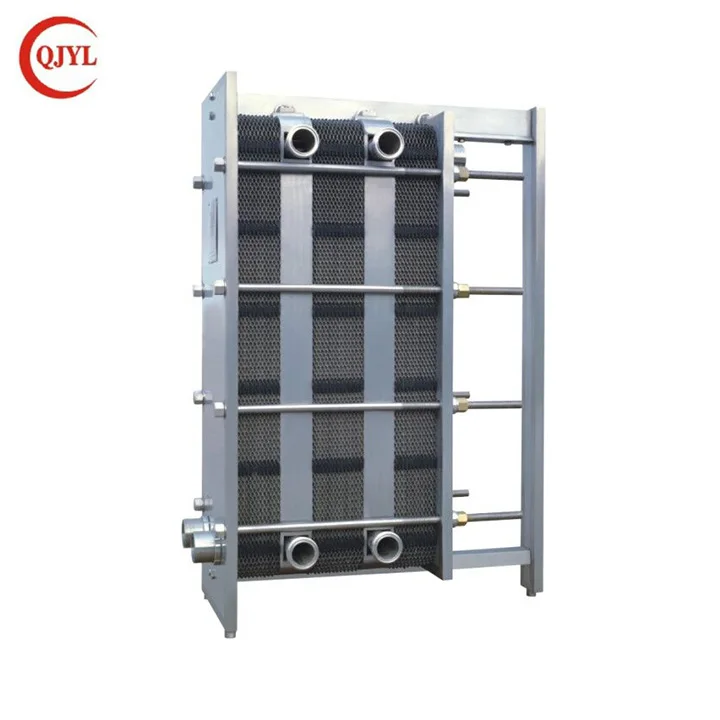

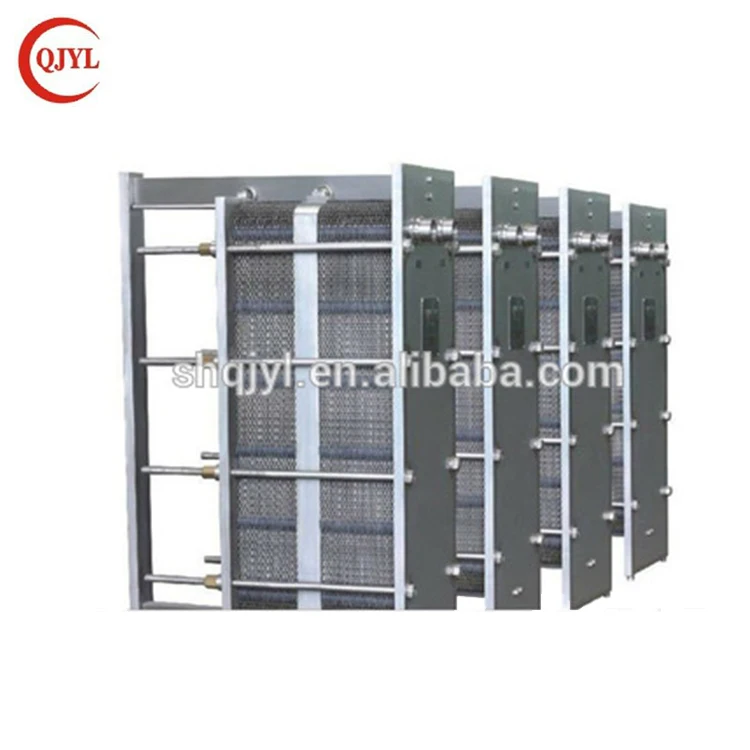

Scraped surface heat exchanger plate in heat exchanger for beverage machine
| Plate heat exchanger | |||||||
| Type | Malt extract capacity(t/h) | Cooling consumption (kacl/h) | Malt extract inlet and outlet diameter(t/h) | Ice water inlet and outlet diameter(t/h) | Heat exchanger area(m2) | Outine dimension (mm) | weight (kg) |
| BR4-J-70B | 20 | 1740000 | DN100 | DN100 | 70 | 150×56×160 | 900 |
| BR6-J-105B | 30 | 2610000 | DN120 | DN120 | 105 | 140×69×180 | 1450 |
| BR6-J-140B | 40 | 3480000 | DN120 | DN120 | 140 | 150×59×180 | 1700 |
| BR6-J-175B | 50 | 4350000 | DN120 | DN120 | 175 | 160×69×180 | 1950 |
| BR8-J-210B | 60 | 5220000 | DN200 | DN200 | 210 | 240×96×191 | 2750 |
| BR8-J-245B | 70 | 6090000 | DN200 | DN200 | 245 | 260×96×191 | 3300 |
| BR10-J-280B | 80 | 6960000 | DN225 | DN225 | 280 | 240×107×200 | 3550 |
| BR10-J-350B | 100 | 8700000 | DN225 | DN225 | 350 | 260×107×200 | 3880 |
| BR13-J-420B | 120 | 10440000 | DN250 | DN250 | 420 | 260×115×210 | 4420 |
Related products
Certifications
Company Information
Packaging & Shipping
Our Services
1)pre-sale service:
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
2)After-sale service:
1. We provide long-term after-sale service.
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with machine.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine
3) MOQ ?
Our MOQ is 1 set machine.
