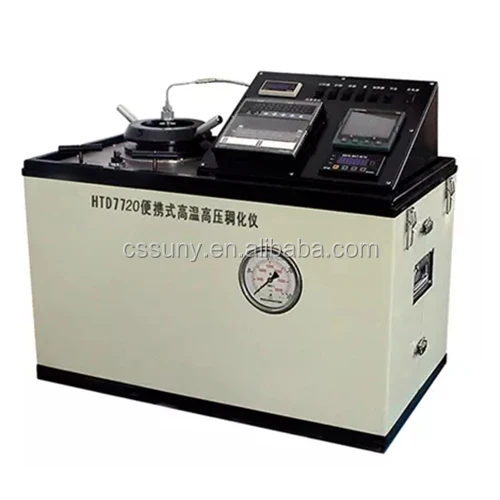

Item: Portable High temperature high pressure benchtop cement consistometer
Model: HTD7720

7720 has compact design, heats and pressurizes rapidly. Cylindrical slurry cup and fixed mixer are assembled together and put in pressure autoclave. Maximum working pressure is 137 Mpa (20,000psi). Maximum temperature is 204°C(400°F). Air-Driven Hydraulic Pump provides pressure to autoclave. Hydraulic pressure system is composed to fuel tank, piping system, valve and filters.Heat the autoclave through 3000w build-in pipe heater.Programmable temperature controller controls rise speed of temperature automatically. When slurry reaches expected temperature, controller will keep set temperature. Air-Driven Hydraulic Pump pressurizes. Pressure relief valve and Air-Driven Hydraulic Pump can control pressure. Slurry cup turns at constant speed of 150±15rpm through magnetic drive. Driving torque is passed into permanent magnet inside the autoclave from a group drive magnet outside through rack. Permanent rare earth magnet can guarantee high torque and long time magnetic field. Viscosity of cement slurry will be recorded on a form through potentiometer in pressure reactor. There’s a standard torsion springs in potentiometer to prevent rotary force in mixer. Rotary force is in proportion to cement slurry’s consistency. All 7720 series slurry’s temperature and consistency are recorded on a paper printer. Automatic consistometer pressure passage is recorded on a paper printer too and with computer data capture interface.

Feature
Completely meet American Petroleum Institute norm 10 requests

The number type intelligence temperature the controller and number temperature show

The machine body adopts a special metal alloy manufacturing

The pressure is the biggest to reach to 137 Mpa(20000PSI)

The temperature is the biggest to reach 204℃(400℉)

The machine is hard enduring use convenience

Adopt High-Power heating apparatus

The magnetic force drives device and lower to support workload

The machine body has to cool off device and quickly cool off a machine body

The body is sealed by the general O-ring to compress the sealing

The factory headway goes cement syrup test to ensure to use

Draw temperature and dense degree with a type record instrument number

Have a calculator to connect, can calculator signal the line link electric outlet at the behind up

Specification

No.	Model	HTD7720
1	Maximum operating temperature	204℃(400℉)
2	Maximum working pressure	137MPa(20000PSI)
3	Heater power	3000W
4	Mixing speed	150r/min
5	Scope of consistency	0–100BC
6	The pressure medium	Special oil for the HPHT Consistometer
7	Consistency resolution	1BC
8	The input voltage	AC 220V  50/60HZ
9	The input power	4000 W
10	Environment temperature	0–50℃(32–120F)
11	Compressed air	400–700 KPa (50–100PSI)
12	The cooling water	600 KPa (20–80PSI)
13	Cooling water connection	1/4NPT
14	Net weight / Gross weight	120kg/135kg
15	Overall dimensions	680*680*600mm
16	Packing size	780*480*780mm
