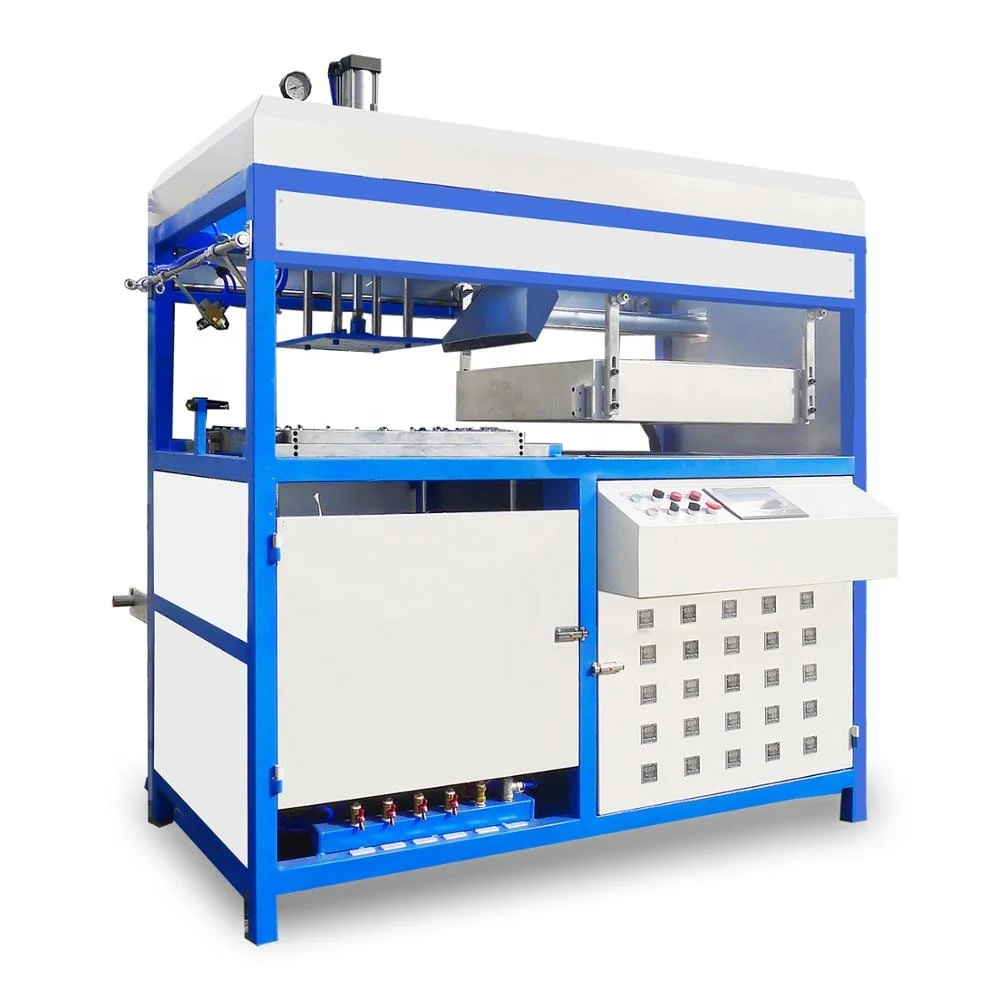

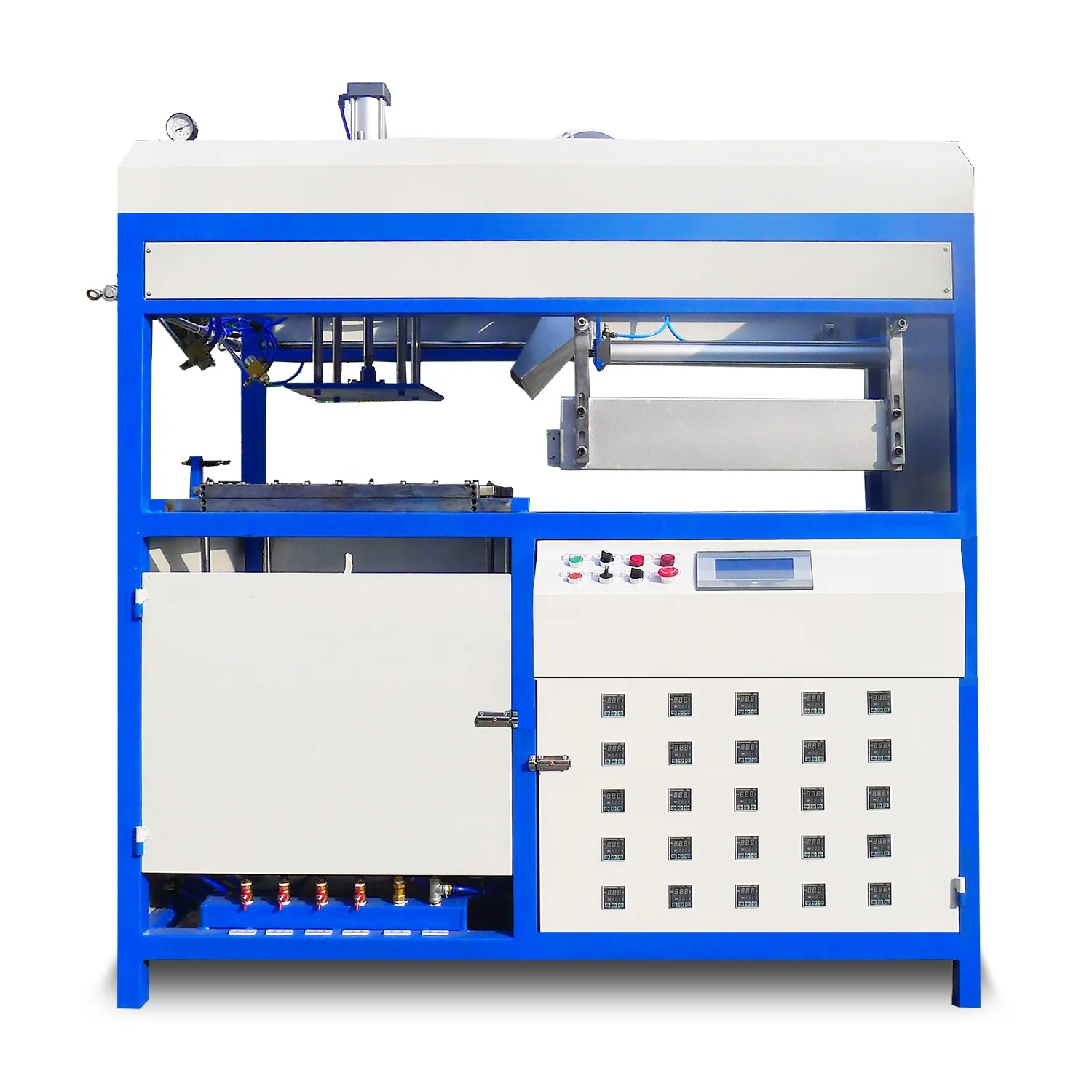

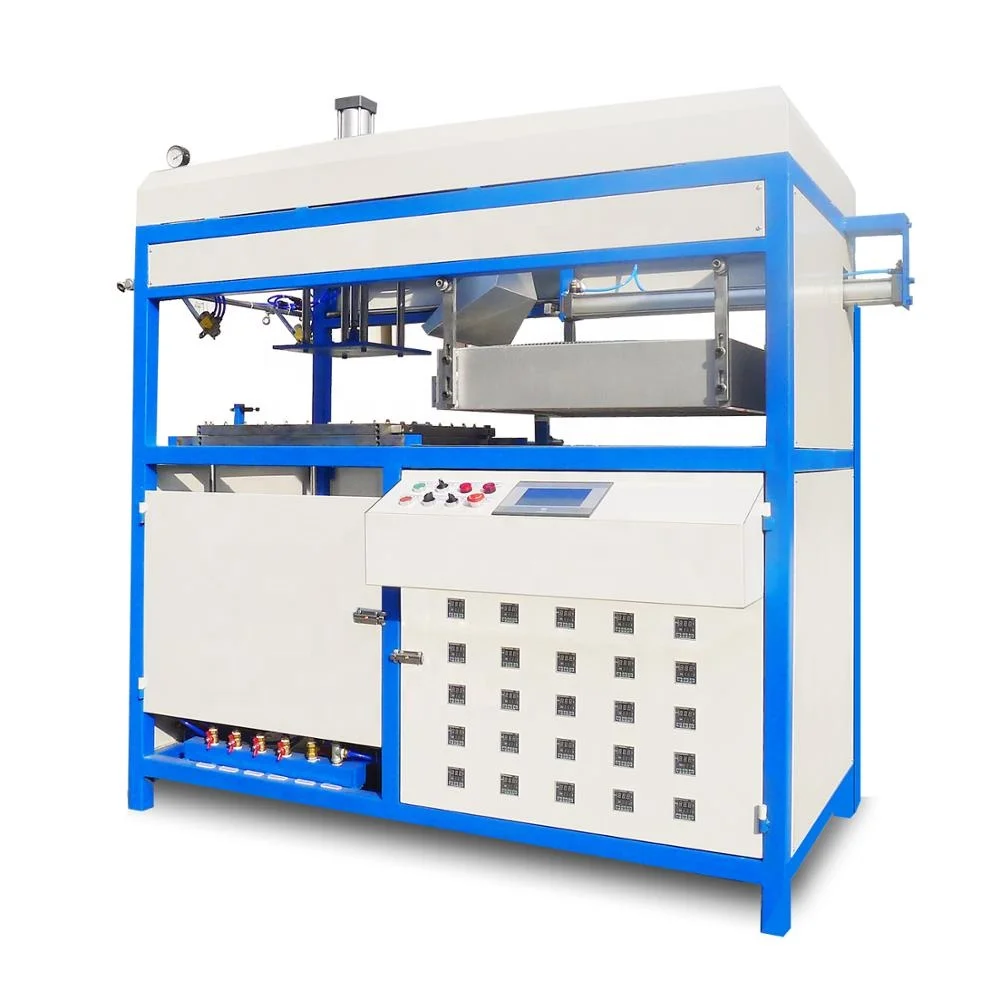

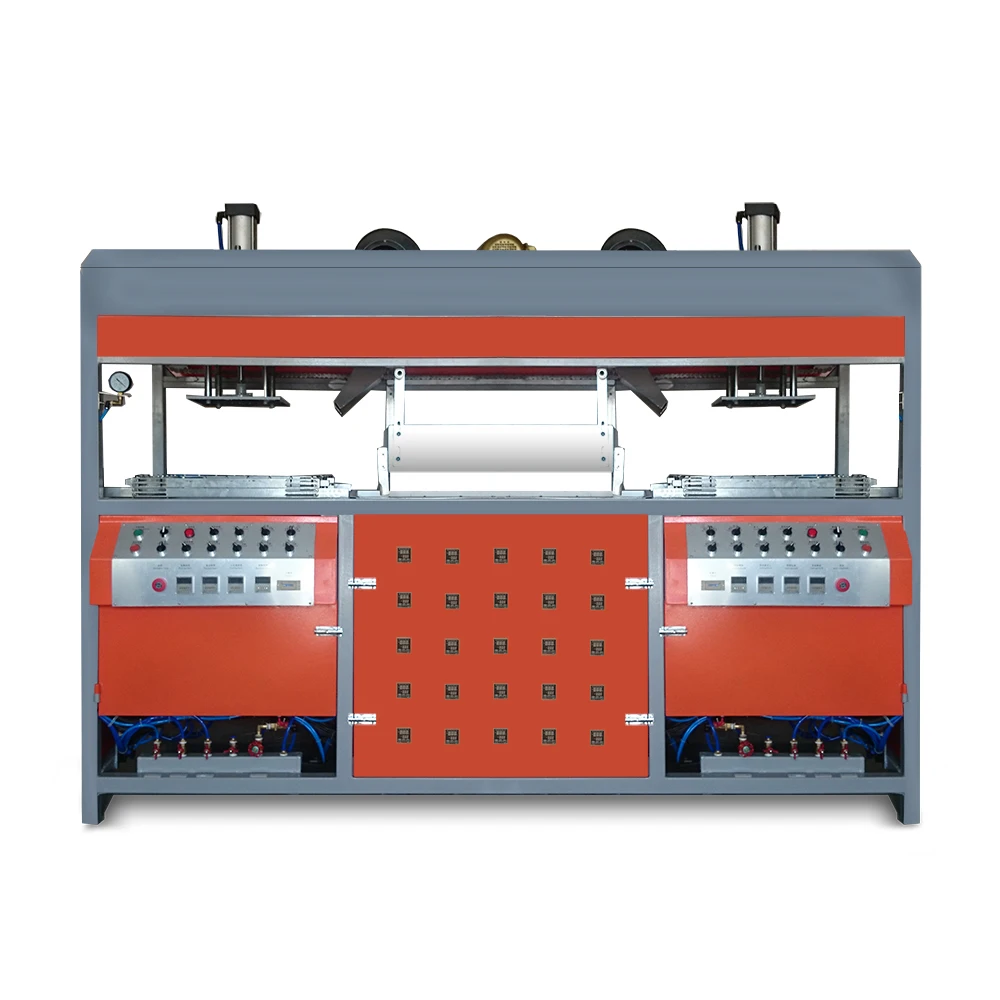

Double Station semi automatic blister vacuum thermoforming machine for chocolate/food/mushroom tray
- Category: >>>
- Supplier: Shenzhen Huaxiang Mechanical Equipment Co. Ltd.
Share on (62369076624):
Product Overview
Description
Related Products
Product Description

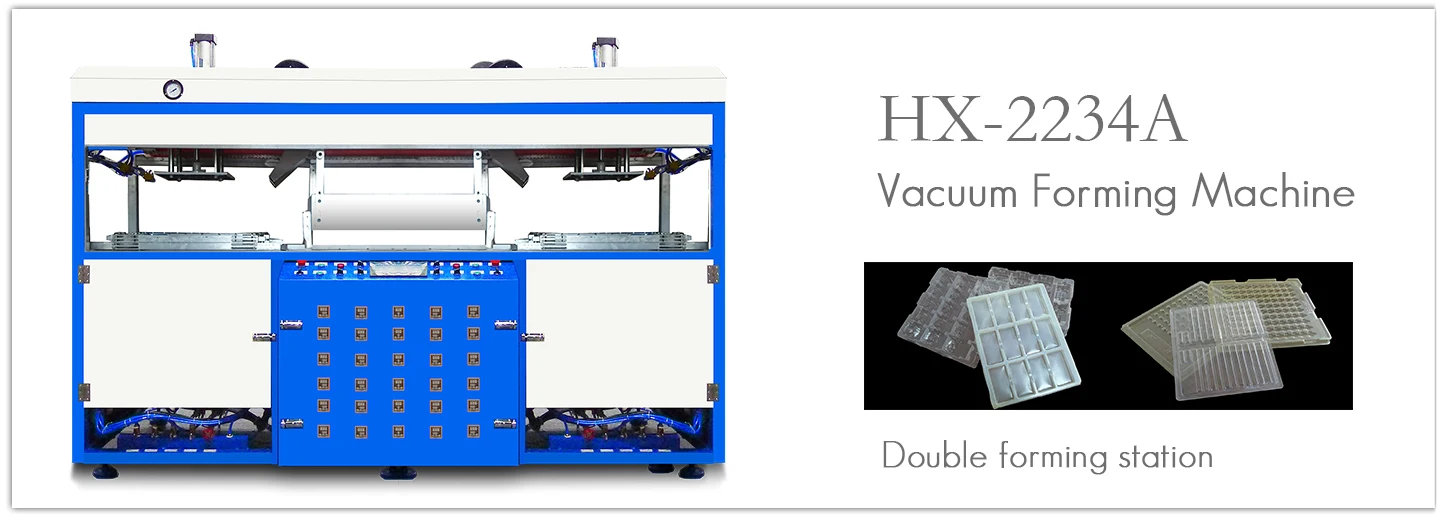

HX-2234 Series Double-station Semi-automatic Vacuum Forming/Thermoforming Machine
One single heating oven with two work station, HX-2234 is a new price-performance ratio for automatic production class machinesThe
reform can save electric power effectively, shorten reclaiming time of invest, reduce operating and equipment cost greatly and
then develop enterprises frugally.
Application
Thermoforming differs from injection molding, blow molding, rotational molding and other forms of processing plastics. Thin-gauge thermoforming is primarily the manufacture of disposable cups, containers, lids, trays, blisters, clamshells, and other products for the food, medical, and general retail industries.
Types of molds:
Wood Patterns;
Cast aluminum Molds;
Machined aluminum Molds;
Composite Molds;

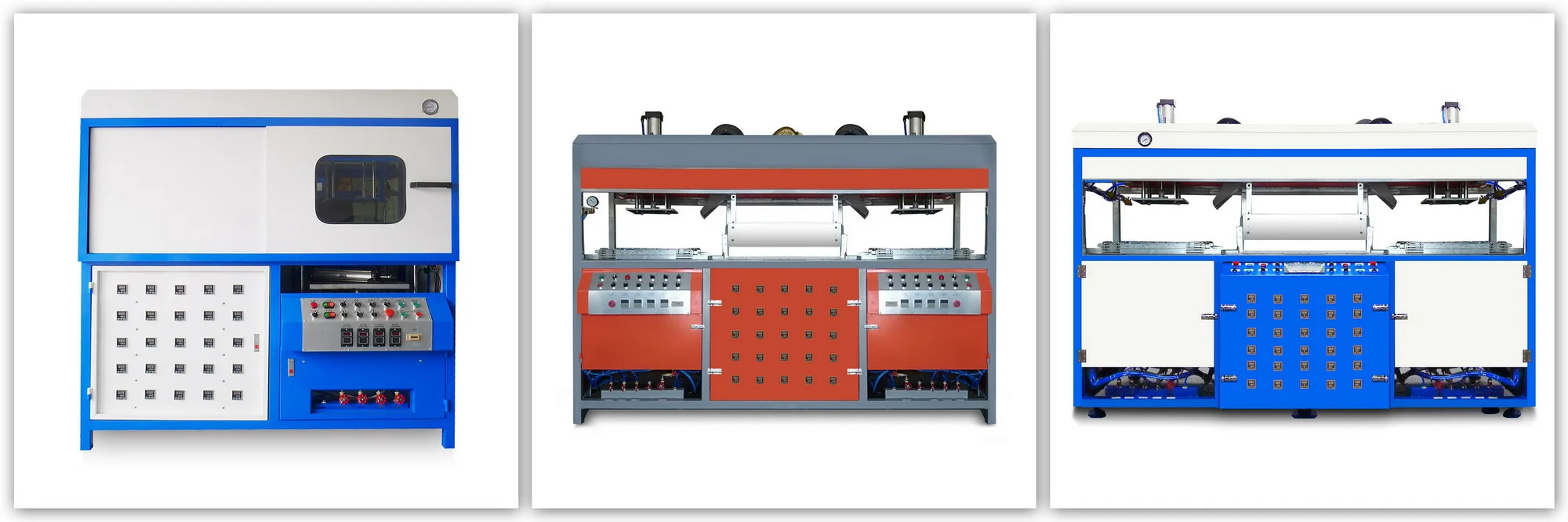

Parameter
HX-2224B PLC CONTROL
HX-2234B Power Save
HX-2234A HIGH CAPACITY
Model | HX-2224B | HX-2234B | HX-2234A | ||
Forming Station | Single | Double | Double | ||
Forming Length (mm) | 610 | 610 | 610 | ||
Forming Width (mm) | 560 | 560 | 560 | ||
Roll Material width | 610 | 610 | 610 | ||
Heater(pcs) | 25*650w | 25*650w | 25*650w | ||
Heating Power (Kw) | 16.25 | 16.25 | 16.25 | ||
Vacuum Pump(M³) | 40 | 40 | 40 | ||
Cooling Fan(pcs) | 1 | 2 | 2 | ||
Spray Gun(pcs) | 2 | 4 | 4 | ||
Upper Mold | ● | ● | ● | ||
Digital tempetature control | ● | ● | ● | ||
Pneumatic oven | ● | ● | ● | ||
PLC Control | N/A | N/A | ● | ||
Forming Width adjustable | N/A | N/A | N/A | ||
Machine Weight(Kg) | 350 | 600 | 650 | ||
Machine Size (mm) | L1700×W1100×H1700 | L2600*W1200*H2100 | |||
Material | PP,PS,HIPS,PE,PET,PVC,ABS,ACRYLIC | ||||
Material type | Sheet / roll, thickness:0.1-2.0mm | ||||
Function:
Ceramic Heaters with Full Temperature
25 Independently Controllable Heating Zones
Pneumatically Powered Clamping Frame Mold
40m³ Vacuum Pump
Powerful Cooling Fan
Pneumatic Oven, drive automatic
Vacuum Receiver Tank
Vacuum Flow Regulator
Vacuum and Pressure Gauges
Digital Timer
Digital tempetature control
Extra Function for HX-2234A
PLC Control
Programme Memory(apolegamic PLC control )
Features:
1) Digital timer with audible warning helps achieve consistent cycle times.
2)According to consumer's need,PLC control available.
3) programme memory to recall heater profile and timing settings for each project.(PLC type)
4) 25pcs ceramic infrared heating boards which can be controlled separately, suit for different size or different thickness
material.
5) 25pcs Solid state voltage regulators, control heating boards simple and visualized.
6) Large-scale cooling fan which can cool the products quickly.
7)Cooling system which suit for thick material.(optional)
8) Manual and Semi-auto style.

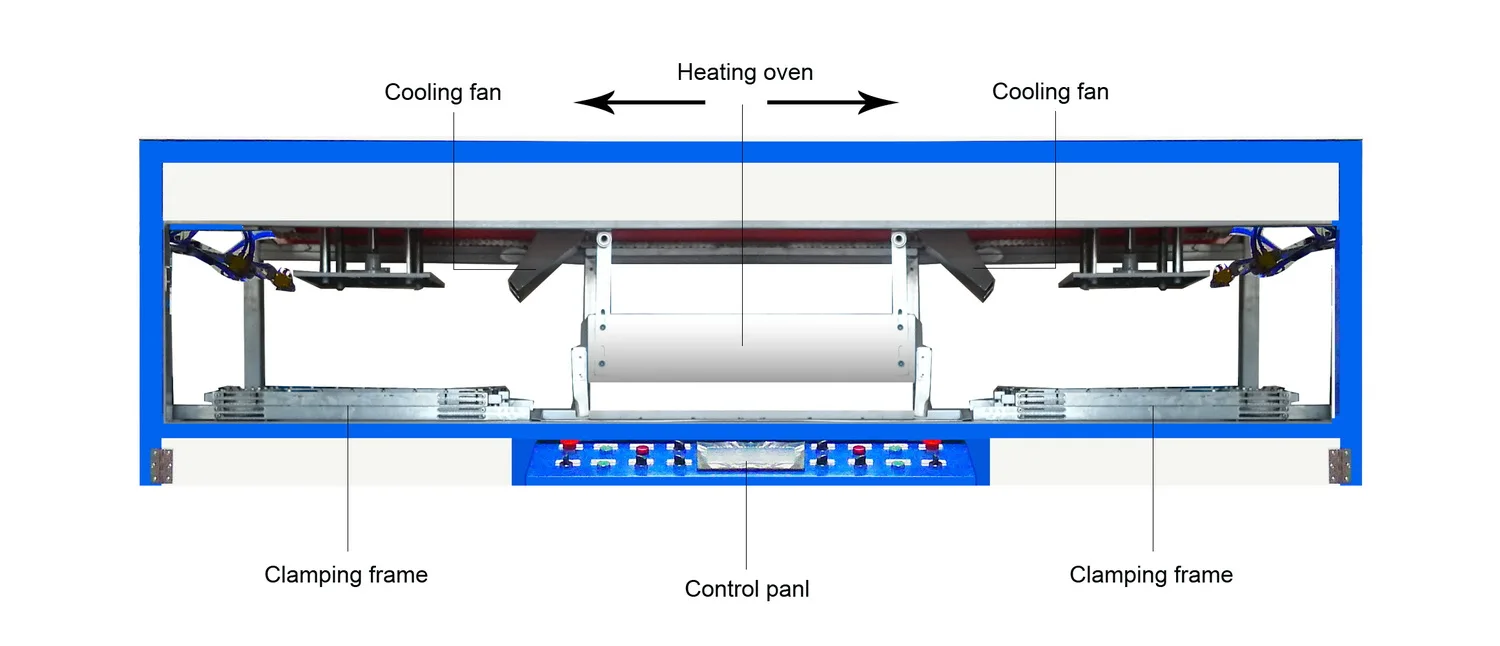

Forming part

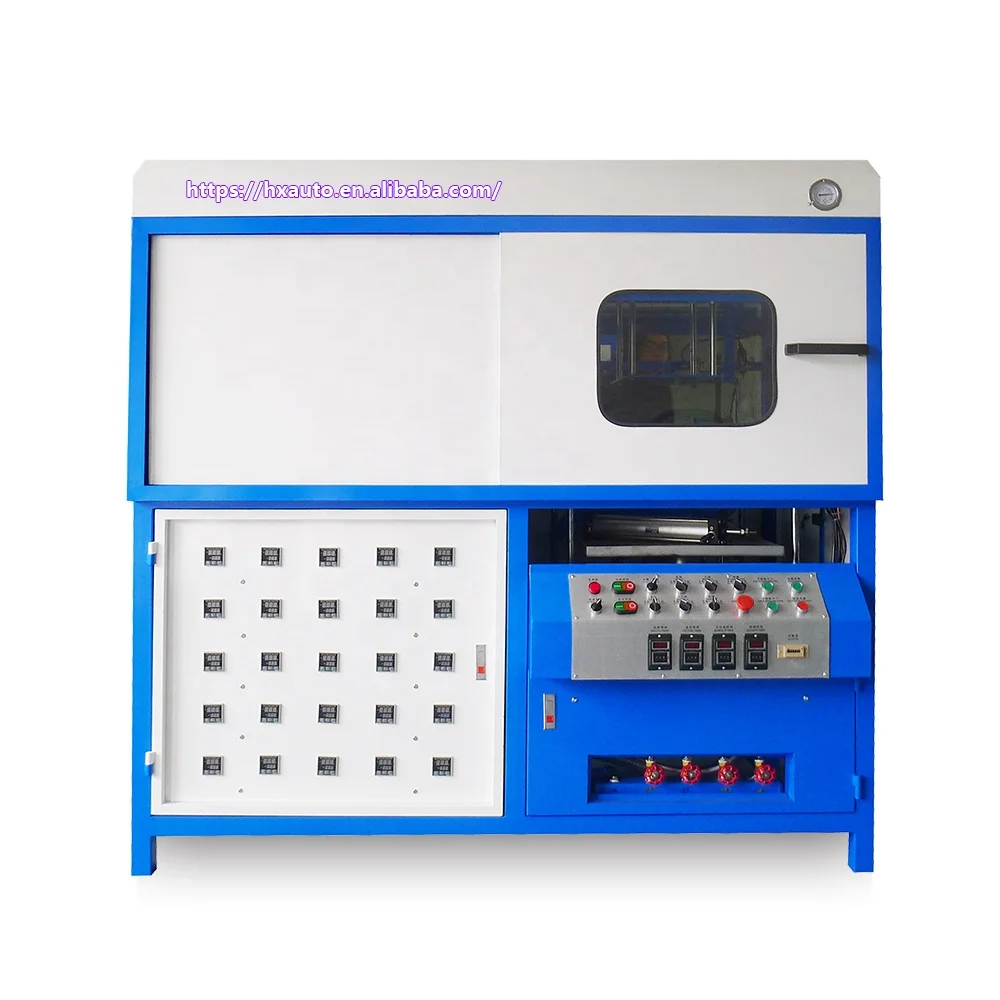

Semi-Automatic Vacuum Forming Machine. HX-2224 is equipped with a max. forming area of 610 x 560 mm.

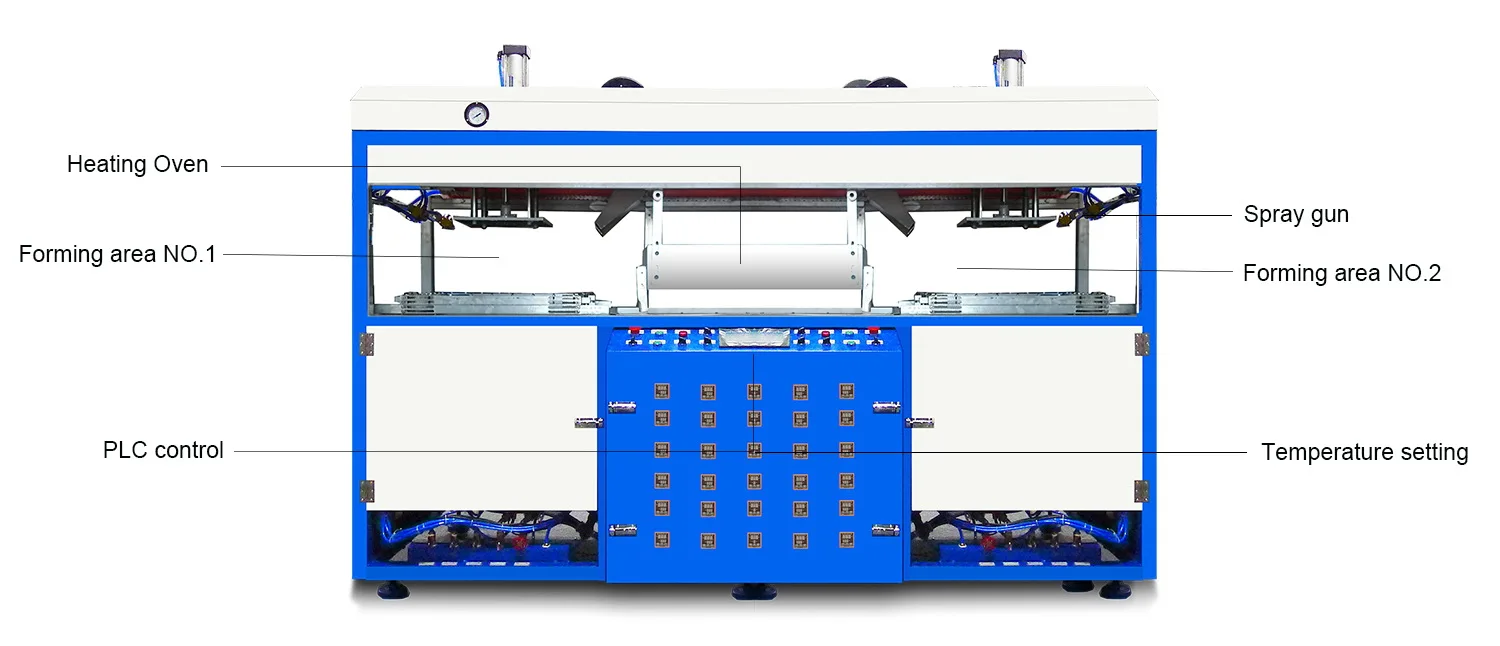

Detailed Parts
Industrial cooling fan
Name: cooling fan
Brand: HUAXIANG
Original: CHINA
Compared with other types of engine's cooling fan-driving system, our cooling system is more reasonable;
Electricity box
Brand: CHNT,OMRON
Original: Chinese,Japanese
The switch, electricity meter of the meter box are set in separate area;
The floor box provides a plurality of facilities, such as vacuum and electricity;
Japanese and Germany accessories
Ceramic heater/oven
Name: Heating system
Original: Germany or Chinese(Optional)
25 pcs Ceramic Heaters;
Power:16kw or 19Kw (every 0.65kw);
Heater size:12cm*12cm;
Save 10% power compare with competitors;
Temperature control
Name: Digital temperature or micro controller
Brand: AOYI
Original: Chinese
Digital temperature controller convenient, high precision ;25 Independently Controllable Heating Zone

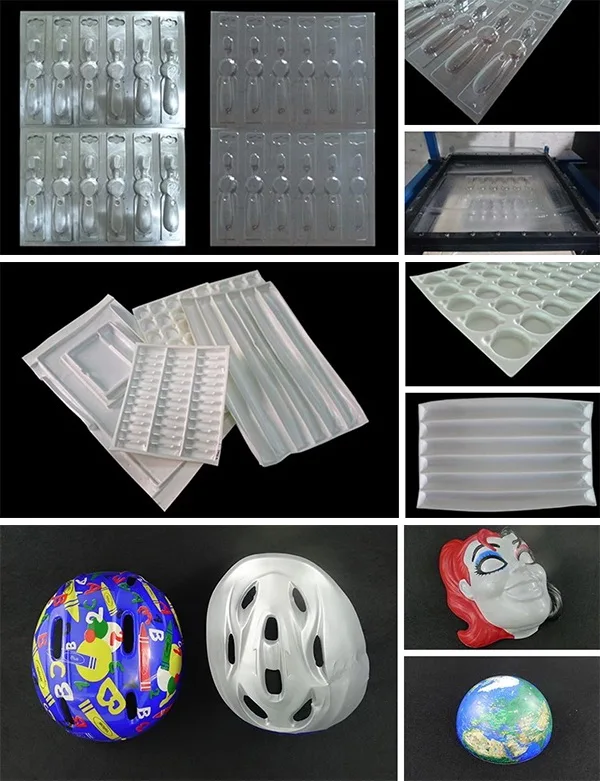

Sample
Packing & Delivery

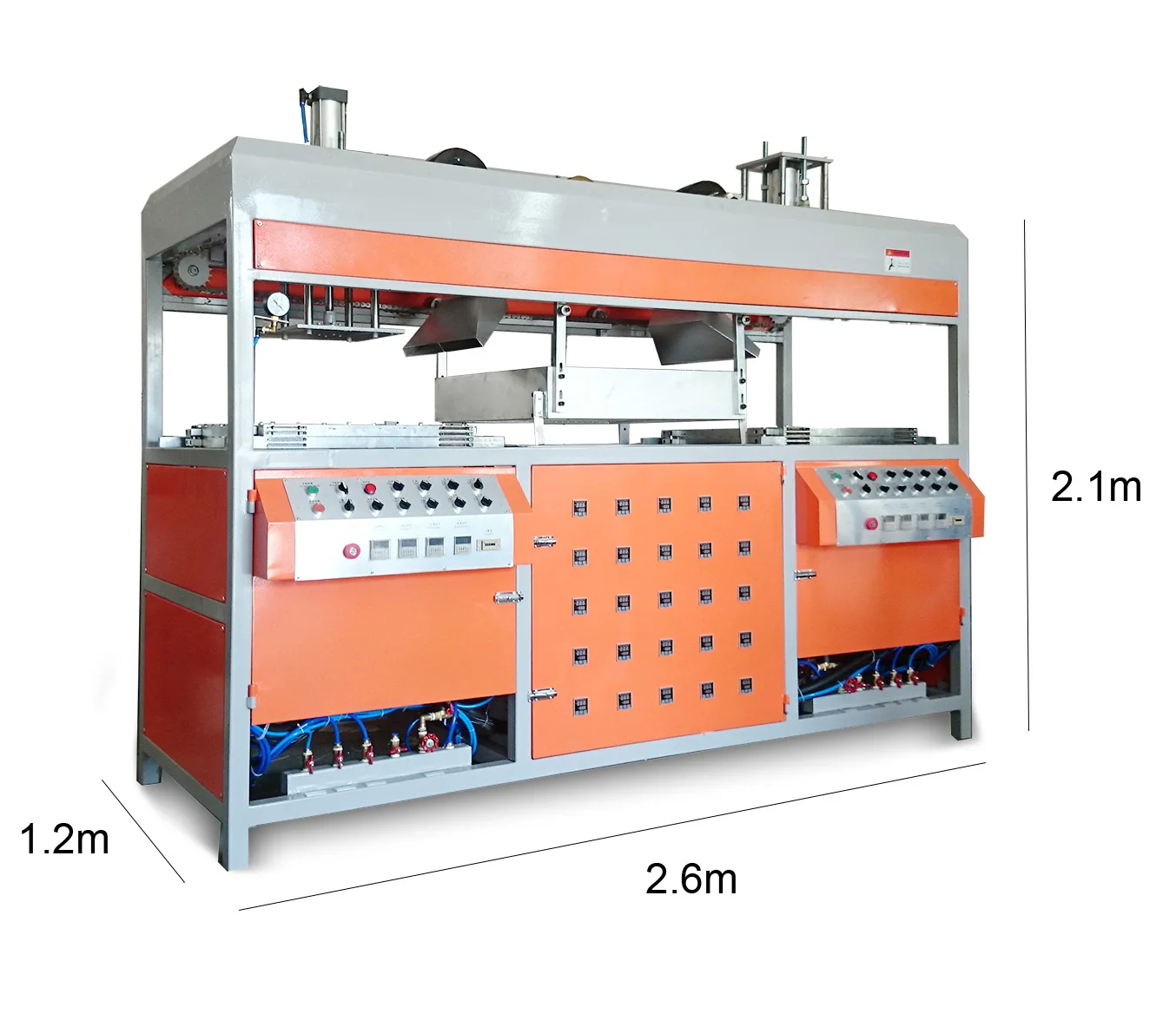

SIZE
1) The machine overs an area of 3m²;
2) Requires 20m² of space to place ;
3) In the open air environment;
4) Weight: 600-650kg
Packing
1. Wooden box or wooden frame, box: 30 USD/CBM, wooden frame: 15 USD/CBM;
2. Woodwork will be fumigated in many country;
3. If container too tightly, we only use PE- film for packing or pack it according to customers special request.
4. Machines will be Split to facilitate placement.

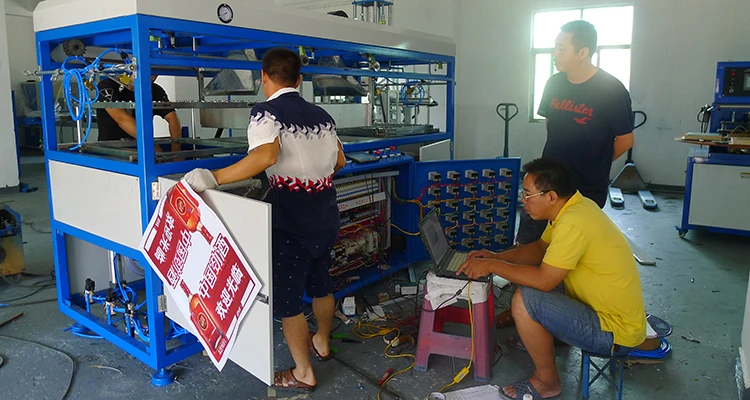

Our Factory
HUAXIANG is a diversified export-oriented enterprise integrated with technology, industry and trade. established in 2005, is the professional enterprise that specializ in the production of Vacuum Forming/Thermoforming Machine. Our machine are used a lot in plastic forming,plastic packaging field;
In order to help you choose the most suitable machine, please try to reply my questions below, thanks for your cooperation.
Q1: What about your material?
Q2: The size of your sample; length, width and thickness?
