waste plastic film bag cans wood pallets lumps blocks shedder single shaft shredder machine for sale

Product Overview

Description

Wwaste plastic film bag cans wood pallets lumps blocks shedder single shaft shredder machine

Brief introduction:

Plastic shredder is mainly used in shredding materials that are quite thick and tough such as large plastic pipes and lumps, shredder used close packed structures with hydraulic feeding system.it’s featured as advanced equipment ,strong crushing capacity and high output.



Working principle:

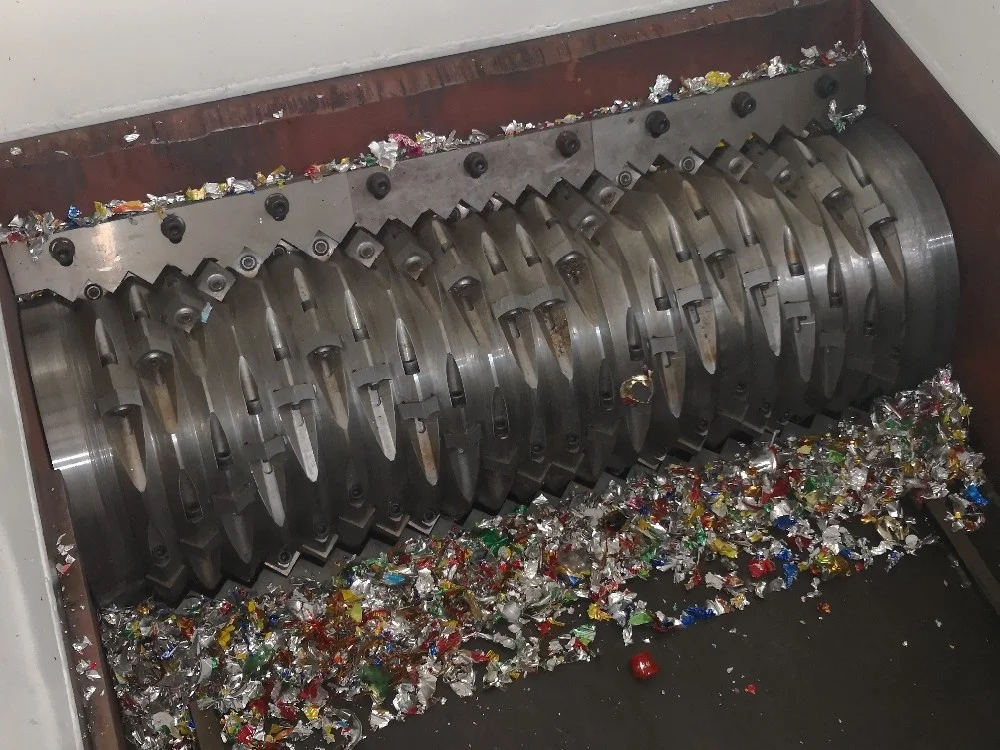

The main shaft keeps running at high speed, and there are many fixed robust knifes on it which can tear up the plastic blocks easily when the cart which is driven by the hydraulic system pushes the blocks froward. This shredder is really high efficient and vigorous. An invincible warrior to destory any form plastic material.



Main features:

1. This machine is mainly used to crush big size plastic products ,such as headpiece material, thick-walled large diameter plastic pipe, film roller, paper, fibreand others.



2. The rotary blade seat and blade can be disassembled.which makes it easier to clean and maintain.



3. The rotary bladeadopts V shape installation so that the blades can cut material evenly, It can decrease the noise and energy consumption.



4. Each rotary blade has 4 same cutting knife edge, when one side becomes dull, you can change  another side into using. which prolongs the service time of rotaty blades.



5. The main shaft is driven by gearbox, which supplies steady running and powerful speed.



6. The material keeps being pushed foward by the hydraulic system, which ensures the raw material can be crushed thoroughly and efficiently.



7. PLC program control system, automatically rotating,shut down, safe and reliable running of the machine. The blade can rotate in opposite direction.



Main technical parameter:

Model	DZS1-600	DZS1-800	DZS1-1000
Main motor power(kw)	22or30	30or37	37or45
Pusher's power(kw)	1.5	2.2	2.2
Rotary blades qty.(pcs)	28	38	48
Fixed blades qty.(pcs)	2	2	2
Gyration dia.(mm)	Φ252	Φ400	Φ400
Rotating speed(r/m)	90	85	80
Capacity(kg/h)	400-600	500-750	600-900
Overall dimension(mm)	1800*1215*1850	2700*1700*2350	2700*2000*2350
Weight(kg)	2000	3200	3800



Pictures for reference:





Of course, We accept customization, the most suitable shredder will be desgined for you. below are another type of plastic shredders FYI.







For more details of this plastic single shaft shredder, Welcome to email,call or visit us at any time.
