GS LS/S Range 6~10 NM IP68 marine Solar powered aids to navigation light buoy lantern
- Category: Lanterns >>>
- Supplier: Shenzhen Green Source Light Equipment Co. Ltd.
Share on (62369198522):
Product Overview
Description
GS-LS/S Range 6~10 NM IP68 marine Solar powered aids to navigation light buoy lantern
Model type:GS-LS/S
Product Overviews
Product Overviews
GS-LS/S LED Solar Powered Marine Lantern used advanced structure design, adopts 4 groups of solar panels and high efficiently, co-operate with solar dedicated battery as power supply.
Advanced power management system will be used to charge the power in a comprehensive protection. In order to save the service life of battery when it is under the condition of short-voltage or over-voltage or its temperature is too high or too low.
The control circuit adopts the micro power control chip, which effectively reduces the static power consumption of the circuit.
Its shell is die casting with aviation aluminum, this material has the specific of light weight and corrosion resistance, which can reduce the weight of light equipment, it is very convenient for installation and transportation.
Lampshade adopt with PC material, which can resist corrosion, anti-UV, anti-shock an so on.
Product Details
Name | Parameter | Name | Parameter |
Type | GS-LS/S | Light Source Life | >100000 hours |
Power Provider | Mono-crystalline silicon solar panel | Optional Emitting Light Colors | Red, Amber Yellow, Green, Blue, White |
Battery Capacity | 12V14AH | Battery Type | Sealed lead-acid battery |
Solar panel power | 6W x 4pcs | Solar panel voltage | 16.5V |
Power Consumption | ≤2W | Vertical Divergence | >7° |
Visual Range | 6~12 NM | Horizontal Out-put | 360° |
Light Source | LED | Overall Size(mm) | 260×260×420 mm |
Working temperature | -40℃~70℃ | Installation Size(mm) | Pitch circle 220 mm distributed 4M12 holes |
Storage temperature | -40℃~70℃ | Wind-speed Ability | 80m/s |
Sun Switch Illumination Threshold | 300LUX±100LUX | Working mode | Customer specified light characteristics |
Continuous Burning Time in rainy days | >20 days (12 hours a day) | IP Protection | IP65 |
Weight | 8.5kg | Light Characteristics | IALA standard 350 lights Characteristics adjustable |

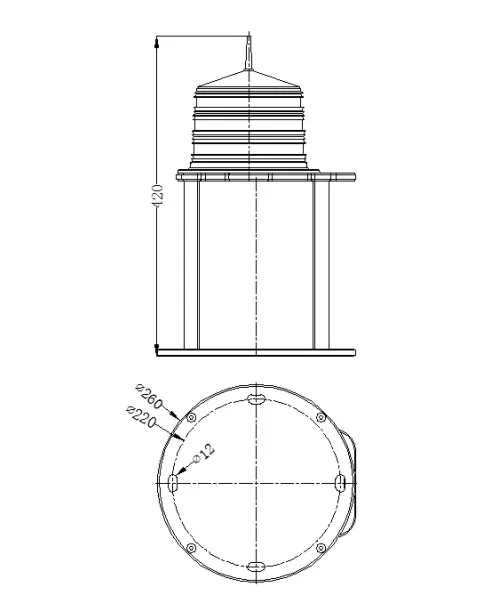

Dimension Drawing
Dimension Drawing
Feedback
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
Q9:How is the packing?
Every 4pcs buoy beacon lighting is packed in a carton
